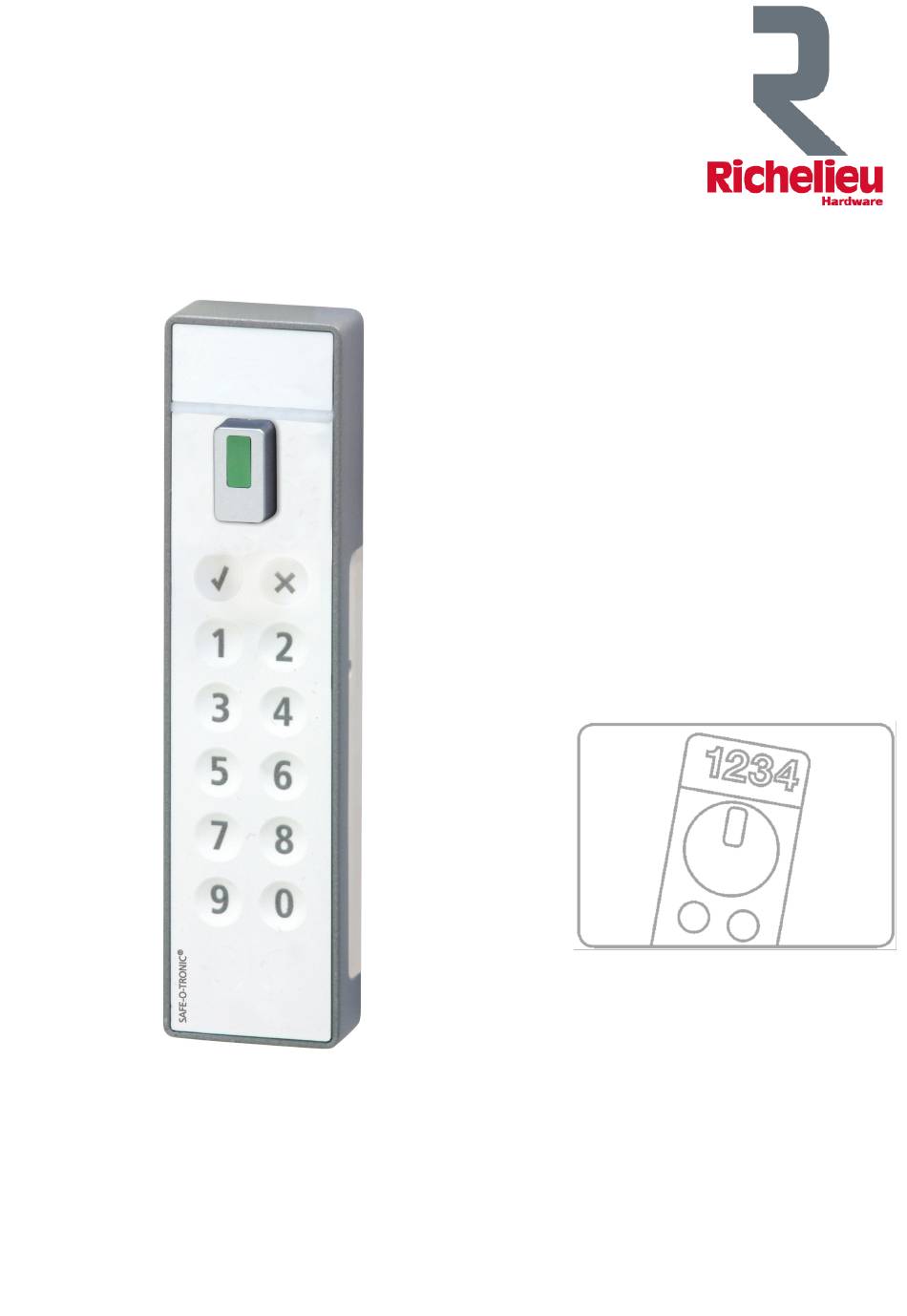

SAFE-O-TRONIC
access
Electronic Identification and Locking System
Via Pin Codes
Item No. 6330084130
Manual
6330084130
english
®
SAFE-O-TRONIC
access Cabinet Lock
1
www.richelieu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFE-O-TRONIC access and is the answer not in the manual?

Questions and answers

Summary of Contents for Richelieu SAFE-O-TRONIC access

  • Page 1 ® SAFE-O-TRONIC access Electronic Identification and Locking System Via Pin Codes Item No. 6330084130 Manual 6330084130 english ® SAFE-O-TRONIC access Cabinet Lock www.richelieu.com...
  • Page 2: Notes On This Manual

    The compilation of the information in this manual is carried out to the best of our knowledge. Richelieu does not assume any liability for the correctness and completeness of the details in this manual. In particular, Richelieu cannot be held liable for consequential damages on account of faulty or incomplete details.
  • Page 3: Table Of Contents

    Further information ......................15 LED display ..........................15 Troubleshooting / operating errors ....................16 Replacing the battery ........................16 Battery monitoring / battery alarm ....................16 Maintenance and care ........................ 16 Technical Data ..........................17 Drilling template .......................... 18 www.richelieu.com...
  • Page 4: Control Elements

    Capacity keypad OK key: Finish of Code entry √ Abort key: Code entries or programming operations can be rejected by pressing the abort key Keys 1, 2, 3, 4, 5, 6, 7, 8, 9, 0: Number keys for Code entry www.richelieu.com...
  • Page 5: Lock With Mounting Components

    6 Bush for fastening the lock to the door for door thickness from 10 mm to 18 mm 7 Bush for fastening the lock to the door for door thickness from 1 mm to 9 mm 8 Screw for fastening the lock to the door 9 Rotary knob www.richelieu.com...
  • Page 6: Installation Information

    1. Remove the screw (5). 2. Using a TG 10 screwdriver (item no. 358008910) to loosen the fastening screw for the rotary knob by inserting through the threaded hole for the screw (5). 3. Fasten the new rotary knob in reversed order. www.richelieu.com...
  • Page 7: Setting The Rotational Direction For Locking

    If the lock is installed in a position where by the rotary knob is not at the top (e.g. horizontal installation), the grommet must be turned accordingly. If the rotary knob is to be turned to the right for locking, the grommet must be attached to the lock in such a way that the “R” opening points downwards. www.richelieu.com...
  • Page 8: General Information

    1 and 2. If the lock is locked and both master codes unknown, the lock cannot be reset or open. In this case, please note that Richelieu will not accept any returns or claims for this product.
  • Page 9: Operation

    The TestCode can be used to carry out a simple SAFE-O- TRONIC 6330084130 functionality check. ® Locking and opening using the TestCode Press the 0 key ► Afterwards press the OK key ► √ Turn the knob ► Notice: The TestCode is retained until initial operation. www.richelieu.com...
  • Page 10: Initial Operation

    Notice: 3, 5, 1, 9, 7 is only an example code! Press the OK key ► √ Enter new MasterCode2 one more time ► Press the OK key ► √ Please note: The programming procedure will be terminated automatically if a key is not pressed within approx. 3 seconds. www.richelieu.com...
  • Page 11: Locking And Opening Using Mastercode2

    The user has the possibility to enter a random 4-digit UserCode and lock or open the compartment. Enter the UserCode ► Notice: A four-digit code must be entered! 9, 0, 6, 0 is only an example code! Then press the OK key √ ► Turn the knob ► www.richelieu.com...
  • Page 12: Further Functions

    Press the OK key ► √ Enter new MasterCode2 ► Notice: 4, 8, 2, 7, 3 is only an example code! Press the OK key ► √ Enter new MasterCode2 one more time ► Press the OK key ► √ www.richelieu.com...
  • Page 13: Programming Mastercode1

    Press the OK key ► √ Enter new MasterCode1 ► Notice: 9, 0, 6, 0, 9 is only an example code! Press the OK key ► √ Enter new MasterCode1 one more time ► Press the OK key ► √ www.richelieu.com...
  • Page 14: Opening Using Mastercode1

    MasterCode2. Enter active MasterCode2 ► Notice: 3, 5, 1, 9, 7 is only an example code! Press the OK key ► √ The blocked SAFE-O-TRONIC 6330084130 is now released again for further operation. ® www.richelieu.com...
  • Page 15: Further Information

    MasterCode 1 active LEDs flash together Warning: battery twice replacement is required shortly LEDs flash in turn three Battery must be replaced times immediately; lock can no longer be operated LEDs flash three times MasterReset carried out www.richelieu.com...
  • Page 16: Troubleshooting / Operating Errors

    Only use non-stick, residue-free cleaning agents and disinfectants for cleaning purposes. Do not use any heavy cleaning agents, acids or lyes when caring for the product. Also do not use a pressure cleaner. It is also not permitted to spray-wash the locks, for example using a hose. www.richelieu.com...
  • Page 17: Technical Data

    300 g Housing dimensions incl. rotary knob (H x W x D): 151mm x 38mm x 33mm Colour of housing frame: Similar to RAL 9006 (white aluminium) Colour of the control panel: Black Door thickness: 1 to 18 mm www.richelieu.com...
  • Page 18: Drilling Template

    6330084130 Manual Drilling template Notice: Depending on the printer there can be dimensional deviations when printing this drilling template. Therefore, please remeasure the drilling template before use! www.richelieu.com...
