© 2015 Edge Lighting. All Rights Reserved.

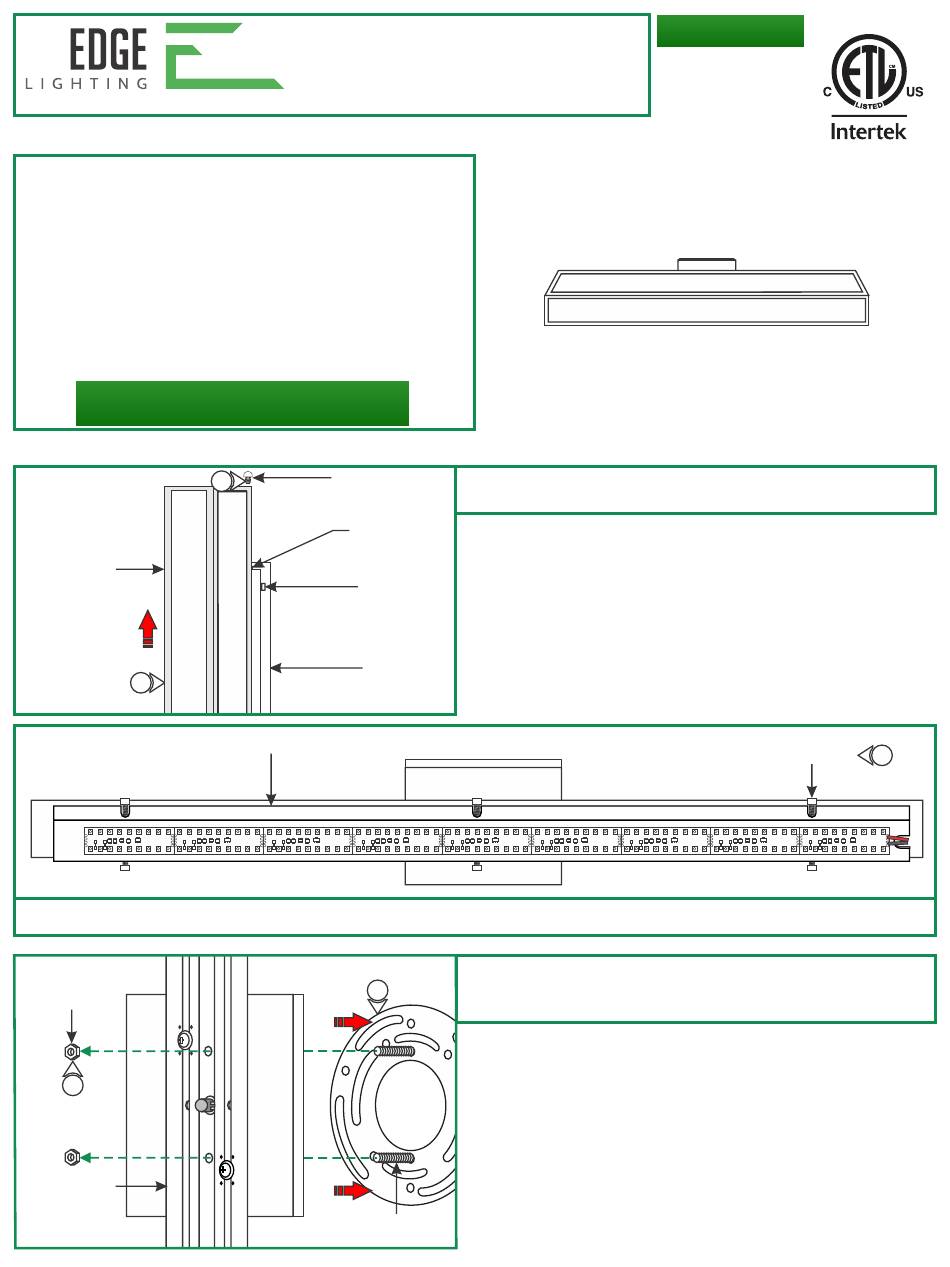

Installation Instructions for
IMPORTANT INFORMATION
- Use this fixture indoors only.
- This product is ETL listed for damp locations.
- This product is wall mounted only.
- This product can mount to either a 4" square junction box
with round plaster ring or an octagon junction box.
- This product can be dimmed with a standard low-voltage
electronic dimmer.
- This product must be installed by a qualified electrician.
- Before beginning any electrical work, ensure that
power to the junction box is turned OFF.
SAVE THESE INSTRUCTIONS!
Disassemble the Fixture
A
SHADE
1
B
2: Remove the LED mounting plate by loosening the six 1.5mm screws using an M3 Allen wrench.
C
NUT
3
BACK PLATE
Greta LED
PHILLIPS SCREW
1
SLOT
SCREW HEAD
BACKPLATE
LED MOUNTING
PLATE
4
MOUNTING
POST
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
info@edgelighting.com
1: Remove the Phillips screw on one end of the shade and slide
the shade off the backplate.
3: Loosen and remove two nuts from the threaded posts
4: Remove the fixture back plate from the mounting plate.
904-GRETA-W-L1-04
GRETA-W-_-L1-_
M2-IND-_
1.5MM SCREW
2
1
Advertisement
Table of Contents
Related Manuals for Edge Lighting Greta LED GRETA-W-L1 Series
Summary of Contents for Edge Lighting Greta LED GRETA-W-L1 Series
- Page 1 Chicago, IL 60614 Tel: 773-770-1195 M2-IND-_ Fax: 773-935-5613 www.edgelighting.com info@edgelighting.com © 2015 Edge Lighting. All Rights Reserved. Greta LED Installation Instructions for IMPORTANT INFORMATION - Use this fixture indoors only. - This product is ETL listed for damp locations. - This product is wall mounted only.
- Page 2 Install the Fixture 1: Connect the white LED transformer wire to the neutral power wire with a wire nut. JUNCTION BOX 2: Connect the black LED transformer wire to the hot power wire with a wire nut. 3: Place the LED transformer and all wire connections inside WIRE NUT LED TRANSFORMER JUNCTION...
- Page 3 11: Remove the backplate from the wall and tap the anchors WALL on the marked points up to the threaded portion with a hammer. Screw in the threaded portion of the anchors with a Phillips screwdriver. ANCHOR 12: Repeat steps 7 and 8 (refer to Figure F on Page 2). 13 Secure the ends of the backplate to the anchors with the two #8 screws.
- Page 4 LED MODULE 1.5MM SCREW PLATE 17: Replace the LED module plate by rotating and placing it on the mounting rail, making sure all wires and wire connections are under the LED module plate. Replace and tighten the six 1.5mm screw using an M3 Allen wrench. PHILLIPS SCREW 18: Slide the shade onto the backplate.
