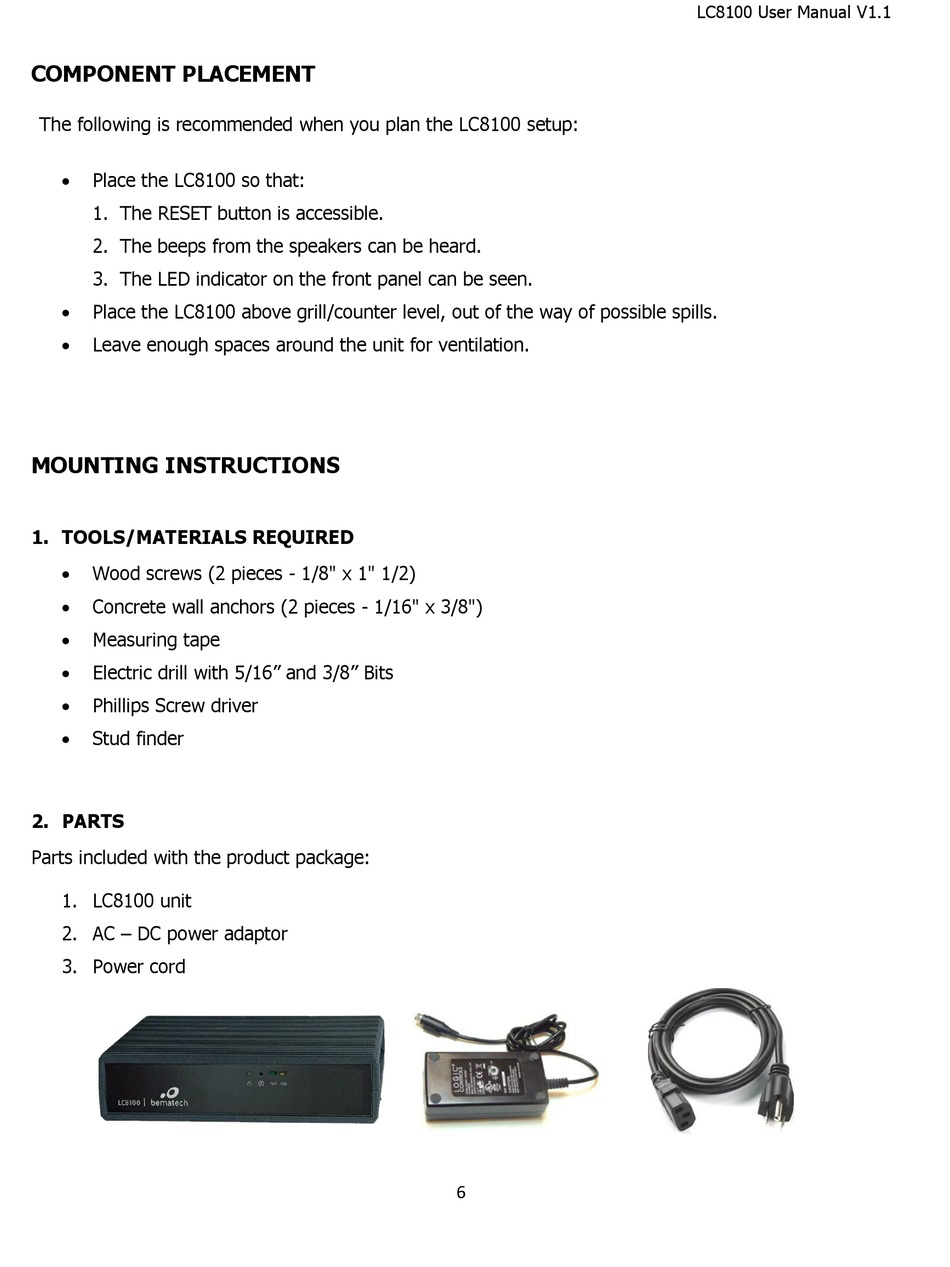

COMPONENT PLACEMENT

The following is recommended when you plan the LC8100 setup:
 Place the LC8100 so that:
1. The RESET button is accessible.
2. The beeps from the speakers can be heard.
3. The LED indicator on the front panel can be seen.
 Place the LC8100 above grill/counter level, out of the way of possible spills.
 Leave enough spaces around the unit for ventilation.

MOUNTING INSTRUCTIONS

1. TOOLS/MATERIALS REQUIRED

 Wood screws (2 pieces - 1/8" x 1" 1/2)
 Concrete wall anchors (2 pieces - 1/16" x 3/8")
 Measuring tape
 Electric drill with 5/16" and 3/8" Bits
 Phillips Screw driver
 Stud finder

2. PARTS

Parts included with the product package:
1. LC8100 unit
2. AC – DC power adaptor
3. Power cord
