LC-8100
Mini CPU
LC-8100 |
logic controls
User Manual and
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC-8100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logic Controls LC-8100

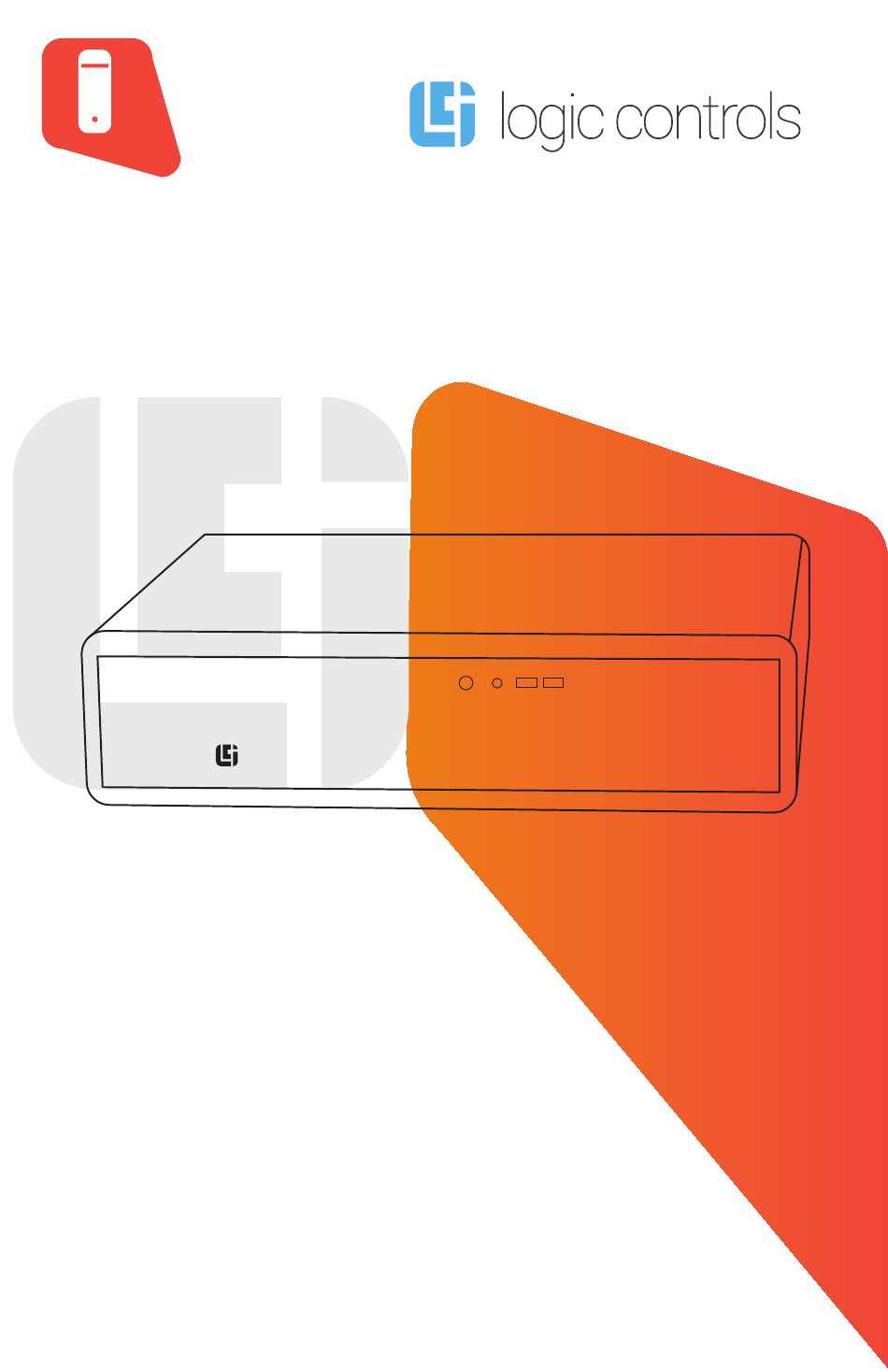

  • Page 1 LC-8100 Mini CPU LC-8100 | logic controls User Manual and Installation Guide...
  • Page 2 Notice The manufacturer of the LC-8100 makes no representations or warranties, either expressed or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties of fitness for a particular purpose or for any indirect, special or consequential damages. Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer.
  • Page 3 Important Safety Instructions Read these instructions carefully. Save these instructions for future reference. • Install this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer • Installation measures must be taken to prevent physical damage to the power supply cord, including proper routing of the power supply cord and provision of a receptacle (socket outlet) near the fixed ITE, or positioning the fixed ITE near a receptacle (socket outlet).
  • Page 4 • The feeding line should be exclusive for the equipment unless it is used for other compatible equipment and it should not overpass the maximum consumption of the line. Photocopy machines, electrical motors and any other high consumption equipment should be installed isolated from this equipment.
  • Page 5: Table Of Contents

    Table of Contents Product Overview Features Installation Specifications Troubleshooting Warranty...
  • Page 6: Product Overview

    • Do not use thinner or benzene, abrasive cleaners, or compressed air. • To clean the LC-8100 unit cabinet, use a cloth lightly dampened with a mild detergent. Do not immerse unit in water. • Put the cleaner on the rag and wipe the LC-8100. Never apply the cleaner directly on the LC-8100.
  • Page 7: Features

    Features • Fanless and ventless operation • Intel Baytrail-I E3825 1.33GHz dual core processor, 1MB L2 Cache • Mass storage: 64, 120, or 256GB SSD • 4GB DDR3L SODIMM RAM • mSATA SSD drives are used; so there are no internal connecting cables with all components mounted on single PC board for high reliability •...
  • Page 8: Installation

    2. The beeps from the speakers can be heard. 3. The LED indicator on the front panel can be seen. • Place the LC-8100 above grill/counter level, out of the way of possible spills. • Leave enough spaces around the unit for ventilation.
  • Page 9 Physical Requirements • Mounting brackets are provided to facilitate mounting the LC-8100 to a wall. A vertical mounting stand is used for mounting the LC-8100 vertically on the countertop. • The installer should ensure that the wall anchors used with the mounting brackets have the capacity to support 5.5 kg (12 lb.).
  • Page 10 Push two mounting brackets out, and tighten the screws Mount the LC-8100 on the countertop with screws Mounting the LC-8100 to the wall with the mounting brackets Allow at least 3 inches of space from the top of the unit and 6 inches from the sides to allow proper ventilation.
  • Page 11 Use concrete wall anchors (2 pieces - 1/16” x 3/8”) if it is a concrete wall. The LC-8100 is a fan less and ventless unit. Heat is dissipated through the metal case. So, allow at least 6 inches of space from the top of the unit and 3 inches from the sides for proper ventilation.
  • Page 12 If the LC-8100 had been shut down from the operating system, it may be restarted by pressing the power on/off switch on the front panel of the LC-8100. To turn off power to the unit, press and hold the power on/off switch for 5 seconds.
  • Page 13 Installation In most of the applications, parameters are detected automatically the default configuration will be suitable. There are only a few parameters that might need to be customized for some applications. Examples of such cases are shown below: Boot Device Priority Sequence To specify the boot sequence from available devices, enter the [Boot] menu.
  • Page 14: Specifications

    Specifications Mainboard Intel Baytrail-I E3825 1.33 GHz Dual-Core processor with MB L2 Cache Memory 4GB, DDR3L SODIMM x1 Mass storage 64/120/256 GB SSD I/O Ports Video VGA, 1920 x 1080 pixels max Network interface 10/100/1000 Mbits Ethernet, Network boot capable Keyboard/mouse: PS/2 mini-DIN6 connectors USB ports...
  • Page 15: Troubleshooting

    There are no user serviceable components inside the LC-8100. Service should be performed only by Logic Controls or qualified personnel certified by Logic Controls. The following guidelines will help in identifying the source of a problem: Video monitor display is blank...
  • Page 16 Troubleshooting Station is not communicating with server application Check that the LC-8100 s’ IP addresses are correct and unique (no conflict) and the port number matches application software setup. Check the Ethernet cable connections at the problem LC-8100 s and at the Ethernet hub or switch.
  • Page 17 If the test fails, go to step 5. Attach a wrap plug to the RS232 port of the LC-8100 and rerun the RS232 loop test. If the test passes replace the RS232 cable. If the test fails, replace the LC-8100.
  • Page 19: Warranty

    For Warranty information on your product, please visit: https:/ /logiccontrols.com/warranties-policies/ Return and Repair Process To return Logic Controls products for repair during the warranty period or after expiration of the warranty period, a valid Return Merchandise Authorization (RMA) number from Logic Controls Customer Service Department is required.
  • Page 20 logiccontrols.com | sales@logiccontrols.com | 516.248.0400...
