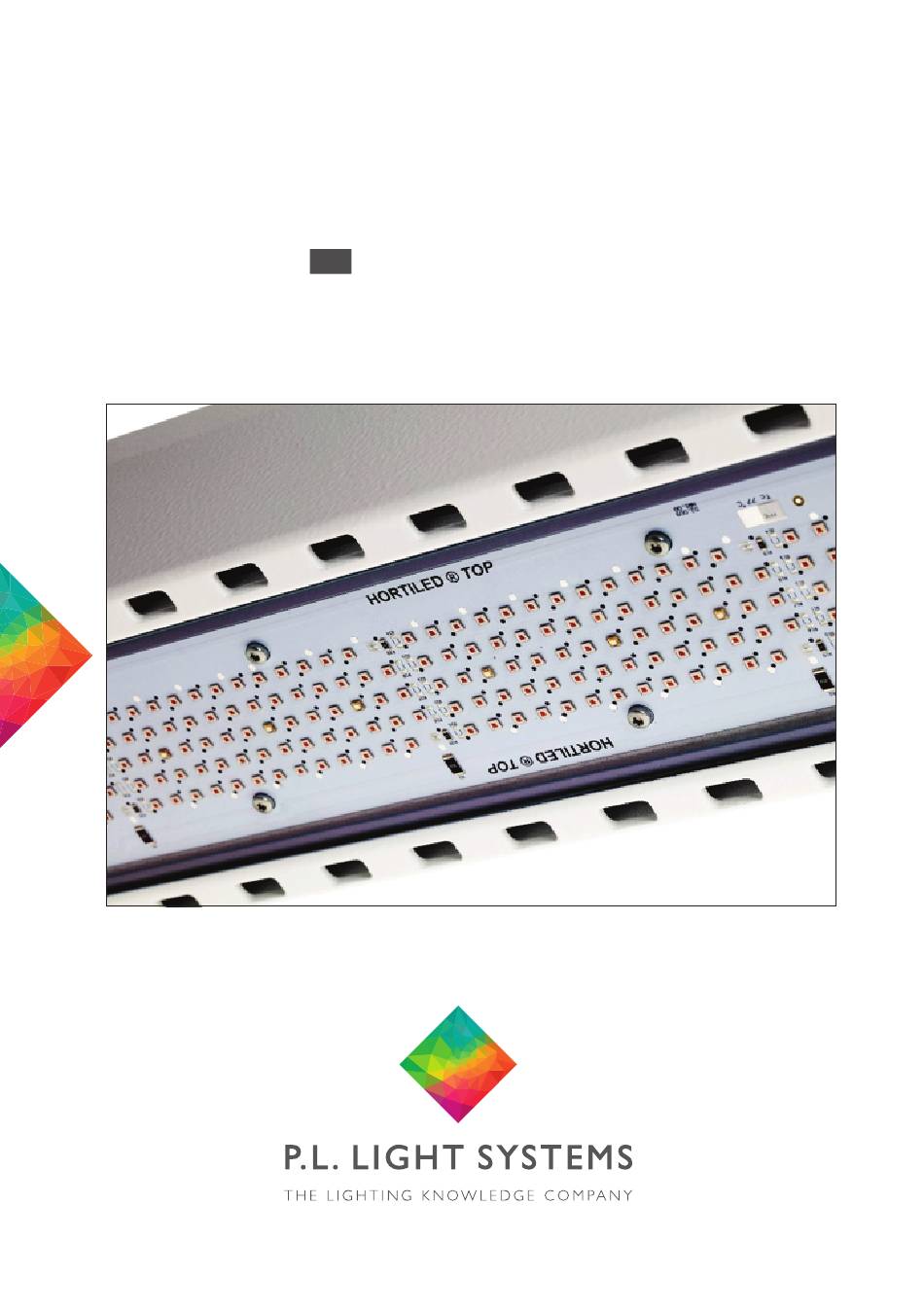

- Page 1 HORTILED ® User and installation manual...
-
Page 3: Table Of Contents
MANUAL FOR END USER AND The HortiLED Top is referred to as the "fixture" in this INSTALLER manual. The fixture is available in a number of versions which vary in terms of distribution pattern, colour Thank you for purchasing the HortiLED ®... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL PRODUCT SPECIFICATIONS Product description Name: HortiLED ® Market Introduction: 2016 TECHNICAL SPECIFICATIONS Mechanical Product Dimensions (L x W x H): 38.039 in. (966.2 mm) x 4.681 in. (118.9 mm) x 3.740 in. (95.0 mm) Product Weight: 18.08 lb. (8.20 kg) Housing: Aluminum and glass Ingress Protection Rating**:... -
Page 5: Main Components
Light Distribution MAIN COMPONENTS The HortiLED Top is available in two distribution options. An 80˚ distribution angle for effective penetration of light into the crop. A 150˚ distribution angle for exceptional uniformity of the light onto the crop. Parts list... -
Page 6: Precautions And Safety Instructions
INSTALLING THE FIXTURE PRECAUTIONARY MEASURES AND SAFETY INSTRUCTIONS STEP 1: MOUNT FIXTURE The fixture can be mounted to the roof structure in WARNING one of three possible ways: • Always adhere to the local and national building and electrical codes when installing or using the fixture. OPTION A •... - Page 7 OPTION B OPTION C Place the fixture (with the glass lens facing down) Place the fixture (with the glass lens facing down) on a cushioned surface to prevent damage. on a cushioned surface to prevent damage. Secure two M6 thread fasteners (not supplied) Insert the open ends of the supplied mounting directly to the roof structure in desired mounting brackets into the mounting channel on either end...
-
Page 8: Initial Starting
STEP 2: COMPLETE ELECTRICAL CONNECTION MAINTENANCE, ENVIRONMENT AND DISPOSAL Install female connector (supplied) to end of power cable (refer to section 6.1) WARNING Once connection is complete, push the female • Switch off the mains voltage before commencing connector into the male connector on the end of maintenance work. -
Page 9: Repairing Or Shortening A Cable
REPAIRING OR SHORTENING A CABLE Secure the wire with the aid of a screwdriver, if needed. WARNING The work in this manual should only be performed by a qualified individual. Switch off the mains voltage. Push the wire through the first part of the female connector and strip the wire to the correct length: N,L,... -
Page 10: Troubleshooting
TROUBLESHOOTING WARNING • Do not open or disassemble the product. Opening the product can prove hazardous and will void the warranty. ATTENTION! In the event that the product is defective or damaged, contact the dealer you purchased the fixtures from, or PL Light Systems directly. - Page 12 P.L. Light Systems 4800 Hinan Drive Beamsville, Ontario Canada, L0R 1B1 T: 905.563.4133 / 1.800.263.0213 (toll free) E: info@pllight.com www.pllight.com...
