View –Angle Adjustment; Lens Adjustment - ZUUM D4MP-IP-3.3-10.5-IR30-WH Manual

5. View –angle adjustment: This series camera supports three-axis adjustment. Horizontally rotatable 0-355 °,
0-355 °, Vertically rotatable 0~75°. As shown in Figure 2-4.
6. Lens adjustment: This series camera supports vari-focal lens and motorized lens, for vari-focal lens zooming, zoom focusing
adjustment screw (T~W terminal) select the appropriate viewing angle, and then adjust the focus screw (F~N terminal) so that
the whole picture is clear. After you get the desired picture, then tighten the focusing rod lens. As shown in Figure 2-4.

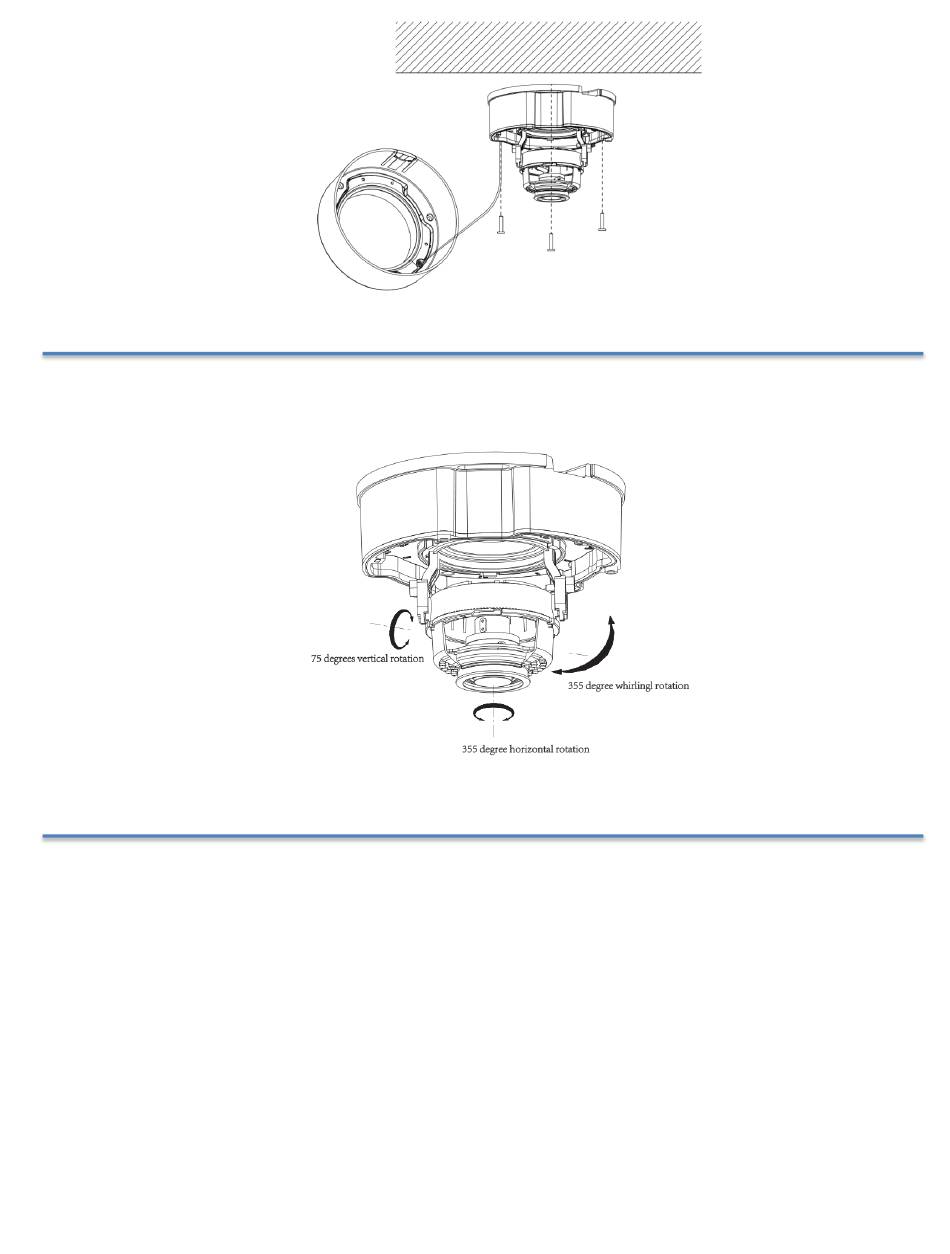

Figure 2-3 IPC Mounting
Figure 2-4 View adjustments
