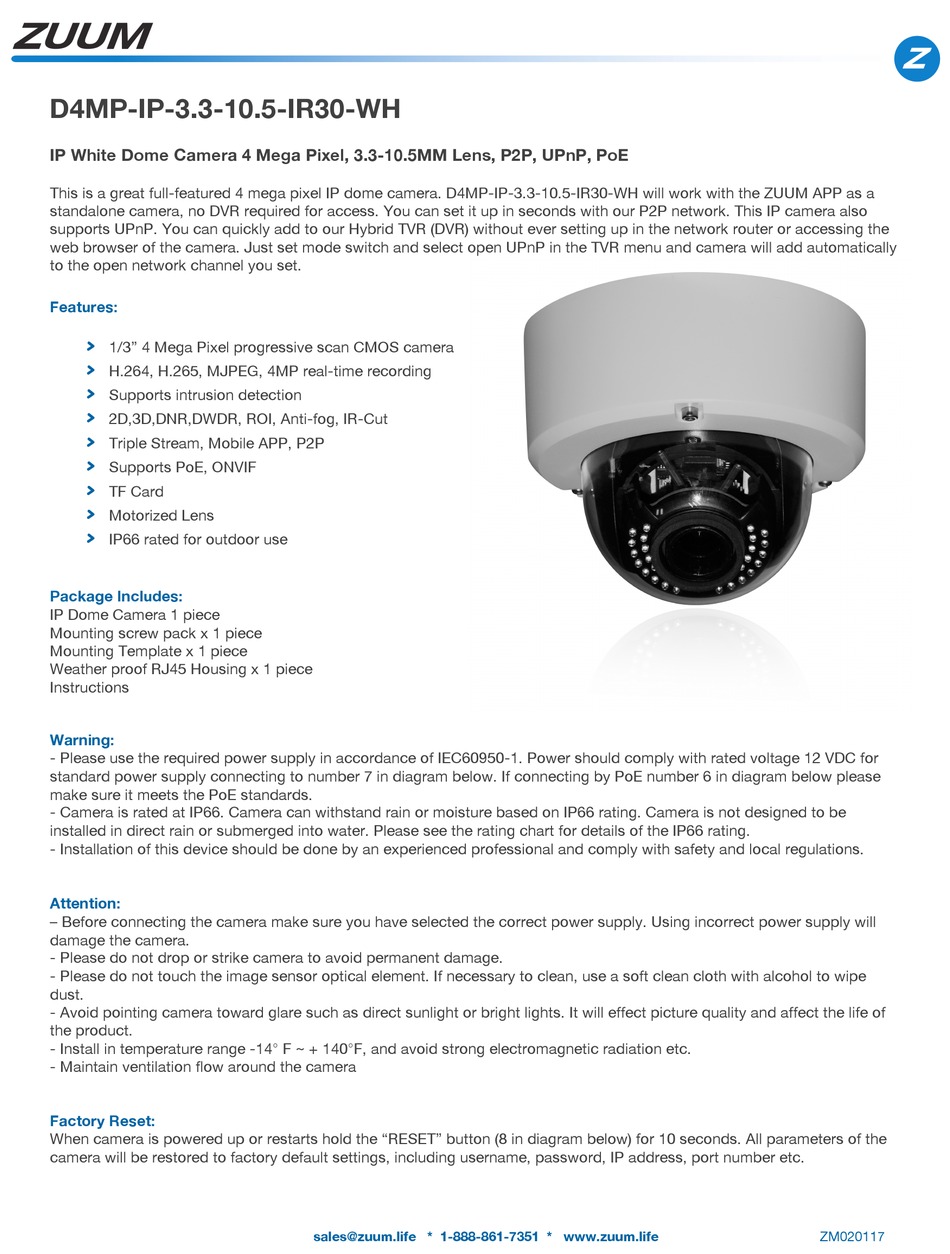

ZUUM D4MP-IP-3.3-10.5-IR30-WH Manual

D4MP-IP-3.3-10.5-IR30-WH

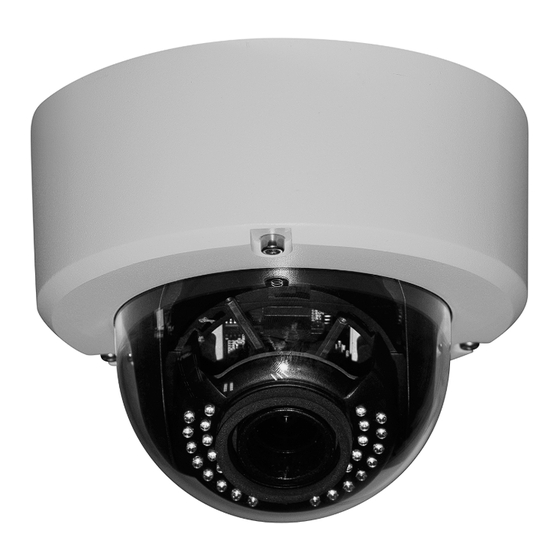

IP White Dome Camera 4 Mega Pixel, 3.3-10.5MM Lens, P2P, UPnP, PoE
This is a great full-featured 4 mega pixel IP dome camera. D4MP-IP-3.3-10.5-IR30-WH will work with the ZUUM APP as a
standalone camera, no DVR required for access. You can set it up in seconds with our P2P network. This IP camera also
supports UPnP. You can quickly add to our Hybrid TVR (DVR) without ever setting up in the network router or accessing the
web browser of the camera. Just set mode switch and select open UPnP in the TVR menu and camera will add automatically
to the open network channel you set.
Features:
>
1/3" 4 Mega Pixel progressive scan CMOS camera
>
H.264, H.265, MJPEG, 4MP real-time recording
>
Supports intrusion detection
>
2D,3D,DNR,DWDR, ROI, Anti-fog, IR-Cut
>
Triple Stream, Mobile APP, P2P
>
Supports PoE, ONVIF
>
TF Card
>
Motorized Lens
>
IP66 rated for outdoor use
Package Includes:
IP Dome Camera 1 piece
Mounting screw pack x 1 piece
Mounting Template x 1 piece
Weather proof RJ45 Housing x 1 piece
Instructions
Warning:
- Please use the required power supply in accordance of IEC60950-1. Power should comply with rated voltage 12 VDC for
standard power supply connecting to number 7 in diagram below. If connecting by PoE number 6 in diagram below please
make sure it meets the PoE standards.
- Camera is rated at IP66. Camera can withstand rain or moisture based on IP66 rating. Camera is not designed to be
installed in direct rain or submerged into water. Please see the rating chart for details of the IP66 rating.
- Installation of this device should be done by an experienced professional and comply with safety and local regulations.
Attention:
– Before connecting the camera make sure you have selected the correct power supply. Using incorrect power supply will
damage the camera.
- Please do not drop or strike camera to avoid permanent damage.
- Please do not touch the image sensor optical element. If necessary to clean, use a soft clean cloth with alcohol to wipe
dust.
- Avoid pointing camera toward glare such as direct sunlight or bright lights. It will effect picture quality and affect the life of
the product.
- Install in temperature range -14° F ~ + 140°F, and avoid strong electromagnetic radiation etc.
- Maintain ventilation flow around the camera
Factory Reset:
When camera is powered up or restarts hold the "RESET" button (8 in diagram below) for 10 seconds. All parameters of the
camera will be restored to factory default settings, including username, password, IP address, port number etc.
sales@zuum.life * 1-888-861-7351 * www.zuum.life ZM020117
