PROCESS AUTOMATION
MANUAL
Industrial Box Thin Client
BTC01

Advertisement

Table of Contents
loading

Related Manuals for Pepperl+Fuchs BTC01

Summary of Contents for Pepperl+Fuchs BTC01

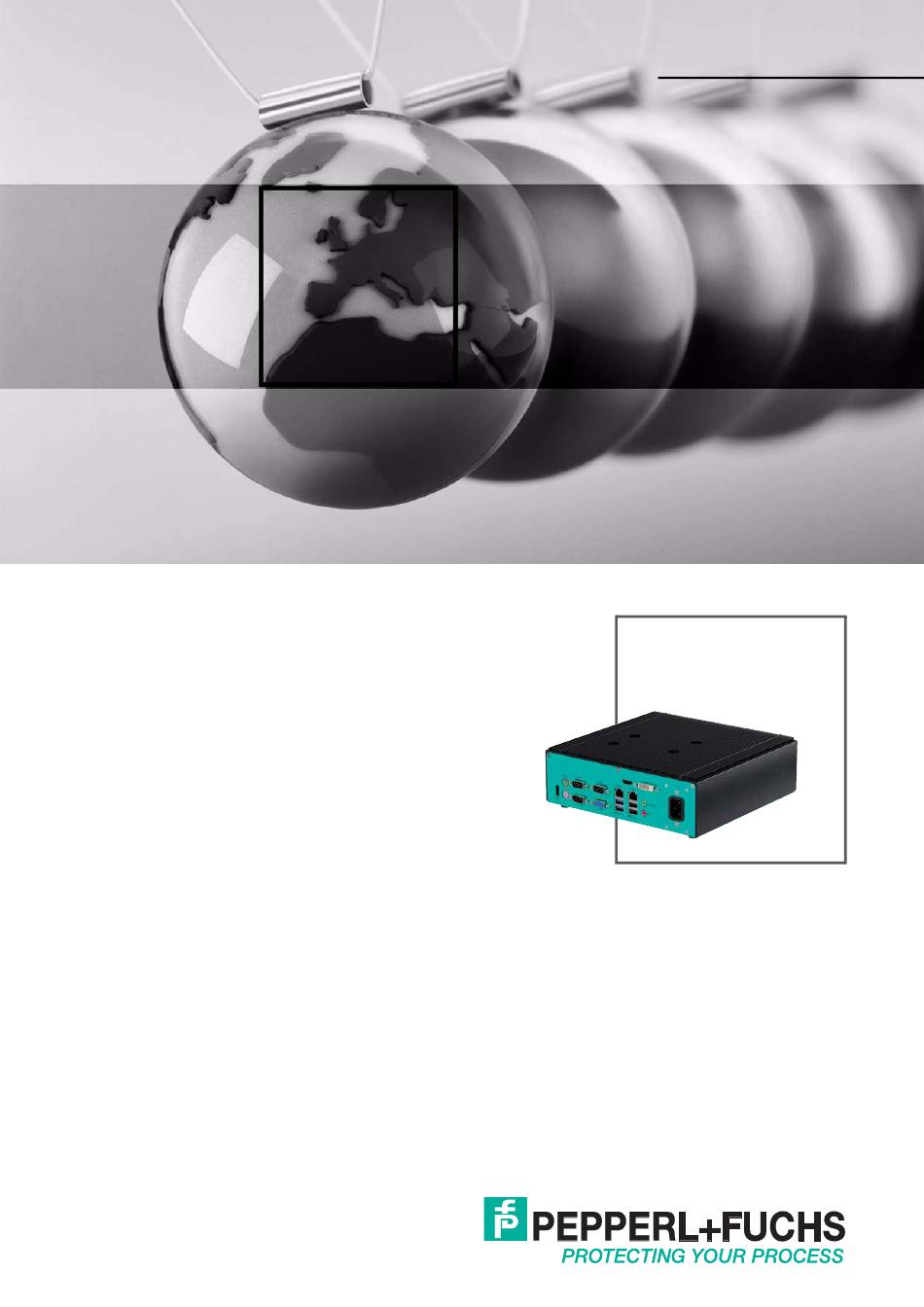

  • Page 1 PROCESS AUTOMATION MANUAL Industrial Box Thin Client BTC01...
  • Page 2 Industrial Box Thin Client With regard to the supply of products, the current issue of the following document is ap- plicable: The General Terms of Delivery for Products and Services of the Electrical Indus- try, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...

  • Page 3: Table Of Contents

    Industrial Box Thin Client Safety ................... 4 Introduction ..................4 1.1.1 Content of this Document ..............4 1.1.2 Target Group, Personnel ..............4 1.1.3 Symbols Used..................5 Warnings and Cautions ............... 5 Product Description ..............6 Application.................... 6 RM Shell ....................6 ACP ThinManager Ready ..............

  • Page 4: Safety

    Industrial Box Thin Client Safety Safety Introduction 1.1.1 Content of this Document This document contains information that you need in order to use your product throughout the applicable stages of the product life cycle. These can include the following: Product identification ■...

  • Page 5: Symbols Used

    Industrial Box Thin Client Safety 1.1.3 Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage.

  • Page 6: Product Description

    RM Shell RM Shell 4.x or 5.x is the operating system software that runs on the BTC01 industrial box thin client. VisuNet RM Shell (RM Shell) embedded operating system enables users to easily access applications that run on a host system (e.g., workstation PC or server) via Ethernet.

  • Page 7: Acp Thinmanager Ready

    Product Description ACP ThinManager Ready As an alternative to the VisuNet RM Shell 4.x or 5.x, the BTC01 can also be order as ThinManager "Ready", by having a customized PCI expansion ROM installed in the BIOS. When this feature is ordered, the ThinManager server installs the running OS onto the BTC01 over the LAN connection.
  • Page 8 Industrial Box Thin Client Product Description Hardware Processor Celeron J1900 Graphics controller: Intel® Gen7 Graphics DX 11*, OGL3.2 GPU (expansion): NVIDIA GeForce GT 730 (2 GB memory) 4 GB DDR3L Mass storage 32 GB mSATA Supply Power supply 100 ... 240 V AC, 50 ... 60 Hz, 40 W max. 12 V DC, 4.0 A\r 18 ...

  • Page 9: Accessories

    Industrial Box Thin Client Product Description International approvals UL approval Hazardous locations: UL Listing E190294; Class I, Div 2, Groups A, B, C, D (18 ... 30 V DC version only) Ordinary locations: UL Listing E185778 (all DC versions) Accessories Mounting Kits Accessories Designation...
  • Page 10 Industrial Box Thin Client Product Description PG12-BTC1 Efficiency 88 % Operating Temperature -30 ... 60 °C Storage Temperature -40 ... 85 °C Humidity 20% ... 95% RH Non-condensing Dimensions 125 x 50 x 31.5 mm...

  • Page 11: Installation

    Industrial Box Thin Client Installation Installation Mounting Warning! Install the device in accordance with the instructions by competent personnel. Observe national laws and regulations. Attaching Brackets to the Steel Base There are two brackets that you attach to the steel base so that you can mount the unit on the wall.
  • Page 12 Industrial Box Thin Client Installation Figure 3.2 2. Use the screws from the feet to attach the brackets to the steel base as shown below. 3. Use appropriate mounting screws with a diameter of 5 mm (not included) and the following mounting diagram to mount the unit to a wall.

  • Page 13: Electrical Connection

    Industrial Box Thin Client Installation Figure 3.3 - for mounting screws Ø 5 mm Electrical Connection There are three different connection options depending on the ordered device type. Figure 3.4 - Electrical connection depending on device type For AC power, you insert a plug into the back of the unit. AC power utilizes connector type C14. See Figure below.
  • Page 14 The intended installation location is an overvoltage category II. The Industrial Box Thin Client BTC01 comes with an AC power cable that is intended for US type outlet. Other power cables for other global regions are available as accessories. See chapter 2.5.

  • Page 15: I/O Connection

    ■ Position 2: -V ■ Position 3: Ground ■ 18-30 VDC Figure 3.7 18 V ... 30 V terminal I/O plate I/O Connection Front Figure 3.8 BTC01 Industrial Box Thin Client I/O Connection Ports, Front Power Switch USB 2.0 Ports...
  • Page 16 Industrial Box Thin Client Installation Back Figure 3.9 BTC01 Industrial Box Thin Client I/O Connection Ports, Back PS/2 Mouse Port COM Port 1 (COM1) COM Port 3 (COM3) LAN RJ-45 Port HDMI Port (HDMI2) LAN RJ-45 Port DVI-D Port Line out (green) Microphone (pink) USB 3.0 Ports (USB3_0_1)
  • Page 17 Industrial Box Thin Client Installation PS/2 Port Figure 3.10 PS/2 Keyboard data Not used Ground +5 Volt Clock Not used RS-232 Port Figure 3.11 RS-232 COM1: +5V/+12V/+5VSB COM2, 3: +5V/+12V Note! Use the cable retention bracket (3) to mount the connectors to the COM ports securely. See chapter 3.3.1.
  • Page 18 Industrial Box Thin Client Installation RJ45 Port Figure 3.12 There are two LEDs next to the LAN port. The green LED is the Act/Link LED. The yellow LED is the Speed LED. Please refer to the table "LED display" below for the LAN port LED indications.
  • Page 19 Industrial Box Thin Client Installation RJ45 TMDS data 0 - TMDS clock + TMDS clock shield TMDS clock - Reserved DDC/CEC ground +5 V power Hot plug detect DVI-D Port Figure 3.14 DVI-D TMDS data 2 - TMDS data 2 + TMDS data 2/4 shield TMDS data 4 - TMDS data 4 +...

  • Page 20: Use Of Ps/2 Ports In Hazardous Locations

    Industrial Box Thin Client Installation USB Port 1 2 3 4 Figure 3.15 +5 Volt Data - Data + Ground VGA Port Figure 3.16 Red video Green video Blue video Reserved Ground Red ground Green ground Blue ground Not connected Ground ID0 (ground) ID1 (no connect)
  • Page 21 Industrial Box Thin Client Installation The device is equipped with PS/2 ports. In order to use these ports, a cable retention bracket (3) must be installed to hold the connectors securely in place. 1. Remove the mounting screws (2) of the COM ports (1). 2.

  • Page 22: Commissioning

    Note! As the user is not allowed to access the internal hardware of the BTC01 for proper power mode configuration, it is important that the proper model is selected.
  • Page 23 Industrial Box Thin Client Commissioning Connecting Multiple Displays Depending on the number of displays you have, plug the Displays into the display input ports following the correct numerical order. 1. Plug in the first display into the primary display input port HDMI1 2.
  • Page 24 Industrial Box Thin Client Commissioning 2. Select the System Settings application. Figure 4.3 3. Open the Display tab. Figure 4.4...
  • Page 25 Industrial Box Thin Client Commissioning 4. Click the Advanced button. This will open the Windows Screen Resolution dialog. Figure 4.5 5. Use the Screen Resolution dialog to reposition the displays to match your current setup. This screen allows you to see your monitor layout and rearrange it by dragging and dropping the blue boxes.
  • Page 26 Industrial Box Thin Client Commissioning 6. Set the main display by selecting it and then checking the setting “Make this my main display”. Figure 4.7 7. Click OK to save any changes and follow any resulting prompts.
  • Page 27 Industrial Box Thin Client Commissioning...
  • Page 28 PROCESS AUTOMATION – PROTECTING YOUR PROCESS Worldwide Headquarters Pepperl+Fuchs GmbH 68307 Mannheim · Germany Tel. +49 621 776-0 E-mail: info@de.pepperl-fuchs.com For the Pepperl+Fuchs representative closest to you check www.pepperl-fuchs.com/contact www.pepperl-fuchs.com Subject to modifications / DOCT-4946D Copyright PEPPERL+FUCHS • Printed in Germany 10/2018...
