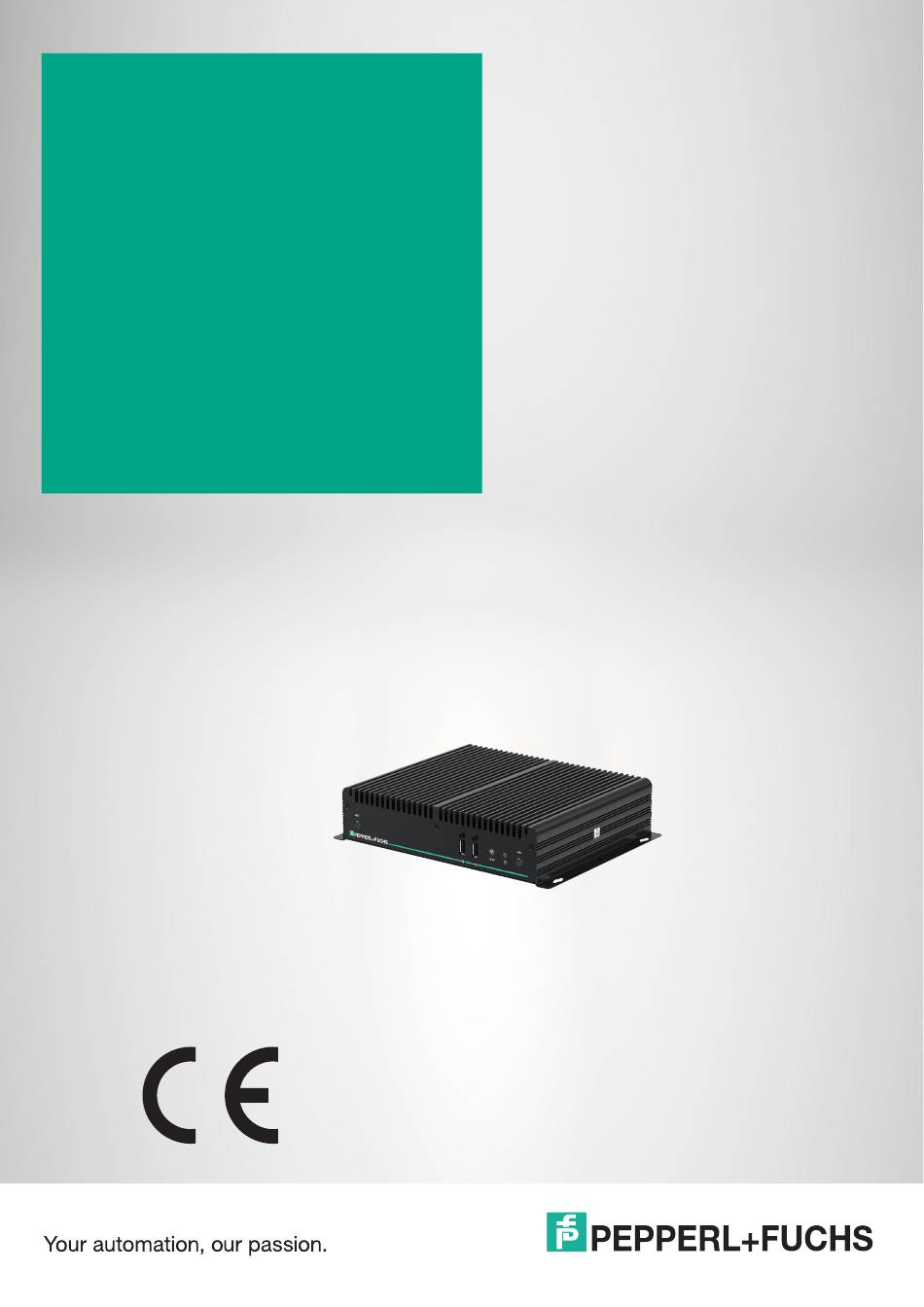

  • Page 1 Box Thin Client for Industrial Applications BTC14N-GP-TS20-DP-N0 Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...

  • Page 3: Table Of Contents

    Box Thin Client for Industrial Applications Contents Safety .......................... 4 Introduction ....................4 1.1.1 Content of this Document ..............4 1.1.2 Manufacturer..................4 Target Group, Personnel ..............4 1.1.3 1.1.4 Symbols Used ................... 5 Product Description ....................6 Application ..................... 6 RM Shell 5.......................

  • Page 4: Safety

    Control drawings • Instruction manual • Other documents 1.1.2 Manufacturer Pepperl+Fuchs Group Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com 1.1.3 Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount- ing lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, com- missioning, operation, maintenance, and dismounting of the product.

  • Page 5: Symbols Used

    Box Thin Client for Industrial Applications Safety 1.1.4 Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage.

  • Page 6: Product Description

    Four monitors with Full HD resolution at 60 Hz GB RAM The standard version of the BTC14 is BTC14N-GP-TS20-DP-N0 which is equipped with 4-GB RAM. Up to four Full HD capable monitors can be connected to the native Display Ports...
  • Page 7 Box Thin Client for Industrial Applications Product Description Quad Monitor Setup with 4K 4K @ 60 Hz 4K @ 60 Hz 4K @ 60 Hz 4K @ 60 Hz Figure 2.2 Four monitors with Ultra HD resolution (4k at 60 Hz) at 8 GB RAM The BTC14 can optionally be equipped with 8 GB RAM.

  • Page 8: Rm Shell 5

    Box Thin Client for Industrial Applications Product Description RM Shell 5 The VisuNet RM Shell 5 firmware allows the user to easily access applications running on a host system via Ethernet (e.g., workplace PC or server). RM Shell 5 is based on Windows® 10 IoT Enterprise LTSB, an embedded version of Windows®...
  • Page 9 Box Thin Client for Industrial Applications Product Description Relative humidity  90 % at 40 °C (non-condensing acc. to EN 60068-2- Shock resistance 40 g (11 ms) when operating Vibration resistance 5 ... 500 Hz Mechanical specifications Housing material aluminum body and sheet metal , painted/powder- coated Degree of protection IP4x...

  • Page 10: Dimensions And Nameplates

    Dimensions and Nameplates Dimensions Figure 2.4 Labels The following labels are attached to the BCT12. Nameplate BTC14N-GP-TS20-DP-N0 Part No.: 70110484-100001 12-28V DC (4,8A) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:...

  • Page 11: Installation

    Box Thin Client for Industrial Applications Installation Installation Mounting Warning! Installation The device must be installed by competent personnel in accordance with the instructions. All applicable laws and regulations must be carefully observed. Preparation for Installation Check the package contents and all accessories ordered for completeness and signs of dam- age.
  • Page 12 Box Thin Client for Industrial Applications Installation Figure 3.2 Vertical mounting Caution! Ambient conditions Do not operate the device outside the specified ambient temperature. Warning! Hot surface The surface of the device may become hot during operation.
  • Page 13 Box Thin Client for Industrial Applications Installation DIN Rail Mounting Tools and installation materials required: Screwdriver 4 anchors, 4 screws (included in scope of delivery) Attach the DIN rail adapter to the back of the BTC14. Use the thread on the bottom of the BTC14 to secure the adapter.
  • Page 14 Box Thin Client for Industrial Applications Installation Figure 3.4...
  • Page 15 Box Thin Client for Industrial Applications Installation Figure 3.5 Wall Mounting Caution! Insufficient load capacity If the mounting surface for wall and vertical mounting does not have sufficient load capacity, the device may fall and be damaged. It is the responsibility of the installer to select a suitable location with sufficient strength for the equipment.
  • Page 16 Box Thin Client for Industrial Applications Installation Figure 3.6 6.65 245.8 Figure 3.7 Installation diagram VESA Mounting Note The VESA fixture is not included on BTC14 delivery. You can order a VESA fixture as accessories (see chapter 6) Attach the VESA fixture to the VESA arm or the back panel of the monitor (using the screws provided by the monitor manufacturer).
  • Page 17 Box Thin Client for Industrial Applications Installation Figure 3.8 Figure 3.9 Secure the BTC14 to the VESA fixture using the supplied screws. Screw M4, tightening torque: 0.7 ± 0.1 Nm...
  • Page 18 Box Thin Client for Industrial Applications Installation Figure 3.10 Figure 3.11...

  • Page 19: Electrical Connection

    Box Thin Client for Industrial Applications Installation Electrical Connection Power consumption at 28 V supply voltage: • Maximum load: 54.3 W (CPU full load, 14 W total output power to USB ports) • Normal operation: 34.7 W (CPU full load, "no additional electrical consumers") •...

  • Page 20: I/O Connection

    Box Thin Client for Industrial Applications Installation I/O Connection Figure 3.13 BTC14 ports, front POWER INPUT DC 12-28V Figure 3.14 BTC14 ports, back Port Overview Interface type Description Front Antenna opening x 2 Dummy plug antenna connections, one on the left and (dummy plug) one on the right USB 2.0 x 2...
  • Page 21 Box Thin Client for Industrial Applications Installation Interface type Description Power plug 5.5 x 2.5 mm DC jack bush with locking mechanism (M8 screw) 12 VDC to 28 VDC Polarity USB 3.0 (Super Speed) x 2 RS-232/RS-485 port with DB-9 connector x 1 Ethernet 2 1000BaseT (Secondary port)
  • Page 22 Box Thin Client for Industrial Applications Installation RS-485 Port Figure 3.16 Type Description Data- Transmit/receive data- (I/O) for half duplex mode Data+ Transmit/receive data+ (I/O) for half duplex mode Not con- nected Not con- nected Signal ground Not con- nected Not con- nected Not con-...
  • Page 23 Box Thin Client for Industrial Applications Installation LED Indicator Type Description Green LED Off: no connection Flashing: active data On: connection Yellow LED Off: 10 Mbit/s connection Flashing: 100 Mbit/s connection On: 1 Gbit/s connection DisplayPort Figure 3.18 Input/out- Type Description ML_Lane0+ DP Data 0+ Output...
  • Page 24 Box Thin Client for Industrial Applications Installation USB Ports 1 2 3 4 Figure 3.19 USB 2.0 Type Description USB_P5V_- +5 V (fused) fused (A) USB_D0M Data- (I/O) USB_D0P Data+ (I/O) USB_GND 9 8 7 6 5 1 2 3 4 Figure 3.20 USB 3.0 Input/out-...
  • Page 25 Box Thin Client for Industrial Applications Installation Ethernet Port Figure 3.21 Type Description BI_DA+ Bidirectional data A+, input/output BI_DA- Bidirectional data A-, input/output BI_DB+ Bidirectional data B+, input/output BI_DC+ Bidirectional data C+, input/output BI_DC- Bidirectional data C-, input/output BI_DB- Bidirectional data B-, input/output BI_DD+ Bidirectional data D+, input/output BI_DD-...

  • Page 26: Bios Settings

    Box Thin Client for Industrial Applications BIOS Settings BIOS Settings Caution! Warranty Access to the BIOS is prohibited. Any access to the BIOS is at your own risk and is not covered by the warranty for repairs. Arbitrary changes to BIOS settings may affect device functionality. The BIOS is set according to customer requirements by default.
  • Page 27 Box Thin Client for Industrial Applications BIOS Settings BIOS Setup Menu Figure 4.1 BIOS setup menu—home screen Setting the System Date Use the arrow keys to set the date. Navigate to month, day, and year in sequence. Enter the appropriate value. Press ENTER to move to the next field.

  • Page 28: Creating A New Bios Password

    Note After changing, note down the password and keep it in a safe place. Pepperl+Fuchs assumes no liability in the event that the password is lost. If you forget the password, the device must be returned to Pepperl+Fuchs for a complete reset.

  • Page 29: Changing Serial Interface Mode (Rs-232, Rs-485)

    Box Thin Client for Industrial Applications BIOS Settings Changing Serial Interface Mode (RS-232, RS-485) Select Advanced from the BIOS setup page. Figure 4.3 "Advanced" BIOS menu Configuring Advanced Settings F81866 Super IO Configuration allows you to view and configure the Super I/O Chip parameters.
  • Page 30 Box Thin Client for Industrial Applications BIOS Settings Figure 4.4 Serial Port Figure 4.5 Mode Select Settings for Serial Port 1 Device settings Mode select IO=3F8h; IRQ=4; RS-232 IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 RS-422 IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 RS-485 IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 RS-422 Termination Resistor IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12 RS-485 Termination Resistor...

  • Page 31: Usb Configuration

    Box Thin Client for Industrial Applications BIOS Settings USB Configuration USB Configuration allows you to view and configure USB parameters. The USB device displays the USB device detected by the BIOS during the power-on self-test. Figure 4.6 Enabling and disabling the USB device Enabling and Disabling the USB Device Select USB Mass Storage Driver Support using the arrow keys and press Enter.

  • Page 32: Boot Configuration

    Box Thin Client for Industrial Applications BIOS Settings Boot Configuration Select Boot from the BIOS setup page. Figure 4.7 "Boot" BIOS menu You can change the following settings on the "Boot" configuration page: • Setup Prompt Timeout: Sets the time period within which the Delete key must be pressed to enter the BIOS at power-on.
  • Page 33 Box Thin Client for Industrial Applications BIOS Settings Enabling Boot via LAN (PXE) Select Advanced from the BIOS setup page. Figure 4.8 Configuring the compatibility support module Select CSM Configuration with the arrow keys and press ENTER. Select Network with the arrow keys. Press ENTER. Select UEFI or Legacy, depending on what your PXE server supports.
  • Page 34 Box Thin Client for Industrial Applications BIOS Settings Setting Priorities for Boot Options The "Boot" page allows you to set the priority of all boot devices. Using the arrow keys, select the Boot Option Priority you wish to change. Press ENTER.
  • Page 35 Box Thin Client for Industrial Applications BIOS Settings Power Management Figure 4.10 Power Management Select Advanced from the BIOS setup page. Select FCH Common Options with the arrow keys and press ENTER. Select AC Power Loss Options and press ENTER. Specify what state to go when power is re-applied after a power failure, choose between Power off and Power on.
  • Page 36 Box Thin Client for Industrial Applications BIOS Settings Secure Boot Figure 4.11 Secure Boot Select Security from the BIOS setup page. Select Secure Boot with the arrow keys and press ENTER. Select Secure Boot and press ENTER to activate the secure boot. Per default secure boot is disabled.

  • Page 37: Resetting The Bios To Factory Settings

    Box Thin Client for Industrial Applications BIOS Settings Resetting the BIOS to Factory Settings Restoring Default Settings You can restore the system using the following instructions. Use the arrow keys to select Restore Defaults. Press ENTER. Select Yes. Press ENTER to load the optimized default settings. Select No to exit the process.

  • Page 38: Service And Support

    Box Thin Client for Industrial Applications Service and Support Service and Support For more information about the products described in this document, visit www.pepperl- fuchs.com. Please have the following information ready when contacting your local representative or tech- nical support: •...

  • Page 39: Accessories

    Box Thin Client for Industrial Applications Accessories Accessories Power Supply, Cables, and Connectors Part num- Type code Description 548328 FSP065-RBBN3 AC/DC power supply Input: 100 VAC – 240 VAC, 50 Hz – 60 Hz Output: 19 VDC Maximum current: 3.42 A Connector: 2.5 mm DC socket with locking mechanism Approvals: CE, FCC class B, UL listed, GS, CCC Power cable: 1 x EU type and 1 x US type...
  • Page 40 Box Thin Client for Industrial Applications Accessories Video Cables and Video Adapters Part num- Type code Description 548403 CLUB3D-CAC-1073 Active adapter cable for BTC14 DisplayPort 1.2 connector to HDMI 2.0 UHD connec- tor (4K at 60 Hz) Cable length: 3 m 548404 CLUB3D-CAC-1056 Passive adapter cable for BTC14...
