KYLAND Opal10 Series Hardware Installation Manual

Entry-level industrial ethernet switch

Advertisement

Quick Links

Opal10/Opal20 Series Entry-Level
Industrial Ethernet Switch
Hardware Installation Manual
Publication Date: 2016-06-29
Version: V1.1
No.: 112023039

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opal10 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for KYLAND Opal10 Series

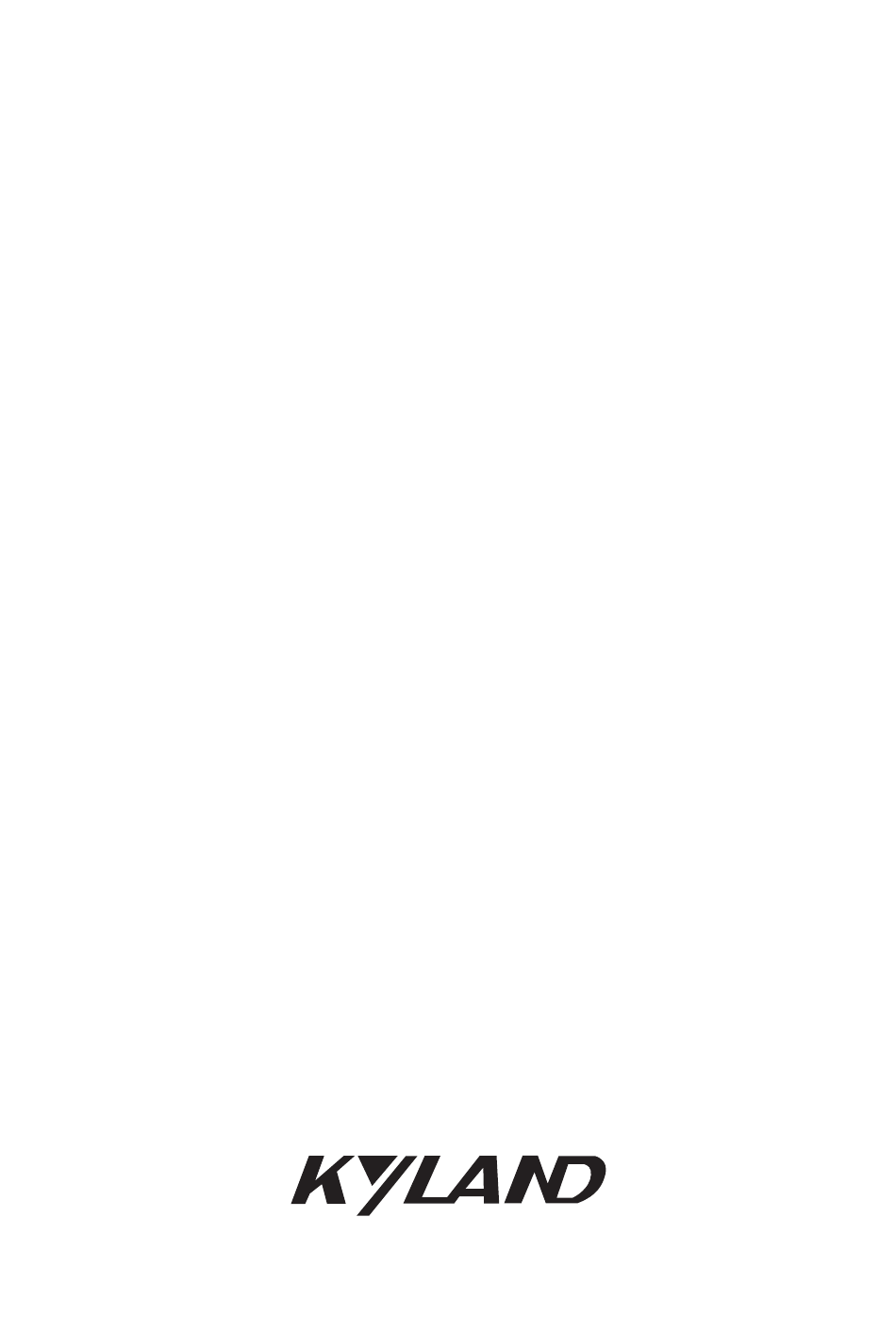

  • Page 1 Opal10/Opal20 Series Entry-Level Industrial Ethernet Switch Hardware Installation Manual Publication Date: 2016-06-29 Version: V1.1 No.: 112023039...
  • Page 2 According to the EU Directive 2011/65/EU the use of several substances for electrical and electronic equipment in defined categories is restricted. Kyland hereby declares that the parts used in our products are produced in full compliance with the Directive 2011/65/EU “Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment”...
  • Page 3 Please keep the manual for further reference. If the device used not according to the specified way by Kyland, the protection provided by the device maybe diminished. And Kyland is not liable to any personal or equipment damage caused by violation of this notice. ●...
  • Page 4 Note:The security of any system merged with this device is the responsibility of the assembler. In the following cases, please immediately shut down your power supply and contact your Kyland representative: ● Water gets into the equipment. ● Equipment damage or shell damage.
  • Page 5: Table Of Contents

    Contents 1 Product Overview…………………………………………………………………1 2 Structure and Interface……………………………………………………………3 2.1 Front Panel……………………………………………………………………3 2.2 Top Panel……………………………………………………………………4 3 Mounting……………………………………………………………………………4 3.1 Dimension Drawing…………………………………………………………4 3.2 Mounting Modes and Steps…………………………………………………5 3.2.1 DIN-Rail Mounting………………………………………………………5 3.2.2 DIN-Rail Dismounting…………………………………………………6 4 Connection…………………………………………………………………………6 4.1 10/100Base-T(X) Ethernet Port…………………………………………6 4.2 100Base-FX Ethernet Port………………………………………………8 4.3 100Base-X SFP Slot………………...
  • Page 7: Product Overview

    The series switches support DIN rail mounting.Opal10 provides two100/1000Base- XSFPslots(Gigabit SFP Slot),two 10/100/1000Base-T(X) Ethernet ports, and six 10/100Base-T(X) Ethernet ports; Opal20 provides two 100Base-FX Ethernet ports, and sixteen 10/100Base-T(X) Ethernet ports. For details, see the following table. Table 1 Opal10 Models Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 8 Table 2 Opal20 Models Note: We reserve the right to amend the product information listed in this table without notice. To obtain the latest information, you can contact our sales or technical support personnel. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 9: Structure And Interface

    (12) 100/1000Base-XSFP slot speed LED (yellow, indicating the speed of the right slot) (13) 100/1000Base-XSFP slot connection status LED (green, indicating the status of the right slot) (14) 100Base-FX Ethernet port and its connection status LED (15) 100Base-X SFP slotand its connection status LED Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 10: Top Panel

    2.2 Top Panel Grounding Grounding screw screw Power terminal Power terminal block block switches switches Figure 2 Top Panel 3 Mounting 3.1 Dimension Drawing 53.6 53.6 Figure 3 Opal10 Dimensions for DIN-Rail Mounting (unit: mm) Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 11: Mounting Modes And Steps

    Step 2: Insert the connecting seat onto the top of the DIN rail, and push the bottom of the device inward and upward to ensure the DIN rail fits in the connecting seat. Make sure the device is firmly installed on the DIN rail, as shown in the following figure. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 12: Din-Rail Dismounting

    It can automatically configure itself to work in 10M or 100M state, full or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You can connect the port to a terminal or network device with a straight-through or cross-over cable. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 13 Figure 8 Connection Using Straight-through/Cross-over Cable Note: The color of the cable for RJ45 connector meets the 568B standard: 1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 14: 100Base-Fx Ethernet Port

    Table 4 SFP Optical Modules for 100Base-X SFP slot The center Wavelength (CWL) of SFP module above is 1310nm. For how to connect the SFP optical module, please see 4.5SFP Optical Module. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 15: 10/100/1000Base-T(X) Ethernet Port

    1000M state, full or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You can connect the port to a terminal or network device with a straight-through or cross-over cable. Pin Definition ● Figure 10 RJ45 Port Table 5 Pin Definitions of 10/100Base-T(X) RJ45 Port Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 16: 100/1000Base-Xsfp Slot

    1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. 4.5 100/1000Base-XSFP slot 100/1000Base-XSFP slot (gigabit SFP slot) requires an SFP opticalmodule to enable data transmission. SFP Optical Module ● Figure 12 SFP Optical Module Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 17 If the LED is on, the connection is correct. If the LED is off, the link is not connected. This may be caused by incorrect connection of the TX and RX ports. In this case, swop the two connectors at one end of the fibers. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 18: Grounding

    Use copper conductors only, temperature rating 85.5℃ only. ● All field wiring intended for connection to the power terminal shall ● consist of copper conductors with the insulation locally removed. Additional intermediate connecting parts, other than ferrules, shall not be used. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 19 (with the allowed power range). If the power LED on the front panel of the switch turns on, the power supply is connected properly. Wiring and mounting should meet following specifications. Table 7 Wiring and Mounting Specifications Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 20: Dip Switches

    Figure 16 DIP Switches Table 8 Description of the DIP Switches Note: The SFP slots should be inserted the corresponding SFP optical module according to the state of DIP switch Ⅱ for Opal10. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 21: Leds

    5 LEDs Table 9 LEDs Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 22: Basic Features And Specifications

    6 Basic Features and Specifications 7 Certificates Used for Compliance Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 23: Appendix

    Transient protection shall be provided that is set at a level not exceeding 140 % ● of the peak rated voltage value at the supply terminals to the equipment. Kyland Opal10/Opal20 IM-EN-June 2016...
  • Page 24 Kyland Technology Co., Ltd. FAX: +86-10-88796678 Website: http://www.kyland.com Email: support@kyland.com Factory Address: NO.901, FLOOR8-12, BUILDING NO.2,SHIXING AVENUE30#, SHIJINGSHAN DIST, BEIJING 100144 CHINA...
