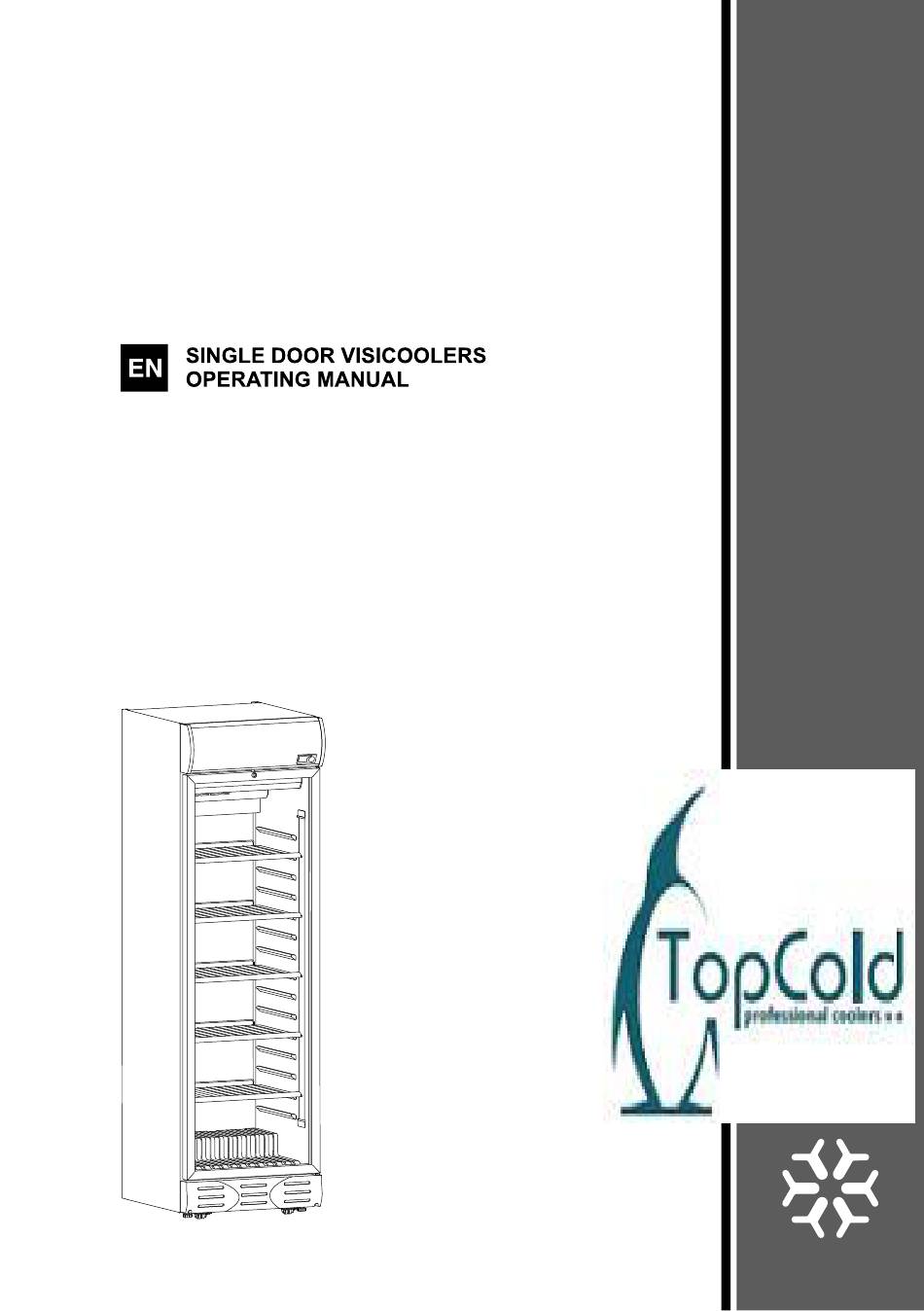

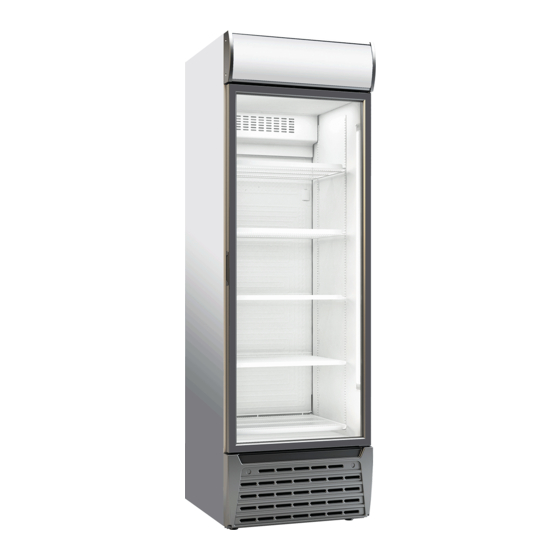

- Page 1 S 56 SC S 88 SC S 149 SC S 149 SL S 149 WIC ST S 149 WIC H S 240SC M1 S 240SC M1C D 372 SL M4 D 372 SC M4 D 372 SC M4 TD D 372 SC M4C...
- Page 3 Part 9.1. For Model With Electronic Control System Part 9.2. For Carel Ecobox And Carel Energy Saving Controlled Models...
- Page 4 3. PRECAUTIONS AND SAFETY INSTRUCTIONS BEFORE THE INITIAL START-UP Your visi/cooler must be plugged certainly in an earthed wall socket. Before operating the visi/cooler, ensure that the mains socket is checked for proper earthing (grounding) and nominal voltage and frequency requirements by the authorized service staff or a qualified electrician.
- Page 5 10 cm of space from the sides. Canopy lamps of S 56 SC and S 88 SC can be replaced only by skilled persons. Do not let children get into and play around the body.
- Page 6 PLEASE CHECK YOUR REFRIGERANT GAS TYPE FROM THE RATING LABEL: R134a, R600a, R290 or R744 (CO ) Only for the models with R600a or R290 gas: R600a/R290 gas is used in some models, explained in this instruction manuel. R600a/R290 is an environmentally friendly gas and used in appliances which have effective cooling technology.
- Page 7 Only for models with R744 ( ) gas : WARNING : The refrigeration system is under high pressure. Do not tamper with it. Contact qualified service personal before servicing. Please ensure to comply with local regulations. Pressure The symbol on the left means that the cooling system is under the high pressure and your appliance was marked with a warning label which contains this symbol.
- Page 8 4. TECHNICAL FEATURES OF SINGLE DOOR VISI-COOLERS 1 - Door 8 - Thermostat setting knob 2 - Power compartment 9 - Lighting switch 3 - Shelf 10 - Fan switch 4 - Adjustable height 11 - Interior lighting 5 - Interior ventilation fan 12 - Thermometer 6 - Canopy 13 - Electronic thermostat (optional)
- Page 9 S 56 SC S 88 SC 0/+10 0/+10 435x488x740 490x546x840 337x303x450 398x361x557 S 149 SC • S 149 WIC H • S 149 WIC ST S 149 SL 0/+10 595x645x840 595x645x840 595x645x840 490x466x670 490x466x670 490x466x670 • S 149 WIC ST and S 149 WIC H model coolers should only be used for wine conservation.
- Page 10 D 372 SC M4 D 372 SC M4C D 372 SL M4 D 372 SC M4C STD D 372 SC M4C TD D 372 SC M4 TD 0/+10 0/+10 0/+10 595x653x1500 595x650x2000 595x620x2000 490x453x1070 490x447x1570 490x447x1570 D 372 SC M5C •...
- Page 11 Climate Classes Class Relative Humidity % Temperature °C Dew Point °C 12,6 15,2 16,7 20,0 21,1 23,9 30,0 23,9 14,3...
- Page 12 ; 2 with S 149 and S 88 SC; and 1 with S 56 SC. First insert the uppermost shelf in the uppermost hooks in the body Insert the others correspondingly with the same method. Chilling process in the body takes place through the internal air circulation.
- Page 15 COMPRESSOR (Compressor light) : If green light is on, it shows that compressor is active. FAN (Fan light) : If green light is on, it shows that inner fans are active. On screen of the control panel, symbols stated below can apeear depending on the type of the trouble that maybe formed and cooling mode of the cooler.
- Page 16 9.2 FOR CAREL ECOBOX and CAREL ENERGY SAVING CONTROLLED MODELS: Control unit flashes for a few seconds in order to check if all connections are made correctly when the cooler is plugged in. This is normal, then the display will indicate current temperature. Set temperature has been adjusted to keep your beverages at optimum temperature, please do not attempt to change the settings.
- Page 20 B6019507_K11...
