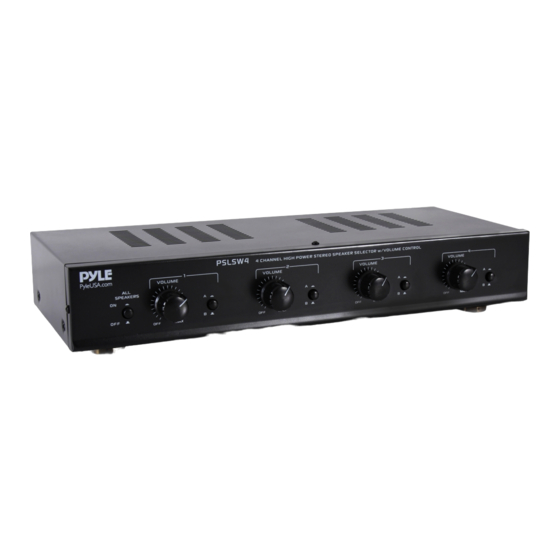

4/6-channel audio speaker receiver system. multi-zone speaker selector.

Advertisement

Quick Links

PSLSW4 - PSLSW6
Multi-Zone Speaker Selector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSLSW4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle PSLSW4

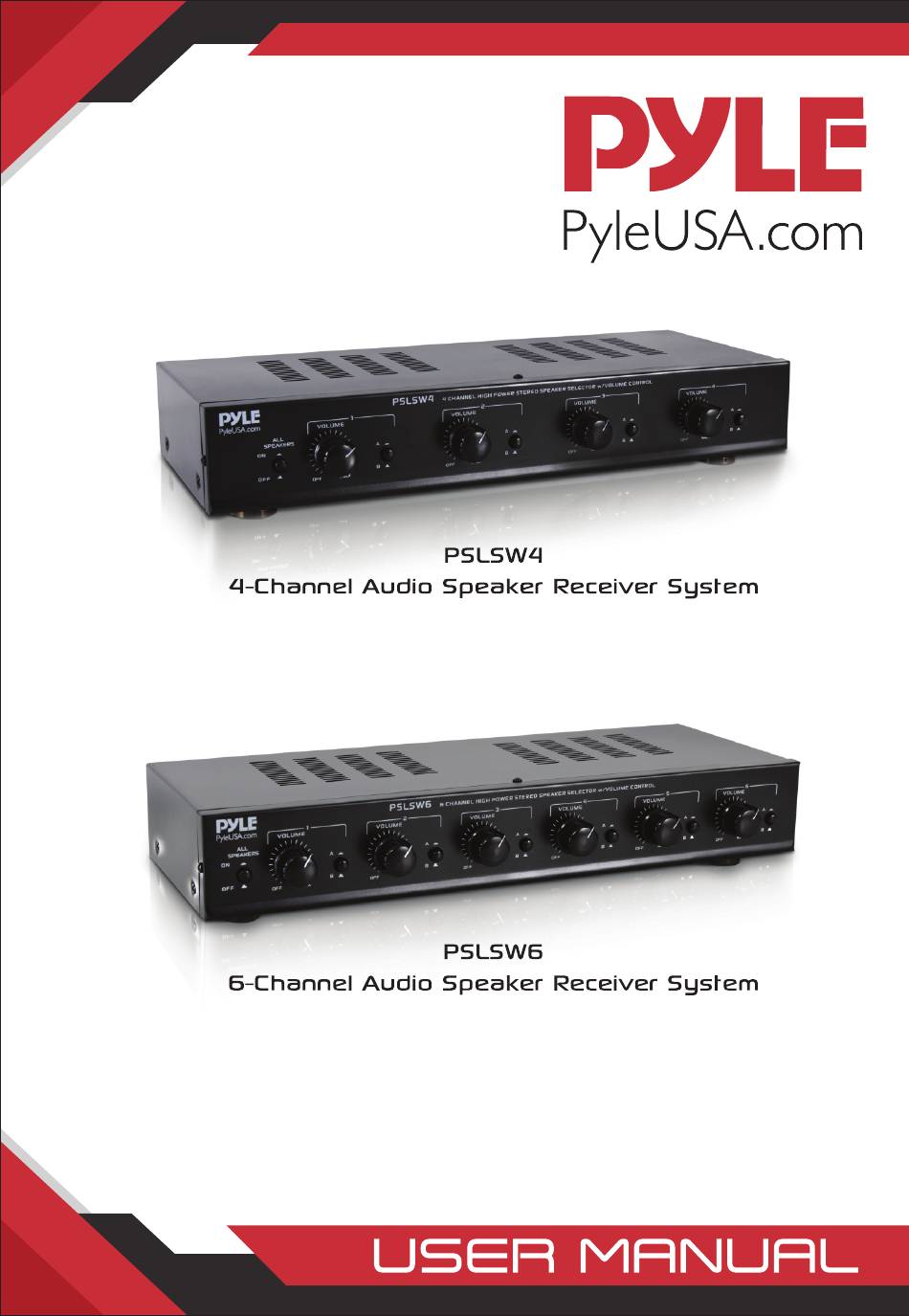

  • Page 1 PSLSW4 - PSLSW6 Multi-Zone Speaker Selector...
  • Page 2 PSLSW4 - PSLSW6 lets you connect up to four (PSLSW4) or six ( PSLSW6) separate pairs of speakers to your stereo receiver/ampli er. The control center is especially convenient if you have speaker sets in di erent rooms and want to turn them on and o independently.
  • Page 3 PSLSW6 Front and Back Panels OPERATION 1. Speakers ON/OFF Button Press button to turn ON all speaker pairs. Press again button out to turn o . 2. Ampli er A/B Selector Button Press button to select ampli er A and B 3.
  • Page 4 • • 50W AVG 4 or 16 OHM LOAD Insert the speakers’ positive (+) wires in the positive terminals, and negative (-) wires into the negative terminals, according to the respective L (left) and R (right) terminals. PSLSW4 PSLSW6 www.PyleUSA.com...
  • Page 5 The chart below shows the impedance for all possible combinations of 8-ohm speakers. PSLSW4 Speaker Sets On Impedance ( )
  • Page 6 4 Channel (PSLSW4) 6 Channel (PSLSW6) Audio Speaker Receiver System Features: • Convenient Audio Control for Up to 4 Pairs of Speakers (PSLSW4) or 6 Pairs of Speakers (PSLSW6) • Home Theater Stereo Ampli er System Support • Independent Audio Source Channel Volume Controls •...
  • Page 7 • Minimum Impedance: <8 Ohm • Frequency Response: 20Hz-20kHz • Dimensions (L x W x D): 16.9'' x 6.3’’ x 3.0'' -inches • Sold as: 1 • PSLSW4 Weight: 9.78 lbs. • PSLSW6 Weight: 9.55 lbs. Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...

This manual is also suitable for:

Pslsw6
