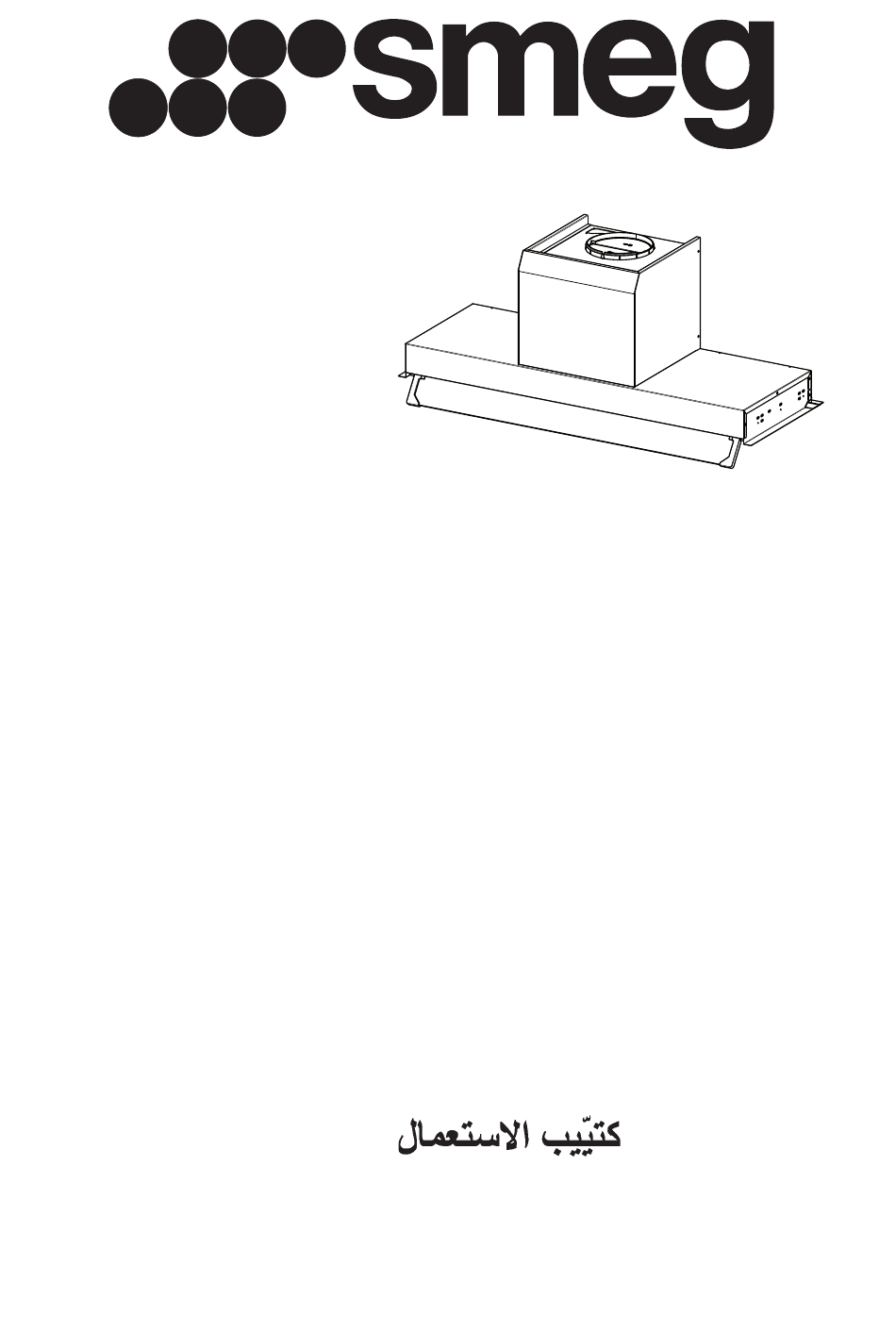

- Page 1 Libretto istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Brugsvejledning Bruksanvisning Руководство по эксплуатации Instrukcja Obsługi Bruksanvisning Käyttöohje KSP60XE - KSP90XE - KSP120XE...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI.............................. 5 CARATTERISTICHE................................8 INSTALLAZIONE ................................. 10 USO...................................... 11 MANUTENZIONE ................................12 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................14 CHARACTERISTICS ................................17 INSTALLATION..................................19 USE ...................................... 20 MAINTENANCE ................................... 21 SOMMAIRE CONSEILS ET SUGGESTIONS............................23 CARACTERISTIQUES................................. 26 INSTALLATION..................................28 UTILISATION ..................................
- Page 3 ÍNDICE CONSELHOS E SUGESTÕES............................59 CARACTERÍSTICAS ................................62 INSTALAÇÃO..................................64 UTILIZAÇÃO ..................................65 MANUTENÇÃO..................................66 INDHOLD RÅD OG ANVISNINGER ..............................68 APPARATBESKRIVELSE ..............................71 INSTALLATION..................................73 BRUG ....................................74 VEDLIGEHOLDELSE ................................75 INNHOLD ANBEFALINGER OG FORSLAG ............................77 EGENSKAPER..................................80 INSTALLASJON...................................
- Page 4 SISÄLTÖ OHJEET JA SUOSITUKSET ............................. 113 MITAT JA OSAT ................................116 ASENNUS ..................................118 KÄYTTÖ ..................................... 119 HUOLTO .................................... 120 اﻟﻔﻬﺮس 221............................ارﺷ ﺎدات و اﻗﺘﺮاﺣ ﺎت 521.................................اﻟﺨﺼ ﺎﺋﺺ ﺐ 721................................اﻟﺘﺮآﻴ 821................................اﻻﺳ ﺘﺨﺪام 921..............................ﻋﻤﻠﻴ ﺔ اﻟﺼ ﻴﺎﻧﺔ...
-
Page 5: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 6 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 7: Maintenance
• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •... - Page 8 CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Fan unit, Filters Directional Grille ø 125 mm Reduction Flange ø 150-120 mm Ref. Q.ty Installation Components Screws 2.9 x 9.5 (Washer under head) Q.ty Documentation Instruction Manual...
- Page 9 Fixing the Hood • Insert the Hood Canopy into the overhead unit. • Align the hood canopy with the front bottom edge of the unit (excluding any doors). • Remove grease filters. • Screw the hood canopy to the unit from the inside. •...
-
Page 10: Recirculation Version Air Outlet
INSTALLATION Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. • To install a ø 120 mm air exhaust connection, insert the re- ø... - Page 11 Controls Lights – To turn the lights on, press the dial and release it so that it pops out of its housing. To turn the lights off, push the dial back inwards, returning it to the off position Motor Speed Adjustment – Press the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds.
-
Page 12: Replacing The Activated Charcoal Filter
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time. -
Page 13: Light Replacement
Lighting LIGHT REPLACEMENT 20 W halogen light. • Remove the snap-on lamp cover by levering it from under the metal ring, supporting it with one hand. • Remove the halogen lamp from the lamp holder by pulling gently. • Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder.
