Installation Guide for VDSL Router HG180

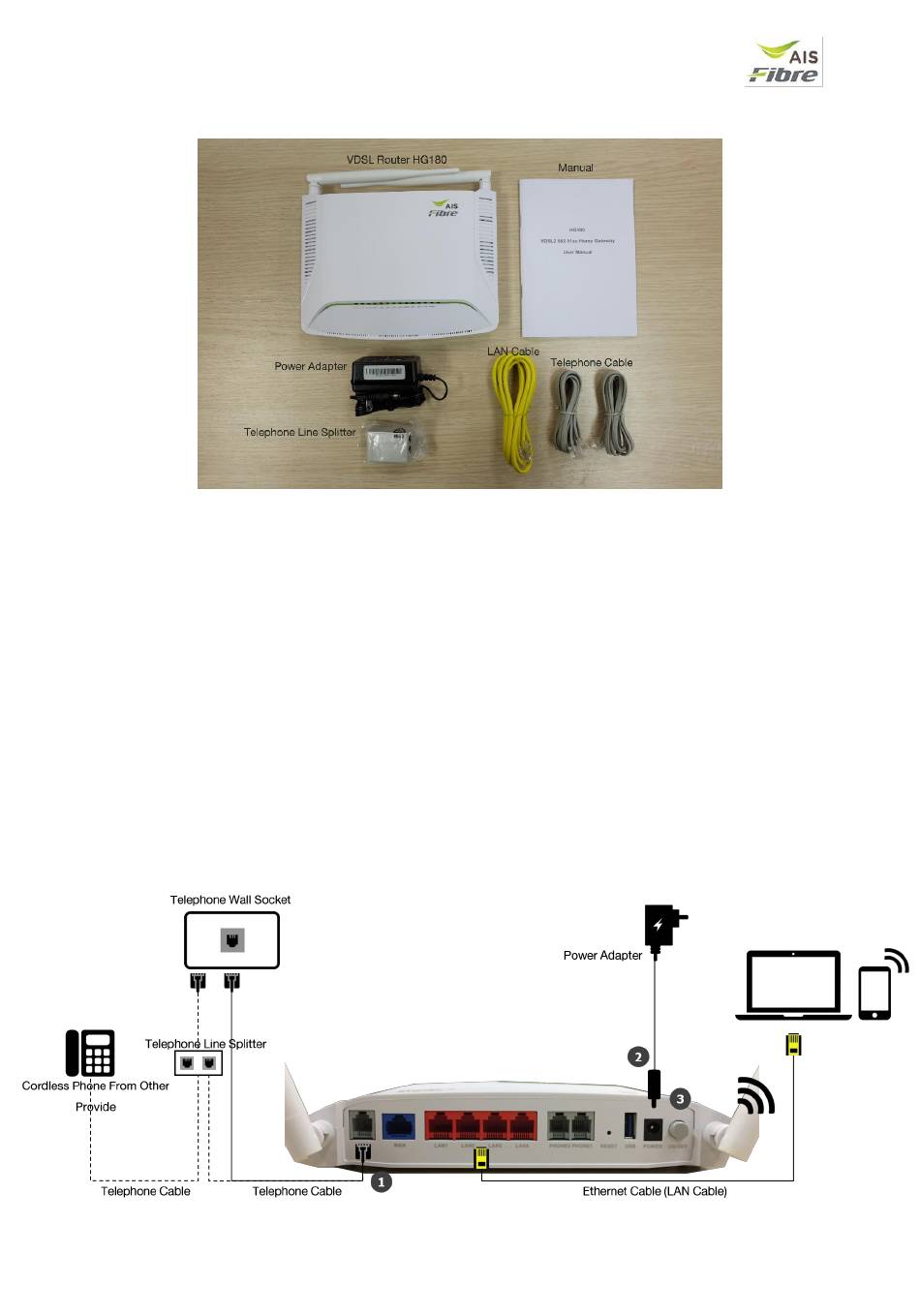

Unpack Router your box contains the following items:

1. VDSL Router HG180

2. Power adapter

3. 1 x Ethernet cable (LAN Cable)

4. Telephone Line Splitter

5. 2 x Telephone Cable

6. Manual

1. Connect telephone cable between DSL port on Router and Telephone wall socketใ

* If you have existing telephone from other provider and need to continue using, connect

telephone cable between telephone wall socket and telephone line splitter then connect

another telephone line between MODEM port on telephone line splitter and DSL port on

router as following picture.

Table of Contents

Do you have a question about the HG180 and is the answer not in the manual?

Page 1 Installation Guide for VDSL Router HG180 Unpack Router your box contains the following items: 1. VDSL Router HG180 2. Power adapter 3. 1 x Ethernet cable (LAN Cable) 4. Telephone Line Splitter 5. 2 x Telephone Cable 6. Manual Cabling Router 1.
Page 2 (SSID) is located on the product label on the bottom of the router. *VDSL Router HG180 is dual-band router which operate WiFi in 2 frequencies. 2.4 GHz is a frequency interval which normally users are using. A mainly advantage of 2.4 GHz is support all wireless equipment and have large coverage signal but also has many disadvantages that are the less number of channels, the large of the opportunity to overlap signal.
Page 3 VDSL Router HG180 can operating in both 2 frequencies, 2.4 GHz and 5 GHz., so you have to setting wireless network both frequencies. Setting Wireless Network Name (WiFi name) for Wireless 2.4 GHz 1. Select Basic Setup -> WLAN -> Basic configuration 2.4 GHz 2.
Page 4 Setting Wireless Network Name (WiFi name) for Wireless 5 GHz 1. Select Basic Setup -> WLAN -> Basic configuration 5 GHz 2. Type your WiFi name in SSID box then click Apply Setting SSID password (WiFi Password) for Wireless 5 GHz 1.
