GE
Lumination
Tetra
miniMAX
®
LED Lighting System
(GEWHMMS5, GEWWMMS5, GERDMMS5, GEGLMMS5, GEBLMMS5)

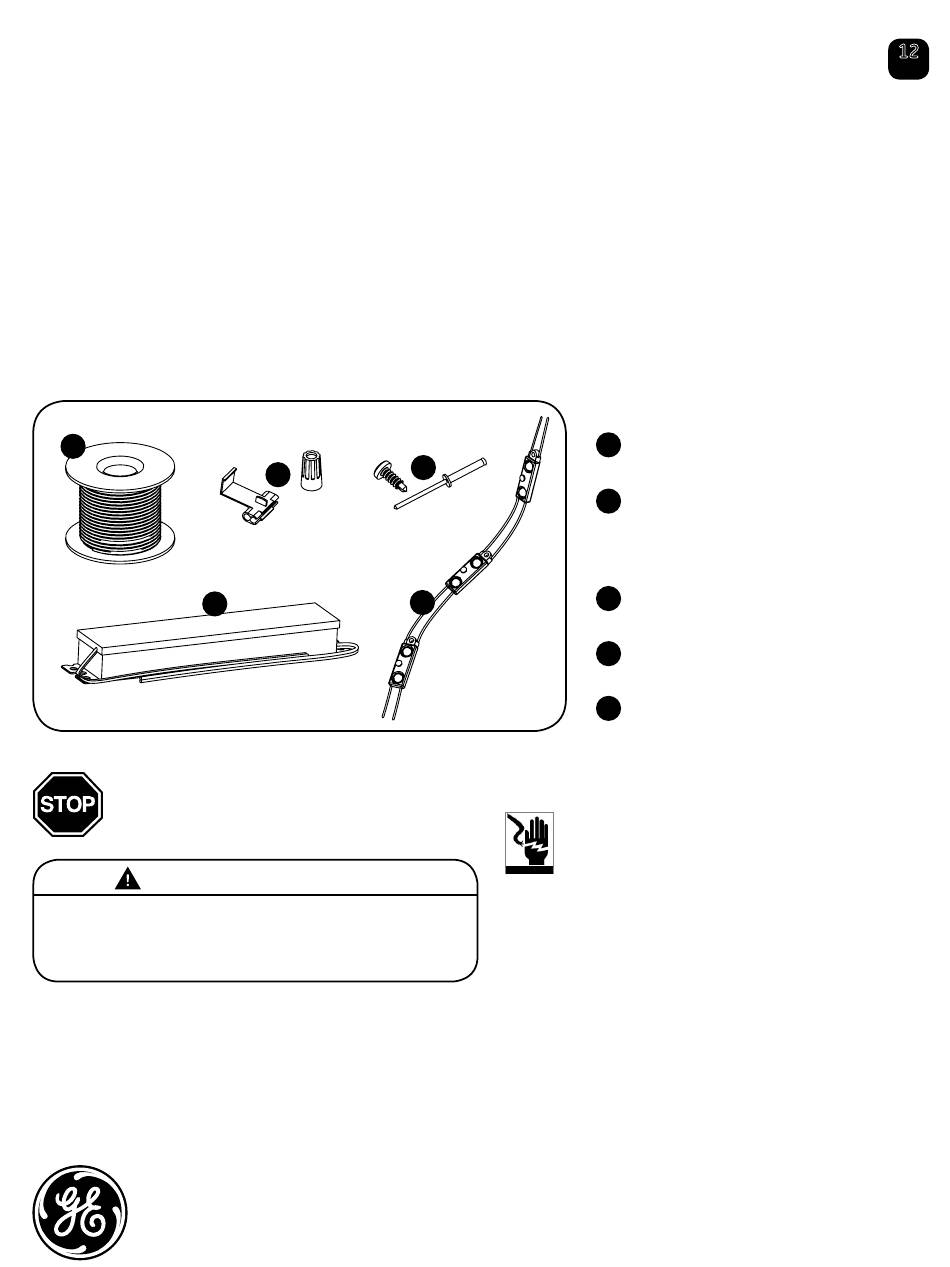

Components
1
4
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING / AVERTISSMENT
Risk of electrical shock. Disconnect power before servicing or
installing product.
Risque de choc électrique. Couper l'alimentation avant
le dépannage ou avant l'installation du produit.
imagination at work
3
2
5
Components:
1
UL approved 18 AWG (0.82 mm
supply wire
2
UL approved 22-14 AWG
(0.33-2.08 mm
or 22-18 AWG (0.33-0.82 mm
in-line/IDC connectors
3
#6 or #8 (M3 or M4) screws or
1/8 inch (3.2 mm) rivets
4
Power Supply (GEPS12-20,
GEPS12-60 or GEPS12-60U)
5
Tetra
®
miniMAX LED modules
Prepare Electrical Wiring
Electrical Requirements
• Do not use in wet locations.
• The grounding and bonding of the LED Driver shall be
done in accordance with National Electric Code (NEC)
Article 600.
• Follow all National Electric Codes (NEC) and local codes.
Installation Guide
12
Volt
)
2
) wire connectors
2
)
2
Advertisement
Related Manuals for GE Tetra miniMAX
Summary of Contents for GE Tetra miniMAX
- Page 1 Installation Guide Lumination Volt Tetra miniMAX ® LED Lighting System (GEWHMMS5, GEWWMMS5, GERDMMS5, GEGLMMS5, GEBLMMS5) Components Components: UL approved 18 AWG (0.82 mm supply wire UL approved 22-14 AWG (0.33-2.08 mm ) wire connectors or 22-18 AWG (0.33-0.82 mm in-line/IDC connectors #6 or #8 (M3 or M4) screws or 1/8 inch (3.2 mm) rivets Power Supply (GEPS12-20,...
- Page 2 Installation Guide Step 1: Layout Modules Clean & remove all debris from the inside of the Measure and cut Tetra LED strip to the appropriate channel letter before you begin. length for each letter. Cuts can be made between any of the modules. Remove tape backing and stick LED modules Use rivets or screws to secure the LED strip within into place.
- Page 3 Installation Guide Step 2: Electrical Connections White (-) Red stripe (+) Connect LED strips using in-line (IDC) connectors Must cap all exposed wires with appropriate wire or twist-on wire connectors. connectors. To power supply Red (+) To Tetra LED System Black (-) Red (+) Black (-)
- Page 4 (1.888.694.3533) Lumination, LLC is a subsidiary of the General Electric Company. Tetra is a trademark of Lumination, LLC. The GE brand, logo, and ecomagination are trademarks of the General Electric Company. © 2009 Lumination, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
