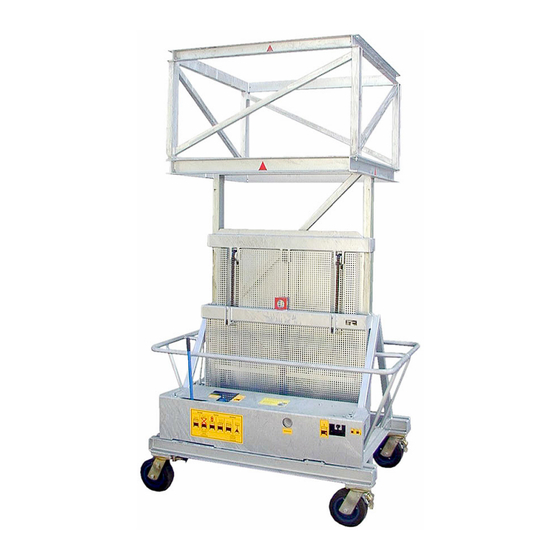

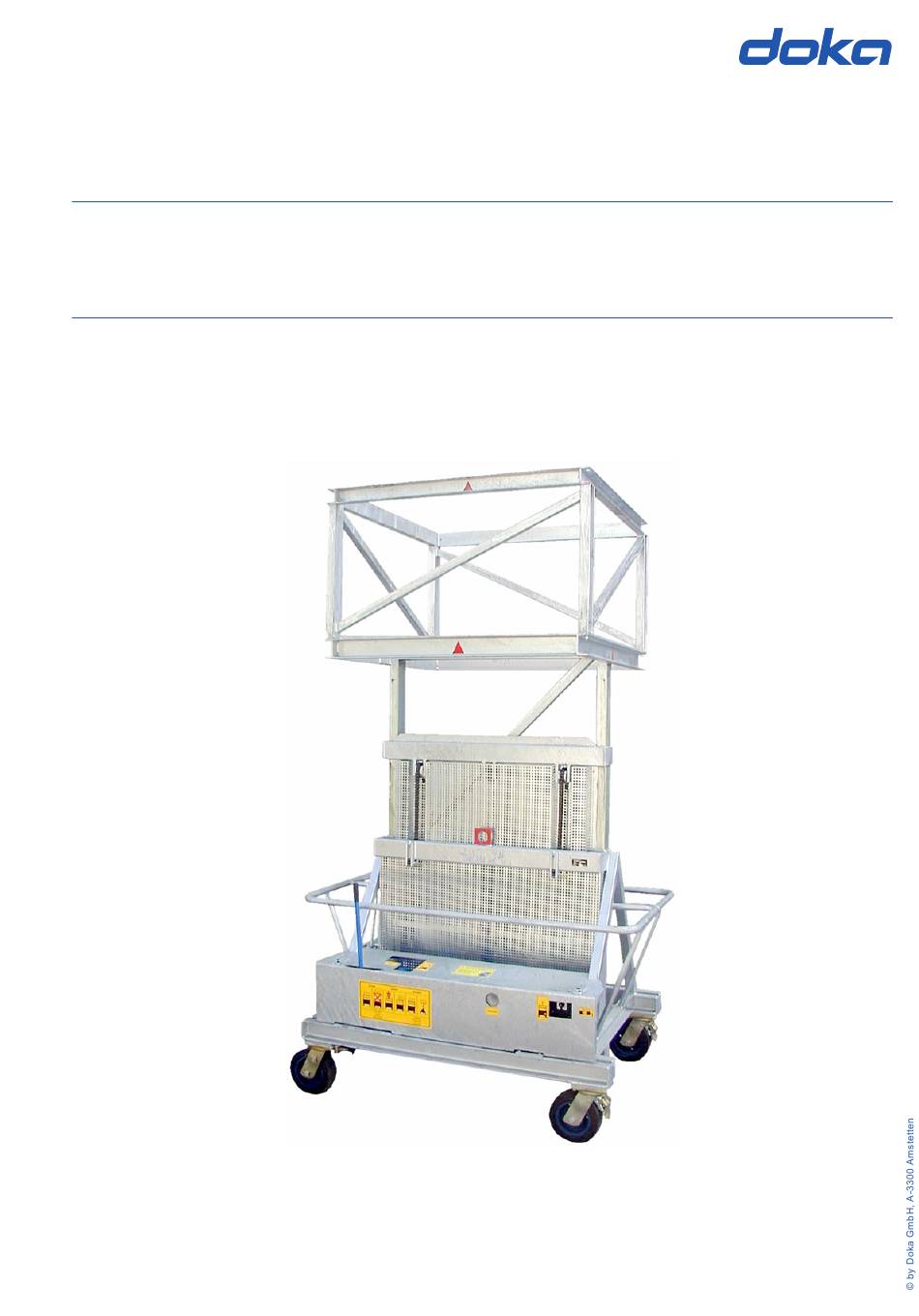

- Page 1 999216002 02/2020 en-GB The Formwork Experts. Shifting trolley DF Art. n°: 586080000 | 1995 models onward Original Operating Instructions Please retain for future reference © by Doka GmbH, A-3300 Amstetten...
-
Page 2: Product Presentation
Original Operating Instructions Shifting trolley DF Product presentation Component overview Shifting trolley DF Art.n° 586080000 9216-200-01 a ... 1440 mm b ... 1804 mm c ... 1540 mm to 3030 mm d ... 1340 mm e ... 1300 mm A Hand-pump lever B "Lift"... - Page 3 Dead weight: 566.0 kg (1247.8 lbs) Max. load: 1500 kg (3300 lbs) Year of manufacture: see rating plate Intended use The Shifting trolley DF is a lifting accessory. It is used for lifting and repositioning Dokaflex and Dokamatic tables (intended use). NOTICE ▪...
-
Page 4: Maintenance And Inspection
In order to make sure that no damage At regular intervals has occurred in transit, the Shifting trolley DF should be inspected thoroughly as soon as it is delivered. Any damage must be reported to the sender in writing. Until ▪... -
Page 5: Hydraulic System
Mounting the new lifting motor Whenever the oil has been changed, or after repairs, The lifting motor is fastened onto the Shifting trolley DF the whole system can be bled via a bleeder screw on with 2 hexagonal bolts M8x30 and hexagon nuts M8. -
Page 6: Height Adjustment
Height ranges incl. distribution beams h min. [cm] h max. [cm] 399.0 548.0 Max. load per Shifting trolley DF with one Alu stacking frame DM 2.25m where the load is applied centrally: 1440 kg a ... 750 mm b ... 1340 mm c ... - Page 7 With Stacking frame General Depending on the size of the table and the situation on the site, the Shifting trolley DF is pushed under the table either from one end or one side of the table. Maximum eccentric positioning at the load centre at full load: a=max.
- Page 8 Shifting Follow the directions in the "Attachable drive unit DF" Operating Instructions! The Shifting trolley DF is fitted with 4 heavy-duty swivel casters of ø250 mm. Two of these wheels are equipped Setting down and positioning the with a fixing brake.
- Page 9 Original Operating Instructions Shifting trolley DF Lining-and-levelling With the Shifting trolley DF, Dokaflex and Dokamatic tables can be exactly positioned, and lined-and-lev- elled. The positioning lever - supplied along with the trol- ley - is used for exactly aligning the heavy-duty swivel casters in the desired direction of travel.
-
Page 10: Practical Example
Extensions for Shifting trolley DF with Alu stacking frame DM 2.25m NOTICE At a table height of 5.80 to 7.30 m, the Exten- sions for Shifting trolley DF must be mounted on Shifting trolley DF and extended! Art.n° 5860150000 a ... 1284 mm b ... - Page 11 Washer 17 Lift the Safety clip (D) . K Drive unit for Shifting trolley DF ➤ Fix the Shifting trolley DF so that it cannot be moved accidentally.(apply the fixing brakes, wedge the wheels with chocks, etc.). ➤ Push the "Extensions for Shifting trolley DF" (A) under the Shifting trolley DF.
-
Page 12: Troubleshooting
Original Operating Instructions Shifting trolley DF Troubleshooting Load not being lifted The hydraulic lines of the Attachable drive unit DF cannot be connected or Possible causes: disconnected (quick-acting coupling) ▪ Load too heavy (> 1500 kg, including Stacking frame) ▪... -
Page 13: Declaration Of Conformity
Original Operating Instructions Shifting trolley DF Declaration of conformity EC Declaration of Conformity pursuant to EC Directive 2006/42/EC. The manufacturer declares that by reason of its conception and design, the following product Shifting trolley DF, art. n° 586080000 conforms – in the version marketed by ourselves – to the pertinent fundamental health and safety stipulations of the relevant EC Direc- tives.
