PowerFlex 755TM Power and Filter Module Storage Hardware
Catalog Number 20-750-MINV-ATIP

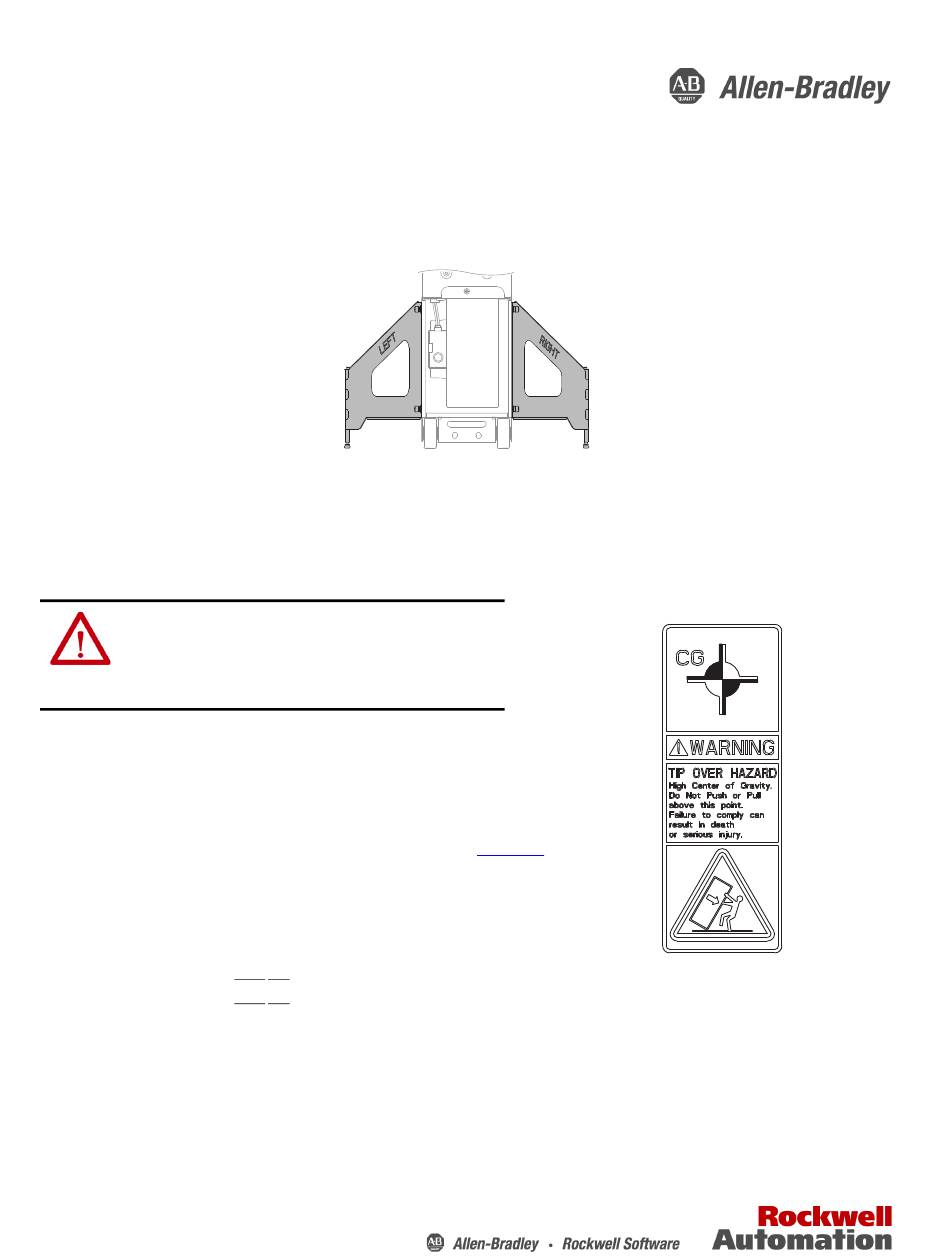

The PowerFlex® 755TM Power and Filter Module storage hardware is designed to help stabilize IGBT power modules and LCL filter modules
during storage.
Module Handling
ATTENTION: IGBT power and LCL filter modules have a high center of gravity
and a tip-over hazard exists. To guard against death, serious personal injury,
or equipment damage, do not subject the module to high rates of
acceleration or deceleration while transporting. Do not push or pull above the
points indicated on the module.
• Do not use this storage hardware to transport modules.
• Module wheels are designed for module installation and removal only.
Do not use module wheels for transport.
• Only use the PowerFlex 750-Series service cart (20-750-MCART1) to
transport individual PowerFlex 755TM modules.
• See the PowerFlex 750-Series Service Cart Instructions, publication
for information on cart setup and use.
Module Storage
Choose a suitable storage location for the module.
• Surrounding atmosphere must not contain volatile or corrosive gas, vapors, or dust.
• Surrounding atmosphere must not contain conductive pollutants.
• Surrounding air temperature is -40...+70 °C (-40...+158 °F).
• Do not store modules in active isles or work areas.
• Store modules on a smooth and level surface clear of debris and obstacles.
• Avoid sloped and rough surfaces.
This label, affixed to the module chassis, identifies the center of gravity.
750-IN105
