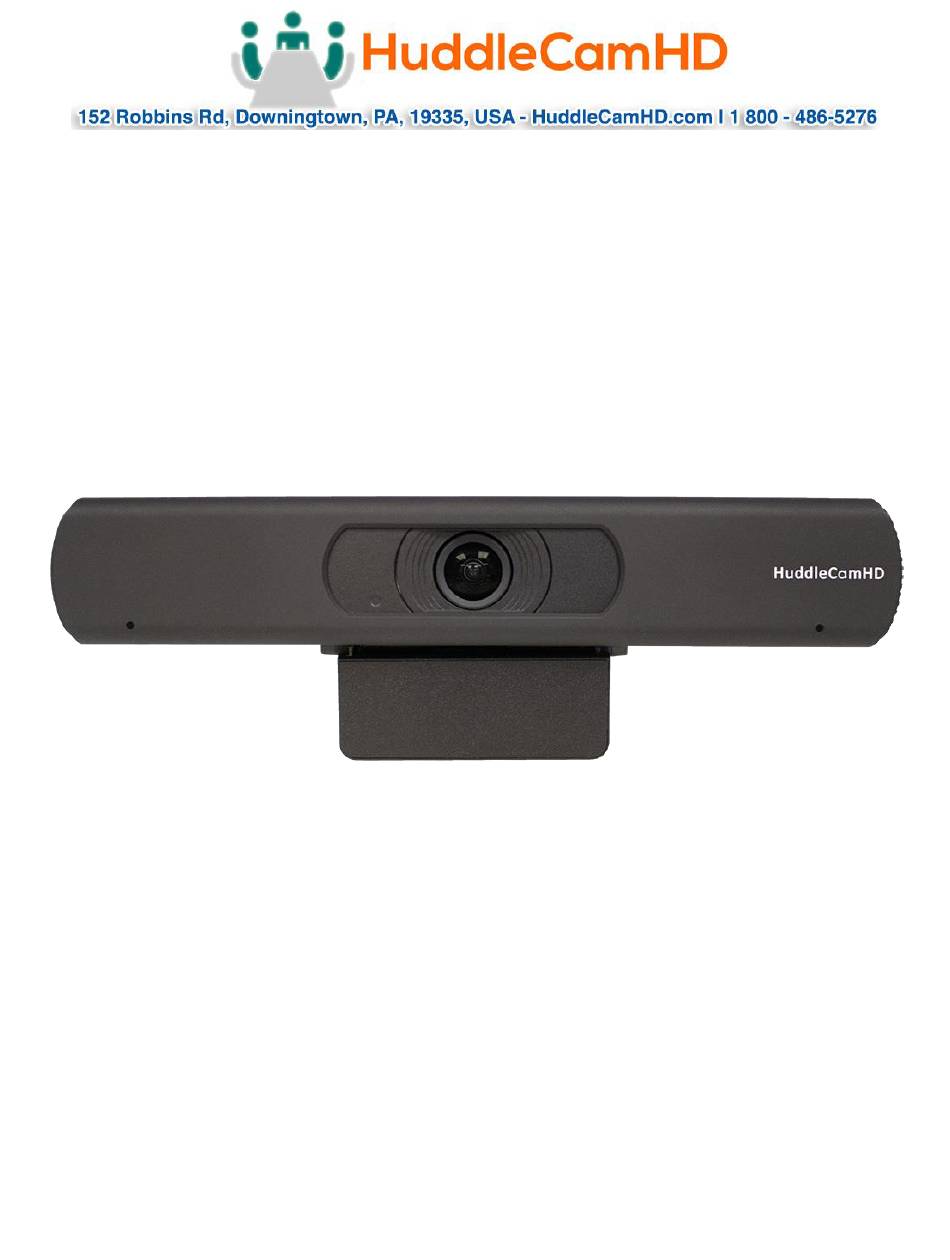

- Page 1 HuddleCamHD EPTZ Webcam USB 3.0 EPTZ CAMERA INSTALLATION & OPERATION MANUAL Please check HUDDLECAMHD.com for the most up to date version of this document Ver 1.0 2/20...
- Page 2 • Contact your authorized dealer for repair. In the Box……………………………………………………………………………………………. …………………………………………………………………………………. Supplied Equipment • HC-EPTZ-USB Camera (1) • USB 3.0 A-B cable (1) • IR Remote Controller (1) • User Manual (1) Page 2 of 14...
- Page 3 Physical Description……………………………………………………………………………… Front View…………………………………………………………………………………………. Lens 108° Field of View lens Power LED Blue LED lights when unit is powered and on. Mounting Base Mounting base for camera. 1/4-20 mounting screw. Microphone Array Beamforming microphone array Page 3 of 14 Ver 1.0 2/20...
- Page 4 2. Rear View…………………………………………………………………………………………………………. HDMI Connection HDMI 1.4 (4K@30) connection to display USB 3.0 Connection For connecting to PC for video and power Page 4 of 14 Ver 1.0 2/20...
- Page 5 OSD MENU……………………………………………………………………………………………… On Screen Display Menu Use the OSD menu to access and change the camera’s settings. Note: Electronic P/T/Z functionality is disabled when the OSD menu is displayed. The camera OSD Menu offers the following settings options: • Exposure o Full Auto ▪...
- Page 6 • Color o Auto ▪ AWB Sens Low / Middle / High ▪ RG Tuning -10 ~ +10 ▪ BG Tuning -10 ~ +10 ▪ Saturation 60% ~ 200% ▪ Hue 0 – 14 o Indoor ▪ Saturation 60% ~ 200% ▪...
- Page 7 • Image ▪ Luminance 0 ~ 14 ▪ Contrast 0 ~ 14 ▪ Sharpness Auto / 0 ~ 15 ▪ Flip-H Off / On ▪ Flip-V Off / On ▪ Gamma Default / 0.45 / 0.5 / 0.56 / 0.63 ▪...
- Page 8 IR Remote Controller…………………………………………………………………………… Note: IR Remote will not work on other HuddleCamHD cameras Standby Button: Press this button to enter standby mode. Press it again to enter normal mode. NOTE: Power consumption in standby mode is approximately half of the normal mode.
- Page 9 Position the bottom mount on the back of the monitor to secure the camera in position. You can rotate the camera lens as necessary. Tripod Installation……………………………………………………………………………………… When using the HuddleCamHD camera with a tripod, screw the tripod to the bottom of the camera. The tripod screw must fit shown specifications: Page 9 of 14 Ver 1.0 2/20...
- Page 10 Troubleshooting………….………………………………………………………………………… Problem Cause Resolution There is no power to the USB Port is not supplying Test another USB port camera proper power USB Cable is Disconnected Ensure cable connections are secure Camera will not connect USB cable is faulty Try new USB Cable to the PC via USB Camera connects Test another USB port and...
- Page 11 “Compatible” USB 3.0 extenders do not actually have the full 5Gbps bandwidth required for uncompressed HD video – so check bandwidth specs. Always connect the HuddleCamHD camera directly to the device in order to associate the UVC drivers before attempting to use any extension system.
- Page 12 Windows search tool) as shown in the screenshot, below: In this example, you can see the HuddleCamHD model in use connected as a fully functional USB 3.0 device (HuddleCamHD) as well as a USB 2.0 device with limited functionality (USB2.0 Camera).
- Page 13 Similarly, you can see a connected device in System Information on a Apple computer. See screenshot below: In this example, you can see the HuddleCamHD model in use connected as a fully functional USB 3.0 device “HuddleCamHD” as well as a “USB2.0 camera” with limited functionality (USB2.0 camera).
- Page 14 Specs……………………………………………………………………………………………………… Model Number: HC-EPTZ-USB Camera & Lens • Video CMOS Sensor 1/2.5” CMOS 8.51M Mega Pixel • Resolution 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 • Frame Rate 50Hz: 1 ~ 25 60Hz: 1 ~ 30 • Zoom 8X Digital Zoom •...
