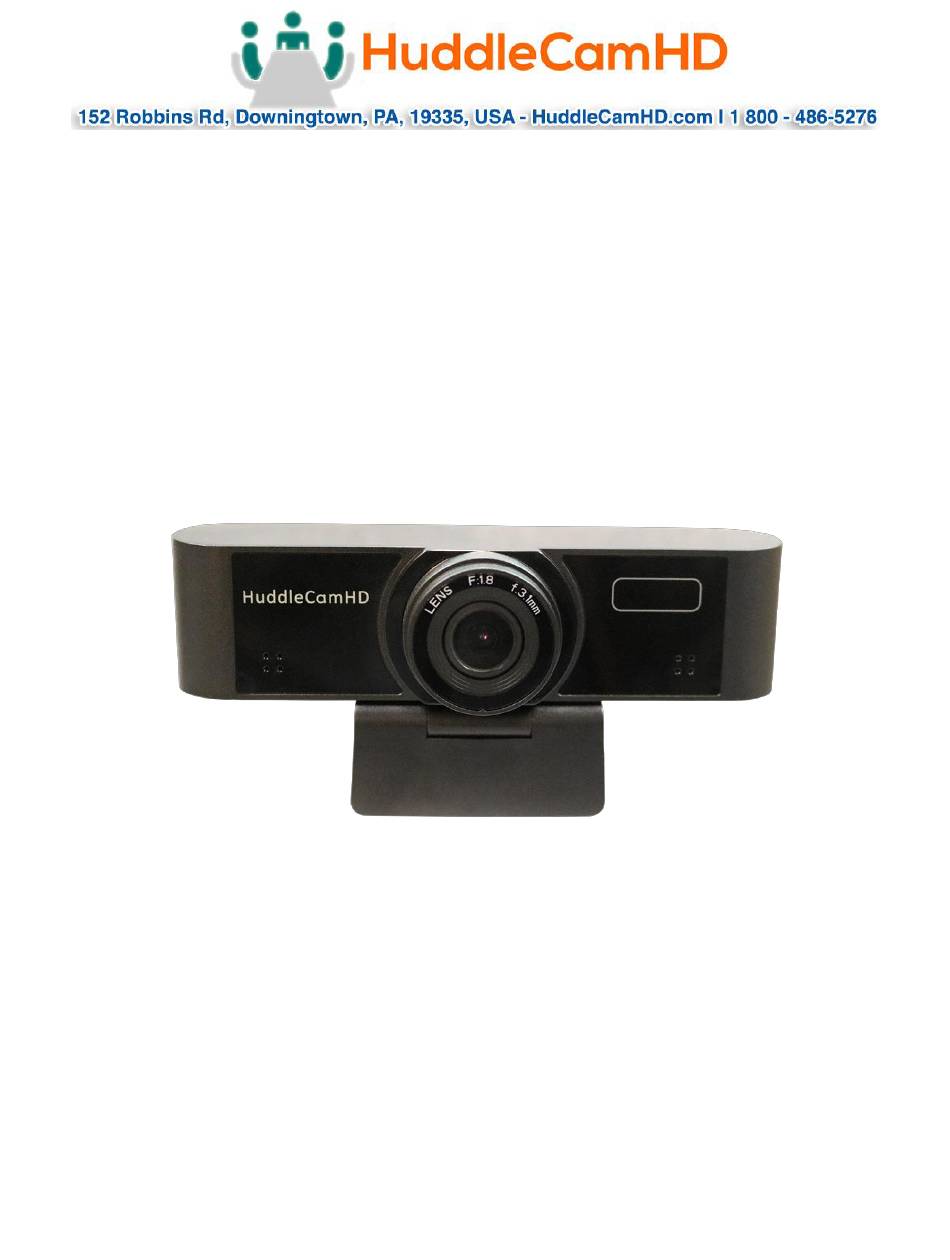

- Page 1 HuddleCamHD Wide Angle Webcam USB 2.0 Webcam INSTALLATION & OPERATION MANUAL Please check HUDDLECAMHD.com for the most up to date version of this document Ver 1.0 5/19...
- Page 2 Precautions…………………………………………………………………………………………. Safety Tips……………………………………………………………………………………………. • Please read this manual carefully before using the camera. • Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation. • Take care of the camera during installation to prevent damage to the camera case, ports, or lens.
-
Page 3: Physical Description
Physical Description……………………………………………………………………… Front View………………………………………………………………………………… Lens 120° field of view lens Power LED Blue LED lights when unit is powered and on. Microphone array Internal microphone array with up to a 15-foot range Top Mount Used for resting the camera on a monitor Page 3 of 14 Ver 1.0 5/19... -
Page 4: Rear View
2. Rear View……………………………………………………………………………………………………. Built in USB 2.0 cable For connection to PC USB 2.0 port. Bottom Mount Used for securing the camera in position on monitor 1/4-20 Mount Used for mounting to any standard 1/4-20 mounting screw Page 4 of 14 Ver 1.0 5/19... - Page 5 OSD MENU……………………………………………………………………………………………… On Screen Display Menu - Use the OSD menu to access and change the camera’s settings by using the HuddleCamHD Webcam OSD Menu application. The camera OSD Menu is as follows: • Exposure o Full Auto ▪ ExpCompMode On/Off ▪...
- Page 6 • Color o Auto ▪ AWB Sens Low/Middle/High ▪ RG Tuning -10 - +10 ▪ BG Tuning -10 - +10 ▪ Saturation 60% - 200% ▪ Hue 0 – 14 o Indoor ▪ Saturation 60% - 200% ▪ Hue 0 – 14 o Outdoor ▪...
- Page 7 • Image ▪ Luminance 0 – 14 ▪ Contrast 0 – 14 ▪ Sharpness Auto/0 – 15 ▪ Flip-H Off/On ▪ Flip-V Off/On ▪ Gamma Default/0.45/0.5/0.56/0.63 ▪ Style Clarity/Bright/PC/Clarity (LED)/Norm ▪ LDC Off/-10 - +10 • Focus ▪ AF-Sense Low/Medium/High ▪...
- Page 8 Connection Instructions……………………………………………………………………… Connect USB 2.0 cable from webcam to an available USB port on the PC. Select and configure camera in your software of choice. NOTE: Failure to follow this sequence may result in no connection to PC. Care Of The Unit…………………………………………………………………………………. Remove dust or dirt on the surface of the lens with a blower (commercially available).
- Page 9 Tripod Installation………………………………………………………………………………………. When using the HuddleCam with a tripod, screw the tripod to the bottom of the camera mount. The tripod screw must fit below specifications: Note: Tripod must stand on a level surface. Page 9 of 14 Ver 1.0 5/19...
-
Page 10: Troubleshooting
Troubleshooting………….………………………………………………………………………… • No image o Check whether the USB cable is connected properly to the PC. o Check whether the LED glows when USB is connected to the PC. • Abnormal display of image o Check OSD of camera through the OSD Menu app. o Check settings of software you’re viewing the video feed in. - Page 11 USB camera connectivity. HuddleCam Cameras All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into Windows, Mac OS and Linux to stream HD video to your device via your device’s USB port (USB 2.0 or USB 3.0 depending upon HuddleCam model). When your device successfully recognizes the camera, your device will register the HuddleCam as an “imaging device”.
- Page 12 In this example, you can see the HuddleCam model in use connected as a fully functional USB 2.0 device (HuddleCamHD). If your device has not connected to or has not recognized the HuddleCam as an imaging device (in which case, you may see a new “unknown device”, “Westbridge” or “CYTFX3”...
- Page 13 Similarly, you can see a connected device in System Information on a MAC. See screenshot below: In this example, you can see the HuddleCam model in use connected as a fully functional USB 2.0 device (HuddleCamHD). Page 13 of 14 Ver 1.0 5/19...
- Page 14 Specs……………………………………………………………………………………………………… Model Number: HC-WEBCAM-120 Camera & Lens • Video CMOS Sensor 1/2.7” CMOS 2.07M Mega Pixel • Frame Rate 1080p-30/25, 720p-30/25, 960x540p-30/25, 640x360p-30/25 • Field of View 120° • Lens Focus: f=3.1mm • Min Lux 0.05 Lux @ F1.8, AGC ON) •...
