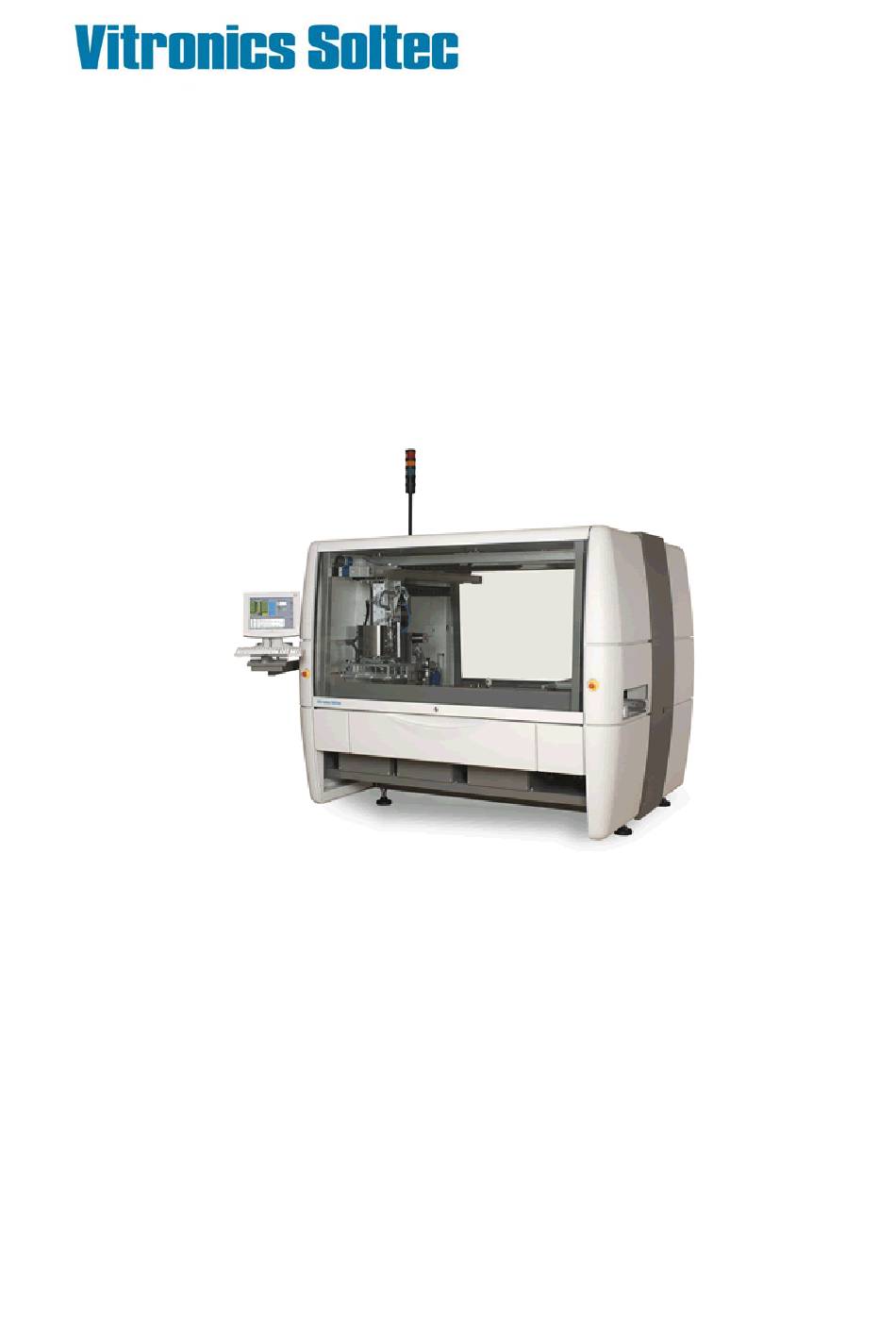

Vitronics Soltec mySelective 6748 Installation Manual

Hide thumbs Also See for mySelective 6748:
Table of Contents

Advertisement

Quick Links

VITRONICS SOLTEC BV
Visit address
Innovatiepark 12 - 4906 AA Oosterhout - the Netherlands
Mail address
P.O. Box 143 - 4900 AC Oosterhout - the Netherlands
Telephone
+31-162-483000
Fax
+31-162-483269
www.vitronics-soltec.com
Installation Guide
mySelective 6748
Version 48.1.0.006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mySelective 6748 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitronics Soltec mySelective 6748

Summary of Contents for Vitronics Soltec mySelective 6748

  • Page 1 Installation Guide mySelective 6748 Version 48.1.0.006 VITRONICS SOLTEC BV Visit address Innovatiepark 12 - 4906 AA Oosterhout - the Netherlands Mail address P.O. Box 143 - 4900 AC Oosterhout - the Netherlands Telephone +31-162-483000 +31-162-483269...
  • Page 2 Vitronics Soltec BV. This publication remains the property of Vitronics Soltec BV and may not be passed, loaned or given to any third party. Vitronics Soltec BV reserves the right to make changes in design and specifications without notice.
  • Page 3 For corrections or clarifications please contact: 1. By mail: VITRONICS SOLTEC BV HEAD OFFICE TECHNICAL PUBLICATIONS P.O. BOX 143 4900 AC OOSTERHOUT THE NETHERLANDS TEL NR. (31) - 162483000 FAX.NR. (31) - 162483285 2. By e-mail: techpub.nl@vsww.com Installation Guide mySelective 6748...

  • Page 5: Table Of Contents

    Table of Contents Preface Table of Contents Installation 1.1 General . 1.2 Transport 1.2.1 Symbols used . 1.2.2 Unpacking . 1.2.3 Lifting with forklift 1.2.4 Centre of Gravity . 1.3 Putting in position 1.3.1 MultiFlux and Robot . 1.4 Connections 1.4.1 General .
  • Page 7 SAFETY RULES GENERAL INFORMATION ICON DESCRIPTION ICON DESCRIPTION Only Qualified personnel is allowed to work on the High voltages are present on various parts of the sys- equipment. tem. Never eat, drink or smoke while working on the machine. Before working on the electrical circuit, turn main Wash thoroughly before eating, drinking or smoking.

  • Page 9: Installation

    VERSION April 2008 Installation ENERAL Installing only by trained Vitronics Soltec / Agent personnel. At the end of this chapter an installation sheet is located. RANSPORT 1.2.1 S YMBOLS USED Position pallet/box for transport Breakable Keep dry Lift here (labels are placed on...

  • Page 10: Unpacking

    NSTALLATION 1.2.2 U NPACKING The Vitronics Soltec mySelective.com is standard packed on a wooden floor. 1.2.2.1 ACKED IN CRATE When necessary, the machine is packed in crates (e.g. when shipped). If packed in crates the following procedure should be followed.

  • Page 11: Centre Of Gravity

    1.2 - T RANSPORT 1.2.3 L IFTING WITH FORKLIFT When the transporting straps are removed, the mySelective.com can be placed on the place the customer has provided. To lift and transport the mySelective.com use the positions as shown in the installation sheet at the end of this document.

  • Page 12: Putting In Position

    NSTALLATION UTTING IN POSITION After the machine is placed on its location, the next steps should be followed. 1.3.1 M ULTI LUX AND OBOT MultiFlux Remove red Transport strips at MultiFlux unit Robot Remove red Transportstrips at Robot unit. After removing the transport strips, use mounting materials in plastic bag, to replace the bolts used for transport strips.
  • Page 13 1.3 - P UTTING IN POSITION EMOVE THE BOLTS ON THE ULTI EMOVE THE BOLTS ON THE ELECT IGURE ULTI AVE AND ELECT Unpacking / Installing mySelective.com HAPTER...

  • Page 14: Connections

    XHAUST SYSTEM One exhaust gauge of 160 mm (6.3”) is provided. This should be connected with the customer’s exhaust system (not supplied by Vitronics Soltec). • Inflammable and/or explosive gas might develop in the machine because of the evaporation of the solvent in the flux.

  • Page 15: Mechanical Installation

    1.5 - M ECHANICAL INSTALLATION ECHANICAL INSTALLATION After carefully positioning the machine and allowing for sufficient working space we can continue installation. The procedures given here are meant as a directive for measuring and controlling the machine, in order to guarantee that the machine will run as specified. During some measurements the robot must be set over the camera position.

  • Page 16: Mechanical Settings

    NSTALLATION ECHANICAL SETTINGS 1.6.1 F & R RAME OBOT During installation the machine frame should be set level and at the correct height. The frame adjustments in combination with the robot axles should be within a tolerance of 0.2 mm/m when the robot is at camera position. 46 mm open ended spanner 27 mm open...
  • Page 17 1.6 - M ECHANICAL SETTINGS 6. Place spiritlevel on Y-axis IGURE AXIS 7. Level the machine by adjusting the leveling pads. 8. Control backside X-axis. 1.10 B IGURE ACKSIDE AXIS 9. When machine is leveled, tighten the nuts (A). See Figure 1.7.
  • Page 18 NSTALLATION 1.6.2 F ILLING THE SOLDERPOT There are two different ways to fill the solderpot: 1. Filling with granulated solder. When granulated solder is used: Fill solderpot equally. 2. Filling with solderbars. When filled with bars, its impossible to melt them on the heated sides of the solderpot. There- fore the sumps must be removed.

  • Page 19: Installation Sheet

    VERSION April 2008 Installation sheet mySelective.com TOPVIEW 6748 3x400V - 50/60Hz - Max. 37 kVA. N2 connection - 6 bar 20m3/h. 1185 (46.6") ca.500 (20") 2370 (93.3")
  • Page 20 Installation sheet mySelective.com FRONT AND SIDE VIEW 6748 160 (6.3") 1920 (75.6") 121 (4.8") 1013 (39.9") LIFT ONLY FROM THIS SIDE !!! (= BACKSIDE OF MACHINE) LIFTING POINTS. UNITS IN MM DISTANCE BETWEEN FORKS MINIMUM 800MM-1000MM REMOVE transport UNPACK PLACE fastening LIFT MACHINE...
  • Page 21 Installation sheet mySelective.com TOPVIEW 6749 3x400V - 50/60Hz - Max. 37 kVA. N2 connection - 6 bar 20m3/h. 1385 (54.5") 2770 (109.1") ca.500 (20")
  • Page 22 Installation sheet mySelective.com FRONT AND SIDE VIEW 6749 160 (6.3") 2320 (91.3") 121 (4.8") 1280 (50.4") LIFT ONLY FROM THIS SIDE !!! (= BACKSIDE OF MACHINE) LIFTING POINTS. UNITS IN MM DISTANCE BETWEEN FORKS MINIMUM 1000MM-1200MM REMOVE transport UNPACK PLACE fastening LIFT MACHINE...
  • Page 23 Installation sheet mySelective.com DESCRIPTION UNITS 6748 6749 3x400 or 3x415 3x400 or 3x415 Input Voltage 50/60 50/60 Frequency Power Minimum (for running machine without heating) Power Maximum I largest Load kg / lb 1940 (4277) 2180 (4806) Weight Machine (without solder) kg / lb 39.6 (87.3) 59(130)

  • Page 25: Index

    Index Symbols . . 1-1 Tools . . 1-7 Transport . 1-1 Conditions . 1-7 Connections . . 1-6 Unpacking . 1-2 Frame . . 1-8 X-axis . 1-8 Installation . 1-1, 1-10 Y-axis . . 1-9 Leveling pads . .
