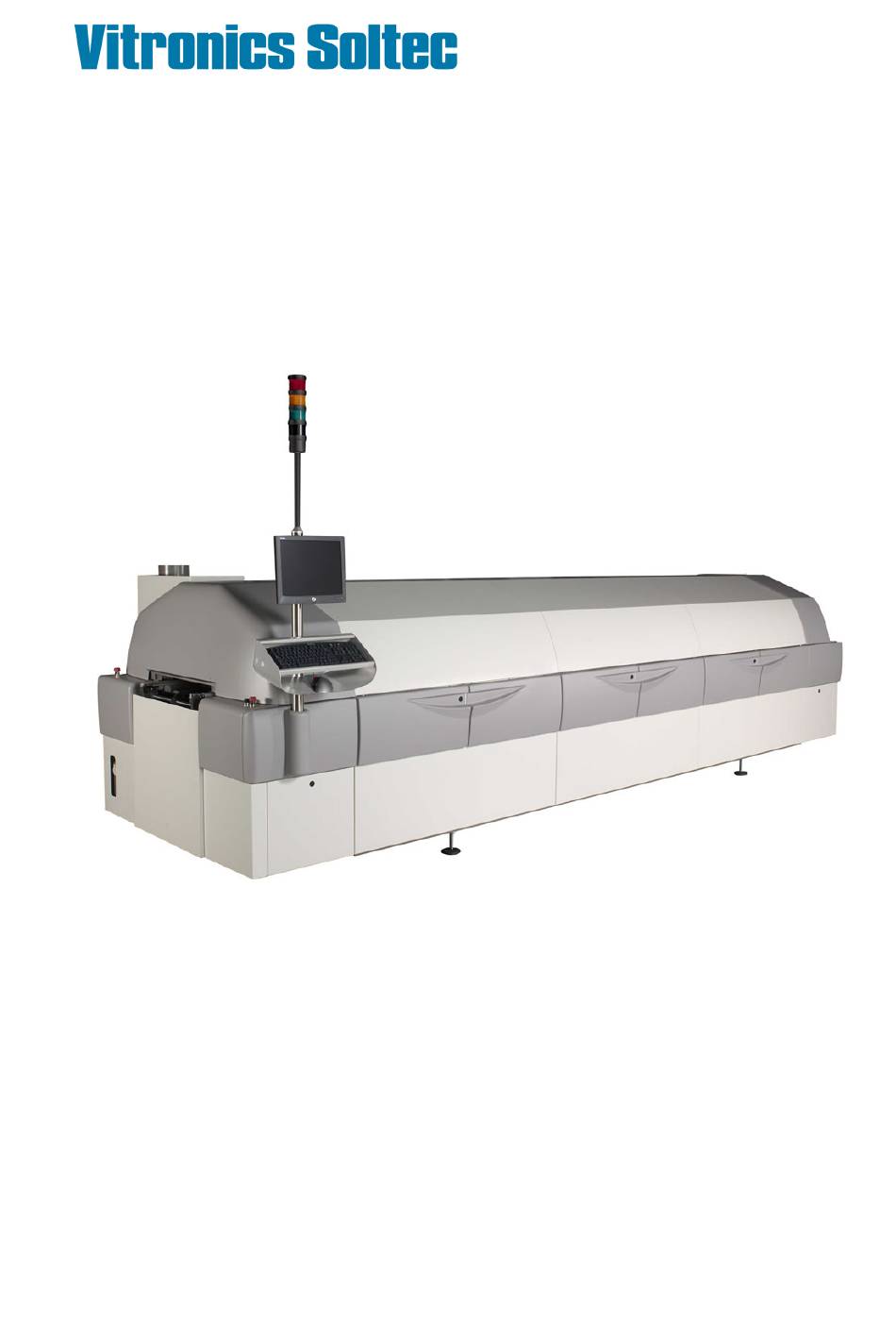

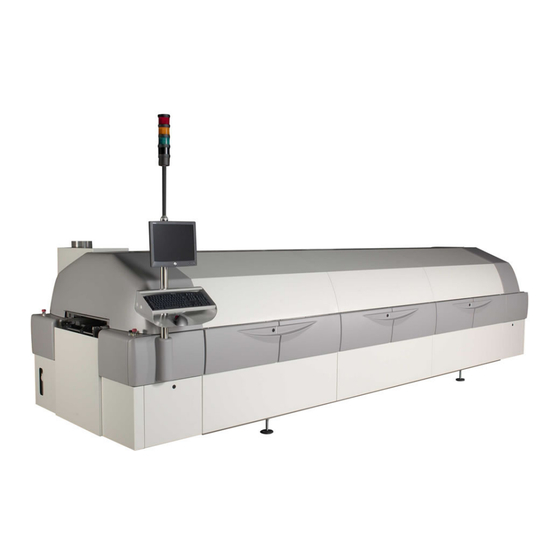

- Page 1 Installation Guide myReflow.com Version 38.1.0.003 VITRONICS SOLTEC BV Visit adress Innovatiepark 12 - 4906 AA Oosterhout - the Netherlands Mail adress P.O. Box 143 - 4900 AC Oosterhout - the Netherlands Telephone +31-162-483000 +31-162-483269...
- Page 2 Vitronics Soltec BV. This publication remains the property of Vitronics Soltec BV and may not be passed, loaned or given to any third party. Vitronics Soltec BV reserves the right to make changes in design and specifications without notice.
- Page 3 We appreciate any comments which will help us to improve this documentation. For corrections or clarifications please contact: 1. By mail: VITRONICS SOLTEC BV HEAD OFFICE TECHNICAL PUBLICATIONS P.O. BOX 143 4900 AC OOSTERHOUT THE NETHERLANDS TEL NR.
-
Page 5: Table Of Contents
Table of Contents Preface Table of Contents Installation 1.1 General . 1.2 Transport 1.2.1 Symbols used . 1.3 Unpacking . 1.3.1 Packet in crate . 1.3.2 Packed on wooden pallet 1.3.3 Lifting with forklift 1.4 Connections 1.4.1 General . 1.4.2 Electrical connection . - Page 7 SAFETY RULES GENERAL INFORMATION ICON DESCRIPTION ICON DESCRIPTION Only Qualified personnel is allowed to work on the High voltages are present on various parts of the sys- equipment. tem. Never eat, drink or smoke while working on the machine. Before working on the electrical circuit, turn main Wash thoroughly before eating, drinking or smoking.
-
Page 9: Installation
VERSION 2005 March Installation ENERAL Installing only by trained Vitronics Soltec / Agent personnel. At the end of this chapter an installation sheet is located. RANSPORT 1.2.1 S YMBOLS USED Position pallet/box for transport Breakable Keep dry Lift here (labels are placed on... -
Page 10: Unpacking
NSTALLATION NPACKING The Vitronics Soltec myReflow is packed on a wooden pallet. When necessary, the machine is packed in crates (e.g. when shipped). If packed in crates the following procedure (paragraph 1.3.1 and 1.3.2) should be followed. When the machine is packed on a wooden pallet follow instructions in paragraph 1.3.2. -
Page 11: Lifting With Forklift
1.3 - U NPACKING Remove the coverdoors at the coverdoor strap-positions (total 4). Remove straps strap IGURE TRAPS REMOVAL 1.3.3 L IFTING WITH FORKLIFT When the transporting straps are removed, the myReflow can be placed on the place the cus- tomer has provided. -
Page 12: Connections
XHAUST SYSTEM One exhaust gauge of 165 mm (6.5”) is provided. This should be connected with the customer’s exhaust system (not supplied by Vitronics Soltec). • Inflammable and/or explosive gas might develop in the machine because of the evaporation of the solvent in the flux. - Page 13 1.4 - C ONNECTIONS 1.4.5 P ERSONAL COMPUTER The complete Personal Computer is packed in boxes for transporting. ❸ ❹ ❷ ❼ ❻ ❺ IGURE NSTALLING Unpack all boxes. Unpack PC arm. Slide signal column in position. Install keyboard holder. Install keyboard and mouse.
-
Page 14: Opening Cover For Leveling
NSTALLATION PENING COVER FOR LEVELING Before the machine can be leveled the power on the machine must be on. Switching on is only allowed by qualified personnel. Switch on the mainpower and PC. Select the myReflow icon on your desktop to start the PC program. Select from the Status Menu Reset. -
Page 15: Leveling
1.6 - L EVELING EVELING After the machine is placed on its location and the cover is opened, the next steps should be fol- lowed. 36 mm open ended spanner 17 mm open ended spanner 57-139mm IGURE DJUSTING LEVEL spirit-level Y- level TOPVIEW SIDEVIEW... -
Page 16: Installation Sheet
A = Air 2840 4698 N = Nitrogen 1284 2840 2840 5408 1639 2840 1095 6118 MR620A, MR620N, MR710A, MR710N, MR730A & MR820A SideView SideView FrontView 57- 139 Main Nitrogen Electrical Supply MR730N, MR820N, MR840A & MR930A MR840N, MR930N, MR1040A &... - Page 17 1.7 - I NSTALLATION HEET FRONTSIDE 1.10 S IGURE LIDING OUT DIMENSIONS OOLING UNIT Technical Reference myReflow.com HAPTER...
-
Page 18: Installation Requirements
NSTALLATION NSTALLATION REQUIREMENTS ESCRIPTION NITS Input Voltage 3 x 400 (Supply tolerance +10%, -10%) Frequency 50/60 Start-Up power Slow Start-Up power Power required at setpoint (depending on configuration, load and setpoints) Weight machine Air (maximum) kg/lb Weight machine Nitrogen (maximum) kg/lb Carrying capacity per leveling feet kg/lb... -
Page 19: Index
Index Unpacking . 1-2 Connections . . 1-4 Installation requirements 1- Installation Sheet . 1-8 leveling . 1-6 Lifting . . 1-3 Putting in position . 1-7 Rights . . 1-ii Symbols . 1-1 Transport . . 1-1 Installation Guide myReflow.com...
