Seiko 5Y66 Instructions

5Y66 ・ 5Y67 KS5Y66-0705
取扱説明書
INSTRUCTION
5Y66 ・ 5Y67
このたびはセイコークオーツウオッチを
お買い上げいただきありがとうございま
した。 ご使用の前にこの取扱説明書をよく
お読みのうえ正しくご愛用くださいますよ
うお願い申し上げます。
なお、この取扱説明書はお手もとに保存し
必要に応じてご覧ください。

■FEATURES

Indicates 24-hour, date, and day of week by hands in addition to hour, minute and second.
The day hand moves reciprocating (retrograde type) in a fan-like fashion.
※24-hour hand works in conjunction with the hour hand. It cannot be individually corrected.
※The hand indicating the day of the week has no correction mechanism, therefore, it is to be adjusted by turning the hour hand
and minute hand when setting the time. Please refer to "How to use."

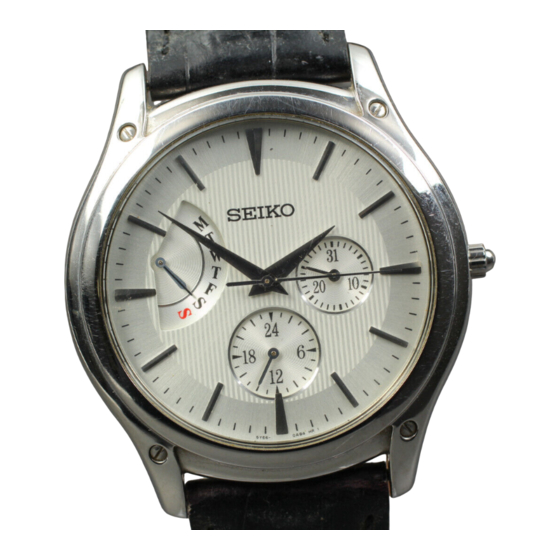

■NAMES AND FUNCTIONS OF EACH PART
Day hand （day of the week）
※Layout of the day of the
Hour hand
week may be different
from this illustration.
Second hand
■HOW TO USE
●How to set the day of the week and time
The hand indicating the day of the week has no correction mechanism. Then, first, set the day of the week by turning the hour
hand and minute hand.
①When the second hand reaches the 12 o'clock position (0
seconds), pull out the crown to the second click. Then the
watch stops.
Crown
31
5
25
10
20
15
Second
24
18 6 click
12
②Turn the crown clockwise to advance the hour and minute
hands. When the time has passed 0 o'clock a.m., the day
hand starts moving.
Further advance the hour and minute hands until the day hand
indicates the next day of the week.
If the day hand is required to be advanced further, return the
hour and minute hands by 4 to 5 hours and turn the hour and
minute hands in the advancing direction to allow the day hand
to advance quickly.
Repeat the above procedures to set the day hand. (Set the
day hand by reciprocating from 11 o'clock p.m. to 4 o'clock
a.m.)
※Please rotate the crown gently.
Crown
31
5
25
10
20
15
Second
24
18 6 click
12
■ LUMIBRITE
〔IF YOUR WATCH HAS LUMIBRITE〕
・LumiBrite is a newly-developed paint that absorbs the light energy of the sunlight and lighting apparatus in a
short time and stores it to emit light in the dark.
For example, if exposed to a light of more than 500 lux for approximately 10 minutes, LumiBrite can emit light for
3 to 5 hours.
Please note, however, that, as LumiBrite emits the light it stores, the luminance level of the light decreases
gradually over time. The duration of the emitted light may also differ slightly depending on such factors as the
brightness of the place where the watch is exposed to light and the distance from the light source to the watch.

■SPECIFICATIONS

1. Frequency of crystal oscillator: ･･････････････32,768 Hz (Hz = Hertz ... Cycles per second)
2. Loss/gain (monthly rate): ･･･････････････････Less than 20 seconds (worn on the wrist within normal
3. Operational temperature range: ･････････････Between -5℃ and +50℃
4. Driving systems:･･･････････････････････････Step motor
5. Power source: ････････････････････････････Silver oxide battery SB-AN, 1 piece
6. Battery life: ･･･････････････････････････････Approximately 3 years
7. IC (Integrated Circuit): ･････････････････････Oscillator, frequency divider and driving circuit (C-MOS-IC), 1
※The specifications are subject to change without prior notice due to product improvements.
本 社 東京都港区芝浦１丁目２番１号 〒105-8467
セイコー製品について、修理その他のご相談は、「お買い上げ店」で
うけたまわっております。
なお、ご不明の点は下記へお問い合せください。
http://www.seiko-watch.co.jp/
0120-612-911
全国共通フリーダイ ヤル
（下記の最寄地に着信いたします）
お客様相談室
〒 101-0044 東京都千代田区鍛冶町 2-1-10
〒 550-0013 大阪市西区新町 1-4-24（大阪四ﾂ橋新町ビルディ ング 8階）
Minute hand
Crown
31
5
25
10
20
15
Second click：Time setting
24
18 6
First click：Date setting
12
Normal position：No function
Date hand （date）
24-hour hand
③Set the time after the day of the week is set.
※Set the time so as not to set a.m. and p.m. in error.
(Date and day of the week are designed to change once every 24
hours.)
※To set correctly, advance the minute hand by 4 to 5 minutes from
the correct time and return it in reverse.
※Telephone time announcement service 117 is convenient for time
setting.
Crown
31
5
25
10
20
15
24
18 6
12
④Wait for the time announcement of the adjusted time, and
push the crown back in to the normal position at the same
time with the time announcement.
●How to set the date
Set the date after the time is set.
Adjust the date on the first date of the month after the even
month (the number of days for a month is 30 days) or
February.
①Pull out the crown to the first click.
Crown
31
5
25
10
20
15
24
18 6
12
②Set the date by turning the crown counterclockwise.
※Turn the crown gently so as to check the movement of the date
hand.
※When the hands indicate 9 o'clock to 1 o'clock a.m., do not set the
date, otherwise, the date setting cannot be carried out, or the date
may not be changed to the next day even after setting the date.
③After the date is set, push the crown back in to the normal
position.
temperature range between 5℃ and 35℃
piece
■ TO PRESERVE THE QUALITY OF YOUR WATCH
CAUTION
●WATER RESISTANCE
・Check the dial or case back of your
watch for the water resistant quality,
and then see the table below.
・Do not turn or pull out the crown
when the watch is wet, as water may
get inside the watch.
●ABOUT BATHING
Your watch can be worn while bathing if it is equipped with water resistance over 10 bar.
・In that case, please note the following carefully.
・Please do not operate your watch (Crown operation, Button operation etc.) When it is wet with soap or shampoo. it
sometimes causes a reduction in the water proofing.
・When the watch gets warm due to warm water, the watch could gain or lose time to some degree. However, the watch will
return to its usual accuracy at normal temperatures.
WARNING
・If your watch is 3 bar water resistant, do not use it in water.
・If your watch is 5 bar water resistant, do not use it in any type of diving including skin diving.
・If your watch is 10 or 20 bar water resistant, do not use it in saturation diving or scuba diving.
●PLACES TO KEEP YOUR WATCH
・If the watch is left in a temperature below -5℃ or above +50℃ for a long time it may function improperly or stop operating.
※This watch is so adjusted that it will maintain stable time accuracy in normal temperatures.(5℃〜35℃)
It will lose or gain slightly, but it will regain high time accuracy when it returns to normal temperature.
・Do not leave the watch in a place where it is subjected to strong magnetism or static electricity.
・Do not leave the watch where there is strong vibration.
・Do not leave the watch in a dusty place.
・Do not expose the watch to gases or chemicals.
(Ex.: Organic solvents such as benzine and thinner, gasoline, nail polish, cosmetic spray, detergent, adhesives, mercury,
and iodine antiseptic solution.)
・Do not leave the watch in a hot spring, or do not keep it in a drawer having insecticides inside.
CAUTION
●CARE OF YOUR WATCH
・The case and bracelet touch the skin directly just as underwear. If they are left dirty, the edge of a sleeve may be stained
with rust of those who have a delicate skin may have a rash.
・After removing the watch from your wrist, wipe perspiration or moisture with a soft cloth. This will prevent the watch from
being soiled, adding to the life of the gasket.
METAL BRACELET
・Clean the watch bracelet with a soft toothbrush dipped in water or soapy water. If your watch is not water-resistant, be
careful not to get the case wet when cleaning.
LEATHER BAND
・When removing moisture from a leather band, do not rub the band with the cloth as this may discolor it or reduce its gloss.
Be sure to blot up the moisture using a soft dry cloth.
SOFT PLASTIC BRACELET
・If your watch has a soft plastic band such as urethane band, do not leave the watch under a fluorescent lamp or direct
sunlight for a long time, or do not leave the band soiled. Otherwise, the band may be discolored, hardened or broken.
Also, do not keep the watch in a place where it is exposed to high humidity, or do not leave the band wet with perspiration
or water. Otherwise, the band may be discolored in a very short time.
When the band is soiled, rinse it in soapy water. Do not use solvents for cleaning as some solvents may deteriorate the
band.
If your watch has a semitransparent urethane band, which is easily discolored, special care should be taken to keep it
clean. Depending on the condition of use, the semitransparent band may be discolored after several months of use.
●If your watch is not water-resistant, be careful not to get wet with water or sweat. When it gets wet with water or sweat,
wipe it thoroughly dry with a hygroscopic cloth.
●If your watch is 5, 10 or 20 bar water resistant, rinse it in a bowl of fresh water after used in seawater. Do not use
chemicals to wash it.
●If your watch has a rotating bezel, clean the bezel regularly. Otherwise, dust will gather under it, making the rotation
harder.
CAUTION
●RASH AND ALLERGY
・Adjust the bracelet or band so that there will be a little clearance between the bracelet or band and your wrist to avoid
accumulation of perspiration.
・If you are constitutionally predisposed to rash, the band may cause you to develop a rash or an itch depending on your
physical condition.
・The possible causes of the rash are as follows:
1. Allergy to metals or leathers
2. Rust, dust or perspiration on the watch or band
・If you develop any skin reactions, take off the watch and consult a doctor immediately.
●PRECAUTIONS ON WEARING YOUR WATCH
Second
Take utmost care in the following cases:
click
・When clasping and unclasping the band, you may damage your nail, depending on the type of clasp used with the band.
・In case you tumble and fall or bump into others with the watch worn on your wrist, you may be injured by the reason of the
fact that you wear the watch.
・When you make contact with children, especially with infants, they may get injured or develop a rush caused by allergy.
CAUTION
・If your watch is of the fob or pendant type, the strap or chain attached to the watch may damage your clothes, or injure
the hand, neck, or other parts of your body.
●PERIODIC CHECK
・The watch is a precision device. If the parts run short of the oil or get worn out, the watch may stop its operation or lose
time. In such a case, have the watch overhauled. Be sure to have the gasket and push-pin replaced with new ones when
overhauling the watch.
・When the replacing the parts or battery, please specify
for a long time, electrolyte leakage from the battery may damage the module.
■REMARKS ON THE BATTERY
●NOTES ON THE BATTERY
First
(1)Battery Life
click
When a new normal battery is installed, this watch operates for approximately three years.
(2)Monitor battery
The battery in your watch may run down in less than three years after the date of purchase, as it is a monitor battery which is inserted at the
factory to check the function and performance of the watch.
(3)Battery change
①For battery replacement, be sure to have the battery replaced with a new one at the retailer from whom the watch was purchased or an
SEIKO DEALER, and request the battery for exclusive use with the SEIKO watches.
②If the old battery is left in the watch for a long time, a malfunction may be caused due to battery leakage, etc. Have it replaced with a new
one as soon as possible.
③Battery replacement is charged even if it runs down within the guarantee period.
④Once the case back is opened for battery replacement or other purposes, the original water resistant quality designed for the watch may
deteriorate when it is closed. When you have the battery replaced with a new one, also request the water resistance test pertaining to the
water resistant quality of your wtach. If your watch has 10-bar or higher water resistant quality, be sure to have such test performed on the
watch every time the battery is replaced.
WARNING
1.Do not remove the battery from the
watch.
2.If it is necessary to take out the battery,
keep it out of the reach of children.
3.If the child swallows it, consult a doctor
immediately as it will adversely affect the
health of the child.
■REMARKS ON REPLACEMENT PARTS
・SEIKO makes it policy to usually keep a stock of spare parts for its watches for 7 years. In principle, your watch can be reconditioned
within this period if used normally. (Replacement parts are those which are essential to maintaining the functional integrity of the watch.)
・The number of years that a watch is considered repairable may vary greatly depending on the conditions under which it was used, and
normal accuracy may not be achieved in some cases. We recommend, therefore, that you consult the retailer from whom the watch was
purchased when having them repair your watch.
・The case, dial, hands, glass and bracelet, or parts thereof may be replaced with substitutes if the originals are not available.
■REMARKS ON AFTER-SALES SERVICING
・If the watch requires service, take it to the retailer from whom the watch was purchased. If the trouble occurs within the guarantee
period, submit the certificate of guarantee together with the watch.
・For repair after the guarantee period or for any other information regarding the watch, contact the retailer from whom the watch was
purchased or the "CUSTOMER SERVICE DEPARTMENT" of SEIKO WATCH CORPORATION.
・Guarantee coverage is spelled out in the certificate of guarantee. Please read it carefully and keep the certificate for ready reference.
Condition
Indication for water
of use
resistance
a: Indication on the dial
Designed and Suitable for swimming. yachting Suitable for shallow
Degree
manufactured to withstand and other aquatic sports as wellas
b: Indication on the divingwithout a heavy
for works closely associated with
of water accidental contact with
breathingapparatus and
case back
water such as splashes water such askitchen work,
resistance Bathing.
watening and fishing.
and rain.
a No indication
× ×
No water resistance
b No indication
a No indication
Water resistance ◯ ×
（3 bar）
b WATER RESIST
a No indication
Water resistance
◯ ◯
WATER RESIST or
b （5 bar）
WATER RESIST 5 BAR
No indication, or
a
WATER RESIST 10 BAR
Water resistance
◯ ◯
（10 bar）
"&"WATER RESIST
b
or WATER RESIST 10 BAR
No indication, or
◯ ◯
a WATER RESIST 20 BAR
Water resistance
b WATER RESIST 20 BAR （20 bar）
SEIKO GENUINE PARTS" . If an old battery is kept in the watch
CAUTION
1.Never short-circuit, tamper with or heat the battery, or never expose it to fire as
it may explode, generate and intense heat or catch fire.
2.The battery in your watch is not rechargeable. Never attempt to recharge it, as
this may cause battery leakage or damage to the battery.
3.If the watch is left in a temperature below +5℃ or above +35℃ for a long time,
the battery leakage may result, causing the battery life to be shortened.
Genuine Genuine diving
diving using using heliumgas.
scuba.
× × ×
× ×
×
× × ×
◯ × ×
◯ × ×
