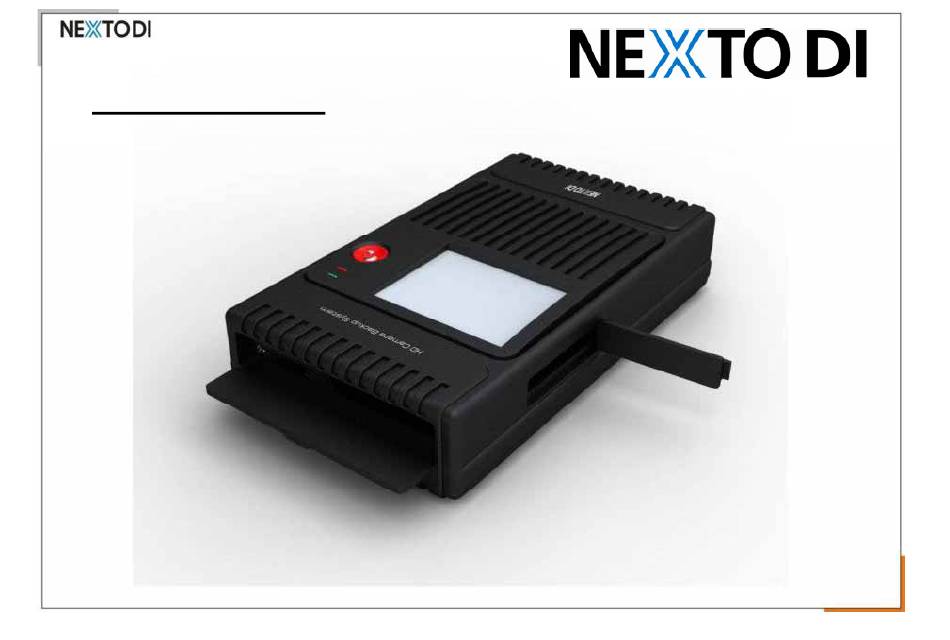

- Page 1 NVS2 00 NVS2500 Assemble & Disassembling • Changing Battery • Changing SUB PCB • Changing Hard Drive...
- Page 2 1. Remove “CASE COVER RUBBER” by Pinset. Caution : Possible scratch during the operation...
- Page 3 2. Remove four screw on the bottom side of NVS2500 Caution : Possible scratch during the operation...
- Page 4 3. Remove bottom case. Tip : There are hook at the middle of case(red circle).
- Page 5 4. Remove hard drive.
- Page 6 5. Remove the BATTERY CONNECTOR plug NOT cable Tip : Remove two connector with holding the...
- Page 7 6. Remove three Screw on the PCB Tip : Don’t use machine driver. Use manual driver only...
- Page 8 7. Remove PCB from the case Tip : Hold on the eSATA connector and lift up slowly.
- Page 9 8. Add shield film provided to LCD to protect from dust. Caution : Be careful not to touch LCD screen by finger. Finger print is hard to be wiped off...
- Page 10 9. Remove sub PCB from LCD Caution : Double-sided tape between LCD and PCB to stick LCD. Use tweezers or knife to split PCB and LCD.
- Page 11 10. Assemble LCD and PCB...
- Page 12 11. Remove the battery y Caution : Beware of WEEE for trashing battery...
- Page 13 12. Add new battery y Caution : Check the appearance of battery. Swelling or leak...
- Page 14 13. Remove the film from LCD Caution : Be careful not adding dust to the LCD screen...
- Page 15 14. Insert PCB to the case. Caution : Be careful setting the center of Jog button.
- Page 16 15. Add screw to the PCB Caution : Don’t fasten too tightly. The hole can be damaged.
- Page 17 16. Insert battery connector. Caution : Check the red/black cable polarity as shown the image.
- Page 18 17. Insert Hard drive...
- Page 19 18. Assemble the bottom case. Caution : Check the position of internal Rib of case. The internal Rib should be carefully positioned to cover the hard drive and cushion of the hard drive.
- Page 20 19. Fasten the four screw Caution : Don’t fasten too tightly. The hole can be damaged.
- Page 21 20. Insert CASE COVER RUBBER.
- Page 22 Thank you very much!
