Openplan L2 LUMEN Assembly Manual

5
1 Seat Mechanism
Gas Lift
2
Base
3 Casters (5) 6 Screws
4
Seat 7
Allen Wrench

STEP 3:

1. Insert armrests into the seat
2. Tighten screws
8
6
7
www.openplan.com | sales@openplan.com | 844.OPS.OPS1 | REV 12.05.19
L2 LUMEN
ASSEMBLY GUIDE
8 Armrest
9 Back Screws
10
Assembled Back

STEP 4:

1. Insert assembled back into the seat
2. Tighten screws
10
9
7

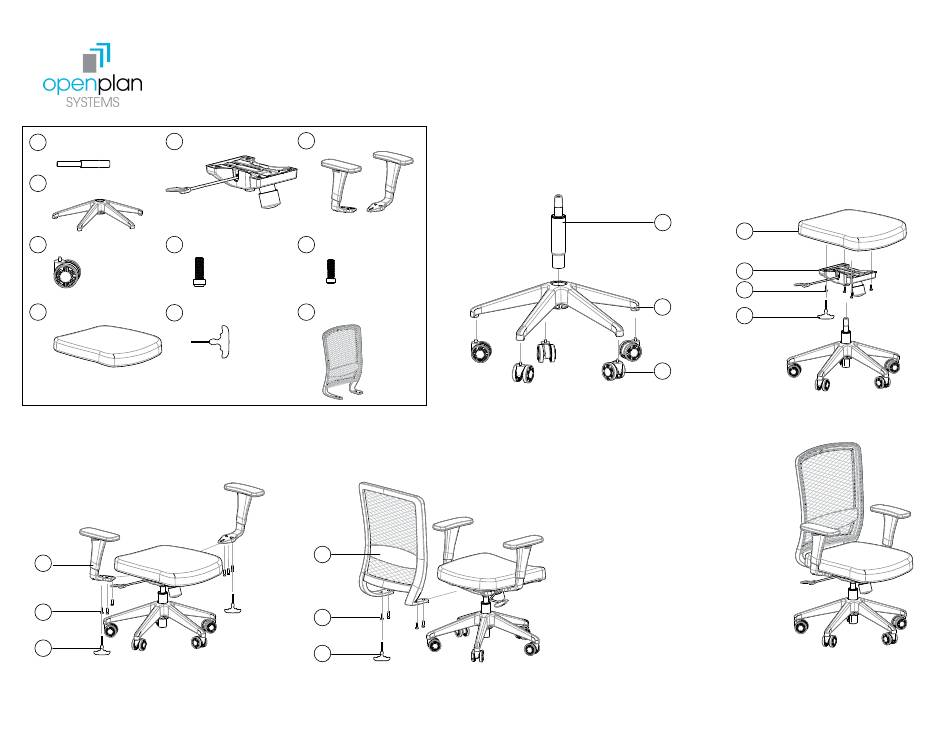

STEP 1:

1. Insert 5 casters onto base
2. Insert gas lift into base

Maintenance and Attention

1. Make sure the chair can only carry
one person at a time.
2. Do not use the chair as a step stool
or ladder.
3. Do not use the chair before all parts
are properly assembled.
4. Do not use chair unless all screws
have been tightened.
5. If destroyed by outside forces or
defect work, stop use the chair until
repaired.
6. For your safety, the instructions list-
ed above must be strictly observed.

STEP 2:

1. Insert seat mechanism under seat
2. Tighten screws
3. Insert seat onto the gas lift
1
4
5
6
2
7
3
1
