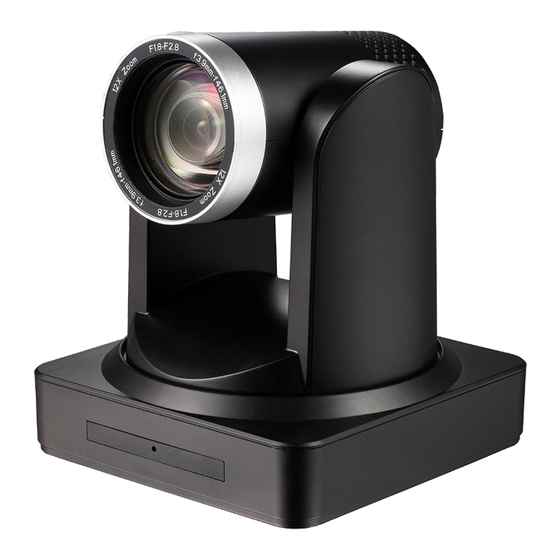

PTZ Camera
for HDVS-300 Soft Codec Conferencing System
Atlona Manuals
AT-HDVS-CAM
Accessories

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDVS-CAM and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-HDVS-CAM

  • Page 1 PTZ Camera for HDVS-300 Soft Codec Conferencing System Atlona Manuals AT-HDVS-CAM Accessories...
  • Page 2 Version Information Version Release Date Notes 10/17 Initial release 02/18 Restriction for USB cable length 04/18 Moved API to separate document; improved documentation on controlling camera AT-HDVS-CAM...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
  • Page 6 Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-HDVS-CAM...
  • Page 7: Table Of Contents

    Connection Diagram Basic Operation Initialization Procedure Home Position Controlling the Camera Tilt Pan (Rotation) Tilt and Pan Combinations Zoom Focus Backlight Compensation (BLC) Standby Mode Managing Presets Saving Presets Clearing a Preset Recalling Presets Function List WebGUI Appendix Specifications Index AT-HDVS-CAM...
  • Page 8: Introduction

    Introduction The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use with the AT-UHD-HDVS-300-KIT in soft codec conferencing applications. It features a USB interface for video and camera control. The HDVS-CAM seamlessly integrates with the HDVS-300-KIT for a complete, automated conferencing system that includes AV and USB extension, plus automatic input selection and display powering when a PC is connected.
  • Page 9: Panel Description

    Panel Description RS-232 DC 12V AT-HDVS-CAM 1. RS-232 3. LAN Connect included VISCA to RS-232 adapter here Connect to a network switch to control the unit via to control the camera with a third party software or TCP/IP or webGUI.
  • Page 10: Ir Remote Control

    IR Remote Control The AT-HDVS-CAM comes with an IR remote control for full control of the camera and use of the OSD menu. 1. SET As of this writing, this key is not defined. 2. CAMERA SELECT Press these button to select which camera is being controlled.
  • Page 11: Installation

    Connection Instructions 1. Connect the Ethernet cable to the LAN port on the back of the AT-HDVS-CAM. 2. Connect the included USB cable to from the USB port on the AT-HDVS-CAM, to an available USB port on the AT-UHD-HDVS-300-RX. NOTE: Atlona strongly discourages the use of USB cables beyond 12 feet (3.5 meters) in length.
  • Page 12 2. Connect the upper ceiling covering plate to the screw stoppers using the PA3X30 self-tapping screws. 3. Connect the lower ceiling covering plate to the bottom of the AT-HDVS-CAM using the 1/4 20UNC screw. 4. Mount the lower ceiling covering plate to the upper ceiling plate using 3 PM3X6 bolts.
  • Page 13: Connection Diagram

    Display V S- A T- 48 V se T B HU AT-UHD-HDVS-300-RX 12 V U SB R S- LA N RS -2 AT-HDVS-CAM Ba se US B AT-UHD-HDVS-300-TX A IN DI O US B US B Speakerphone Laptop Laptop AT-HDVS-CAM...
  • Page 14: Basic Operation

    During this process, a flashing red LED indicator will be displayed. When the AT-HDVS-CAM is ready for use, the LED indicator on the front panel will be solid green. The AT-HDVS-CAM will repeat this process each time it is powered on.
  • Page 15: Home Position

    5. Camera returns to the starting position and the camera lens tilt setting will be set to 0 degrees. Home Position “Home” position is a term that is used throughout this manual. When the AT-HDVS-CAM is in home position, the camera is facing forward and has no tilt angle, as shown in the illustration below:...
  • Page 16: Controlling The Camera

    Basic Operation Controlling the Camera The AT-HDVS-CAM can be controlled using the included IR Remote Control or through the webGUI. Refer to the WebGUI (page 22) for more information about accessing the webGUI. Tilt CAMERA SELECT The camera tilt range is approximately -45 degrees to +90 degrees. Use one of the following methods to adjust the camera tilt.
  • Page 17: Tilt And Pan Combinations

    Left: Right: and to the right. Pan + tilt up Pan + tilt up 3. Click the icon in the center to return the camera to the “home” position. Left: Right: Pan + tilt down Pan + tilt down AT-HDVS-CAM...
  • Page 18: Zoom

    When positioning the camera on an object, it may be necessary to adjust the focus for a clear image. The AT-HDVS- CAM can be set to auto focus or manual focus. By default, the AT-HDVS-CAM is set to auto-focus mode.
  • Page 19: Backlight Compensation (Blc)

    BLC on/off button Standby Mode Placing the AT-HDVS-CAM in standby mode will power-down the camera. Placing the camera in standby mode is managed using the IR Remote Control. 1. Point the IR Remote Control at the front of the AT-HDVS-CAM.
  • Page 20: Managing Presets

    IR Remote Control. Up to 10 presets can be saved. Saving Presets 1. Set the camera in the desired position. 2. Point the IR Remote Control at the front of the AT-HDVS-CAM. 3. Press the SET PRESET button. CAMERA SELECT 4.
  • Page 21: Function List

    Switch video format to 1080p30 [#] + [#] + [6] Switch video format to 1080p25 [#] + [#] + [7] Switch video format to 720p30 [#] + [#] + [8] Switch video format to 720p25 [#] + [#] + [9] AT-HDVS-CAM...
  • Page 22: Webgui

    1. Use an IP scanner to determine the IP address of the AT-HDVS-CAM. The default IP address is printed on an adhesive label, attached to the bottom of the camera base. Each camera has a unique default IP address.
  • Page 23 Update - Load the selected file to the unit. Information Device Name - Displays the SKU of the unit. Device ID - Displays the ID of the AT-HDVS-CAM. Time Date Format - Select how the date will display on video and saved files.
  • Page 24 RTSP Port - Set to a value between 0 and 65535. Default is 554. Visca Port - Set to a value between 0 and 65535. Default is 3001. NOTE: The AT-HDVS-CAM will restart automatically after the save button is pressed. DNS Settings Preferred - Set the preferred DNS server.
  • Page 25 User Update the username and password of the AT-HDVS-CAM webGUI. 10 Select Reset from the side menu. Factory Reset Factory Reset - Sets the device back to the original factory settings. Reboot Reboot - Reboots the AT-HDVS-CAM. 11 Select Picture from the side menu.
  • Page 26 Focus Mode - Switch between Auto, Manual, or OnePush. Auto Focus Zone - Switch the zone between Top, Center, Bottom, and All. Auto Focus Sensitivity - Switch between High, Middle, and Low. 13 Select Exposure from the side menu. AT-HDVS-CAM...
  • Page 27 NR-2D Reduction - Set to a value between OFF, 1 and 7, or Auto. NR-3D Reduction - Set to a value between OFF, 1 and 8. Dynamic Hot Pixel - Set to a value between 1 and 5, or OFF. 15 Select OSD from the side menu. AT-HDVS-CAM...
  • Page 28 Pan-Tilt-Zoom - Use the buttons to adjust the camera’s view and position. Focus Mode - Switch between Auto, Manual, and OnePush. Use the buttons to adjust the focus. Preset - Set the current position settings to a preset and save. Video buttons - Adjust video settings with these buttons. AT-HDVS-CAM...
  • Page 29: Appendix

    Input: 110 - 220 V AC, 50/60 Hz Output: 12 V DC, 1 A Dimensions Inches Millimeters H x W x D 6.59 x 5.90 x 5.90 167.5 x 150 x 150 Weight Pounds Kilograms Device 3.08 Certification Device CE, FCC AT-HDVS-CAM...
  • Page 30: Index

    / rotation tilt tilting and panning zoom Connection diagram instructions Contents package Customer support FCC statement Features Installation IR Remote Control Operating notes Panel descriptions Password resetting Presets deleting 20, 21 recalling saving Safety information Specifications Standby Mode Video flipping AT-HDVS-CAM...
  • Page 31 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
