Atlona AT-HDVS-CAM Manual

Hide thumbs Also See for AT-HDVS-CAM:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Atlona Manuals
AT-HDVS-CAM
PTZ Camera

Advertisement

Table of Contents
loading

Related Manuals for Atlona AT-HDVS-CAM

Summary of Contents for Atlona AT-HDVS-CAM

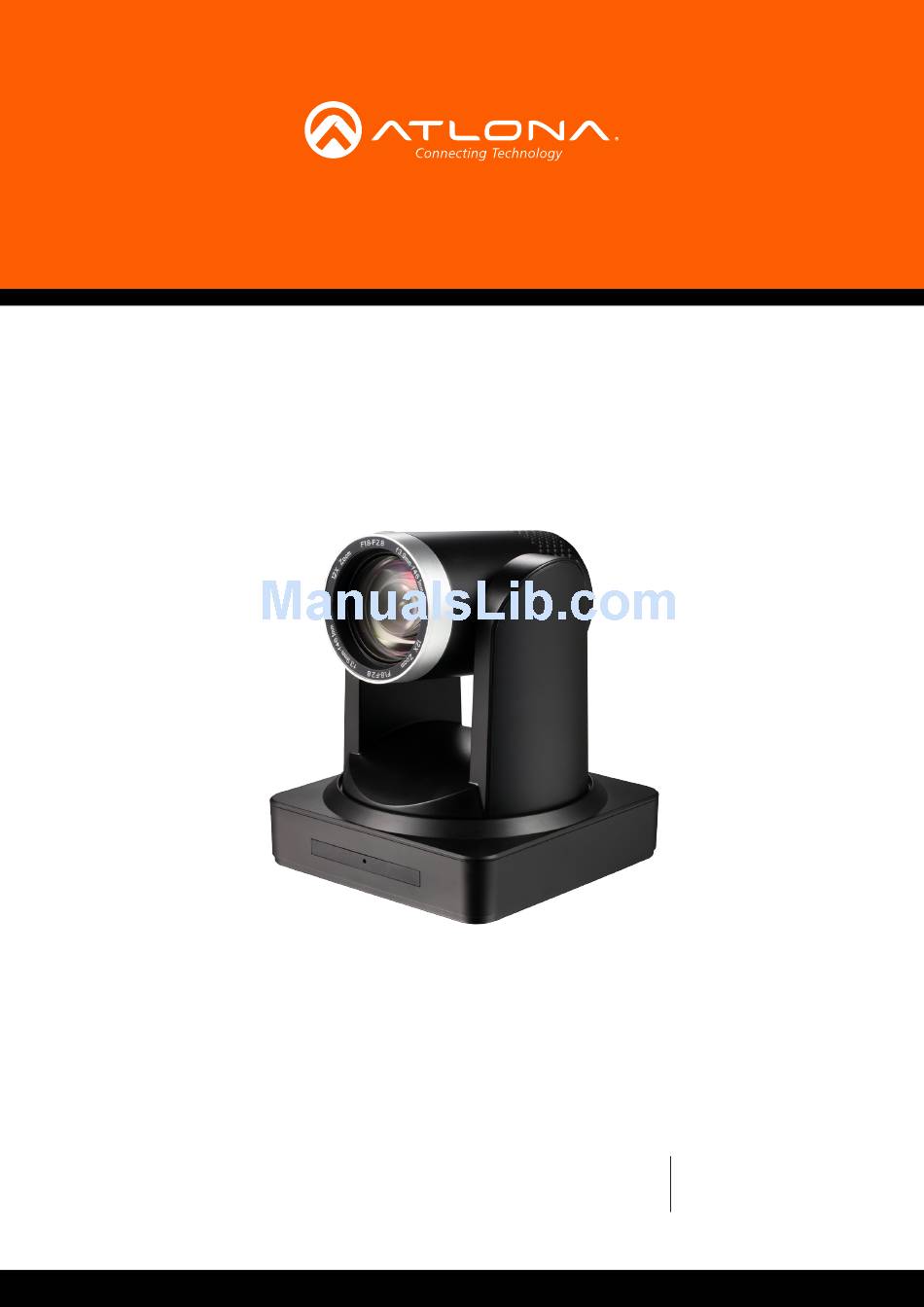

  • Page 1 Atlona Manuals AT-HDVS-CAM PTZ Camera...

  • Page 2: Version Information

    Version Information Version Release Date Notes 10/17 Initial release AT-OMNI-232...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

  • Page 6: Fcc Statement

    The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions.

  • Page 7: Table Of Contents

    Table of Contents Introduction Features Package Contents Panel Description Installation Connection Instructions Mounting Instructions Connection Diagram WebGUI Visca Protocol List Camera Return Command Camera Control Command Inquiry Command Pelco-D Protocol Command List Pelco-P Protocol Command List Appendix Specifications Index AT-OMNI-232...

  • Page 8: Introduction

    Introduction The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use with the AT-UHD-HDVS-300-KIT in soft codec conferencing applications. It features a USB interface for video and camera control. The HDVS-CAM seamlessly integrates with the HDVS-300-KIT for a complete, automated conferencing system that includes AV and USB extension, plus automatic input selection and display powering when a PC is connected.

  • Page 9: Panel Description

    Panel Description RS-232 DC 12V AT-HDVS-CAM 1. RS-232 3. LAN Connect included VISCA to RS-232 adapter here Connect to a network switch to control the unit via to control the camera with a third party software or TCP/IP or webGUI.

  • Page 10: Installation

    The AT-HDVS-CAM has two installation options, wall mount (included) and ceiling mount (purchased separately). Wall Mount installation To install the AT-HDVS-CAM, 4 M6 swelling bolts, 1 1/4 20UNC bolt, 4 M6 nuts & shims, the included wall mount bracket, and the AT-HDVS-CAM are needed.
  • Page 11 2. Connect the upper ceiling covering plate to the screw stoppers using the PA3X30 self-tapping screws. 3. Connect the lower ceiling covering plate to the bottom of the AT-HDVS-CAM using the 1/4 20UNC screw. 4. Mount the lower ceiling covering plate to the upper ceiling plate using 3 PM3X6 bolts.

  • Page 12: Connection Diagram

    Display V S- A T- 48 V se T B HU AT-UHD-HDVS-300-RX 12 V U SB R S- LA N RS -2 AT-HDVS-CAM Ba se US B AT-UHD-HDVS-300-TX A IN DI O US B US B Speakerphone Laptop Laptop AT-OMNI-232...

  • Page 13: Webgui

    WebGUI The AT-HDVS-CAM includes a built-in webGUI, which allows easy management and control of all features. Follow the instructions below to access the webGUI. 1. Use an IP scanner software to determine the IP address of the AT-HDVS-CAM. 2. Launch a web browser.
  • Page 14 Update - Load the selected file to the unit. Information Device Name - Displays the SKU of the unit. Device ID - Displays the ID of the AT-HDVS-CAM. Time Date Format - Select how the date will display on video and saved files.
  • Page 15 RTSP Port - This selection is not used at this time. Set to a value between 0 and 65535. Default is 554. Visca Port - Set to a value between 0 and 65535. Default is 3001. NOTE: The AT-HDVS-CAM will restart automatically after the save button is pressed. DNS Settings Preferred - Set the preferred DNS server.
  • Page 16 User Update the username and password of the AT-HDVS-CAM webGUI. 10 Select Reset from the side menu. Factory Reset Factory Reset - Sets the device back to the original factory settings. Reboot Reboot - Reboots the AT-HDVS-CAM. 11 Select Picture from the side menu.
  • Page 17 webGUI Picture Settings Brightness - Set to a value between 0 and 14. Default is 6. Contrast - Set to a value between 0 and 14. Default is 8. Sharpness - Set to a value between 0 and 15. Default is 7. Gamma - Set the gamma value of the camera.
  • Page 18 webGUI Exposure Settings Mode - Switch between Auto, Manual, SAE, AAE, and Bright. Flicker - Switch between OFF, 50Hz, and 60Hz. DRC (Dynamic Range Control) - Set to a value between 1 and 8, or OFF. EV (Exposure Compensation) - Toggle EV on and off. BLC (Backlight Compensation) - Toggle backlight compensation on and off.
  • Page 19 webGUI OSD Settings Show Time - Toggle the time on and off on the on screen display. Show Title - Toggle the title on and off on the on screen display. Time Font Color - Set the time’s font color. Values are White, Black, Yellow, Red, and Blue. Title Font Color - Set the time’s font color.

  • Page 20: Visca Protocol List

    Visca Protocol List Camera Return Commands ACK/Completion Message Command packet Note z0 41 FF Returned when the command is accepted Completion z0 51 FF Returned when the command has been executed z = camera address Error Messages Command packet Note Syntax Error z0 60 02 FF Returned when the command format is different or when a...
  • Page 21 Visca Protocol List Command Function Command Packet Note CAM_WB Auto 8x 01 04 35 00 FF 3000K 8x 01 04 35 01 FF 4000k 8x 01 04 35 02 FF One Push mode 8x 01 04 35 03 FF 5000k 8x 01 04 35 04 FF Manual 8x 01 04 35 05 FF...
  • Page 22 Visca Protocol List Command Function Command Packet Note CAM_ExpComp 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Exposure Compensation ON/OFF Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Settings 8x 01 04 0E 02 FF Exposure Compensation Amount Settings Down 8x 01 04 0E 03 FF...
  • Page 23 Visca Protocol List Command Function Command Packet Note CAM_IDWrite 8x 01 04 22 0p 0q pqrs: Camera ID (=0000 to FFF) 0r 0s FF SYS_Menu 8x 01 04 06 06 02 Turn on the menu screen 8x 01 04 06 06 03 Turn off the menu screen IR_Receive 8x 01 06 08 02 FF...

  • Page 24: Inquiry Command

    Visca Protocol List Command Function Command Packet Note Pan_tiltDrive 8x 01 06 01 VV VV: Pan Speed 0x01 (low speed) to 0x18 WW 03 01 FF (high speed) Down 8x 01 06 01 VV WW: Tilt speed 0x01 (low speed) to 0x14 WW 03 02 FF (high speed) Left...
  • Page 25 Visca Protocol List Command Function Command Packet Note CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto y0 50 01 FF 3000K y0 50 02 FF 4000K y0 50 03 FF One Push Mode y0 50 04 FF 5000K y0 50 05 FF Manual...
  • Page 26 Visca Protocol List Command Function Command Packet Note CAM_ColorSaturationInq 8x 09 04 49 FF y0 50 00 00 00 0p p: Color Gain setting 0h (60%) to Eh (130%) CAM_IDInq 8x 09 04 22 FF y0 50 0p FF p: Gamma ID IR_ReceiveInq 8x 09 06 08 FF y0 50 02 FF...
  • Page 27 Visca Protocol List Command Function Command Packet Note Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF ww: Pan Max Speed zz: Tilt Max Speed Pan-tiltPosInq 8x 09 06 12 FF y0 50 0w 0w 0w wwww: Pan Position 0w 0z 0z 0z 0z FF zzzz: Tilt Position NOTE: [X] in the above table indicates the camera address to be operated, [y] = [x+8].

  • Page 28: Pelco-D Protocol Command List

    Pelco-D Protocol Command List Function Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed...

  • Page 29: Pelco-P Protocol Command List

    Pelco-P Protocol Command List Function Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address...

  • Page 30: Ir Remote Control

    IR Remote and OSD IR Remote Control The AT-HDVS-CAM comes with an IR remote control for full control of the camera and use of the OSD menu. IR Remote Power - Toggle the camera on and off with the power button. Press and hold for 3 seconds to place the camera into standby mode.

  • Page 31: Index

    IR Remote and OSD Command Function Command Packet Note Camera Exposure Mode Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority Off, On Off, On Flicker 60Hz, 50Hz, Off G.Limit 0 to 15 1 to 8, off Color WB Mode Auto, 3000K, 4000K, 5000K, 6500K, Manual, One Push RG Tuning 0 to 255...

  • Page 32: Appendix

    Appendix Specifications Video HD/SD/VESA 1080p, 720p, 1024x768, 1024x576, 960x540, 800x600, 640x360, 720x576, (all resolutions are 640x480, 352x288, 320x240, 320x180, 176x144 @30/25/20/15/10/5Hz) Optical Zoom 10X, f = 4.7 ~ 47 mm Viewing Angle 6.43° (telephoto), 60.9° (wide-angle) Effective Pixels 2.07 MP Focus Settings Auto / Manual F1.6 - F3.0...
  • Page 33 Index Connection diagram instructions Contents package Customer support FCC statement Features Installation Operating notes Panel descriptions Safety information Specifications Warranty AT-OMNI-232...
  • Page 34 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
