PTZ Camera for HDVS-300 Soft Codec Conferencing System
AT-HDVS-CAM

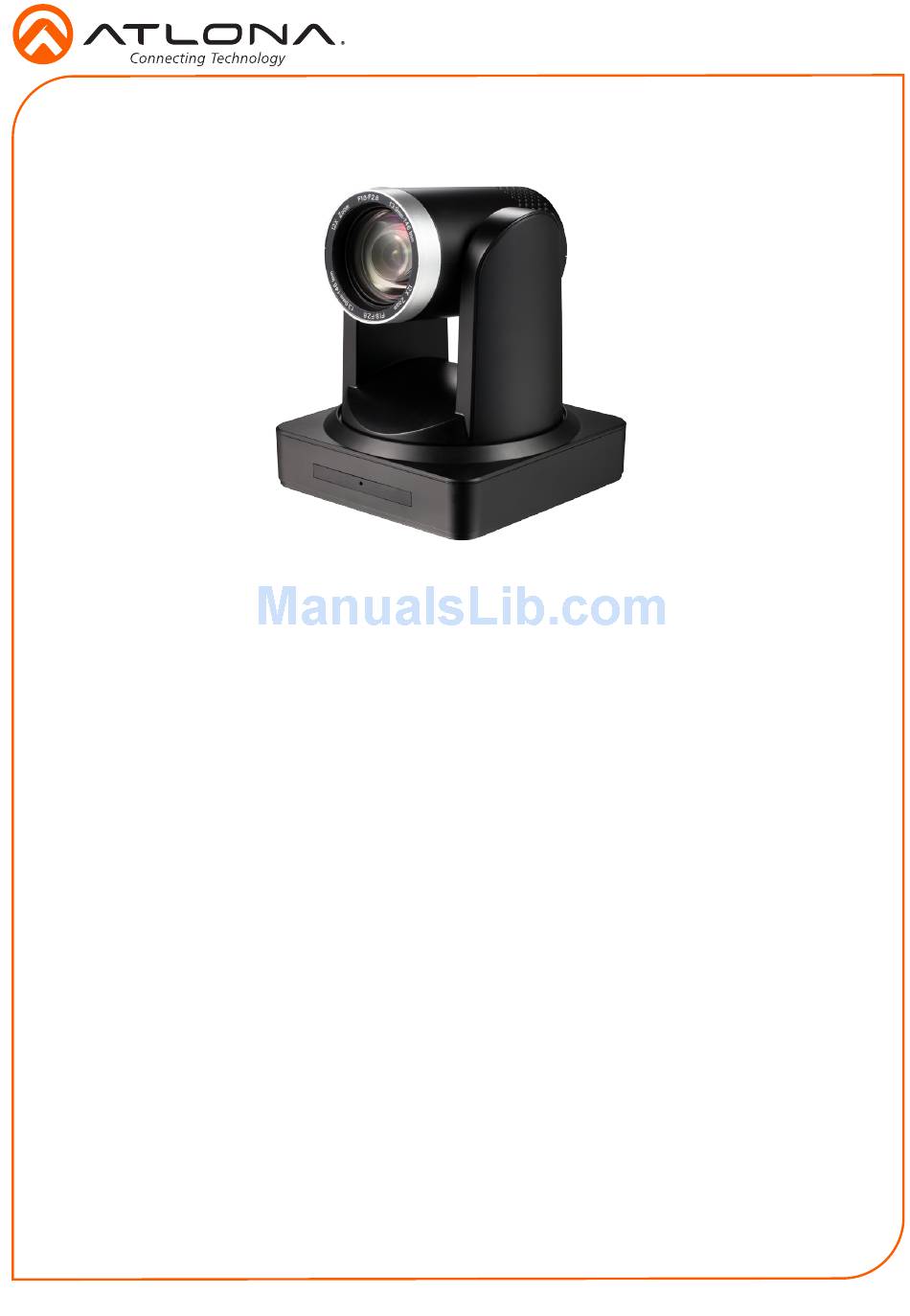

The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use with the AT-
UHD-HDVS-300-KIT in soft codec conferencing applications. It features a USB interface for
video and camera control. The HDVS-CAM seamlessly integrates with the HDVS-300-KIT for a
complete, automated conferencing system that includes AV and USB extension, plus automatic
input selection and display powering when a PC is connected. The HDVS-CAM delivers high
performance, professional-quality imaging with video resolutions up to 1080p @ 30 Hz, as well as
fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is
ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms.
Package Contents
1 x AT-HDVS-CAM
1 x Wall mounting plate
1 x 1/4 20OUNC screws
1 x IR Remote Control
1 x USB A cable
1 x VISCA to RS-232 DB-9 adapter
2 x AAA battery
1 x Installation Guide
1
Installation Guide
AT-HDVS-CAM
Advertisement
Table of Contents
Related Manuals for Atlona AT-HDVS-CAM
Summary of Contents for Atlona AT-HDVS-CAM
-
Page 1: Installation Guide
PTZ Camera for HDVS-300 Soft Codec Conferencing System AT-HDVS-CAM The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use with the AT- UHD-HDVS-300-KIT in soft codec conferencing applications. It features a USB interface for video and camera control. The HDVS-CAM seamlessly integrates with the HDVS-300-KIT for a complete, automated conferencing system that includes AV and USB extension, plus automatic input selection and display powering when a PC is connected. -
Page 2: Panel Descriptions
(purchased separately). Wall Mount installation The install the AT-HDVS-CAM, 4 M6 swelling bolts, 1 1/4 20UNC bolt, 4 M6 nuts & shims, the included wall mount bracket, and the AT-HDVS-CAM are needed. Install the M6 swelling bolts in a rectangular pattern on the wall, 100 mm wide and 50 mm high. - Page 3 Ceiling Mount installation To install the AT-HDVS-CAM, 4 PA3X30 self-tapping screws, 4 PM3X6 screws, 4 screw stoppers, 1 1/4 20UNC screw, the optional ceiling upper and lower covering plates, and the AT-HDVS-CAM are needed. Install the 4 screw stoppers in the ceiling.
-
Page 4: Installation
Installation Guide AT-HDVS-CAM Installation Connect the Ethernet cable to the LAN port on the back of the AT-HDVS-CAM. Connect the USB cable to the AT-UHD-HDVS-300-RX. *Optional* Connect the Visca to RS-232 cable to the Visca port for RS-232 control. Connect the DC 12V power cable to the unit. -
Page 5: Connection Diagram
Installation Guide AT-HDVS-CAM Connection Diagram Display V S- A T- 48 V se T U SB AT-UHD-HDVS-300-RX 12 V U SB R S- LA N RS -2 AT-HDVS-CAM Ba se US B AT-UHD-HDVS-300-TX A IN DI O US B US B... -
Page 6: Troubleshooting
Installation Guide AT-HDVS-CAM Troubleshooting Problem Cause Solution Why Can I not get any Camera lens is covered, • Remove the camera lens picture from my camera? USB cables are faulty, or cover from the unit. the PC is not set up to •... - Page 7 Installation Guide AT-HDVS-CAM Notes...
- Page 8 • © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product...
