Cel-Fi GO Mobile Installation
I

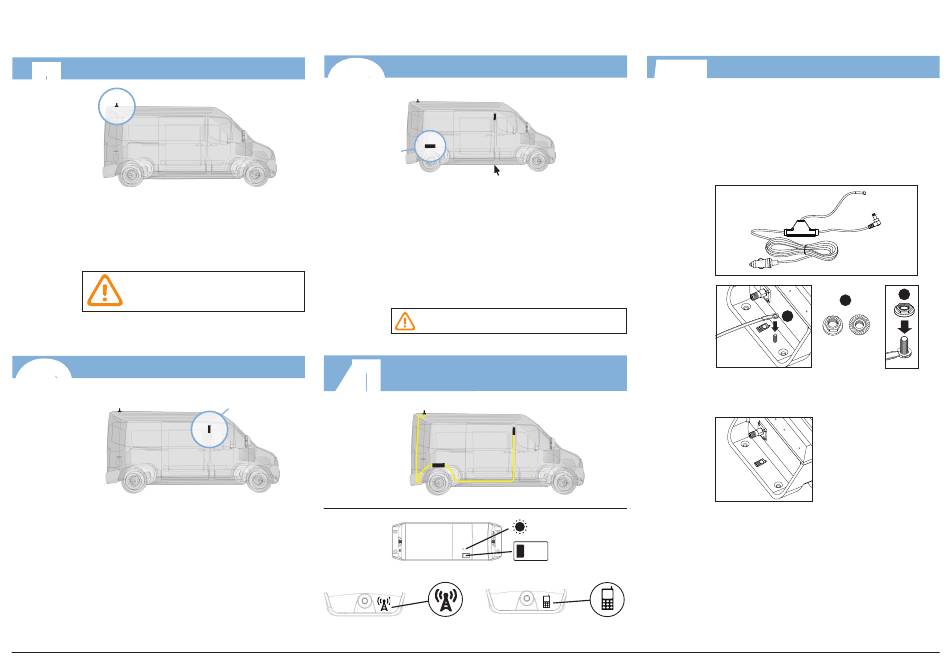

Install Donor Antenna
DONOR ANTENNA
Mount your Donor Antenna on the exterior of the
vehicle, towards the rear, according to its design, and
the type of vehicle it's being used with. Make sure you
consider the cable connection to the Cel‑Fi GO unit
with your location choice.
For best performance make sure
there is 50cm of metal around the
base of the antenna.
2
Install Service Antenna
DONOR ANTENNA
Install Service Antenna in the cab, towards the front,
where coverage is needed. Ideally, there should be
substantial material, like the metal of the roof, between
the Donor and Service Antennas, to improve isolation.
Cel-Fi GO Mobile Smart Signal Repeater
3
Mount Cel-Fi GO
DONOR ANTENNA
CEL-FI GO
Find a good mounting location in your vehicle. Location
should have airflow and be secure from contact with
external objects.
Make sure the unit is within cable range of the 12V power
supply on your vehicle.
Best to make sure all cable lengths support the intended
mounting location BEFORE permanent mounting.
4
Connect Donor & Service Antennas
to the Cel-Fi GO Unit
SERVICE ANTENNA DONOR ANTENNA
CEL-FI GO
Donor Antenna
RIGHT SIDE:
Connector
SERVICE ANTENNA
CEL-FI GO OPTIONAL
LOCATION
DO NOT plug in at this time.
SERVICE ANTENNA
STATUS
INDICATOR
MODE
TOP VIEW
Service Antenna
LEFT SIDE:
Connector
5
Ground the Cel-Fi GO
If your unit has a 12V CLA with a grounding tab on the
end, then:
(1) attach that tab to the grounding
post* on the Cel-Fi GO prior to
attaching to power.
(2) Use the nut (included)
(3) to secure the tab to the unit.
GROUNDING
TAB
1
TOP
NUT
* If your Cel‑Fi GO unit does not include a grounding post,
simply attach the grounding tab to any available ground
source.
12V CLA
3
2
BOTTOM
NUT
CONTINUED...
