CEL-FI GO Mobile Quick Start Manual

6
...CONTINUED
Plug in Cel-Fi GO & Select Mode
DONOR ANTENNA
CEL-FI GO
4G LTE
MODE
STATUS INDICATOR
LEGEND
Boosting 3G
AUTO
Boosting 4G LTE
3G
Error*
4G LTE
4G/4GX
MODE
STATUS INDICATOR
LEGEND
Boosting 3G
AUTO
Boosting 4G/4GX
3G
Error*
4G/4GX
(*NOTE: if Error, go to troubleshooting at cel-fi.com/support)
Press the MODE button on the unit to select desired scanning
mode. Status Indicator will blink during the setup process,
and may take a few minutes to complete.
NETWORK STRENGTH
(OPTIONAL: use your smartphone to select mode.
Download the Cel‑Fi WAVE app, and follow the on-screen
instructions.)
Cel-Fi GO Mobile Smart Signal Repeater
7
SERVICE ANTENNA
12V POWER
SUPPLY
8
MODE
STATUS SELECT
INDICATOR BUTTON
MODE
STATUS SELECT
INDICATOR BUTTON
Copyright © 2019 by Nextivity, Inc, U.S. Patents pending. All rights reserved. The
Nextivity and Cel-Fi logos are registered trademarks of Nextivity Inc. All other
trademarks or registered trademarks listed belong to their respective owners.
Designed by Nextivity Inc in California.
www.cel-fi.com
Tips & Tricks
• Keep Donor and Service Antennas separated/isolated
from each other for best performance
• For best performance, the cable between the Donor
Antenna and GO unit should be as short as possible
• Use sealant if any connections are exposed to elements
Cel-Fi WAVE
For more Cel‑Fi GO features, go to App Store or Google
play and download the mobile Cel‑Fi WAVE app.
(NOTE: If you do not have a compatible smartphone,
go to cel-fi.com/wave to download the Desktop app.)
The Cel-Fi WAVE app can help you
optimize your system's performance.
NETWORK STRENGTH
qsg_go-mobile-pt-aus_19-1106

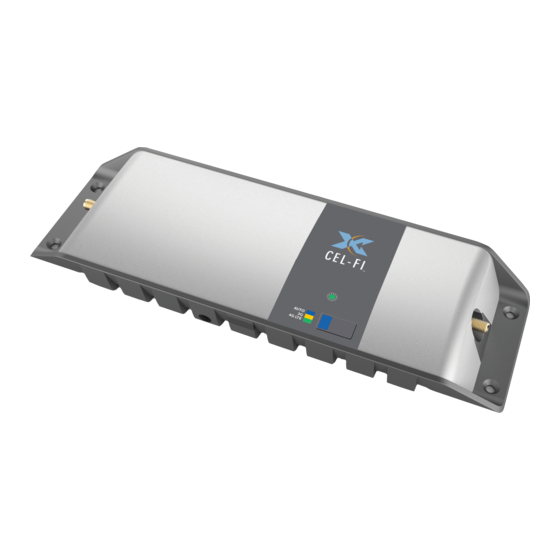

Cel-Fi GO Mobile
Quick Start Guide
Smart Signal Repeater
Cel-Fi GO Mobile is an evolved cellular smart
signal repeater design that can amplify cellular
signals up to 100dB. Connect a single Donor
Antenna to receive the macro-network signals,
and then a single indoor Service Antenna
where you need service, and Cel‑Fi GO will do
the rest automatically.
IN THE BOX
• Quick Start Guide
• Smart Signal Booster
• Power Supply
• Legal Insert
For more information, visit: www.cel-fi.com
