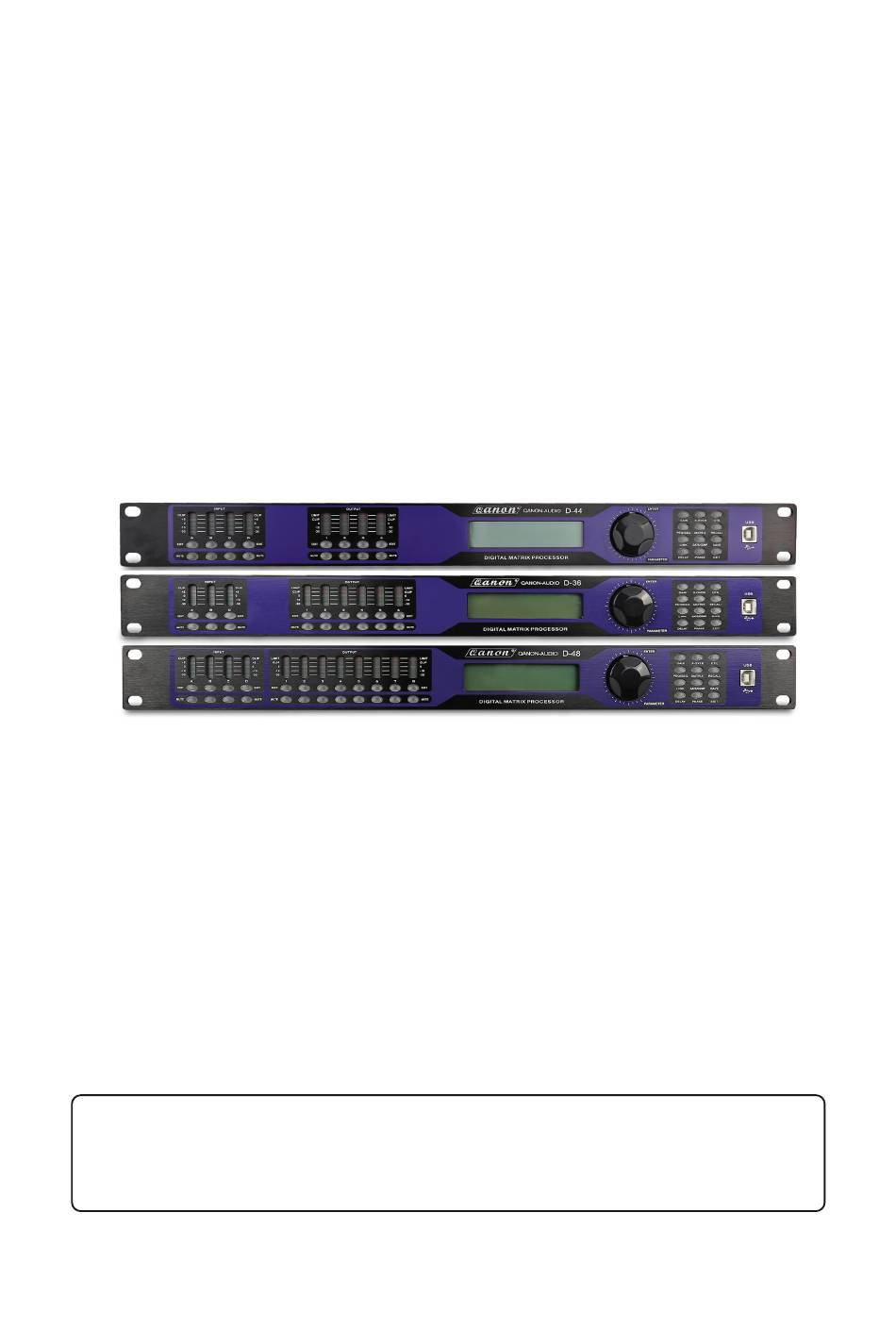

- Page 1 D SERIES DIGITAL PROCESSOR USER'S MANUAL Thank you for purchasing our products. Please read the owner’ s manual thoroughly prior to using the system. Please keep the manual for future reference. Versions: 2.0...
-
Page 2: Table Of Contents
Digital Matrix Processor INDEX FUNCTIONS---------------------------------------------------------------------------------------------- 1 FRONT PANEL-------------------------------------------------------------------------------------------1 REAR PANEL--------------------------------------------------------------------------------------------- 2 OPERATION GUIDANCE-----------------------------------------------------------------------------2-4 PC SOFTWARE CONNECTION------------------------------------------------------------------- 5-6 PC SOFTWARE SPECIFICATIONS--------------------------------------------------------------7-12 SPECIFICATIONS-------------------------------------------------------------------------------------- 13 ACCESSORIES------------------------------------------------------------------------------------------13 REAR PANEL CONTROL PORT-------------------------------------------------------------------14-15 EXTEND REMOTE CONTROL PROTOCOL--------------------------------------------------- 16-18 SAFETY INSTRUCTIONS----------------------------------------------------------------------------19-20... -
Page 3: Functions
Digital Matrix Processor FUNCTIONS ● 96kHz sampling rate, 40-bit DSP processor, 24-bit AD/DA convertor. ● Input processing includes Gain, Mute, Link, High-cut, Low -cut, Noise gate, 8PEQ, 31 segment graphic equalizer, Phase, Delay. ● Output processing includes Crossover, 5PEQ, Gain, Mute, Compressor/Limiter, Phase, Delay, Link. ●... -
Page 4: Rear Panel
Digital Matrix Processor 7, LCD Show all the related operation parameter and status of current operation. 8, Parameter Edit Knob Edit the whole menu and parameter setting confirm by press. 9, Parameter edit keys Choose all the system menu/input parameter/output parameter, exit by pressing ”exit” key. 10, USB Used to connect with PC and center-control equipment, remote control. - Page 5 Digital Matrix Processor Press the second time, enter IP address setting: factory default is 192.168.1.101 , users can set different IP address for each device for Manual IP Setting 192.168.1.101 different applications. Press the third time, enter password setting: users can choose all the words or Unit Lock numbers to set the password they want, the initial password is 1234.
- Page 6 Digital Matrix Processor Press OUTPUT EDIT enter the settings as follow Default preferred option is gain, the scale is- 60dB--12dB. OUT1 GAIN +0.0dB Press ”PEQ”, enter PEQ PARAMETER SETTING: ”PEQ” current number is 9, the scale of “F” is 20Hz-20kHz, “Q” is 0. 4-128 “G” is -12dB- +12dB, the style PEQ: 1 F: 40.2 Q: 3.00 of filter are Peak, Low-shelf, High-shelf, High-cut, Low-cut, Allpass1, G: 0.0dB...
-
Page 7: Pc Software Connection
Digital Matrix Processor PC SOFTWARE Notice: User manual, PC software are on the attached CD, due to the software upgrades time by time, Please do control your DSP processor ONLY by this CD! USB connection steps DSP Processor PC or laptop USB cord USB connection 1, Click the PC software on the CD, press next step to continue according to the instruction until Finish setup,... - Page 8 Digital Matrix Processor 2, Connect the processor to the computer by USB, after turning on the device, the computer will Searching new hardware automatically, during setup new hardware there will show the. Warnings: hardware setup success and can be used. 3, Open PC controlling software, PC software will find USB and connect device, after that the on-Line key change into green at the top right corner and show “Online”...
-
Page 9: Pc Software Specifications
Digital Matrix Processor PC SOFTWARE SPECIFICATIONS THE FIRST: VOLUME CONTROL INTERFACE 1, Menu Open and save preset parameter, the whole date upload to the computer and File download to the device. Input and output channels can be set freely to adjust all of the parameters. Link Copy Parameter copy freely between the input and Output channels. - Page 10 Digital Matrix Processor THE SECOND: NOISE GATE INTERFACE 1, display the current noise gate status curve and input channels level indicators. 2, all input channels noise gate parameters can be set. Noise gate threshold(-60~0dB), attach time(1~999ms), hold time(10~999ms), release time(10~3000ms) can be adjustable continuously for input.
- Page 11 Digital Matrix Processor THE FOURTH: LIMIT INTERFACE 1, Show compression status, level indicators and impression status of all channels. 2, Set the whole compression parameters for output channel, the compression range is -60dB– +20dB, soft knee adjustment is 0dB-+12dB, rate is 1:1, 1:10, LIMIT, start time is: 1-999ms, recovery time is 10-3000ms.
- Page 12 Digital Matrix Processor THE SIXTH: MATRIX INTERFACE 1, Show connections of the device, users can enter and edit relevant channel by clicking the square , every channel name is revisable. 2, All output channels can choose any input channels, and each route channel volume can be set alone. THE : SEVENTH: GEQ INTERFACE 1.
- Page 13 Digital Matrix Processor THE EIGHTH: INPUT INTERFACE 1, Select “Mag" interface, you can adjust the PEQ, High-cut, Low-Cut of the input channel, select "PHASE" interface, you can adjust the current phase channel, also you can choose the non-current PEQ and phase curve to show in sync. 2, Adjustable Gain, Mute, Q , Frequency, Type of all PEQ, Bypass key is optional, we can choose PEQ style: Balance, High-shelf, Low-shelf, High-cut, Low-cut, Phase 180°...
- Page 14 Digital Matrix Processor THE NINTH: OUTPUT INTERFACE 1. Select “Mag" interface, you can adjust the PEQ, High-cut, Low-Cut of the output channel, select "PHASE" interface, you can adjust the current phase channel, also you can choose the non-current PEQ and phase curve to show in sync. 2.
-
Page 15: Specifications
Digital Matrix Processor SPECIFICATION Frequency Response 20Hz~20kHz, -0.3dBu S/N Ratio >115 dBu System Specification Distortion( THD) <0. 005at1kHz( 0dBu) <100dB below full scale Cross-talk Type Balanced XLR Input Section Max. Input Level +18dBu Impedance 1M/ Ω Stereo; 500k Ω/ MONO Type Balanced XLR Max. -
Page 16: Rear Panel Control Port
Digital Matrix Processor REAR PANEL CONTROL PORT CONNECTION 1, Ethernet connection port: you can choose to connect the computer by wire, connect several devices by switch, or use WIFI by router to control, but need to set different IP address and ID code for each device, or they can' t connect successfully due to the IP addresses conflict. - Page 17 Digital Matrix Processor 3. RS485 cascade contro port: Cascade connect several devices by RS485, you can choose different ID to control separately. PC or laptop Connect several devices by cascading 7PIN and 8PIN of the RS232 port, connect the computer through RS485 converted RS232 switch, Cascade controllable several devices after setting the different ID.
-
Page 18: Extend Remote Control Protocol
Digital Matrix Processor Extend Remote control Protocol 1, Control package Format Device Data1 Data2 Date3 Assress 1～254 0x41～0x4A Packet 0x7B 0x7D 0x?? 0x?? 0x?? 0x7D 0x7B 2, Command Detail (1) Gain Control(0x41) Device In/Out Channel Assress 1～254 +: 0,-: 1 Packet 0x7B 0x7D... - Page 19 Digital Matrix Processor (4) Input Volume Control(0x44) Device Channel HI-VOL LO-VOL Assress 1～254 00～07 Packet 0x7B 0x7D 0x44 0x?? 0x?? 0x7D 0x7B Example(InA volume +0. 0dB): 7B7D01440001187D7B (5) Output Volume Control(0x45) Device Channel HI-VOL LO-VOL Assress 1～254 00～07 Packet 0x7B 0x7D 0x45 0x??
- Page 20 Digital Matrix Processor (8) Get Now Preset(0x4A) Device 0x30 0x30 0x30 Assress Packet 1～254 0x7B 0x7D 0x4A 0x7D 0x7B MCU Return: 0x00～0x32=0: F00, 1～32: U00～U31 Example (read preset parameter):7B7D014A0000007D7B Bits per second 115200 Stop bits Communication Data bits Step ﹥= 20ms parameter Parity None...
-
