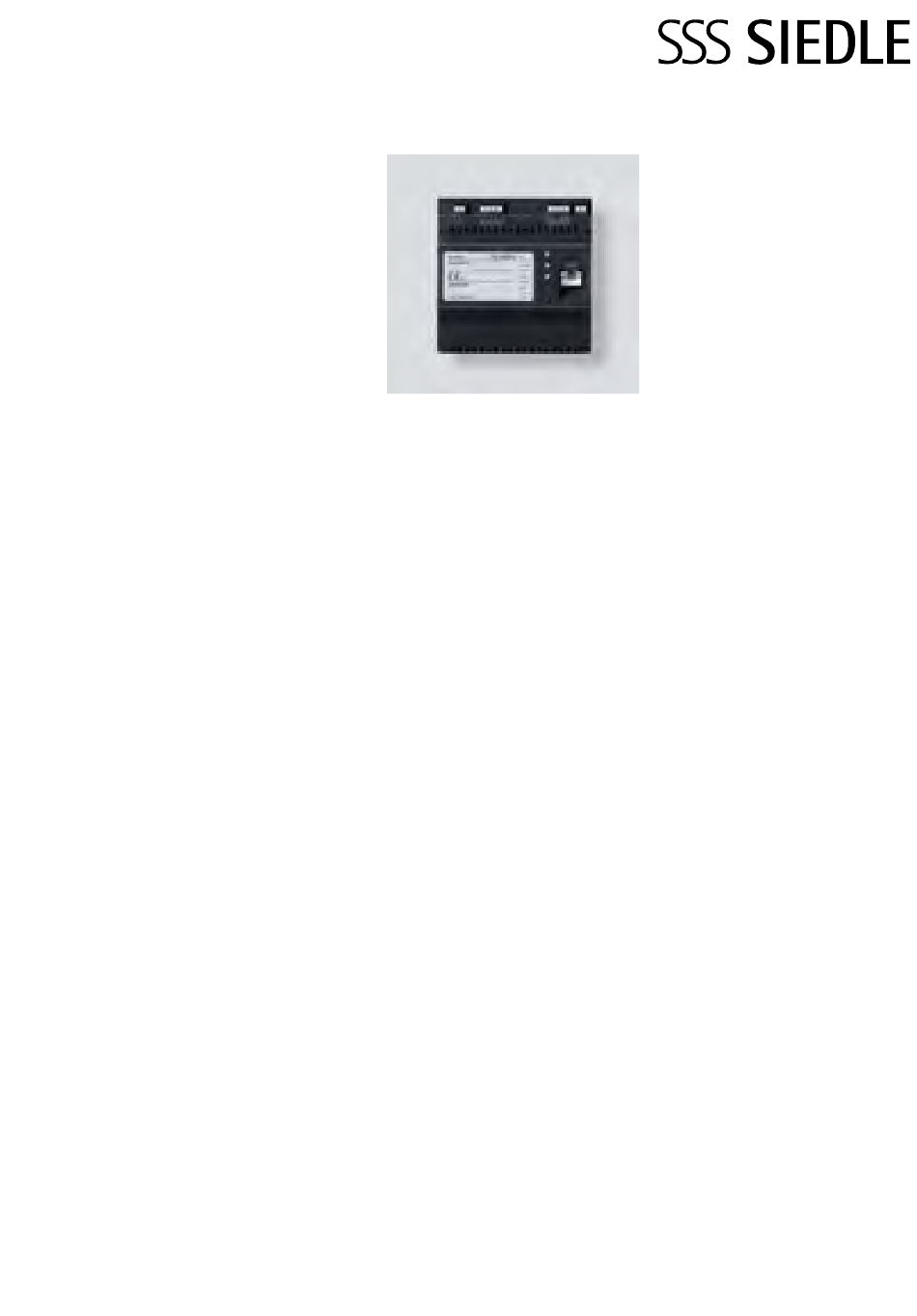

- Page 1 Commissioning instruction Smart Gateway Professional SG 650-0...
-
Page 2: Table Of Contents
Contents Quick overview – Commissioning Minimum requirements for Commissioning mobile terminals Manual programming Safety remarks Minimum requirements for Programming using the PC and routers Observe the safety instructions! bus programming software (BPS 650-…) Update the Gateway Servicing Performing a system update Update the Siedle app on the Product registration mobile terminal... -
Page 3: Quick Overview - Commissioning
Quick overview – Commissioning Observe the safety instructions! Checking, selecting and preparing the network connection 12,13 Fulfilling commissioning requirements 14,15 Register product Downloading and installing the bus programming software Programming the Gateway in the In-Home bus and exporting the configuration Login on the Gateway Performing a system update Change user profile / password... -
Page 4: Safety Remarks
Safety remarks Observe the safety instructions! Protect your network! Legal notice Read and observe the safety Only use up-to-date components Photographs of individuals taken instructions and content of the and terminals in the network in without their knowledge may not be following documents before using line with the latest state of the art. -
Page 5: Overview
Overview System overview Possible IP clients: Integrable networking compo- Simplified layout showing arrange- • Siedle app nents: ment of the Gateway, Bus software • Siedle Axiom • IP cameras (directly in Siedle app in-house telephone, Siedle app for • Bus software in-house telephone / bus software in-house telephone / Smart Gateway and the installed •... -
Page 6: Commissioning Sequence
Overview Commissioning sequence Mount the Gateway, connect to the In-Home bus / IP network and switch on. See Product Information/System Manual Configure the Gateway. Optionally: Reserve additional In-Home bus addresses. Programming the In-Home bus (manually or using the bus programming soft- 16,19 ware). -
Page 7: Bus Addresses In The In-Home Bus
Bus addresses in the In-Home bus Connection of bus and IP address As a one-line bus system, the If you are operating the Siedle In-Home bus is restricted to a max- intercom and the Gateway in the imum of 31 bus addresses (bus single-line bus system, each compo- users). -
Page 8: Example - Single Line System
Overview Example – Single line system Example – Multiple line system System limits Use of one bus line. Use of at least 2 but no more than Gateway 15 bus lines. Installation example Characteristics: Number Installation example The Siedle call station comprises Maximum number of 2 door stations (main and side The Siedle call station comprises... - Page 9 Connection of bus and IP address (Example) Link www.siedle.com In-Home SG 650-0 Siedle In-Home bus IP network Smart Gateway Status Up to 31 bus Up to 50 IP users Reset addresses IP 20 and any optional 0000000000000 Prog. number of IP groups (6 IP users per IP group) Siedle In-Home bus...
-
Page 10: Preparation
Preparation Menu structure User interface Menu level 1 Menu level 2 Status Overview IP users Device information User User profile Change the password Basic settings Date / time Network Video memory / Door call DTMF Video In-Home bus Bus adresses Bus users Network user Licences... -
Page 11: Information On Programming
Information on programming Using the Finder function, you can In order to use the door intercom locate all Gateways existing in the system, at least one door call must network, provided these are located be programmed in the In-Home bus. in the same network as the commis- Programming is described in detail sioning PC with bus programming... -
Page 12: Direct Lan Connection
Preparation Direct LAN connection Accessibility of the Gateway: • The DHCP client is enabled on Direct LAN connection between The IP address 169.254.1.1 can also your commissioning Laptop/PC, to commissioning laptop/PC and have been used by other device be able to request a network address Gateway. -
Page 13: Indirect Lan Connection With Inactive Dhcp Server
Accessibility of the Gateway: for the initial direct LAN connection. work address range (IP address and The Gateway can be reached under • The DHCP client is enabled on subnet mask) an save the changings. the IP address assigned by the DHCP your commissioning Laptop/PC, to 24 Open the web browser and enter server (e.g. 192.168.178.100). -
Page 14: Commissioning Requirements
Commissioning requirements Commissioning requirements Standard login data/ Standard user name: admin Known login data Standard password: admin Required network properties Direct LAN connection between the Gateway and commissioning laptop/PC (zero configuration networking: 169.254.1.1) or DHCP-capable network for initial commissioning. For regular operation, a permanent static IP address is required. -
Page 15: Step-By-Step Through The Com- Missioning Process
Fulfilling commissioning require- Step-by-step through the com- Register product ments missioning process Siedle software is continuously In order to allow the Gateway to be The following commissioning steps updated and further developed. To commissioned, the following work are described over the following ensure that you make use of all the must have been completed: pages:... -
Page 16: Commissioning
Commissioning Manual programming • Complete the installation programming mode, several steps Procedure: • Check the switch positions at the can be programmed in sequence. On principle, the In-Home bus can BNG/BVNG 650-…, in new systems There is no need to quit the pro- be commissioned and programmed set the switch setting to Norm. -
Page 17: Programming Using The Pc And Bus Programming Software (Bps 650
Programming using the PC and power supply must not be inter- Important bus programming software rupted, as otherwise the Gateway Do not close the tool until all update (BPS 650-…) will be damaged. During the processes for all devices have com- Log into the Gateway using one of update, the status LED flashes. -
Page 18: Check/Change The Network Settings
Commissioning Procedure: Video memory settings: the storey call once you have created 1 Click on Basic settings > Date / 2 Activate the automatic video an IP user / IP group. time. memory if you wish an image to 2 Select your time zone. be taken of the person calling after PAL/NTSC setting 3 Click on automatic summer time... -
Page 19: Deleting Ip Users
Deleting IP users A storey call can be assigned to 11 Export the XML configuration All IP users which are registered one or more IP users (IP group). The file for the Smart Gateway (BPS: at the Smart Gateway can only be relevant IP users/IP groups must have SG 150/650 >... -
Page 20: Bus Software In-House Telephone
Commissioning Procedure: Siedle download area to your PC/ control port. Input takes place in the 1 Load and install the Siedle app laptop. “Server/Gateway IP address” field in on your smartphone/tablet. You 2 Install the BSHT on your PC/laptop. the form ([IP address]:[replacement 3 Start the BSHT. -
Page 21: Integrating An Ip Camera In Siedle Axiom
camera with a unique location desig- nation (e.g. West exit, ground floor). Confirm your input with OK in order to integrate the IP camera into the Siedle app/bus software in-house telephone. If your entries were cor- rect, you will be able to watch the live image using the camera observa- tion function. -
Page 22: Telephony Link
Telephony link Telephony connection Siedle nected TC system. The user licences 5 Enter the IP address of the TC Axiom can be ordered under www.siedle. system under Address. External telephone calls (public com/mysiedle. 6 Enter the port specified by your TC network telephony) are possible system under Port. -
Page 23: Sip Telephone + Bsht
is assigned one bus address in the SIP/TC telephone + Video In-Home bus. For telephones with video display, (For each IP user / group which you the camera’s video signal can be wish to call separately, an additional decoupled at the door. In-Home bus address must be reserved via the Gateway.) Procedure:... -
Page 24: Mobile Network Connection
Mobile network connec- tion Sequence: Install the mobile network connection 1 Check and fulfil the minimum requirements. 2 Update the Gateway 3 Update the Siedle app on the mobile terminal. 4 Select the DynDNS provider and set up access. 5 Change the Gateway configuration. 6 Change the router configuration. -
Page 25: Minimum Requirements For Sta- Tionary Internet Connection
Mobile network connection Minimum requirements for Update the Gateway From Release V 1.2, a mobile phone mobile terminals 1 Log in to the Gateway. network connection can be config- • Internet protocol: IPv4 connection 2 Change to the “System > Update” ured for the Gateway over UMTS/ with static or dynamically changing menu. -
Page 26: Change The Gateway Config- Uration
Mobile network connec- tion stored by the DynDNS provider for Standard settings – port configuration subsequent set-up at the router and Designation Start port End port at the gateway. SIP port (TCP/UDP) 5060 Remarks: Control port (TCP) 10000 • Always issue lengthy secure pass- Audio ports (UDP) 10000 10100... - Page 27 router. This means that the router • The IPv4 forced separation which Step 2 – set up DynDNS access and Smart Gateway can always takes place for technical reasons in 1 Change to the area of the router be reached over the same domain internet connections with dynami- in which you can configure DynDNS name from the Internet, although...
-
Page 28: Commission The Siedle App
Mobile network connec- tion Step 3 – test the DynDNS con- the local network. nection 2 Start the Siedle app. Test whether router access over the 3 Enter the local static IP DynDNS domain allocated by the address of the Gateway (e.g. DynDNS provider works: 192.168.178.222). -
Page 29: Infographic: Mobile Phone Net
Infographic: Mobile phone network requirements Mobile network device • Current operating system 3G/4G • Current Siedle app Mobile internet con- nection • IPv4 connection • Public IP: static or dynamic Provider • Download: constant • IPv4 connection 1 MBit/s • Download: constant 512 kBit/s •... -
Page 30: Reset Or Check The Settings
Reset or check the settings Resetting the system IP address and password reset DHCP server – Changes To allow the as-delivered status to You can reset the settings for the IP If the DHCP server (Router/Wi-Fi be restored at the Gateway, the address and the password for login router/managed switch/server) Gateway must be reset. -
Page 31: Optional Commissioning Steps
Optional commissioning steps Reserving bus addresses Import licences 6 In the header of the Gateway, As standard, the Gateway is the following message appears: There are 2 user licences for IP users assigned one bus address in the Searching for reservable bus contained in the scope of supply. -
Page 32: Logging
Logging Important: After every system data) you wish to back up. The Gateway benefits from extensive update, the option “Persistently 3 Click on Back up system and save system logging. The logs are located store protocols” is deactivated to the back-up file on your commis- in the submenu Logs (System >... -
Page 33: Index
Index Login on the Gateway Commissioning software SIP telephone Commissioning requirements Observe the safety instruc- tions! As-delivered status Fulfilling commissioning requirements Siedle app Automatic logout Indirect LAN connection with Siedle Axiom Change user profile / pass- active DHCP server word Restarting the Gateway Indirect LAN connection with Operational data... -
Page 36: Www.siedle.com
S. Siedle & Söhne © 2015/04.18 Telefon- und Telegrafenwerke OHG Printed in Germany Best. Nr. 200048997-02 EN Postfach 1155 78113 Furtwangen Bregstraße 1 78120 Furtwangen Telefon +49 7723 63-0 Telefax +49 7723 63-300 www.siedle.de info@siedle.de...
