Operator's Manual
AIR COMPRESSOR
3-gallon
1 HP
Oil Lubricated
Model No. 218.10012
CAUTION:
Before using this product, read this
manual and follow all its Safety
Rules and Operating Instructions.
Transform SR Brands Management LLC
Hoffman Estates, IL 60179, U.S.A.
08/08/2019
•
Safety Instructions
•
Installation & Operation
•
Maintenance & Storage
•
Troubleshooting Guide
•
Parts List
Advertisement
Table of Contents
Related Manuals for Craftsman 218.10012
Summary of Contents for Craftsman 218.10012

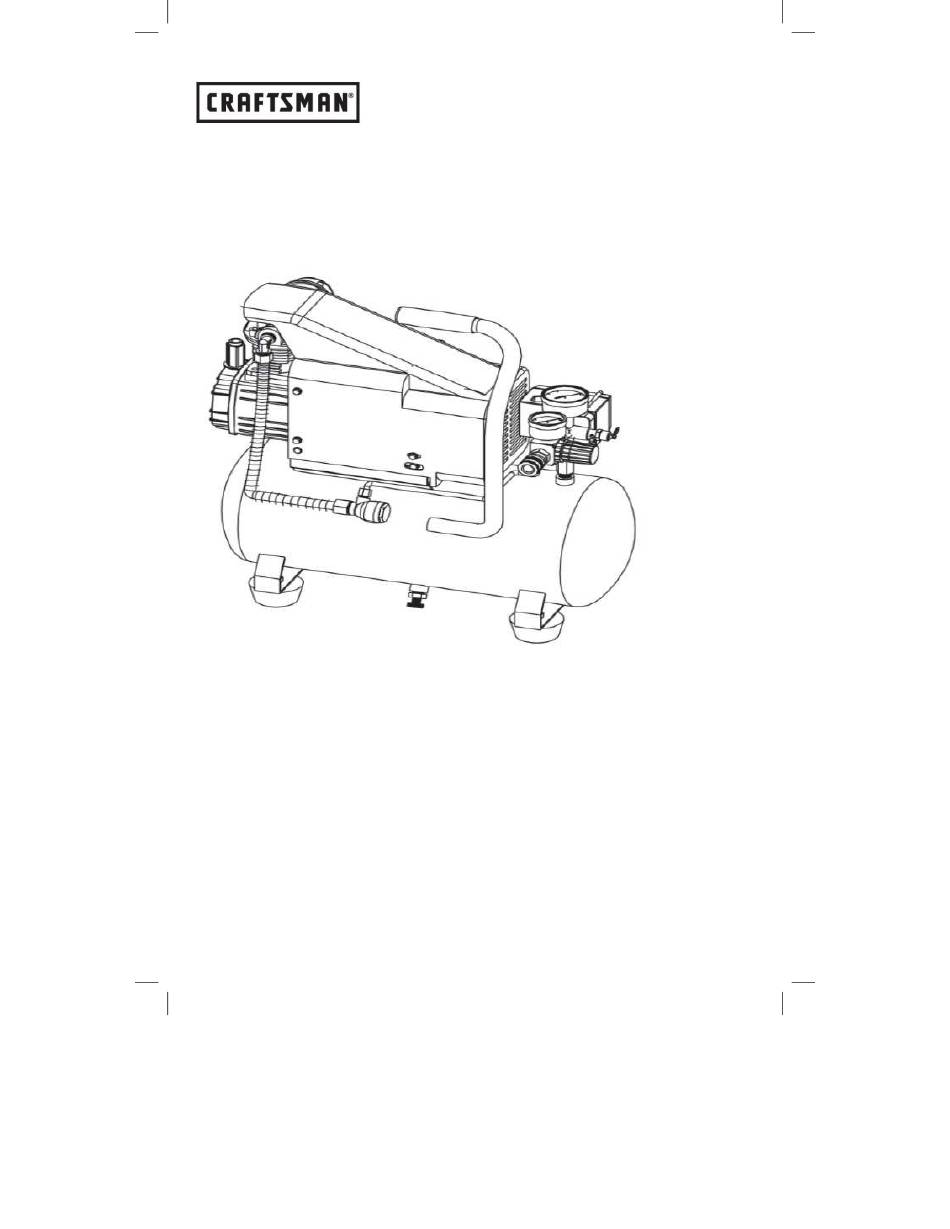

- Page 1 Operator’s Manual AIR COMPRESSOR 3-gallon 1 HP Oil Lubricated Model No. 218.10012 CAUTION: • Safety Instructions • Installation & Operation Before using this product, read this • Maintenance & Storage manual and follow all its Safety • Troubleshooting Guide Rules and Operating Instructions.
-
Page 2: Table Of Contents
Service Number............Back Cover CRAFTSMAN LIMITED WARRANTY FOR ONE YEAR from the date of sale, this product is warranted against any defects in material or workmanship. -
Page 3: Safety Symbols
Safety Instructions The information listed below should be read and understood by the operator. This information is given to protect the user while operating and storing the air compressor. We use the symbols below to allow users to recognize important information about their safety. DANGER! CAUTION! Indicates an imminently hazardous situation... -
Page 4: Specifications
Important Safety Instructions & Guidelines Avoid using the air compressor in confined areas. Always have Risk to Breathing adequate space (12 inches) on all sides of the air compressor. Also keep children, pets, and others out of the area of operation. This air compressor does not provide breathable air for anyone or any auxiliary breathing device. -
Page 5: Parts & Features
Parts & Features See figures below for reference. Air Intake Filter Provides clean air to the pump and must always be kept free of debris. Check on a daily basis or before each use. Regulator Gauge Indicates the outgoing air pressure to the tool and is controlled by the regulator. -
Page 6: Installation & Assembly
Installation & Assembly WARNING! Before performing any maintenance, turn the compressor off, unplug from power source, bleed air from tank and allow unit to cool. Personal injuries can occur from moving parts, electrical sources, compressed air or hot surfaces. If unsure of assembly instructions or you experience difficulty in the assembly contact a Sears or other qualified service dealer. - Page 7 Make sure that the product is connected to an Installation outlet having the same configuration as the Location of the Air Compressor plug. No adapter should be used with this The air compressor should always be located product. If the product must be reconnected in a clean, dry and well-ventilated for use on a different type of electric circuit, environment.
-
Page 8: Operating Procedures
between the socket and plug. To release the Operating Procedures air hose, push the collar back on the quick Daily Start-Up Procedures connect socket. 1. Set the Auto-On/Off lever to the Off position. 6. Plug the power cord into the proper 2. -
Page 9: Maintenance
Maintenance NOTE: Any service procedure not covered in the maintenance schedule should be performed by qualified service personnel. Contact a Sears or other qualified service dealer. Maintenance Schedule WARNING! The air compressor should be turned off, Before each use Items to Check/Change unplugged from the power source, air bled from or daily the tank and allowed time to cool before any... -
Page 10: Troubleshooting Guide
Troubleshooting Guide WARNING! The air compressor should be turned off and unplugged from the power source before any mainte- nance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces. PROBLEM POSSIBLE CORRECTION Air leaks at the check... -
Page 11: Exploded View
Craftsman Air Compressor Model 218.10012 Exploded View... -
Page 12: Parts List
Craftsman Air Compressor Model 218.10012 Parts List Part No. Part Name 45.329 Screw SHCS M6 x 30 mm 45.092 Washer, Lock 6 mm 3.154 Cylinder Head 40.001A Exhaust Elbow 41.005 Air Filter 35.008H Gasket, Cylinder Head 11.001 Valve Plate, 47 34.001... - Page 13 Part No. Part Name 46.029 / Washer, flat, Copper 10, Cu/Fe 46.029A 44.003 Nut, compression, G3/8 43.001C Tube, with fin, outlet, OD 10 mm 43.001H Tube, relief, outlet, OD 6 mm 44.001 Nut, hex compression, G1/8 22.034 Cord, Power, SJT16*2M 46.050 Terminal, Y type, 1.5-4U 46.051...
- Page 14 For product questions or to order replacement parts call 1-877-636-0533...
