NAD MT 1 Mounting Instructions

Media tuner mounting instruction for the c 356bee

Hide thumbs Also See for MT 1:

MT 1 MEDIA TUNER

Mounting Instructions

MOUNTING INSTRUCTIONS FOR THE C 375BEE

The MT 1 is compatible with C 375BEE. Using the supplied flexible flat cable

(FFC), DC power connector and screws, the MT 1 can be installed in a C 375BEE

by undertaking the following procedure.

STEP 1

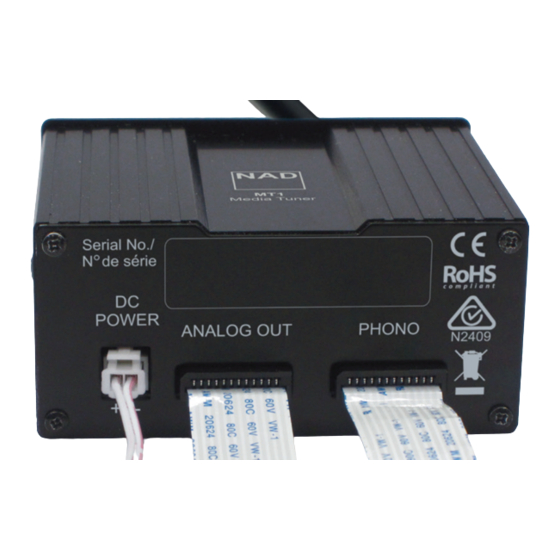

Pre-install the requisite cables to their respective connector points on the MT 1

as shown. Connect the FFC to the MT 1's PHONO port only if the C375BEE has a

PP375 already installed.

STEP 2

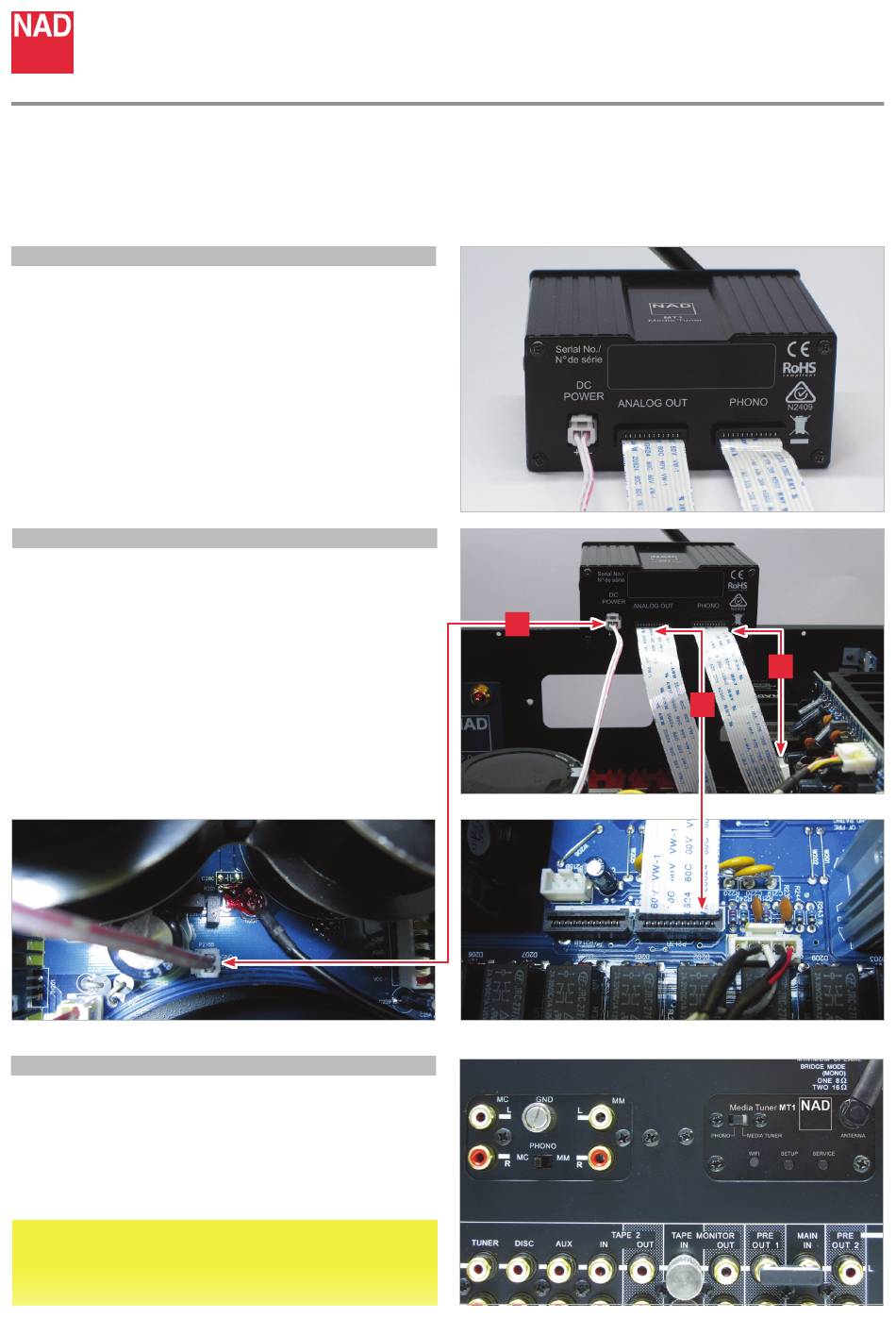

Make the following connections:

1 DC POWER connector from MT 1 to corresponding P216B in C375BEE's main

board.

2 FFC from MT 1's ANALOG OUT to P213B on C375BEE's main board.

3 If the optional PP375 module is installed: FFC from MT 1's PHONO port to

the corresponding FPC (flexible printed circuit) connector of the PP375

module.

Ensure good harnessing by flexing and safely contorting the FFC and

DC POWER connectors.

STEP 3

Remove the dummy cover at the back of the C375BEE and install in its place the

MT 1. Use the supplied screws to fix into place the MT 1.

IMPORTANT!

The MT 1 is only compatible with C 375BEE units that have the

0.5W standby logo on their rear panels.

Note that if the C 375BEE has a PP375 Phono Preamplifier Module already

installed, the MT 1 and the PP375 can be linked together using the other

supplied FFC.
