FKI Unitoaster Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

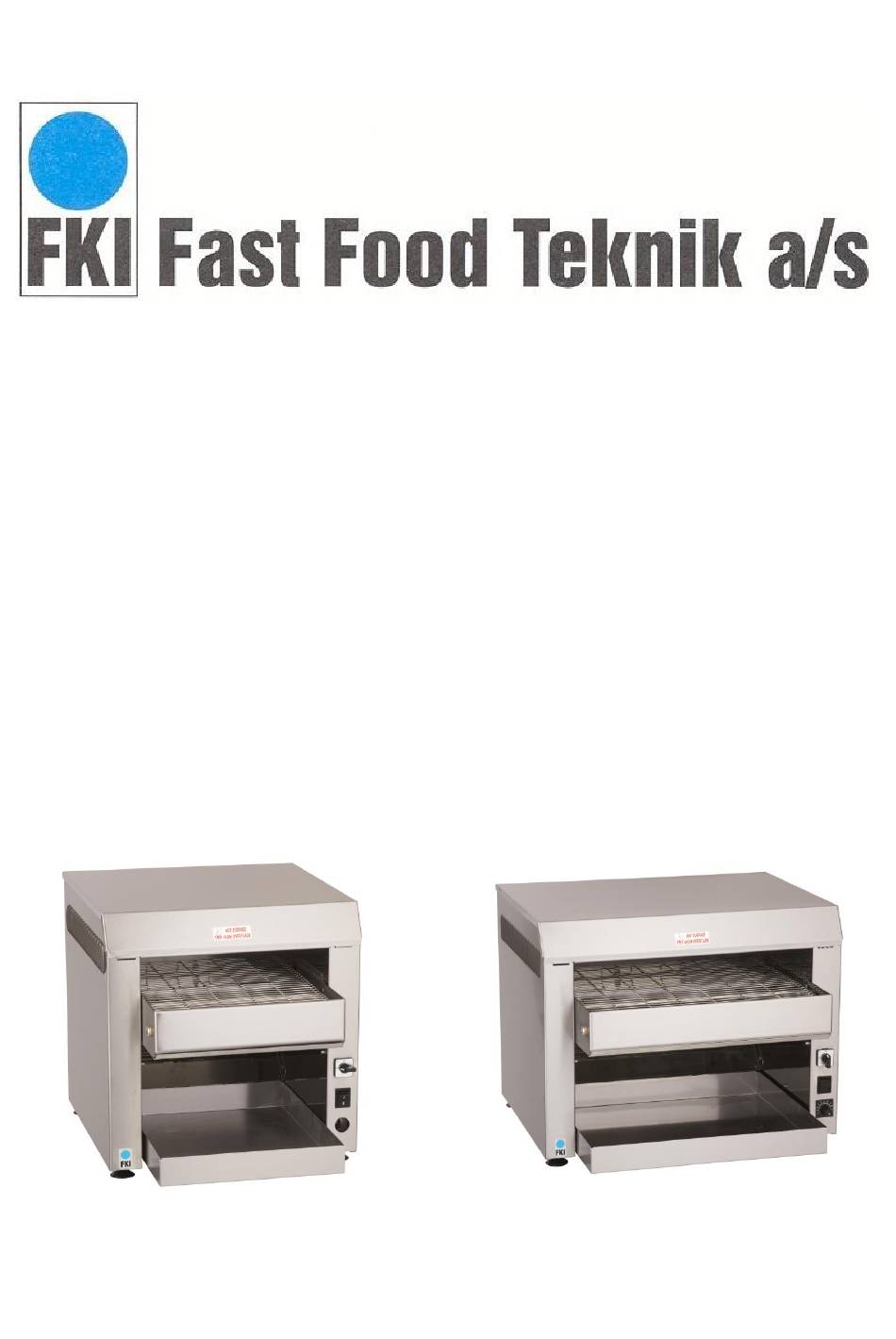

Instruction Manuel
UT 280/400 – 280V/400V -
UT280/400ECO -
UT280/400EV
Unitoaster
Version 2.0 – JAN 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unitoaster Series and is the answer not in the manual?

Questions and answers

Related Manuals for FKI Unitoaster Series

Summary of Contents for FKI Unitoaster Series

  • Page 1 Instruction Manuel UT 280/400 – 280V/400V - UT280/400ECO - UT280/400EV Unitoaster Version 2.0 – JAN 2016...

  • Page 2: Table Of Contents

    Content of this manual Contents Content of this manual ....................2 Introduction ....................... 3 Generally ......................3 2.1. Manufacturer ......................3 2.2. The full name of the machines ................3 2.3. Machine plate ......................4 Overview and application ..................4 3.1.

  • Page 3: Introduction

    Introduction Original manual This manual is FKI Fast Food Teknik A/S translation to the original instructions for Unitoaster, hereinafter called UT. Purpose The purpose of this manual is to ensure proper installation, use, handling and mainte- nance of contact grill.

  • Page 4: Machine Plate

    2.3. Machine plate Machine plate is placed in the back on the left side Overview and application The UT purpose and intended use 3.1. Unitoaster type UT are designed for heating of hot dog buns, French Hot Dog bread and half buns.

  • Page 5: Placement Of The Contact Grill

    Power: Max. 2,2 kW Noise Airborne noise coming from the contact grill: Measured sound pressure level dB(A): < 45 Placement of the contact grill 3.4. The contact grill must be set up on a table or the like in an appropriate working height. Operation is done from the front of the UT.

  • Page 6: Maintenance, Fault-Finding And Repair

    ECO-model: The toaster is also available in an en- ergy friendly model where the start / stop of the conveyor belt and the heating ele- ments is done automatically, using a non-contact sensor. The toaster starts when placing the bread on the belt and stops after about 2 minutes.

  • Page 7: 5.2.1. Specifications On Spare Parts

    5.2.1. Specifications on spare parts UT280/400 5.3.
  • Page 8 Pos. Item number Title Quartsrør UT 280 – Ø11 x 320 mm 83-08595 Quartsrør UT 400 – Ø11 x 440 mm 83-08883 115V – 500W 83-08654 Heating element 83-08596 Isolator Kit 72-05519 Switch (turning) 83-07908 Switch 83-06453 Blind plug black 83-06546 Bread Tray UT 280...

  • Page 9: Ut280V/400V

    UT280V/400V 5.4.
  • Page 10 Pos. Item number Title Quartsrør UT 280 – Ø11 x 320 mm 83-08595 Quartsrør UT 400 – Ø11 x 440 mm 83-08883 115V – 500W 83-08654 Heating element 83-08596 Isolator Kit 72-05519 Switch (turning) 83-07908 Switch 83-10029 Regulator 83-06546 Bread Tray UT 280 83-06581 Bread Tray...

  • Page 11: Ut280Eco/400Eco

    UT280ECO/400ECO 5.5.
  • Page 12 Pos. Item number Title Quartsrør UT 280 – Ø11 x 320 mm 83-08595 Quartsrør UT 400 – Ø11 x 440 mm 83-08883 115V – 500W 83-08654 Heating element 83-08596 Isolator Kit 72-05519 Switch (turning) 72-03521 Cable gland PG11 steel 83-06453 Blind plug black 83-06546 Bread Tray...

  • Page 13: Ut280Ev/400Ev

    UT280EV/400EV 5.6.
  • Page 14 Pos. Item number Title Quartsrør UT 280 – Ø11 x 320 mm 83-08595 Quartsrør UT 400 – Ø11 x 440 mm 83-08883 115V – 500W 83-08654 Heating element 83-08596 Isolator Kit 72-05519 Switch (turning) 72-03521 Cable gland PG11 steel 83-10029 Regulator 83-06546 Bread Tray...

  • Page 15: Wiring Diagrams

    Wiring diagrams UT 280/400 Pos. Varenr Benævnelse 72-03626 Power cord 3 x 1,5 mm² DK-stik 72-03627 Power cord 3 x 1,5 mm² Schuko-stik 83-07608 Terminal block Switch, see spare parts list Gear Motor, see spare parts list 83-07908 Switch H/L 83-08654 Heating element 500W 115V...
  • Page 16 UT 280V/400V Pos. Varenr Antal Benævnelse 72-03626 Power cord 3 x 1,5 mm² DK-stik 72-03627 Power cord 3 x 1,5 mm² Schuko-stik 83-07608 Terminal block Switch, see spare parts list 83-10029 Regulator UT-V 83-10027 Gearmotor, variabel 24V 83-07908 Switch H/L 83-08654 Heating element 500W 115V...
  • Page 17 UT 280/400 ECO Pos. Varenr Antal Benævnelse 72-03626 Power cord 3 x 1,5 mm² DK-stik 72-03627 Power cord 3 x 1,5 mm² Schuko-stik 83-07608 Terminal block Switch, see spare parts list Gear Motor, see spare parts list 88-00231 Solid State Relay 83-08654 Heating element 500W 115V...
  • Page 18 UT 280V/400V ECO Pos. Varenr Antal Benævnelse 72-03626 Power cord 3 x 1,5 mm² DK-stik 72-03627 Power cord 3 x 1,5 mm² Schuko-stik 83-07608 Terminal block Switch, see spare parts list 83-10029 Regulator UT-V 83-10027 Gearmotor, variabel 24V 72-00113 Fiber-optic amplifier 83-08654 Heating element 500W 115V...

  • Page 19: End Of Use

    End of use 7.1. Scrapping The Unitoaster is marked with the above recycling symbol (EC Directive 2002/96/EC) and must be disposed in accordance with your country order. This means that when the product becomes obsolete, you should dispose it after the local municipality’s rules, e.g.

  • Page 20: Eu Declaration Of Conformity

    EU Declaration of Conformity EF-overensstemmelseserklæring 2006/42/EF bilag II A Fabrikant: Navn FKI Fast Food Teknik Adresse Byghøjvej 5, Verninge Postnr. og by 5690 Tommerup Erklærer hermed at maskine type: - Unitoaster UT 280 og UT 280 ECO - Unitoaster UT 280V og UT 280V ECO...
  • Page 22 Byghøjvej 5, Verninge – DK-5690 Tommerup – Danmark Tlf. +45 6475 1066 – info@fki.dk – www.fki.dk...

This manual is also suitable for:

Unitoaster ut 280Unitoaster ut 280 ecoUnitoaster ut 280vUnitoaster ut 280v ecoUnitoaster ut 400Unitoaster ut 400 eco ... Show all
