Kuhse KEA 202 INS Operating Instructions Manual

Operating instructions
Automatic start/stop system for stand-alone gensets
for product: KEA 202 INS
File: BA_KEA 202 INS_EN_Ver 2016-07-01 (ersetzt Version 2014-09-18)
1.

Use and basic operation

The KEA 202 INS automatic system is used in systems which are operated solely as standalone gensets.
Generator current sensor, overload, short-circuit, asymmetric load and the drag indicator display of the current
load are completeley integrated. The automatic control unit uses the RZ-071-D of KEA series 070. The addi-
tional relay unit RZ-071-E can be used as an amplification. Because the KEA 202 has the same dimensions
and fastenings as its predecessor, replacement is simple.

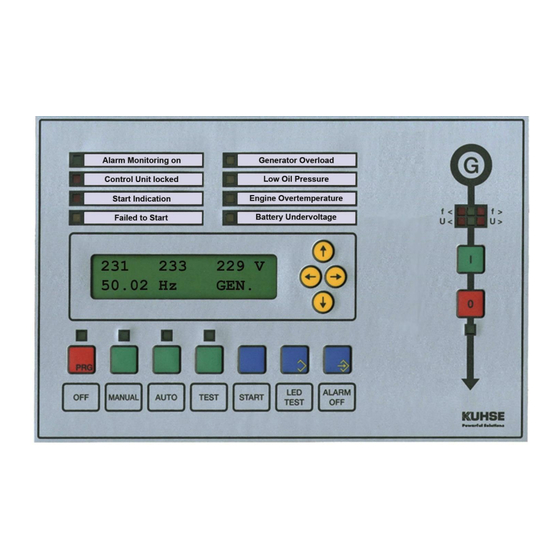

Four dedicated operating messages and four programmable operating displays can be labelled by replaceable
paper strips and are indicated by LEDs. All other alarms and all actual and reference values are shown on the
display. The illuminated display shows two lines with up to 16 characters with a character height of 10 mm so
that it can be read from a greater distance. The parameterisation can be carried out via the keys and the
display or via the serial interface (LWL) with the parameterisation program P
Two CAN bus interfaces are available for coupling to a ZLT and to a motor management system. However,
the protocol for the motor management system must be known and implemented.
The automatic system can be cost-effectively integrated in a communication system (K
public telephone or GSM mains by plugging in a modem.
The automatic system can be operated very easily by using the familiar buttons as with all previous models
______________________________________________________________________________________
Alfred Kuhse GmbH
An der Kleinbahn 39, D-21423 Winsen (Luhe)
Important note!
and without menu navigation.
