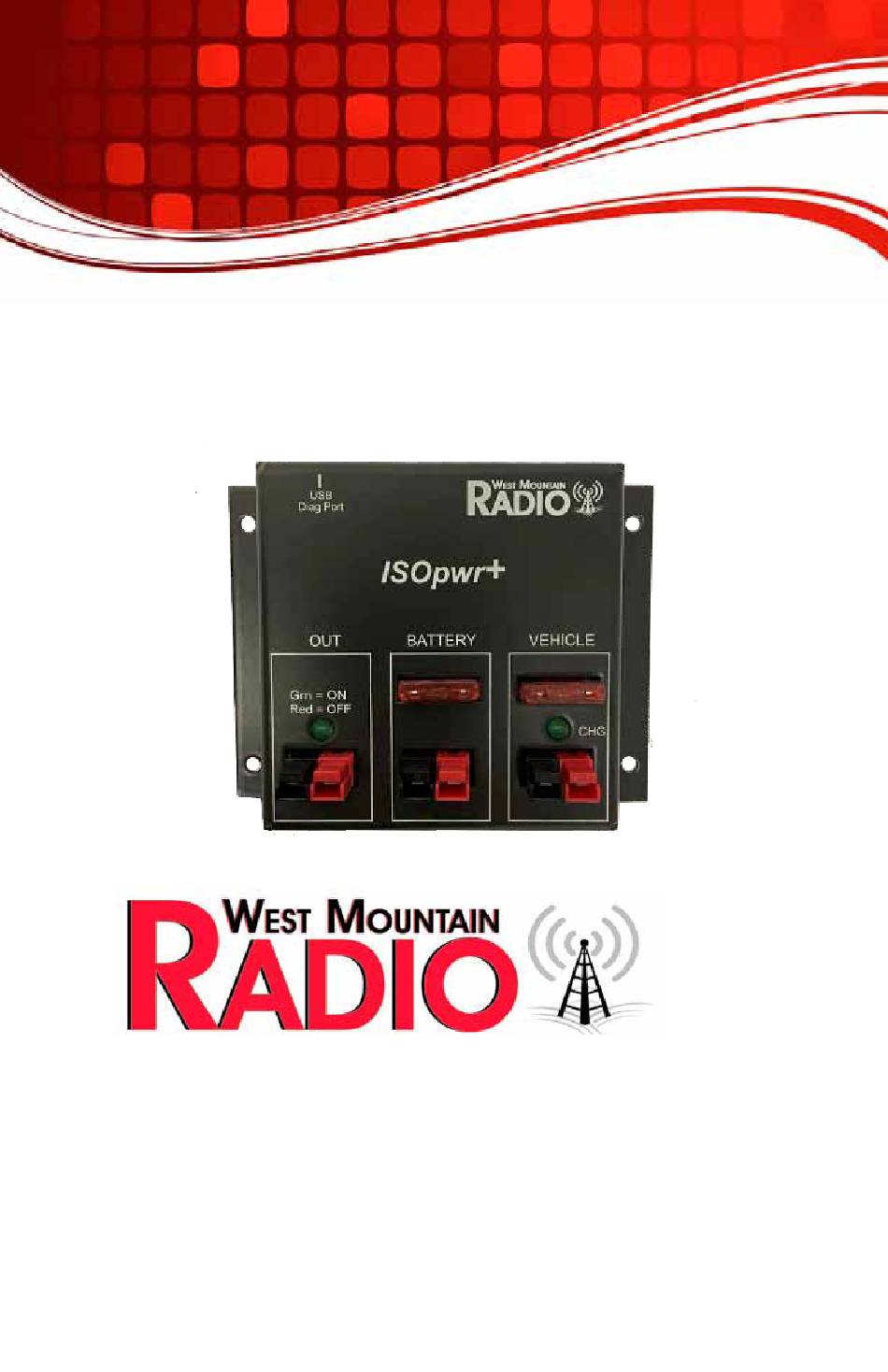

- Page 1 ISOpwr www.westmountainradio.com 1020 Spring City Drive Waukesha, WI 53186 262-522-6503 sales@westmountainradio.com ©2018 West Mountain Radio, All rights reserved. All trademarks are the property of their respective owners.
- Page 2 INTRODUCTION Thank you for choosing the West Mountain Radio ISOpwr+. The ISOpwr+ will isolate and permit charging of an auxiliary battery. The ISOpwr+ is a fully automatic automotive ON-OFF switch that will permit the vehicle’s charging system (i.e. alternator) to charge an auxiliary battery and run mobile radio equipment.
- Page 3 All wires have resistance, so it is good practice to keep them as short as possible and to use a larger gauge wire to minimize voltage drop. The engine compartment of a vehicle is not a suitable location for mounting. West Mountain Radio Operating Manual...
- Page 4 The cable to the vehicle’s 12V battery should be 10 AWG and the length should be as short as practical. Note that West Mountain Radio carries 3, 6 and 10 feet long supply cables, 10 AWG red and black insulated cable with ring terminals on one end and Powerpole on the other.
- Page 5 Batteries should be sealed for safety reasons. Additional assistance may be found: http://www.westmountainradio.com/capacity_calculator.php West Mountain Radio carries size 24 Gel and AGM batteries, as well as smaller and larger batteries. Large batteries have side, post, or threaded terminals. Deep cycle, marine, AGM, and others usually have 3/8 inch and 5/16 inch studs.
- Page 6 Output is OFF, but about to turn on because voltage is now good Green Fast Blink USB port is connected Vehicle LED Green Solid Alternator is detected and connected to auxiliary battery Alternator is not detected West Mountain Radio Operating Manual...
- Page 7 Car= 13.76V Bat=13.76V Output = output ON or OFF Charge = vehicle connected to auxiliary battery ( . . . ) = size of the charge or drain current = vehicle voltage = battery voltage West Mountain Radio Operating Manual...
- Page 8 You will be charged for repair or replacement of the ISOpwr+ or accessory made after the expiration of the warranty period. West Mountain Radio shall have no liability or responsibility to customer or any other person or entity with respect to any liability, loss, or damage caused directly or indirectly by use...
