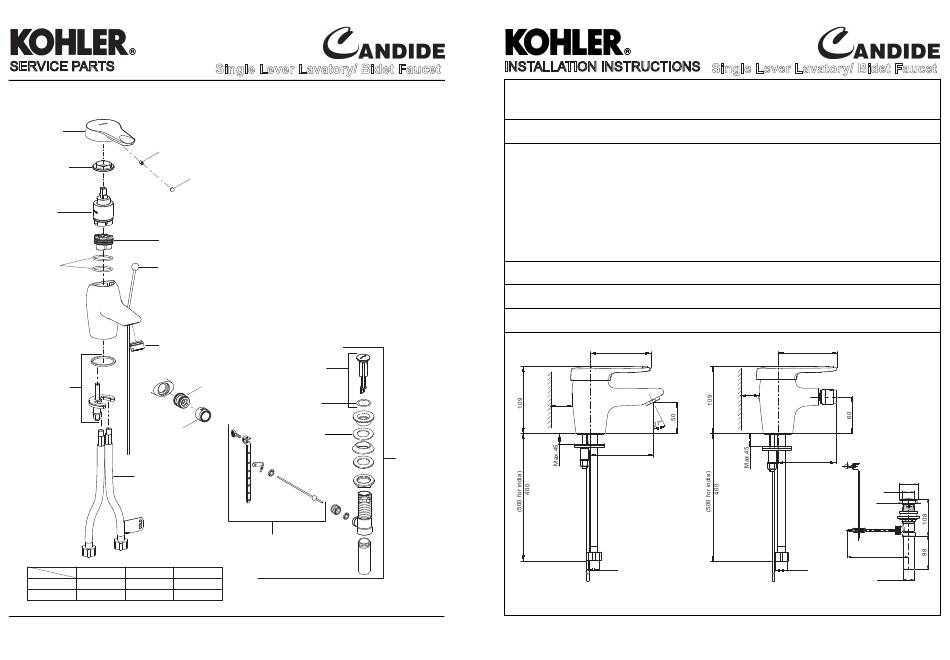

SERVICE PARTS
660/660-ND
SINGLE LEVER LAVATORY FAUCET
662
SINGLE LEVER BIDET FAUCET
3010479**
Lever
833438
Screw
3006660
Valve Nut
1068079
Valve
3008414
Seat
(Only for 660IN)
871472
3002551**
O-ring
Lift Rod Assembly
(Only for 660IN)
(Not for 660-ND)
Aerator
836664
Mounting
Hardware Kit
834769**
Aerator
(Only for 662)
Hose Assy
660IN
662IN
660IN-ND
Hose Assy
1024405
1024405
1024405
Aerator
834562**
834769**
834562**
**Color code must be specified when ordering
1045050A-D
Single Lever Lavatory/ Bidet Faucet
834705**
Screw Plug
880008**
Stopper
836628**
Ball Join
(Only for 662)
1080817
O-ring
880406
Washer
880037
Link Kit
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without
notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. For new installations, assemble faucet and drain to lavatory before installing lavatory.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
Wall
Min
40
834753**
Pop Up Drain
(Not for 660-ND)
660/660-ND
4
1045050A-D
Single Lever Lavatory/ Bidet Faucet
660/660-ND
SINGLE LEVER LAVATORY FAUCET
662
SINGLE LEVER BIDET FAUCET
98
Wall
Min
40
102
G1/2˝
98
94
Ø54
Ø32
Ø36.5
176.5
G1/2˝
Ø31.75
662
1
