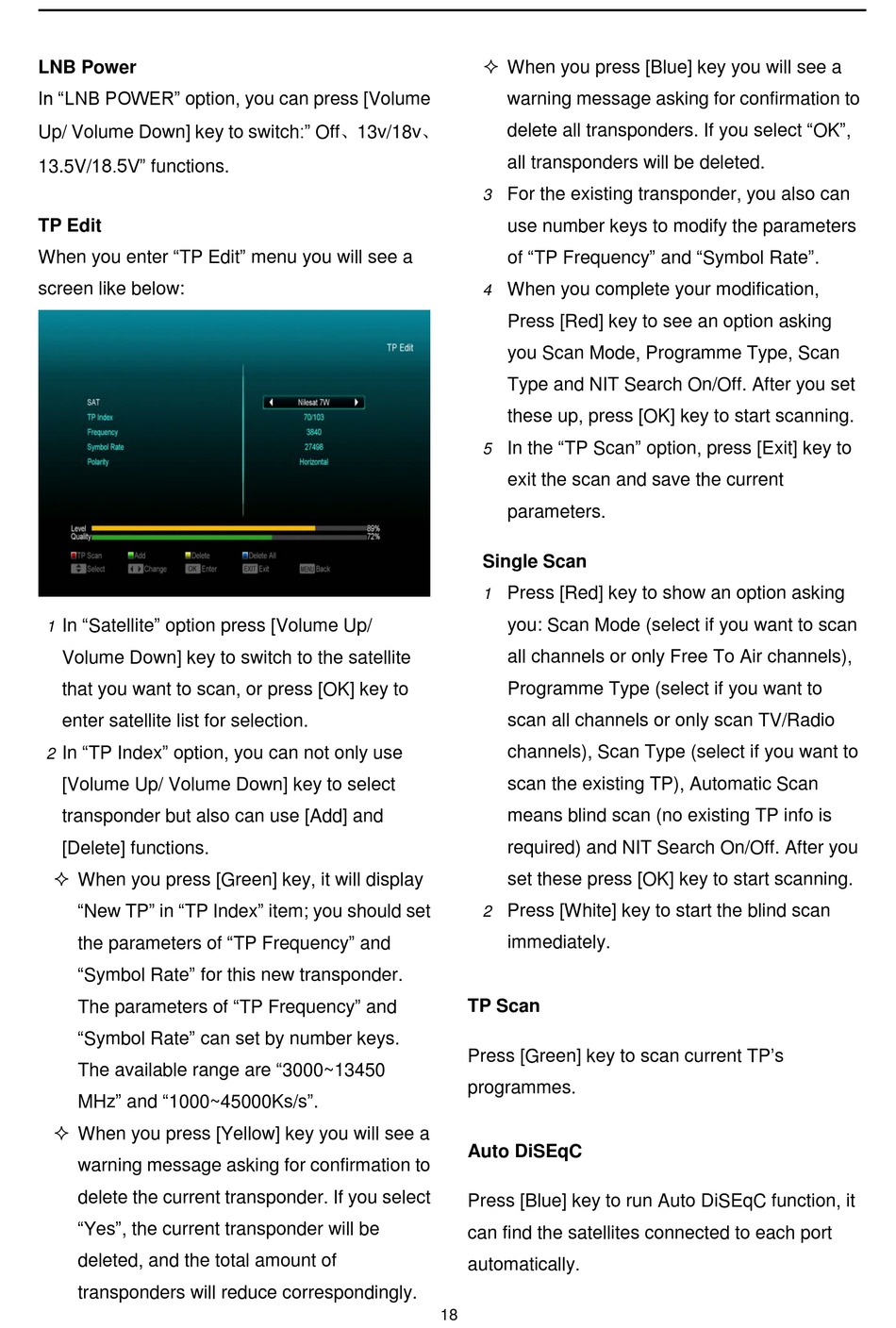

Icecrypt S3250CCIHD Manual page 18

LNB Power
In "LNB POWER" option, you can press [Volume
Up/ Volume Down] key to switch:" Off、13v/18v、
13.5V/18.5V" functions.
TP Edit
When you enter "TP Edit" menu you will see a
screen like below:
In "Satellite" option press [Volume Up/
1
Volume Down] key to switch to the satellite
that you want to scan, or press [OK] key to
enter satellite list for selection.
In "TP Index" option, you can not only use
2
[Volume Up/ Volume Down] key to select
transponder but also can use [Add] and
[Delete] functions.
 When you press [Green] key, it will display
"New TP" in "TP Index" item; you should set
the parameters of "TP Frequency" and
"Symbol Rate" for this new transponder.
The parameters of "TP Frequency" and
"Symbol Rate" can set by number keys.
The available range are "3000~13450
MHz" and "1000~45000Ks/s".
 When you press [Yellow] key you will see a
warning message asking for confirmation to
delete the current transponder. If you select
"Yes", the current transponder will be
deleted, and the total amount of
transponders will reduce correspondingly.
 When you press [Blue] key you will see a
warning message asking for confirmation to
delete all transponders. If you select "OK",
all transponders will be deleted.
For the existing transponder, you also can
3
use number keys to modify the parameters
of "TP Frequency" and "Symbol Rate".
When you complete your modification,
4
Press [Red] key to see an option asking
you Scan Mode, Programme Type, Scan
Type and NIT Search On/Off. After you set
these up, press [OK] key to start scanning.
In the "TP Scan" option, press [Exit] key to
5
exit the scan and save the current
parameters.
Single Scan
Press [Red] key to show an option asking
1
you: Scan Mode (select if you want to scan
all channels or only Free To Air channels),
Programme Type (select if you want to
scan all channels or only scan TV/Radio
channels), Scan Type (select if you want to
scan the existing TP), Automatic Scan
means blind scan (no existing TP info is
required) and NIT Search On/Off. After you
set these press [OK] key to start scanning.
Press [White] key to start the blind scan
2
immediately.
TP Scan
Press [Green] key to scan current TP's
programmes.
Auto DiSEqC
Press [Blue] key to run Auto DiSEqC function, it
can find the satellites connected to each port
automatically.
18
