Page 1: User Guide

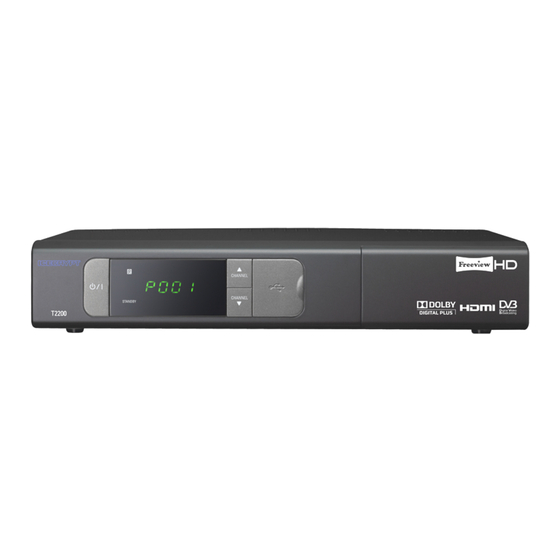

ICECRYPT www.icecrypt.com T2200 User Guide High Definition Digital Freeview HD Receiver Common Interface... -
Page 2: Table Of Contents
ii CONTENTS Contents Contents 1 Introduction Features ......Controlling the digital receiver . - Page 3 CONTENTS iii 4.1.1 Menu language ..... . 4.1.2 Subtitle language ..... 4.1.3 Hard of Hearing .
- Page 4 iv CONTENTS 7.1.2 To sort files ......7.1.3 To filter files ......7.1.4 To rename a file .
-
Page 5: Introduction
Chapter 1 Introduction The T2200 digital receiver is fully compliant with the interna- tional Digital Video Broadcasting (DVB) standard, and thus is able to receive digital broadcasts of that standard. For its op- eration you need an antenna, which must be installed appro- priately. -
Page 6: Front Panel
2 Introduction • Can create lists of your favourite services. • Can view information about the current television or ra- dio programme. • Has an electronic programme guide that provides an overview of scheduled programmes. • You can play back video files of various formats includ- ing DivX. - Page 7 1.2 Controlling the digital receiver 3 lightblinks every time you press a button on the remote control. STANDBY lightlights up while the digital receiver is in standby mode. Front display shows the current time in standby mode, and displays the current service in active mode. CHANNEL buttons switch to the previous or next ser- vice.
-
Page 8: Remote Control
4 Introduction 1.2.2 Remote control button switches the digital receiver between standby mode and active mode. mutes the sound. Press again to switch it back on. £ ¢ ¡ changes video resolu- V.Format tion. See §4.2.1 for more details. £ ¢... - Page 9 1.2 Controlling the digital receiver 5 is used to select a subtitle track. is used to set a sleep timer in 10 minute increments. £ ¢ ¡ displays the main menu. It is also used to return to MENU the previous menu from a submenu. £...
-
Page 10: Common Interface
6 Introduction is used to display the list of media files that are stored in the external hard drive. See §7.1 for more details. has different functions per menu. is used to jump back to the beginning of the video on playback. - Page 11 1.3 Common Interface 7 2 Insert the subscription card into the CAM. 3 Insert the CAM into a common interface on the front of the digital receiver. To view the information about the module and subscription card which is inserted into the digital receiver, select the Com- mon Interface menu.
-
Page 12: Setup
8 Setup Chapter 2 Setup 2.1 Unpacking Before going any further, check that you have received the fol- lowing items with the digital receiver. • Remote control unit • Two batteries for the remote control (AAA 1.5 V) • One HDMI cable •... - Page 13 2.2 Safety precautions 9 • The wall socket should be near the equipment. Do not run an extension lead to the unit. • The mains plug shall remain readily operable so that it can be removed easily to disconnect the power. •...
-
Page 14: Rear Panel Connections
0 to 45 Storage relative humidity 5 to 90 % 2.3 Rear panel connections The T2200 has the following connections on the back: Check what connections your television set has in comparison with the digital receiver. ANT IN Terrestrial broadcasting signal input socket... -
Page 15: Connecting Up Your Digital Receiver
2.4 Connecting up your digital receiver 11 Table 2.3: Connectors specifications HDMI High definition video output Left & right audio output Digital audio output CVBS/S-Video/RGB video output Left & right audio output CVBS video output Left & right audio output CVBS/S-Video/RGB video input for bypass Left &... -
Page 16: Connecting To Your Television Set
12 Setup 2.4.2 Connecting to your television set For all the following connections of the digital receiver, we rec- ommend you to use the first connector to get the best picture quality. If your television does not have a matching connector, then use the next connector in the following order for a better picture quality. -
Page 17: Connecting To Your Video Recorder
2.5 Switching on for the first time 13 To make the audio connection To enjoy Dolby Digital audio, your television or audio-video receiver must be able to de- code Dolby Digital audio, and you need to obtain an S/PDIF cable. Plug one end of the cable into the S/PDIF socket on the digital re- ceiver, and plug the other end into the match- ing socket on your audio-video receiver. - Page 18 14 Setup £ ¢ ¡ If you do not see a picture, try pressing the button on V.Format the remote control. If after several tries you still get no picture, check that the television is set to the correct input. If the picture is good, you can skip to §3.1 to search for available television...
-
Page 19: Service Search
Chapter 3 Service Search After connecting up the digital receiver, you will need to per- form a service search. NOTE If there is no service stored, you will be not able to access all menus. A is another name for a . 3.1 Searching for broadcasting services To perform service search, se- lect the Installation >... -
Page 20: Resetting To Factory Settings
16 Service Search You should set the Search Mode option to Auto for the first time after connecting up the digital receiver, then the digital receiver will search for all available services. To start service search, move down to the Start Search item, £... - Page 21 3.2 Resetting to factory settings 17 you get asked for confirmation. With the choice of Yes, the services list, favourite list and timer list will all be cleared, and preference options will be reset to the manufacturer’s factory settings.
-
Page 22: Preference Settings
18 Preference Settings Chapter 4 Preference Settings 4.1 Language settings You can select the language in which the menu will be dis- played. In addition to that, you can select the language of audio track and of subtitle track. Select the Settings >... -
Page 23: Subtitle Language
4.2 Video and audio settings 19 4.1.2 Subtitle language Set the Subtitle Language option to your desired language. When you watch a programme, the subtitle track of the se- lected language will be displayed if available. Apart from this setting, you can select a subtitle track with the button. -
Page 24: High Definition Television
20 Preference Settings 4.2.1 High definition television The digital receiver supports various video resolutions from 576I to 1080P. To enjoy high definition pictures, set the Dis- play Format option to HD and select a resolution of 720 or more in the Video Format option. In general, a resolution of 720 or more is considered high definition. -
Page 25: Television Aspect Ratio
4.2 Video and audio settings 21 4.2.2 Television aspect ratio If you have a wide-screen television, set the TV Aspect Ratio option to 16:9. You can enjoy both wide-screen programmes and normal- screen programmes with your wide-screen television as the above figures show. -
Page 26: Audio Mode
22 Preference Settings 4.2.5 Audio mode Basically, there are two audio sources. You can enjoy only one source or both of them in either stereo or mono. Set the Sound Mode option as you desire. Apart from this setting, you can change the sound mode with button. - Page 27 4.3 Local time setting 23 Settings > Time Select the menu. You should see a screen like the left figure. You can set the clock manually or use the time signal, Greenwich Mean Time (GMT), carried as part of the digital television broadcast. To use Greenwich Mean Time, take the following steps: 1 Set the Mode option to Auto, then the Time Offset option be-...
-
Page 28: Parental Control
24 Preference Settings Table 4.1: Time offset table Time offset City 12:00 Eniwetok, Kwajalein 11:00 Midway Island, Samoa 10:00 Hawaii 09:00 Alaska 08:00 Pacific Time US, Canada 07:00 Mountain Time US, Canada 06:00 Central Time US, Canada, Mexico City 05:00 Eastern Time US, Canada, Bogota, Lima 04:00 Atlantic Time Canada, La Paz... - Page 29 4.4 Parental control 25 Select the Settings > Parental Control menu. You should see a screen like the left figure, and you will be asked your Personal Identification Number (PIN). The number is initially set to ‘0000’ as default. If you wish to block programmes for viewers aged 15 or above, set the Censorship option to 15 (age).
-
Page 30: Options For Playback
26 Preference Settings 4.5 Options for playback To set the options for playback, select the Settings > Playback menu. You should see a screen like the left figure. You can adjust the jump interval that is for playback. Set the Jump Time Interval option as you desire. -
Page 31: Options For On-Screen Display
4.6 Options for on-screen display 27 4.6 Options for on-screen display To set the options for the on- screen display (OSD), select the Settings > OSD menu. should see a screen like the left figure. To adjust the transparency level of the OSD, set the OSD Trans- parency option as you desire. -
Page 32: Options For Standby Mode
28 Preference Settings 4.7 Options for standby mode You can have the current time displayed on the front display in standby mode. Select the Settings > Miscellaneous menu and set the Standby Mode option to Active; otherwise, set it to Passive. When you set the Standby Mode option to Active, the receiver can also bypass the signal from the antenna. - Page 33 4.8 Interactive television services 29 to set these options to match with the configuration of your router.
-
Page 34: Every Day Use
30 Every Day Use Chapter 5 Every Day Use 5.1 Volume control £ £ ¢ ¡ ¢ ¡ Use the buttons to alter the volume to a comfort- able level. You may need to adjust the volume on your televi- sion set too. - Page 35 5.2 Watching television 31 On the services list, you can see the service information as fol- lows: • Service number and name • Multiplex information A dollar sign ($) may be marked on some entries, indicating pay service. To watch pay services, you need a subscription card.
-
Page 36: The Favourite Service Lists
32 Every Day Use • To add the highlighted service into a favourite group, se- lect the Add to Fav option, then the favourite groups will be displayed. Put the highlight bar on a desired group £ ¢ ¡ and press the button. -
Page 37: Viewing Programme Information
5.2 Watching television 33 To add the service you are currently watching into a favourite group, press the button to display additional options, and then select Add this service item. To remove the currently highlighted favourite grop or service, select Delete item in the additional option box, then you get asked for confirmation;... -
Page 38: Selecting Audio Tracks
34 Every Day Use information about other services with the . In this case, £ ¢ ¡ you can change a service by pressing the button. Pressing the button once more displays detailed informa- tion about the current programme. To hide the information £... -
Page 39: Viewing Electronic Programme Guide
5.3 Viewing electronic programme guide 35 5.3 Viewing electronic programme guide The Electronic Programme Guide (EPG) shows the current and scheduled programmes that are or will be available on each service with a short summary for each programme. £ ¢ ¡... -
Page 40: Making Timer Events
36 Every Day Use £ ¢ ¡ 4 To remove the marking, press the button once again. 5.4 Making timer events You can make your desired service to be presented at a specific time. Even if the digital receiver is in standby mode, it will switch into active mode at a specified time. - Page 41 5.4 Making timer events 37 4 Set the Wakeup Day option to a desired date, on which the digital receiver will turn on. The date format is day/month/year—day of the week. Set the Wakeup Time option to a desired time, at which the digital receiver will turn on.
-
Page 42: Organising Services
38 Organising Services Chapter 6 Organising Services 6.1 Editing the favourite lists You can make your own favourite service lists. In fact, you can define multiple favourite service lists, each being a ‘group’ of chosen services. Select the Edit Favorite List menu. - Page 43 6.1 Editing the favourite lists 39 You can add up to 30 groups. To add a new group, select the NEW item in the group list, then the on-screen keyboard ap- pears. See §6.2 as to how to use the on-screen keyboard. To rename a group, put the highlight bar on the group entry £...
-
Page 44: How To Use On-Screen Keyboard
40 Organising Services 6.2 How to use on-screen keyboard You can move the highlight key > horizontally with the buttons and vertically with the buttons. Pressing the £ ¢ ¡ button on a key enters its let- ter in the input line. To type a space, select the Space key or alternatively press the £... -
Page 45: Playing Media Files
Chapter 7 Playing Media Files You can play back media files such as photos, videos and music with this digital receiver. To be- gin with, you should plug an external hard drive to the USB port of the digital receiver. Media file formats that you can play back with the digital re- ceiver are as follows: •... -
Page 46: File Archive
42 Playing Media Files 7.1 File archive To view the list of files in the ex- ternal hard drive, press the button. As shown in the left fig- ure, the file information is com- prised of several elements: file number, file name, file size, run- ning time and so on. -
Page 47: To Rename A File
7.2 Playing back a video file 43 3 Then only the files of the designated type get listed. 7.1.4 To rename a file To change a file’s name, take the following steps: 1 Put the highlight bar on the file you want to rename. 2 Press the button to display the additional options. -
Page 48: To Navigate Using The Progress Bar
44 Playing Media Files 3 To stop playback, press the button. 4 If it has its own one or more subtitle files, you can select one you prefer with the button to display subtitle. During playback, you can enjoy the following tricks: •... -
Page 49: To Play In Fast Motion
7.2 Playing back a video file 45 7.2.3 To play in fast motion To watch in fast motion during playback, press the button. If you press it repeatedly, the playback speed changes. To re- sume normal speed, press the button. You can play not only forward but also backward in fast mo- tion. - Page 50 46 Playing Media Files £ 2 Select each desired file with the ¢ ¡ button. Once a file is selected, it gets numbered. 3 Press the button to start playback. 4 The selected files are played in the sequence that they are numbered.
-
Page 51: Firmware Update
Chapter 8 Firmware Update It is possible to update the firmware to the latest version over the air. If a new version is available at any time, then a message box pops up, asking you whether to start firmware update. With the choice of Yes, you will be moved to the SSU Software Upgrade menu, and the firmware update will be started. - Page 52 This product should not be mixed with other commercial wastes for disposal. At any time during the life of a product ICECRYPT Ltd. may change or modify the hardware or software on any product to introduce new features or improve the functionality of the product.
