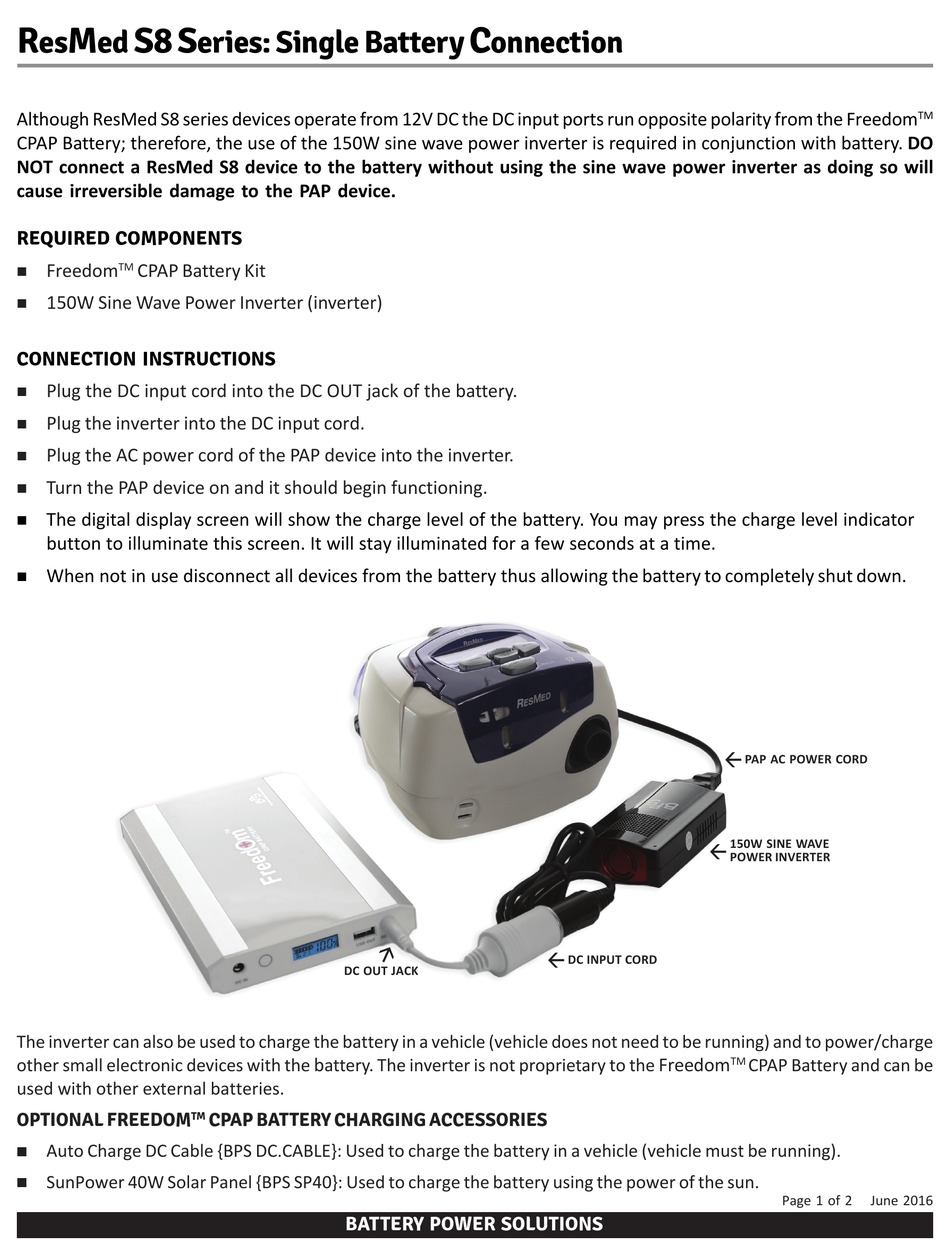

ResMed S8 Series Manual

R M S8 S
es ed
Although ResMed S8 series devices operate from 12V DC the DC input ports run opposite polarity from the Freedom
CPAP Battery; therefore, the use of the 150W sine wave power inverter is required in conjunction with battery. DO
NOT connect a ResMed S8 device to the battery without using the sine wave power inverter as doing so will
cause irreversible damage to the PAP device.

REQUIRED COMPONENTS

Freedom TM CPAP Battery Kit

150W Sine Wave Power Inverter (inverter)


CONNECTION INSTRUCTIONS

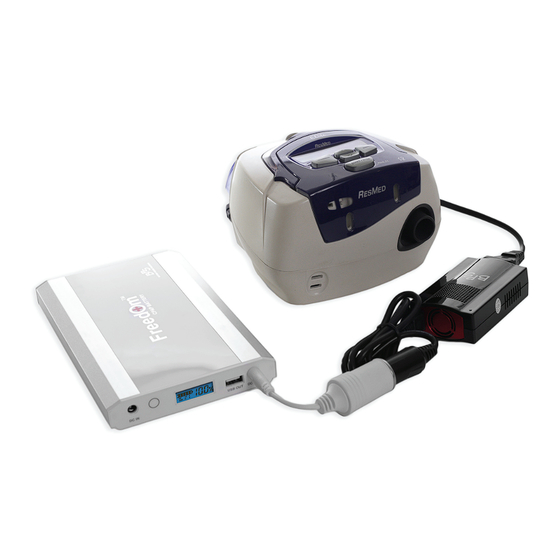

Plug the DC input cord into the DC OUT jack of the battery.

Plug the inverter into the DC input cord.

Plug the AC power cord of the PAP device into the inverter.

Turn the PAP device on and it should begin functioning.

The digital display screen will show the charge level of the battery. You may press the charge level indicator

button to illuminate this screen. It will stay illuminated for a few seconds at a time.
When not in use disconnect all devices from the battery thus allowing the battery to completely shut down.

The inverter can also be used to charge the battery in a vehicle (vehicle does not need to be running) and to power/charge
other small electronic devices with the b attery. The inverter is not proprietary to the Freedom
used with other external batteries.
TM
OPTIONAL FREEDOM
     Auto Charge DC Cable {BPS DC.CABLE}: Used to charge the battery in a vehicle (vehicle must be running).
     SunPower 40W Solar Panel {BPS SP40}: Used to charge the battery using the power of the sun.
eries: Single Battery
DC OUT JACK
CPAP BATTERY CHARGING ACCESSORIES
BATTERY POWER SOLUTIONS
C
onnection
DC INPUT CORD
PAP AC POWER CORD
150W SINE WAVE
POWER INVERTER
TM
CPAP Battery and can be
Page 1 of 2 June 2016
