Summary of Contents for Blaupunkt BTW-Pro

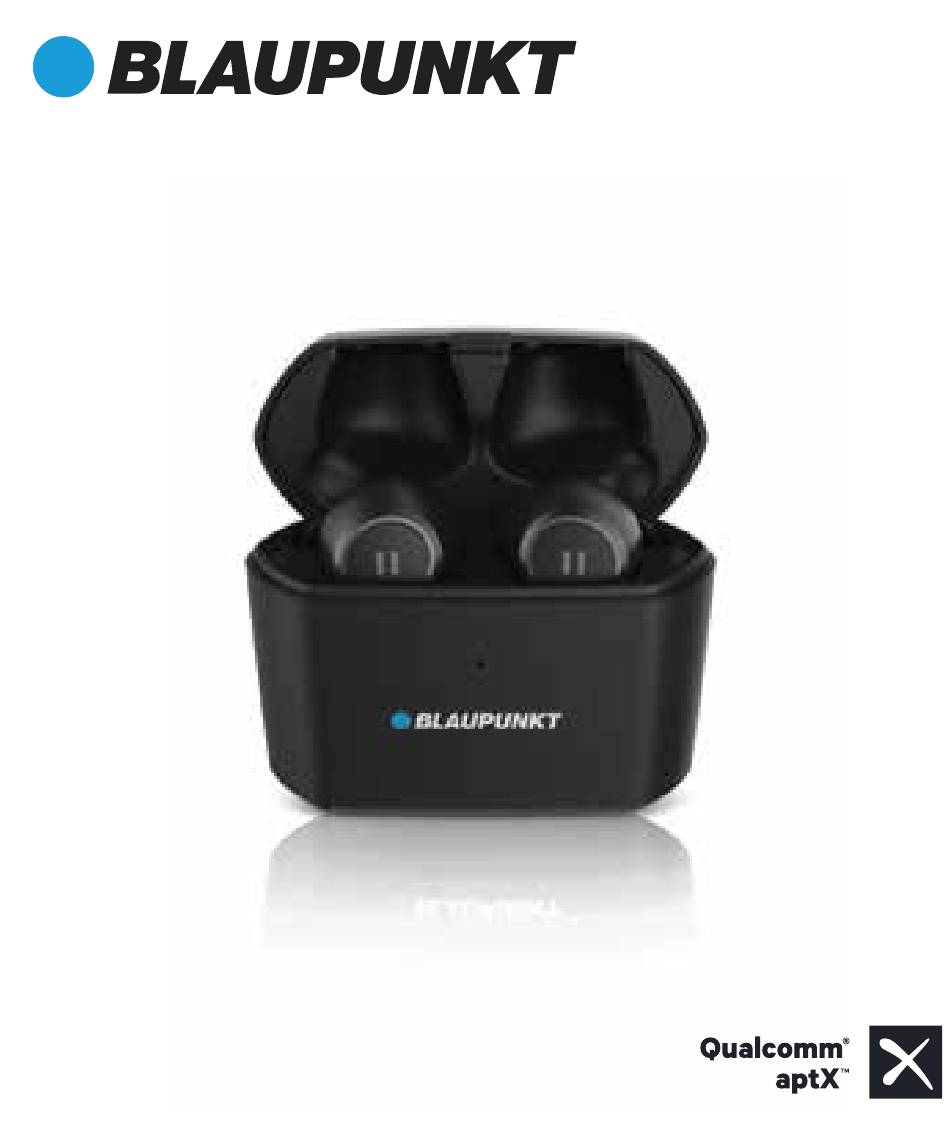

- Page 1 Instruction Manual TRUE WIRELESS BTW-Pro...
-
Page 2: Table Of Contents
BTW-Pro Contents • Brief Introduction • Before use 1. Overview 2. Charging for earbud 3. Charging for charging case • Getting started 1. Wearing earbud 2. One earbud connecting with cellphone 3. Two earbuds connecting with cellphone 4. Earbuds pairing/connecting 5. -
Page 3: Brief Introduction
Please read this user’s manual carefully before use. • Brief introduction Blaupunkt BTW-Pro is a True Wireless Bluetooth Earbud, each ear piece comes with a Microphone that can be used by charging, and you can charge the charging case with your wireless charger individually or use together for stereo sound. -
Page 4: Before Use
BTW-Pro • Before use 1. Overview 1. LED indicator 4. Charging metal 7. Charging indicator connect light 2. MFB touch-button 5. Top case 8. Charging jack 3. Microphone 6. Wireless charge induction area... -
Page 5: Charging For Earbud
BTW-Pro 2. Charging for earbud When the earbud is low on power, the earbud emits “Battery low” once every 2 minutes and the red Led flashes slowly 4 times in a row every 1 minute. Please recharge the battery of the earbud. -
Page 6: Charging For Charging Case
BTW-Pro Remarks: • Please cover the charging case cover so that the earbuds and the charging case connect well when it is charging. • When the earbuds are not put into charging case, the indicator light of charging case is off. When the earbuds are put into charging case, the... - Page 7 BTW-Pro The charging case supports USB cable charging and wireless charging. The way of charging for the charging case as following: Using USB cable 1) Plug the Micro USB charging cable into the case’s charging jack. 2) Plug the USB cable into a USB port of PC or a 5Volt USB charge.
- Page 8 BTW-Pro Micro USB charging Wireless charging Remarks: 1) The battery is recyclable. 2) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the likes. 3) Please make sure the charging jack is dry before putting on charging.
-
Page 9: Getting Started
BTW-Pro Getting started 1. Wearing earbud a. Choose the suitable size ear gels b. Ensure each earbuds is worn on the correct ear. “L” should be worn on the left ear and “R” worn on the right ear Left ear Right ear 2. - Page 10 BTW-Pro 2. Pairing a) After the earbud is taken out of the charging case, it will be power on. Then it will connect back to the phone it was paired with before. When the earbuds and the cellphone fails to connect back, the earbuds will automatically enter the matching state.
- Page 11 BTW-Pro You should see BLAUPUNKT-BTW PRO (L) for left earbud or BLAUPUNKT-BTW PRO (R) for the right earbud appear in your contactable devices list. After successful connection, the earbuds prompts "Phone is connected". You need to connect one of them to use as primary. However, if you want to use them individually, only connect the desired ear L or R, and turn off...
- Page 12 BTW-Pro 4. Power o 1） Auto power off once put into charging case 2） Press touch-button about 5s and release it till red LED is on, and earbuds prompt “Power off”. Remark: • When the earbuds are idle and not connected to the Bluetooth device, they will turn off...
-
Page 13: Two Earbuds Connecting With Cellphone
BTW-Pro 3. Two earbuds connecting with cellphone In this mode, you can use two earbuds at the same time to enjoy stereo sound. 1) Turn on any one of earbuds and connect it with your Bluetooth device, then power on the other earbud and it will connect with each other automatically. -
Page 14: Earbuds Pairing/Connecting
BTW-Pro (2) When the primary earbud is disconnected from the mobile phone at a distance, the secondary earbud will be automatically connected to the mobile phone. (3) When the primary earbud is put into the charging case, the secondary earbud will be automatically connected to the mobile phone. - Page 15 BTW-Pro cleared when emits prompt tone. The other earbud cleans the pairing list by doing the same. 3. The earbuds will enter TWS pairing mode automatically when they are turned on (indicator light status: red and white lights flash slowly). After successful connection, the primary earbud (L) will emit “Pairing”...
-
Page 16: Function Operation-Use One Earbud
BTW-Pro 5. Function operation-use one earbud 1. Music Status of Prompt Function earbuds tone Double-click Double-click touch- Play Paused Dang touch-button button Playing Double-click Double-click touch- Pause Dang music touch-button button Previous Playing Press Left touch- Dang song music button about 2s... - Page 17 BTW-Pro 2. Calling Status of Function Prompt tone earbuds Cancel Once-click Once-click Two Tone _ High Calling calling touch-button touch-button Falling after Dang tone Incoming Once-click Once-click Answering Dang call ringing touch-button touch-button Incoming Press touch- Press touch- Two Tone _ High...
- Page 18 BTW-Pro 6. Function operation - two earbuds connecting with cellphone 1. Music Status of Prompt Function earbuds tone Double-click Double-click touch- Play Pausing Dang touch-button button Playing Double-click Double-click touch- Pause Dang music touch-button button Previous Playing Press Left touch-...
- Page 19 BTW-Pro 2. Calling Status of Function Prompt tone earbuds Cancel Once-click Once-click Two Tone_High Falling Calling calling touch-button touch-button after Dang tone Incoming Once-click Once-click Answering Dang call ringing touch-button touch-button Incoming Press touch- Press touch- Two Tone _ High...
- Page 20 BTW-Pro 3. Gang control to power o When using two earbuds, if earbud of the left or right turns off, the other earbud will be turned off at the same time. The earbuds will have corresponding indicator light and prompt sound when they turn off.
-
Page 21: Battery Display
When the earbuds are low on power, the battery indicator will turn red and show a depleted battery icon. The earbud will also give an audio prompt to charge your earbuds. BLAUPUNKT-BTW PRO (L) BLAUPUNKT-BTW PRO (L) Full charge Low battery... -
Page 22: Meaning Of Indicator Light
BTW-Pro 8. Meaning of indicator light Indicator light State Earbuds Red and white LED flash Pairing mode with phone quickly alternately Red and white LED flash TWS pairing mode slowly alternately White LED flashes every 5 Disconnected seconds White LED flashes twice every... -
Page 23: Factory Reset
BTW-Pro 9. Factory Reset When the earbuds are in the pairing mode, five times click the touch button, and the factory reset when the red LED and blue LED turns on for 1 second. At the same time, you will hear prompt tone and turn off. -
Page 24: Care And Maintenance
Care and maintenance Read the following recommendations carefully before using BLAUPUNKT-BTW PRO. Following these you will be able to enjoy using this product for many years. • Keep it dry and don’t put it in any dump place to avoid the product’s internal circuit being affected. -
Page 25: Faqs
BTW-Pro FAQs 1. What does it mean when red LED flashes slowly four times a minute? Battery is low power, need to be re-charged. 2. Why is the red LED off when charging? a) The charging case may not have enough power to charge the earbuds. - Page 26 BTW-Pro Specifications Bluetooth version Bluetooth V5.0 Bluetooth profiles HFP, HSP, A2DP and AVRCP Operating distance 10 meters Working time (one Up to 10 hours ( maximum volume) earbud) Up to 13 hours (50% volume) Working time (two Up to 9 hours (maximum volume)
-
Page 27: Warranty Information
BTW-Pro • Warranty Information 1 Year* If you have issue with our BTW-Pro product please contact our service center. Authorized Service Center Blaupunkt Speakers Address: Envent World Wide Pvt. Ltd., KH NO-96/2, Village-Bamnoli, Sector-28, Dwarka, Bamnoli West, Delhi- 110077. E-Mail: wecare@blaupunkt-audio.in...
