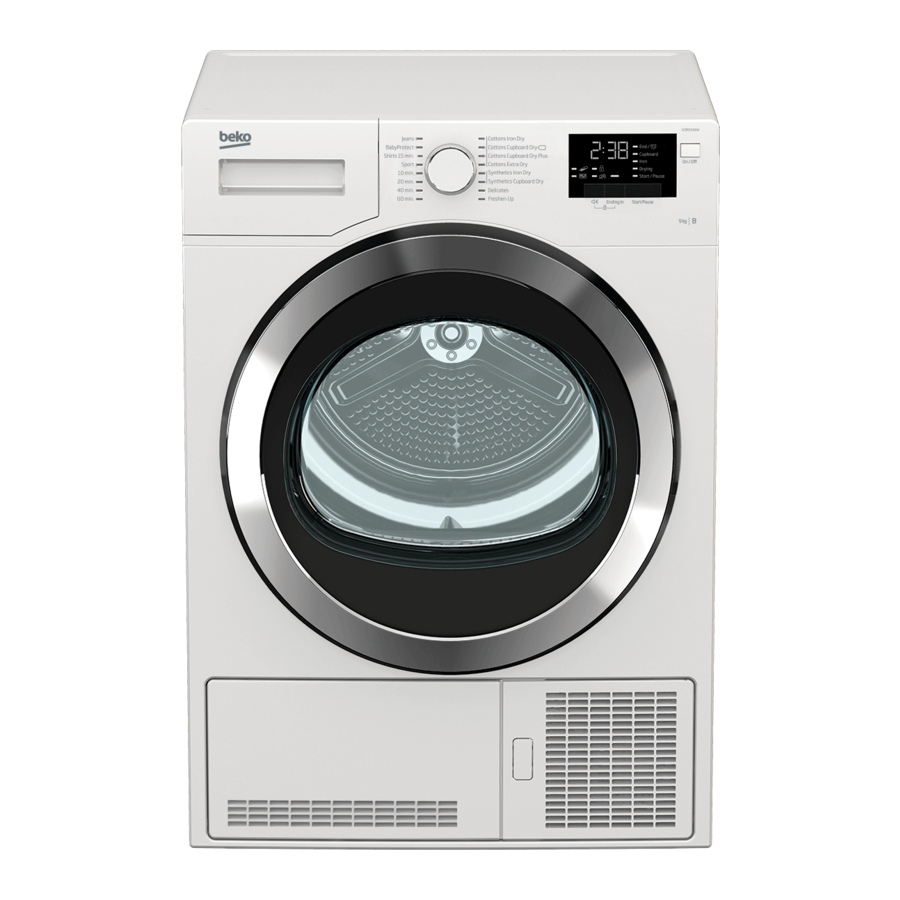

- Page 1 Dryer User Manual DCY 9316 W 2960311486_EN/310317.1726...
-
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that your product which has been manufac- tured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: Important Safety And Environmental Instructions
Important safety and environmental instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are... -
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. -
Page 5: Product Safety
Important instructions for safety and environment 1.1.2 Product safety • Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up... - Page 6 Important instructions for safety and environment Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends. • You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.
-
Page 7: Mounting Over A Washing Machine
Important instructions for safety and environment • The lint must not be allowed to accumulate around the tumble dryer. 1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device can be obtained through spare part suppliers. - Page 8 Important instructions for safety and environment 1.3 Intended use • Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • Use the dryer only for drying laundry that are marked accordingly.
-
Page 9: Compliance With The Weee Regulation And Disposing Of The Waste Product
Important instructions for safety and environment 1.5 Compliance with the WEEE regulation and disposing of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 10: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,5 cm Depth 60,9 cm Capacity (max.) 9 kg** Net weight (plastic front door usage) 37,5 kg Net weight (glass front door usage) 40 kg Voltage Rated power input... - Page 11 Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 11 / EN...
-
Page 12: Appropriate Installation Location
Installation Before the calling the nearest Authorized on the Do not place the dryer Service for the installation of the dryer, en- power cable. sure that electrical installation and water drain is appropriate referring to the user's 3.2 Removing the manual.(See 3.3 Connecting to the drain transportation safety assembly and 3.5 Electrical connection) If they are... - Page 13 Installation 3.5 Electrical connection For specific instructions for electrical connec- tion required during installation (See 1.1.1 Electrical Safety) 3.6 Transportation of the dryer Unplug the dryer before transporting it. Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.
-
Page 14: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. -
Page 15: Correct Load Capacity
Preparation • Clean the lint filter before or after each Following weights are given as examples: drying cycle. Approximate • Clean the condenser regularly at least Laundry weights (g)* once every month or after every 30 Cotton quit covers drying cycles. 1500 (double) •... -
Page 16: Control Panel
Operating the product 5.1 Control panel Programme selection knob Remaining duration indicator On/Off button 4. Start/pause button End duration button Sound warning button 5.2 Screen symbols Child-proof Filter Volume up Mute Anti Tank lock cleaning Creasing full Dryer / User Manual 16 / EN... -
Page 17: Programme Selection
Operating the product 5.3 Preparing the machine 5.5 Main Programmes Plug in the machine The main Programmes are given below based Place laundry inside the machine. on fabric type. Press the On/Off button. • Cotton 4. When your machine turns on for the first Dry durable laundry with this Programme. - Page 18 Operating the product • Delicates You can dry your delicates suitable for dry- ing or laundry that is recommended to hand wash (silk blouses, thin underwear etc.) in low temperature. It is recommended to dry your delicates in laundry bag to prevent wrinkles and damage.
- Page 19 Operating the product 5.7 Programme selection and consumption table Spin speed in washing Approximate amount Programs Capacity (kg) of remaining humidity Drying time (minutes) machine (rpm) Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 9 / 4,5 1000 % 60 149 / 84 Iron dry...
-
Page 20: Warning Symbols
Operating the product 5.8 Auxiliary functions Sound warning cancel Drying machine makes sound warnings when the Programme is completed. If you don’t want sound notifications, press the “Sound Notification” button. Loading door open When you press the sound notification but- Start/Pause led blinks when the loading door ton it lights up, and Programme does not of the drying machine is open. -
Page 21: Starting The Programme
Operating the product 5.13 Changing the Programme Canceling the end duration function If you want to cancel the end duration set- after it is started ting countdown and start the Programme After the machine starts running, you can right away: change the Programme you selected to dry Cancel the Programme by pressing your laundry with a different Programme. -
Page 22: Cancelling The Programme
Operating the product Do not contact the inner surface of the drum when adding or removing laundry during a continuing Programme. The drum surface is hot. 5.14 Cancelling the Programme If you want to cancel the Programme and end the drying operation for any reason after the machine starts running, press the On/Off button. -
Page 23: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently • A layer can build up on the filter pores experienced problems will be reduced if it is that can cause clogging of the filter after cleaned at regular intervals. using the dryer for a while. -
Page 24: Draining The Water Tank
Maintenance and cleaning 6.2 Cleaning the sensor If you forget to drain the water tank, the ma- chine will stop during the subsequent drying There are dampness sensors in the dryer cycles when the water tank is full and the that detect whether the laundry is dry or not. - Page 25 Maintenance and cleaning 6.4 Cleaning the condenser; 4. Clean the condenser by applying pressur- ized water with a shower armature and wait Hot and humid air in the condenser is cooled until the water drains. with the cold air from the room. Thus, the hu- mid air circulating in your dryer is condensed and then pumped into the tank.
-
Page 26: Troubleshooting
Troubleshooting Drying process takes too much time. Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Condenser may be clogged. >>> Clean the Condenser. • Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids. - Page 27 Troubleshooting Lint Filter Cleaning symbol is flashing. • Filter housing is clogged with lints. >>> Clean the lint filter housing. • A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water. •...
- Page 28 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Beko Supplier name or trademark DCY9316W Model name Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) Automatic Type of Control Non-automatic 5,12...
- Page 29 Dryer / User Manual 29 / EN...
