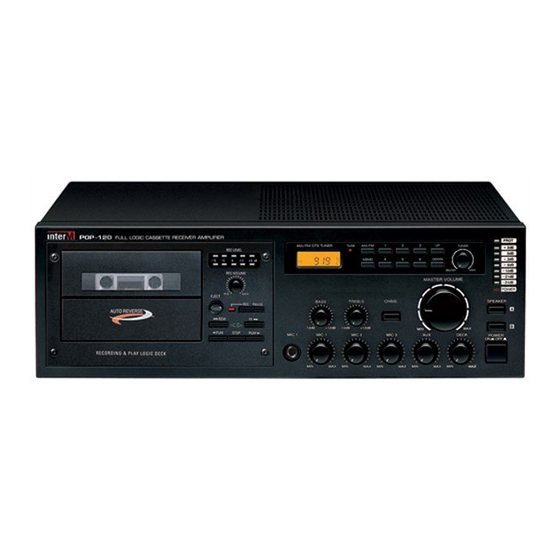

- Page 1 RECEIVER POP-30/60/120...
- Page 2 ELECTRICAL PARTS LIST ( POP - 30/60/120 ) Ref No. Part No. Description Value Remark MAIN B'D (4005412801) C1-2 C5-6 C9-10 C13 3509102530-T CAP CE B 0.001UF 50V J 0.001/50 3509223530-T CAP CE F 0.022UF 50V Z 0.022/50 C55-58 3509104530-T CAP CE F 0.1UF 50V Z 0.1/50 C3 C7 C11...
- Page 3 2008606105-T TR NPN KTA1266-Y-AT TO-92 2SA 1266GR Q16-17 2008206998-T KTA1023-Y-AT KTA1023 2028107115 KTA968A-Y-U 2SA 968Y R56 R58(POP-30) 3059478783 RES CE 0.47 5W J T 0.47 5W R56-59(POP-60) 3059478783 RES CE 0.47 5W J T 0.47 5W R56-59(POP-120) 3059278783 RES CE 0.27 5W J T 0.27 5W...
- Page 4 R63(POP-30) 3039151575-T RES MO 150 2W J RADIAL 150 2W R63(POP-60) 3039681575-T RES MO 680 2W J RASIAL 680 2W R63(POP-120) 3039821575-T RES MO 820 2W J RADIAL 820 2W 3009101973 RES CF 100 1/5W J N 3009104973 RES CF 100K 1/5W J N...
- Page 5 S/K1-2 3549472407 CAP DE2E3KH472MA4B 0.0047/400 IMP/SW 4618006510 SW VOL SELE SDJL4SBKP011(SP087 VOL/SW T12-13 1508400501 JUMP WIRE(0.5/52M/M) JUMPER 2818090600 TRANS OUTPUT POP-30 POP-30 2818090700 TRANS OUTPUT POP-60 POP-60 2818090800 TRANS OUTPUT POP-120 POP-120 2828078100 TRANS POWER POP-30 POP-30 PT1 PT3 2828078200...
- Page 6 4448996914 VOLTAGE SELECTOR 220V ONLY 시판(공용) 4448996916 VOLTAGE SELECTOR 120/240V POP-30(E군) 6505959710 JACK B.K.T 3908609990 EMI FILTER 1000PF M/T1-3 DECK B'D (4003317500) CAP CE F 0.0047UF 50V Z C110 3509472530-T 0.0047/50 CAP CE F 0.1UF 50V Z C113 C128 3509104530-T 0.1/50...
