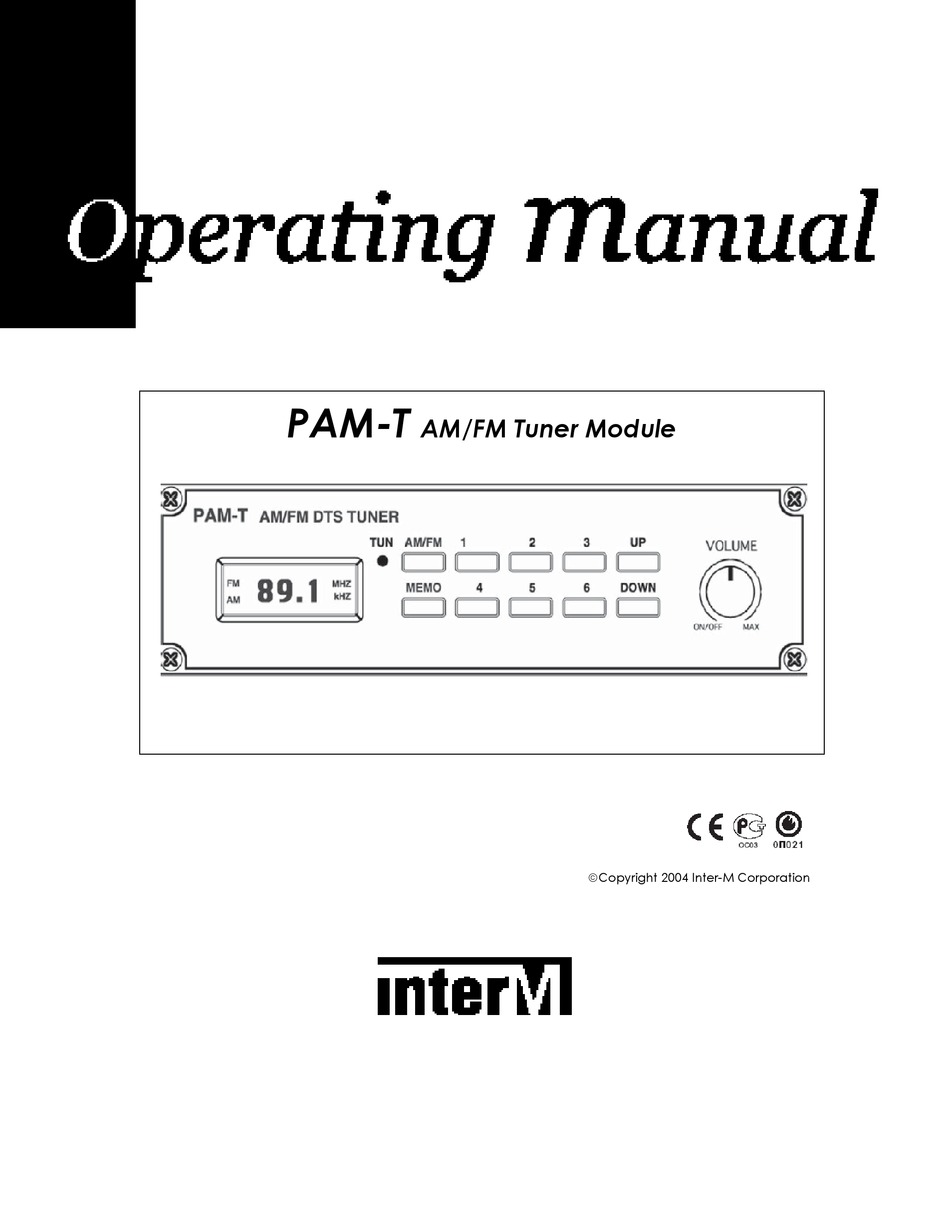

- Page 1 PAM-T AM/FM Tuner Module Copyright 2004 Inter-M Corporation...
-
Page 2: Table Of Contents
Welcome ... 3 Unpacking ... 3 Warnings ... 3 Operation... 5 Features ... 6 Front Panel Controls... 7 Specifications... 8 Contents... -
Page 3: Welcome
A personal welcome to you from the management and employees of Inter-M Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated to providing you with the highest quality products and the best value. - Page 4 PAM-T AM/FM Tuner Module 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades, with one wider than the other.
-
Page 5: Operation
PAM-T AM/FM Tuner Module Operation Make certain that speakers and input sources are properly connected before switching Keep volume levels turned down before switching on. NOTE: The system’s operation is delayed by approximately three seconds after pressing the power switch. This is due to the built-in protection circuitry, designed to protect the... -
Page 6: Features
PAM-T AM/FM Tuner Module Features AM/FM Digital Tuner with 30-Station Memory • Easy-to-use, fully digital AM/FM tuner with 30 memory locations for storing your favorite stations. Music-On-Hold Output for Telephone System • Telephone input with Music-on-Hold function for connection with telephone system. -
Page 7: Front Panel Controls
Front Panel Controls 1. Tuning Frequency Display Displays the current frequency of the tuner. 2. Band Selector This switch is used to select the AM or FM frequency band. 3. Address Select Switches These switches select between the six memory address banks used to store radio frequency presets. -
Page 8: Specifications
Specifications Tuning Range Usable Sensitivity Antenna Inputs GENERAL Power Source Weight Dimensions * Specifications and design subject to change without notice for improvements. FM: 87.5-108MHz AM: 522-1620kHz 2µV AM: 12µV FM: 300Ω Bal, 5Ω Unbal. AM: Longwire +18V (From PAM-60/PAM-120) 1.5kg (4 lbs.) 184 (W) 55 (H) 93 (D) mm 7.25 (W) 2.2 (H) 3.6 (D) in... - Page 9 Korea and China, and sales and marketing operations located in Japan, Europe, and the U.S.A. With more than 850 employees around the globe, Inter-M is well-poised for further growth and expansion.
