Jacq3G Loom User's Manual
AVL Looms
2360 Park Avenue
Chico, CA 95928-6785
U.S.A.
530 893-4915
530 893-1372 fax
sales@avlusa.com
www.avlusa.com
Version 1
November 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jacq3G and is the answer not in the manual?

Questions and answers

Related Manuals for AVL Looms Jacq3G

Summary of Contents for AVL Looms Jacq3G

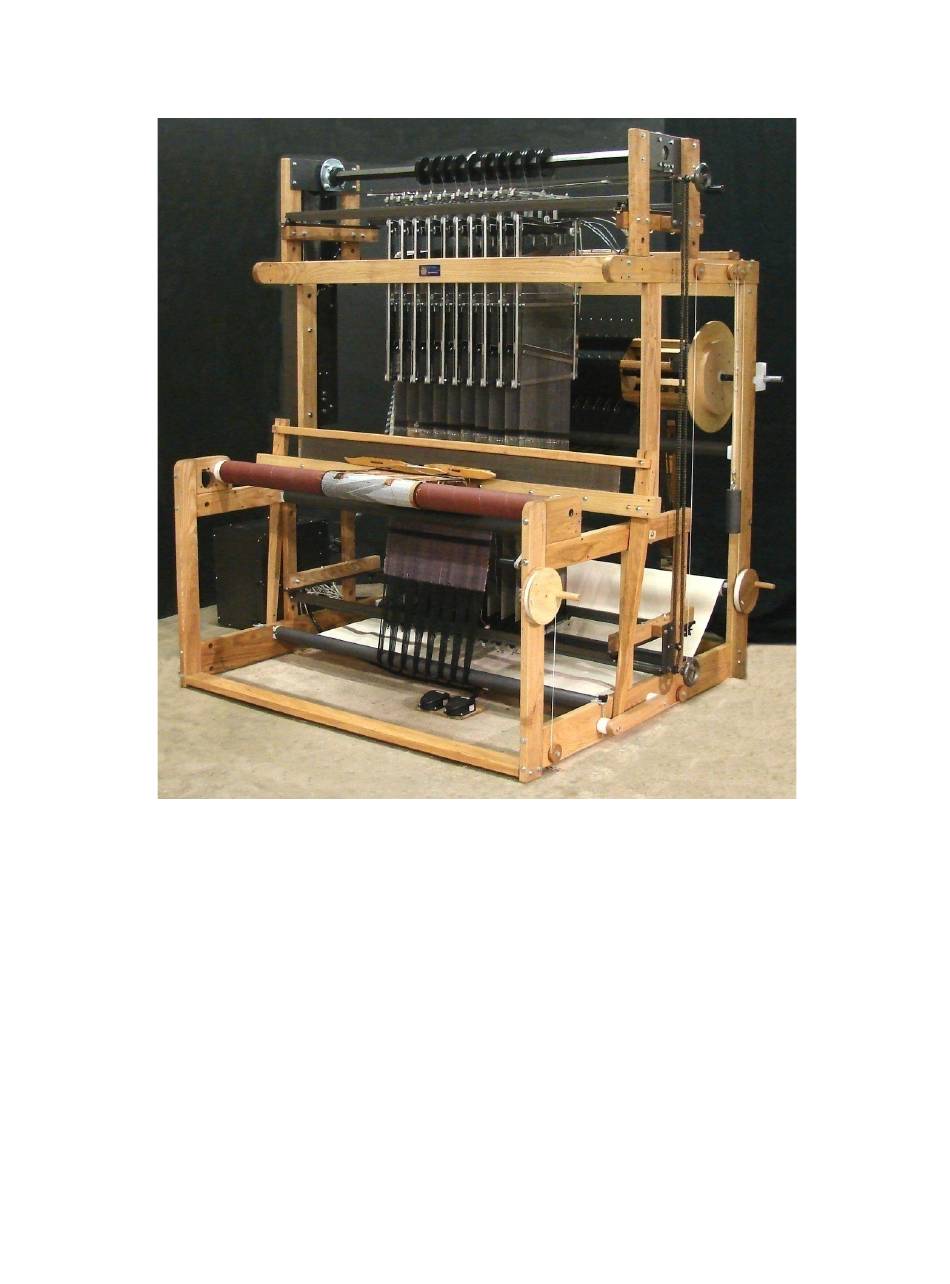

  • Page 1 Jacq3G Loom User’s Manual AVL Looms 2360 Park Avenue Chico, CA 95928-6785 U.S.A. 530 893-4915 530 893-1372 fax sales@avlusa.com www.avlusa.com Version 1 November 2019...

  • Page 3: Table Of Contents

    Introduction ..........................4 Loom Features ..........................4 About this manual ........................7 Loom Orientation ........................8 Jacq3G Loom Parts ........................8 Tools Needed For Assembly ..................... 13 Bolt And Nut Hints ........................14 Before Assembly ........................17 Assembling the Loom ........................19 Side Frames ..........................
  • Page 4 AVL Warranties ........................166 Notice to Users in the European Union .................. 168 List of Figures Figure 1 - Jacq3G - Full View ......................9 Figure 2 - Jacq3G - Full View ...................... 11 Figure 3 – Tools needed for assembly ..................13 Figure 4 - Hex Bolt ........................
  • Page 5 Jacq3G Loom User’s Manual Introductory Information Figure 5 - Carriage Bolt ........................ 14 Figure 6 - Flat Head Machine Screw .................... 14 Figure 7 - Flat Washer ........................15 Figure 8 - Hex Nut ........................15 Figure 9 - Square Nut ........................15 Figure 10 - Wing Nut ........................
  • Page 6 Introductory Information Jacq3G Loom User’s Manual Figure 52 - Beater Leg ........................67 Figure 53 – Beater Top and Reed ....................68 Figure 54 - Single-box Flyshuttle Beater ..................69 Figure 55 - Beater Reed Support ....................70 Figure 56 - String tie-up and handle ..................... 71 Figure 57 - Axle Block on loom ....................
  • Page 7 Jacq3G Loom User’s Manual Introductory Information Figure 101 - Numbered hooks on modules ................. 120 Figure 102 - Module, front......................121 Figure 103 - Module detail, front ....................122 Figure 104 - Module, back ......................123 Figure 105 - Module detail, back ....................124 Figure 106 - Module detail, back, solenoid assembly ..............

  • Page 9: Introductory Information

    Jacq3G Loom User’s Manual Introductory Information INTRODUCTORY INFORMATION Page | 1...

  • Page 10: Safety

    Introductory Information Jacq3G Loom User’s Manual AFETY Before Getting Started: Please read the entire manual before using the loom. Warnings: WARNING: EQUIPMENT SHOULD ONLY BE USED FOR TEXTILE MANUFACTURING. IF THE EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY THE MANUFACTURER, THE PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED.
  • Page 11 Jacq3G Loom User’s Manual Introductory Information WARNING: EQUIPMENT PANELS ARE AWKWARD AND HEAVY. TO AVOID MUSCLE STRAIN OR INJURY, USE PROPER LIFTING TECHNIQUES AND A HELPER. WARNING: DO NOT POSITION EQUIPMENT IN A WAY TO BLOCK OR IMPEDE ACCESS TO DISCONNECTING DEVICES, EMERGENCY STOPS, OR ON/OFF BREAKER...

  • Page 12: Introduction

    Like all jacquards, Jacq3G enables individual control over each thread, yielding the equivalent of an unlimited number of "harnesses". The design possibilities are endless. The Jacq3G uses the same frame as the A-series loom and has most of the same weaving options. Page | 4...
  • Page 13 The tension device allows you to advance the warp without a brake pedal. This is the standard setup for the Jacq3G loom. You will find that you can weave with less warp tension with a weight control than with the conventional ratchet system.
  • Page 14 Lift system The Jacq3G loom can come with an E-Lift, or an A-Lift. The E-Lift is an electrical motor, which replaces treadles on your loom and allows the shafts to be lifted easily and smoothly by pressing a pedal.

  • Page 15: About This Manual

    It is extremely important that you read this manual thoroughly and familiarize yourself with all parts of this manual prior to weaving. Each section has important information about the operation of your Jacq3G that you should be aware of, in order to prevent damage to your equipment and provide for many years of production.

  • Page 16: Loom Orientation

    Jacq3G Loom User’s Manual AVL looms are very customizable. This manual covers the most common options for the Jacq3G loom. Sections which discuss options that you do not have on your loom can be skipped. Any features on your loom that are not covered here will come with a separate manual.

  • Page 17: Figure 1 - Jacq3G - Full View

    Jacq3G Loom User’s Manual Introductory Information Figure 1 - Jacq3G - Full View Part Number Part Name Right Front Vertical Side Frame Right Rear Vertical Side Frame Left Front Vertical Side Frame Right Top Horizontal Jacq3G Loom Parts Page | 9...
  • Page 18 Introductory Information Jacq3G Loom User’s Manual Left Top Horizontal Right Lower Side Left Lower Side Upper Back Lower Back Lower Front Right Lower Cloth Beam Support Right Upper Cloth Beam Support Left Lower Cloth Beam Support Left Upper Cloth Beam Support...

  • Page 19: Figure 2 - Jacq3G - Full View

    Jacq3G Loom User’s Manual Introductory Information Figure 2 - Jacq3G - Full View Part Number Part Name Modular Assembly Dial-A-Sett Assembly, Upper and Lower Cloth Beam Cloth Beam Ratchet Handle and Drum Upper, Lower and Rear Cloth Rollers Rear Cloth Storage Roller...
  • Page 20 Introductory Information Jacq3G Loom User’s Manual Cloth Storage Drum Cloth Take-Up Drum Cloth Take-Up Pulleys Weight Beater Supports (bottom swing) Beater Assembly Second Warp Beam Beater Bumpers (two) E-Lift Foot Pedal Main Drive Axel Additional Parts The following parts are not shown in the preceding pictures. For details of these parts, see the relevant sections.

  • Page 21: Tools Needed For Assembly

    Jacq3G Loom User’s Manual Introductory Information OOLS EEDED SSEMBLY There are a few tools you’ll need to assemble the loom. These are:  Phillips head screwdriver  Flathead screwdriver  Light hammer (a fiber or rubber-headed hammer or mallet is best) ...

  • Page 22: Bolt And Nut Hints

    Introductory Information Jacq3G Loom User’s Manual Remove all strapping tape and bubble pack. Layout parts as they are removed from the box so that you will be able to identify each one as they are identified in the instructions. Depending on the space you are...

  • Page 23: Figure 7 - Flat Washer

    Jacq3G Loom User’s Manual Introductory Information Introductory Information Figure 7 - Flat Figure Figure 8 - Hex Figure 9 - Figure Figure 10 - Washer Square Nut Wing Nut Wing Nut These always These always These always go These always...

  • Page 24: Figure 14 - Nut Access Hole

    Introductory Information Jacq3G Loom User’s Manual Figure 14 – Nut access hole Always have the larger “nut access hole” facing toward the inside of the loom unless otherwise specified. As shown, assembly is made by inserting a bolt (with a washer on it to...

  • Page 25: Before Assembly

    Introductory Information EFORE SSEMBLY Prior to beginning the assembly of your new Jacq3G Loom, mark the Prior to beginning the assembly of your new Jacq3G Loom, mark the Prior to beginning the assembly of your new Jacq3G Loom, mark the...

  • Page 27: Assembling The Loom

    Jacq3G Loom User’s Manual Assembling the Loom ASSEMBLING THE LOOM Page | 19...

  • Page 28: Side Frames

    Data Cable Guide washers Side Frame Assembly AVL Jacq3G Loom Side Frames are shipped disassembled. Use the following procedures to assemble them. The Side Frames must be assembled properly for the loom to operate. The procedure for assembling a side frame is the same for the right and left side.

  • Page 29: Figure 16 - Right Side Frame Assembly, Inside View

    Jacq3G Loom User’s Manual Assembling the Loom Figure 16 - Right Side Frame Assembly, inside view Locate the Bottom Horizontal (4). Notice the four large nut access holes drilled in one side. Note: On all parts, nut access holes will go to the inside of the loom.
  • Page 30 Assembling the Loom Jacq3G Loom User’s Manual Secure the Rear Vertical (2) to the rear end of the Bottom Horizontal (4) using the same procedure with two 7- 1/2” long hex bolts. Position the Front Side Support (9) to the Bottom Horizontal (4) at the hole toward the front of the loom.

  • Page 31: Assembly Of The Module Frame

    Jacq3G Loom User’s Manual Assembling the Loom Assembling the Loom SSEMBLY OF THE ODULE RAME Preparation In the area where you laid out the loom footprint, where you laid out the loom footprint, check the location where check the location where the module feet will be when the module feet will be when the frame is lifted into place.

  • Page 32: Figure 19 - Initial Assembly Layout

    Assembling the Loom Jacq3G Loom User’s Manual Hardware Hardware Location 8 - 3/8-16 x 1-1/2” Socket Head Side Frame Bars to Upper and Lower Assemblies Cap Screws (SHCS) 8 - 5/16” x 7-1/2” Hex Bolts Right and Left Wooden Frames to...

  • Page 33: Figure 20 - Arrangement Of Module Frame Pieces For Assembly

    Jacq3G Loom User’s Manual Assembling the Loom Carefully tip the Upper Assembly onto its side, with the Axle/Pulley Assembly pointing away from the loom, and slip a wooden block underneath the corners. Figure 19 - Arrangement of Module Frame Pieces for Assembly...

  • Page 34: Figure 22 - Orientation Of Side Frame Bars At Upper And Lower Assemblies

    Assembling the Loom Jacq3G Loom User’s Manual holes in the end of each bar are offset to one side. Orient the bars so that the side with the mounting hole is closest to the axle or assembly center, and the side is flush with the side of the Assembly Frame.

  • Page 35: Install The Lower Front Assembly

    Jacq3G Loom User’s Manual Assembling the Loom Prior to lifting this frame into its vertical position, check to see that the feet are adjusted to the correct height. From the mid-line of the first horizontal to the bottom of the feet should measure 2-3/4”.

  • Page 36: Figure 24 - Wood And Module Frames With Connecting Bolts

    Assembling the Loom Jacq3G Loom User’s Manual Note: When attaching the crossmembers to the side frames, do not tighten the bolts completely. You will tighten all the bolts on the loom after squaring the loom on page 34. Figure 23 - Wood and Module Frames with Connecting Bolts Align the connecting holes in the side frames and the module frame.

  • Page 37: Add The Data Cable Guide

    Jacq3G Loom User’s Manual Assembling the Loom bolt through the matching hole in the Module Frame and secure with lock washer and hex nut. DD THE ABLE UIDE Rest the Data Cable Guide across the back of the loom, with each end supported by the Right and Left Top Horizontals (3R and 3L).

  • Page 38: Figure 25 - Position For Securing Axle Prior To Module Installation

    Assembling the Loom Jacq3G Loom User’s Manual Secure it in this position with a strap or tie-down. Make sure that it is secure and will not rotate before you hang the modules. If you have an Air Lift it will hold in this position without need of restraint.

  • Page 39: Figure 26 - Routing The Module Cables

    Jacq3G Loom User’s Manual Assembling the Loom Tighten the button head cap screws that were loosened in Step 2. Align the first Drive Pulley (located on the Top Drive Axle) directly above Pulleys #2 and #4, found at the top middle of the module.
  • Page 40 Assembling the Loom Jacq3G Loom User’s Manual Pull the cable tight, making sure the Slide Bars come together in the middle of the Module. Tighten down the hex nut on the Drive Pulley. Next, route the plastic coated cable located at the front of the Module up and over Pulley #3, at the top front of the Module, towards the rear of the loom.

  • Page 41: Finish Connecting The Frame

    Jacq3G Loom User’s Manual Assembling the Loom Figure 26 - Connection of Cables and Securing them to the Module Frame All of the pairs of Data and Power Cables have been enclosed in a Flexible Cable Housing. Orient this housing to the Data Cable...

  • Page 42: Squaring The Completed Frame

    Assembling the Loom Jacq3G Loom User’s Manual Secure in place with four 5/ 6 x 3- /2” hex bolts with washers and a square bolt. Figure 27 - Completed Module and Wood Frames Install the Upper Back (#5) using four 5/ 6” x 3- /4” hex bolts, washers, and square nuts.
  • Page 43 Jacq3G Loom User’s Manual Assembling the Loom process, as it is an important part of the maintenance of your loom. The many features of this loom will perform better and give more years of service if this process becomes a part of your regular loom maintenance.

  • Page 45: Add The Warp Beams

    Jacq3G Loom User’s Manual Add the Warp Beams ADD THE WARP BEAMS Page | 37...

  • Page 46: Warp Beams

    #38P. For a 1 yard sectional beam in the upper position, you will have a brake cable marked #38S. You can order the Jacq3G loom with a three beam system. In this case, you can use a ½-yard sectional or plain beam in any position. You cannot use a one-yard sectional beam with the three beam system.

  • Page 47: Figure 29 - Beam Retainer

    Jacq3G Loom User’s Manual Add the Warp Beams Figure 28 - Beam Retainer When the latches have captured the axle and are in a vertical position, tighten them down. Warp Beam Handle Find your warp beam handle (#42). Remove the wing nut, washer, and bolt from the end of the handle.

  • Page 48: Install The Upper Warp Beam

    Add the Warp Beams Jacq3G Loom User’s Manual Figure 29 - Warp Beam Handle Reattach the washer and wing nut and tighten. NSTALL THE PPER If you have ordered a one yard sectional beam, it can only be placed in the upper position.

  • Page 49: Installing The Separation Roller

    Jacq3G Loom User’s Manual Add the Warp Beams NSTALLING THE EPARATION OLLER If you have ordered one beam, you will receive one separation roller. If that beam is in the lower position, the separation roller will go in the lower position.

  • Page 50: Figure 31 - Lower Warp Beam Tension

    Add the Warp Beams Jacq3G Loom User’s Manual Find the tension arm and place it so that the face of the pulley lies against the inside of the left rear vertical. Figure 30 - Lower Warp Beam Tension Remove the long bolt from the pulley end of the tension arm.

  • Page 51: Figure 32 - Tension Arm Bolt

    Jacq3G Loom User’s Manual Add the Warp Beams are putting on a 1/2 yard sectional beam, insert the bolt from the inside to provide rotation clearance for the beam. Put on another washer on and slip the tension arm, with its metal bushing, onto the bolt.

  • Page 52: Figure 33 - Lower Beam Tension Cord

    Add the Warp Beams Jacq3G Loom User’s Manual The cord comes from the bolt in the tension arm, over the top of the pulley, and down around the front side of the drum on the warp beam. Wrap the cord around the warp beam drum three times with the first wrap toward the outside of the loom.

  • Page 53: Figure 34 - Upper Position Tension

    Jacq3G Loom User’s Manual Add the Warp Beams tension arm cable will be marked #38S and will be a coated cable. If you have a ½ yard sectional beam or a plain beam, you will have a cord marked #38P. Otherwise the setup is the same.

  • Page 54: Figure 35 - Tension Cable Around Brake Drum

    Add the Warp Beams Jacq3G Loom User’s Manual Remove the long bolt (with its nut and washers) from the pulley end of the tension arm. Put one of the washers back on the bolt and push the bolt through the upper hole in the left rear vertical from the outside.

  • Page 55: Figure 36 - Upper Tension Tie-Up

    Jacq3G Loom User’s Manual Add the Warp Beams Wrap the cable around the sectional beam drum three times (as shown) with the first wrap toward the outside of the loom. Tension Cord Adjustment At the end of the cable or cord assembly is an eyebolt.

  • Page 56: Figure 37 - Weight With Wooden Bracket Removed

    Add the Warp Beams Jacq3G Loom User’s Manual Tension Arm Weight Instructions The tension arm weight provides the weight for the tension arm assembly, allowing you to easily adjust the tension on the warp beams. Once the arm is installed on either position, adding the weight is the same.
  • Page 57 Jacq3G Loom User’s Manual Add the Warp Beams Re-attach the two black knobs and tighten down. The weight will stay anywhere on the tension arm that you place it as long as you tighten the knobs on the weight. The screw at the end of the arm serves as a stop to keep the weight from accidentally slipping off.

  • Page 59: Install The Cloth Storage System

    Jacq3G Loom User’s Manual Install the Cloth Storage System INSTALL THE CLOTH STORAGE SYSTEM Page | 51...

  • Page 60: Installing The Cloth Beam

    Install the Cloth Storage System Jacq3G Loom User’s Manual NSTALLING THE LOTH The cloth beam can be taken in and out of the loom simply and easily by removing the upper section of either cloth beam support. The cloth beam (or sticky beam) can have three different types of coating: sandpaper, softgrip, or smoothgrip.

  • Page 61: Cloth Storage System

    Jacq3G Loom User’s Manual Install the Cloth Storage System Slip the end of the cloth beam with the ratchet, handle, and spacer ring into the hole in the right cloth beam support. Figure 39 - Right Side Cloth Beam Support...

  • Page 62: Figure 41 - Pressure Roller Bracket

    Install the Cloth Storage System Jacq3G Loom User’s Manual The Pressure Roller Assembly consists of:  2 Support Brackets with Spacers  1 Pressure Roller  1 Hardware Pack 4 5/16" x 3-1/2" Carriage Bolts 4 Washers 4 Hex/Jamb Nuts...

  • Page 63: Figure 42 - Pressure Roller And Cloth Beam On Loom

    Jacq3G Loom User’s Manual Install the Cloth Storage System Place one washer and one hex/jamb nut on the end of each bolt, in that order and tighten securely in place. Repeat for the Bracket on the opposite side. Installation of the Pressure Roller Find the Pressure Roller.

  • Page 64: Figure 43 - Cloth Storage System Rollers

    Install the Cloth Storage System Jacq3G Loom User’s Manual Rear Cloth Storage System Rollers Upper and Lower Rollers Now the roller tubes (#26) for the rear cloth storage system can be installed in the middle of the loom. At this time you will install the two cloth rollers marked #26.

  • Page 65: Figure 44 - Cloth Take-Up Drum

    Jacq3G Loom User’s Manual Install the Cloth Storage System Figure 43 - Cloth Take-up Drum Now tighten the set screw and flip the wooden ratchet dog around to intersect with the ratchet teeth. Find the Cloth Storage Drum Assembly (#29). There is a cloth storage drum with roller tube end and shaft attached to it.
  • Page 66 Install the Cloth Storage System Jacq3G Loom User’s Manual Replace the washer and the tube end. Tighten the set screw. Route the cord from the cloth storage drum around the pulleys as shown in the photo. From the storage drum, route the cord up the rear vertical.

  • Page 67: Figure 46 - Routing The Cloth Take-Up Cord

    Jacq3G Loom User’s Manual Install the Cloth Storage System Figure 45 - Routing the Cloth Take-up Cord Cloth Storage System Page | 59...

  • Page 68: Figure 47 - Knot On Cloth Take-Up Drum

    Install the Cloth Storage System Jacq3G Loom User’s Manual Thread the cord end from the inside, through the hole at the base of the concave surface of the drum and tie a double-knot on the outside. Figure 46 - Knot on Cloth Take-up Drum There is a retention pin affixed to the rear vertical.

  • Page 69: Figure 48 - Cloth Storage Apron

    Jacq3G Loom User’s Manual Install the Cloth Storage System Then wind the apron once around itself so that it holds itself in place. Place a spacer, then the roller on the loom with one end on the cloth storage drum assembly.

  • Page 71: Install The Beater

    Jacq3G Loom User’s Manual Install the Beater INSTALL THE BEATER Page | 63...

  • Page 72: Bottom Swing Beater

    Install the Beater Jacq3G Loom User’s Manual OTTOM WING EATER If you have an overhead beater, skip to page 72. NOTE: When using carriage bolts, be sure that the square portion is seated in the wood. You may need to tap the bolts with a mallet in order to properly seat the bolts.

  • Page 73: Figure 50 - Beater Support

    Jacq3G Loom User’s Manual Install the Beater Attach the carriage bolts so that the washers and nuts are to the outside of the loom leaving the smooth head of the carriage bolt on the inside of the loom frame. Bottom Swing Beater Supports The beater supports can now be bolted to the loom.

  • Page 74: Figure 51 - Bottom Swing Beater Support

    Install the Beater Jacq3G Loom User’s Manual Position the metal bracket that’s attached to the front of the beater support over the two holes and insert the screws. Tighten them down. Figure 50 - Bottom Swing Beater Support Repeat these steps for the other side.
  • Page 75 Jacq3G Loom User’s Manual Install the Beater Find the following hardware: Four 5/16" x3-1/2" carriage bolts with washers and hex nuts Six, seven, or nine (depending upon the width of your loom) 5/16" x 3-1/4"carriage bolts with washers and wing nuts attached 1/4"...
  • Page 76 Install the Beater Jacq3G Loom User’s Manual Insert two of the 5/16" x3-1/2"carriage bolts, from the front of the race, through the race, and into the two innermost holes in the beater leg. Use the carriage bolts with the hex nuts.
  • Page 77 Jacq3G Loom User’s Manual Install the Beater Insert 1/4" x 2-1/4" carriage bolts into the holes at each end from the front. Place them through the slot at the top of the beater leg. Make sure the reed is secure and tighten the wing nuts.
  • Page 78 Install the Beater Jacq3G Loom User’s Manual Jacq3G Loom User’s Manual Add the reed to the beater Find the reed support. It is Find the reed support. It is the long, thin, wooden part with the long, thin, wooden part with several holes and a slot similar holes and a slot similar to the one in the shuttle race.
  • Page 79 Jacq3G Loom User’s Manual Install the Beater Find the following hardware: Find the following hardware: Screweye two 5/16" x 2 two 5/16" x 2-1/4" carriage bolts Place a flystring support on th Place a flystring support on the inside face of a top horizontal side e inside face of a top horizontal side frame piece.

  • Page 80: Overhead Beater (Optional Equipment)

    Install the Beater Jacq3G Loom User’s Manual Repeat for the other side making sure that the picker loop is down and toward the outside. You can now go to page 97 to assemble the bench. VERHEAD EATER OPTIONAL EQUIPMENT NOTE: When using carriage bolts, be sure that the square portion is seated in the wood.
  • Page 81 Jacq3G Loom User’s Manual Install the Beater Figure 56 - Axle Block on loom Mount the Beater Retainer The beater retainer will be attached to the inside face of the left cloth beam support. Figure 57 - Beater Retainer Insert the #12 x 1-1/2"flat head wood screw through the beater retainer and into the pre- drilled hole on the inside of the left cloth beam support.
  • Page 82 Install the Beater Jacq3G Loom User’s Manual Figure 58 - Beater Retainer Leave the screw just loose enough so that the retainer is allowed to pivot around the screw. Attach the Beater Pivot Base Note: You may need a small ladder or stepstool to install the Beater Pivot Base.
  • Page 83 Jacq3G Loom User’s Manual Install the Beater Assemble the Beater Find the two uprights and lay them on the floor spaced apart a distance that is approximately equal to the width of your loom. The ends with the metal brackets will be the top of this assembly. The metal rods should be pointed inward or toward each other.
  • Page 84 Install the Beater Jacq3G Loom User’s Manual Figure 61 - Overhead Beater Uprights Insert the carriage bolts through the holes near each end of the beater top and then through the slots that are just below the metal bracket of each upright.
  • Page 85 Jacq3G Loom User’s Manual Install the Beater Figure 62 - Mount hanging arms Put a spacer, than a hanging arm onto the shaft Replace and tighten the stop collar. Make sure to leave enough clearance for this pivot point to swing freely.
  • Page 86 Install the Beater Jacq3G Loom User’s Manual Figure 63 - Place Hanging Arms on Loom Once you have both of the beater adjustment screws in place, the assembly of the hanging arms is complete. Note: You can use the beater adjustment screws to adjust the height of the beater.
  • Page 87 Jacq3G Loom User’s Manual Install the Beater The hole at the larger end of the tilting arm will be pushed onto the The hole at the larger end of the tilting arm will be pushed onto the The hole at the larger end of the tilting arm will be pushed onto the axle.
  • Page 88 Install the Beater Jacq3G Loom User’s Manual Tighten these bolts making sure that the outer face of each push arm is flush with the outer edge of the uprights. Repeat for the other side of the loom. Tighten bolts At this point you can tighten the bolts on the beater, except for the racking adjustment bolts.
  • Page 89 Jacq3G Loom User’s Manual Install the Beater Figure 66 - Racking the Overhead Beater Attach the Beater Return spring assembly This assembly is used to assist the weaver in returning the beater to the back position. It is not intended to hold the beater in this position as that is the purpose of the beater retainer.
  • Page 90 Install the Beater Jacq3G Loom User’s Manual hold the beater away from you while opening a shed and throwing the shuttle. You may wish to experiment with these adjustments in order to come up with a setting that works best for you and any particular warp.
  • Page 91 Jacq3G Loom User’s Manual Install the Beater Replace the washer and hex nut and Replace the washer and hex nut and tighten securely. Add the reed to the beater ed to the beater Find the reed support. It is Find the reed support. It is the long, thin, wooden part with...

  • Page 92: Overhead Single -Box Flyshuttle Beater Tie -Upoptional Equipment

    Install the Beater Jacq3G Loom User’s Manual VERHEAD INGLE LYSHUTTLE EATER OPTIONAL EQUIPMENT NOTE: The single-box flyshuttle system now incorporates removable shuttle boxes. This allows the weaver to completely remove the boxes and flystring tie-up from the loom any time that handshuttle weaving becomes necessary. It also makes it much easier to convert any other AVL beater system to a single-box flyshuttle beater.

  • Page 93: Overhead Multi-Box Flyshuttle Beater (Optional Equipment)

    Jacq3G Loom User’s Manual Install the Beater Figure 69 - String tie-up and handle up and handle There are two pickers hanging below the handle. These are wooden There are two pickers hanging below the handle. These are wooden There are two pickers hanging below the handle. These are wooden pieces which have a leather loop and cord attached.
  • Page 94 Install the Beater Jacq3G Loom User’s Manual Figure 70 - Vertical Pull Upper Pulley Assembly Add the drop box assembly to the beater The Drop box assembly is marked left or right. Find the left drop box assembly. There are two holes through the back plate in the lower right corner and a nut access hole in the upper right corner.
  • Page 95 Jacq3G Loom User’s Manual Install the Beater On the left upright, there is a horizontal hole through the width of the upright just below the slot for the beater top. This hole is offset to the front of the shuttle race side of the upright.

  • Page 96: Vertical Pull Flystring Tie-Up

    Install the Beater Jacq3G Loom User’s Manual ERTICAL LYSTRING The flystring tie-up cord should come with the handle already attached in the middle. You will route the flyshuttle cord from the middle of the loom to one side, then do the other side.
  • Page 97 Jacq3G Loom User’s Manual Install the Beater Figure 74 - knot on flyshuttle cord Route the flyshuttle cord There is a hole in each picker that is larger on the outside than it is on the inside. This hole is about 3/8" in diameter on the outer side of the picker and about 1/8"...
  • Page 98 Install the Beater Jacq3G Loom User’s Manual Figure 75 - Routing Flyshuttle Cord Thread the cord through the hole in the picker, from the small side to the larger outside part. After the cord has gone through the picker, add the small spring,...

  • Page 99: Two-Box Flyshuttle - Dropbox Movement

    Jacq3G Loom User’s Manual Install the Beater knot. If there is more than an inch or so of cord left beyond the knot, you may want to snip off the excess cord. Repeat these steps for the other side of the loom.
  • Page 100 Install the Beater Jacq3G Loom User’s Manual Figure 77 - Flyshuttle adjustment screw Note: This adjustment is critical. Please make it carefully. It is wise to lay a straight edge across the shuttle race and drop box when doing this to assist you in getting the two perfectly aligned.

  • Page 101: Four-Box Flyshuttle Dropbox Movement

    Jacq3G Loom User’s Manual Install the Beater Figure 78 - Flyshuttle Turnbuckle Shift the handle to the left and adjust the right turnbuckle in the same manner. ATTENTION! When shifting, the leading end of the handle must be raised first. If the trailing end of the handle is lifted first, the handle will lock up and not shift.
  • Page 102 Install the Beater Jacq3G Loom User’s Manual Attach the cable Unwrap the cable that is attached to the top of each drop box. Run each cable over to the shift handle. Figure 79 - 4-box Shift Handle Cable to Drop Box At the end of each cable, there is a threaded eyebolt with a lock nut.
  • Page 103 Jacq3G Loom User’s Manual Install the Beater Figure 80 - 4-box Flyshuttle Beater Shift Handle Repeat this procedure on the other side of the loom. Once both cables are attached, you will need to adjust the cable lengths. Note: When you slide the shift handle back and forth, notice that there are four detents (or places where the shift handle can be stopped).
  • Page 104 Install the Beater Jacq3G Loom User’s Manual Once you have adjusted both cables, it’s a good idea to put the shift handle in each detent position and check the boxes on each side for alignment. Note: It is possible that there will be some slight variation in the spacing of the drop box shelves, so you may not get absolutely perfect alignment.

  • Page 105: Assemble The Bench

    Jacq3G Loom User’s Manual Assemble the Bench ASSEMBLE THE BENCH Page | 97...
  • Page 106 Assemble the Bench Jacq3G Loom User’s Manual SSEMBLE THE BENCH The bench comes disassembled to facilitate shipping. The contents of the box should be:  one bench top with two metal brackets attached  two legs  two feet, with toes installed at factory ...
  • Page 107 Jacq3G Loom User’s Manual Assemble the Bench bolts should be tightened securely once you’ve made sure the assembly is fairly square). NOTE: It doesn’t matter which way it faces, but most people mount it so the access holes face into the loom (in the direction of the long part of the feet).

  • Page 109: Connect The Lift System

    Jacq3G Loom User’s Manual Connect the Lift System CONNECT THE LIFT SYSTEM Page | 101...

  • Page 110: Avl Jacq3G E-Lift Ii Installation

    Single and Double Treadling Actions. Certain parts of your E-Lift II will be factory installed because they are an integral part of the axle and modular systems of your Jacq3G Jacquard Loom. These parts include the Module Support Assembly, Module Pulleys, the Main Drive Sprocket, Stop Sensors, and Axle.
  • Page 111 Vertical Support of the Module Frame. Align the three slotted holes in the Mount Bracket with the three holes in the Upper Channel Support. Insert each hex bolt, with flat AVL Jacq3G E-Lift II Installation Page | 103...
  • Page 112 Figure 83 - Chain with Connecting Parts Position the drive chain over the top of the Main Drive Sprocket and under the motor Drive Sprocket, bringing the two loose ends together for the chain assembly. Page | 104 AVL Jacq3G E-Lift II Installation...
  • Page 113 U-shape and the two tips of the link clip are touching the other tip. Figure 85 - Chain with Link End and Link Clip in place AVL Jacq3G E-Lift II Installation Page | 105...
  • Page 114 Figure 86 - Closing the Connecting Link Clip with Pliers With the closed circle of the chain in place, align the motor axle directly below the drive axle. Now, fully tighten the three bolts, securing the Motor/Mount Bracket Assembly in place. Page | 106 AVL Jacq3G E-Lift II Installation...
  • Page 115 Cloth the loom, under the Cloth Beam, where it will be accessible to the weaver. Beam, where it will be accessible to the weaver. AVL Jacq3G E-Lift II Installation Lift II Installation Page | 107...
  • Page 116 Support. If the Home Sensor is not in the correct position when the power is If the Home Sensor is not in the correct position when the power is If the Home Sensor is not in the correct position when the power is Page | 108 AVL Jacq3G E-Lift II Installation Lift II Installation...
  • Page 117 Repeat as necessary, until the Drive Shaft Stop comes to a halt just before striking the Front Stop Bracket. The Main Drive Axle is now in position to initiate shed operation. AVL Jacq3G E-Lift II Installation Page | 109...

  • Page 118: Installing An Air Lift

    Connect the Lift System Jacq3G Loom User’s Manual NSTALLING AN Air Component Information Component Description Compressor A machine which compresses, stores, and delivers air to an air system. Air Cylinder A sealed tube that contains a movable shaft. This shaft is caused to move in or out by the action of compressed air.
  • Page 119 This component connects the air compressor to the air components on your loom. The FRL for the Jacq3G is part of the Control Box. It is usually installed on the outside of one of the long sides.
  • Page 120 Connect the Lift System Jacq3G Loom User’s Manual Install the air component(s) for your loom. Connect the FRL to the correct color coded air line from the coil of tubing with the air cylinder. The air lines have been connected to their fittings by pushing them into place.
  • Page 121 Jacq3G Loom User’s Manual Connect the Lift System Foot Pedal Place the foot pedal under the loom near where your feet will be when you're sitting on the bench. Figure 90 - A-Lift Foot Pedal Connect the correct color coded air lines to the foot pedal.
  • Page 122 Connect the Lift System Jacq3G Loom User’s Manual Jacq3G Loom User’s Manual Figure 91 - FRL Detail (may vary) FRL Detail (may vary) Maintaining Your System Your System Check the FRL weekly (if you use your loom daily). e FRL weekly (if you use your loom daily).

  • Page 123: Using The Jacq3G Loom

    Jacq3G Loom User’s Manual Using the Jacq3G Loom USING THE JACQ3G LOOM Installing an Air Lift Page | 115...

  • Page 124: Introduction To The Loom Systems

    The Control Box contains the Power Supply/Disbursement and the Electrical Components for the Circuit Boards and the Solenoids/Hooks, and for the E- Lift (if ordered for your Jacq3G). Your Power Box has been custom built to your electrical specifications, so the configuration of your box may differ somewhat from the one in this section, but the appearance and approximate location will be similar.
  • Page 125 Jacq3G Loom User’s Manual Using the Jacq3G Loom Electrical Input, 8A @ 110V, E-Lift (MAX.)** 4A @ 220V **Varies based on Hooks activated Figure 92 - Control Box, Side 1 (Showing Vents, Power Switch and Power Source) Introduction To The Loom Systems...
  • Page 126 Using the Jacq3G Loom Jacq3G Loom User’s Manual Figure 93 - Control Box, Side 2 (Showing Module Data Cable Plugs – CAT5) Figure 94 - Control Box Side 3 (Showing Driver Board Power Cable Plugs) Page | 118 Introduction To The Loom Systems...
  • Page 127 Jacq3G Loom User’s Manual Using the Jacq3G Loom Figure 95 - Control Box, Side 4 (Showing E-Lift and Computer Connections) Figure 96 - Control Box, Top (Showing Cautionary Note) Note: This reads: “Do not remove cover without the express written consent of AVL Looms”...
  • Page 128 Using the Jacq3G Loom Jacq3G Loom Use Jacq3G Loom User’s Manual MODULES (HOOK AND FRAME ASSEMBLIES) MODULES (HOOK AND FRAME ASSEMBLIES) These large, steel frames support the electronic boards, hooks, heddles, and eel frames support the electronic boards, hooks, heddles, and eel frames support the electronic boards, hooks, heddles, and springs.
  • Page 129 Jacq3G Loom User’s Manual Using the Jacq3G Loom Using the Jacq3G Loom The Frame Lights There are two lights at the front of each Driver Board. There are two lights at the front of each Driver Board. The TOP The TOP light indicates that the power is on.
  • Page 130 Using the Jacq3G Loom Jacq3G Loom User’s Manual Jacq3G Loom User’s Manual Figure Figure 99 - Module detail, front Page | 122 Introduction To The Loom Systems Introduction To The Loom Systems...
  • Page 131 Jacq3G Loom User’s Manual Using the Jacq3G Loom Using the Jacq3G Loom Figure Figure 100 - Module, back Introduction To The Loom Systems roduction To The Loom Systems Page | 123...
  • Page 132 Using the Jacq3G Loom Jacq3G Loom User’s Manual Jacq3G Loom User’s Manual Figure Figure 101 - Module detail, back Page | 124 Introduction To The Loom Systems Introduction To The Loom Systems...
  • Page 133 Jacq3G Loom User’s Manual Using the Jacq3G Loom Using the Jacq3G Loom Figure 102 - Module detail, back, solenoid assembly Module detail, back, solenoid assembly Module detail, back, solenoid assembly Introduction To The Loom Systems Introduction To The Loom Systems...
  • Page 134 Using the Jacq3G Loom Jacq3G Loom User’s Manual Module Frame Figure 103 – Module, Front, Driver Board Page | 126 Introduction To The Loom Systems...

  • Page 135: Warp Density Adjustment Assembly

    Jacq3G Loom User’s Manual Using the Jacq3G Loom Figure 104 – Modules, front view showing board lights ENSITY DJUSTMENT SSEMBLY The Warp Density Adjustment Assembly, otherwise known as the “Dial-A- Sett”, is comprised of the two wheels and running chain located down the middle of the right-hand castle.
  • Page 136 Using the Jacq3G Loom Jacq3G Loom User’s Manual Decrease the Warp Density To decrease the density, or sett, of your warp, move the Frames away from each other, away from the loom center, and turn them more parallel to the reed.
  • Page 137 Jacq3G Loom User’s Manual Using the Jacq3G Loom Figure 105 – Upper and Lower Dial-A-Sett Assemblies Warp Density Adjustment Assembly Page | 129...
  • Page 138 Using the Jacq3G Loom Jacq3G Loom User’s Manual Figure 106 – Dial-A-Sett, lower right assembly Page | 130 Warp Density Adjustment Assembly...
  • Page 139 Jacq3G Loom User’s Manual Using the Jacq3G Loom Using the Jacq3G Loom Figure 107 – Dial-A-Sett, lower detail Sett, lower detail Figure 108 108 - Dial-A-Sett, lower assembly Warp Density Adjustment Assembly Warp Density Adjustment Assembly Page | 131...
  • Page 140 Using the Jacq3G Loom Jacq3G Loom User’s Manual Jacq3G Loom User’s Manual Figure 109 - - Dial-A-Sett, Upper right assembly Sett, Upper right assembly Page | 132 Warp Density Adjustment Assembly Warp Density Adjustment Assembly...
  • Page 141 Jacq3G Loom User’s Manual Using the Jacq3G Loom Using the Jacq3G Loom Figure 110 110 - Dial-A-Sett, upper detail Figure 111 - Dial Dial-A-Sett, upper assembly, rear view Sett, upper assembly, rear view Warp Density Adjustment Assembly Warp Density Adjustment Assembly...
  • Page 142 Using the Jacq3G Loom Jacq3G Loom User’s Manual Jacq3G Loom User’s Manual Figure 112 - Dial Dial-A-Sett, upper assembly, front view Sett, upper assembly, front view Figure 113 113 - Dial-A-Sett, upper assembly Page | 134 Warp Density Adjustment Assembly...

  • Page 143: Shed Operation

    Jacq3G Loom User’s Manual Using the Jacq3G Loom PERATION The AVL Jacq3 is a Counter-Marche mechanism. For each shed, all hooks are engaged, that is they are pulled up or down, to create the shed. If selected to rise, the Solenoid will push the Hook into position to be picked up by the upper slide bar.

  • Page 144: E-Lift Operation

    Using the Jacq3G Loom Jacq3G Loom User’s Manual At Rest The Slide Bars are separated, but the solenoids are de- activated. There has been no selection and all hooks are resting on the Lower Slide Bar. The hooks have dropped, and the warp is resting at the Shuttle Race.

  • Page 145: A-Lift Operation

    Jacq3G Loom User’s Manual Using the Jacq3G Loom continued the pressure on the pedal for an additional five seconds after the shed has opened. To Turn Off Do not turn off the power while hooks are raised. While this will not...

  • Page 146: Steps For Initial Set-Up

    Using the Jacq3G Loom Jacq3G Loom User’s Manual TEPS NITIAL Connect cables Hook up all cords and cables as described in the following table. Connection Description Type Driver Board These cords connect each frame to the power source Power Cables and may be plugged into the Control Box in any sequence.
  • Page 147 Jacq3G Loom User’s Manual Using the Jacq3G Loom Computer There are three different methods for establishing Connections connection between the Control Box and your computer:  Ethernet  USB  Serial Note: When using the Ethernet connection, you must use a “crossover”...

  • Page 148: Procedure For Warping

    Using the Jacq3G Loom Jacq3G Loom User’s Manual ROCEDURE ARPING Jacquard Heddles are not rigid. This equipment will not tolerate significant distortion in the line of the warp yarns through the loom. For best results it is recommended that warp ends, when under tension, go from the warp beam, through the heddles, and through the reed with as little lateral distortion as possible.
  • Page 149 Jacq3G Loom User’s Manual Using the Jacq3G Loom Open the JacqPoint program. Select the desired pattern. In the Weave Menu, select the correct Jacq Com Port. In the same window, disable the screen saver and select 20 Hook/Board System. Also in the Weave Menu, select Loom Control. Select the Start and End Picks.
  • Page 151 Jacq3G Loom User’s Manual Lubrication LUBRICATION Using the Jacqpoint Software Page | 143...

  • Page 152: Lubrication Schedule

    UBRICANT YPES You will need two types of lubricant for your Jacq3G loom:  Clear & Dry Spray Lubricant (we recommend RZ-50 brand)  Clear Grease (we recommend Tri-Flow brand) Tri-Flow is found at bicycle shops. RZ-50 is found in hardware stores.

  • Page 153: Places To Use Dry Lubricant

    Jacq3G Loom User’s Manual Lubrication Figure 115 - Clear Grease (Tri-Flow) LACES TO USE UBRICANT The red arrows and circles in the following pictures indicate lubrication points. Ball transfers There are at minimum 24 of these on your loom. You want to spray down at where the roller ball touches the channel.
  • Page 154 Lubrication Jacq3G Loom User’s Manual Drive Chain The chain and sprockets should be lubricated. Page | 146 Places to use Dry Lubricant:...
  • Page 155 Jacq3G Loom User’s Manual Lubrication Dial-A-Sett (DAS chain) The chain and sprockets should be lubricated. Places to use Dry Lubricant: Page | 147...
  • Page 156 Lubrication Jacq3G Loom User’s Manual DAS thrust bearings There are four of these (lower outer, lower inner, upper inner, upper outer) DAS threaded rod and adjuster blocks Make sure to lubricate both the upper and lower threaded rod and adjuster blocks.
  • Page 157 Jacq3G Loom User’s Manual Lubrication Drive shaft and pulley rollers Lubricate all four sides and rollers. Module pulley bearings There are eight pulley bearings per module. Places to use Dry Lubricant: Page | 149...

  • Page 158: Places To Use Grease

    Lubrication Jacq3G Loom User’s Manual Hooks and knives Spray these with lubricant for rust protection. Caution: DO NOT SPRAY LUBRICANT ONTO CIRCUIT BOARD! LACES TO USE REASE Slide bearings and channels Apply lightly in grooves and directly on ball bearings. Q-Tips work great for this work.
  • Page 159 Jacq3G Loom User’s Manual Troubleshooting TROUBLESHOOTING Places to use Grease: Page | 151...

  • Page 160: Equipment Tests

    CAUTION: The Jacq3G hook module has both pinch and electrical shock hazards. The pinch hazards include: bearing surfaces, between knives and module frame, and between cables and stationary frame. The electrical shock hazards are anywhere on the printed circuit board, at the solenoid connectors and at the power entry connection.
  • Page 161 Jacq3G Loom User’s Manual Troubleshooting Test #1: Observe the solenoid plunger without power to the loom. Tap on the plunger. Does it spring out quickly and easily? Does it stick in or move sluggishly? If it does not spring out easily, then you have a misalignment issue.

  • Page 162: Equipment Fixes

    Troubleshooting Jacq3G Loom User’s Manual Test #7: Observe the misbehaving hook in action. Is it frequently crossing over/under with a neighboring hook? Does it have abnormal movement side to side or front to back as it slides up and down through the guides? If so, it or possibly the adjacent hook is bad.
  • Page 163 Jacq3G Loom User’s Manual Troubleshooting Upper guide alignment: If the hooks show any forward or rearward lean, adjust hex nuts for the upper guide until the hooks are vertical. Loosen the outer hex nuts, then cycle hooks up & down with null picks.
  • Page 164 Troubleshooting Jacq3G Loom User’s Manual front and rear inner bearing carriers are in contact with the hardware at the bottom of it bearing travel. If the outer bearing carrier touches the hardware first, apply additional force to overcome the inner to outer carrier force until the inner bearing carrier is in the correct position.
  • Page 165 Jacq3G Loom User’s Manual Troubleshooting  5/32” Allen Wrench Situate the slide bars so the warp is positioned in the center of the reed. This is not a normal or desirable position during the weaving process, as it can lead to damage of the solenoids, so care must be taken at this step.
  • Page 166 Troubleshooting Jacq3G Loom User’s Manual Remove the Hook Be sure the loom is turned off. Unhook the small, black clip between the hook and the heddle. Gently lift the hook vertically, until the bottom of the hook has cleared both Lower and Middle Guides, but is still engaged in the Upper Guide.
  • Page 167 Jacq3G Loom User’s Manual Troubleshooting Reinstall the Module Hook With the plunger and new spring pinched in place on the hook, approach the Upper Guide from underneath and reinsert the Upper Hook into its correct space in the Upper Guide. Be sure the Upper Hook is facing the same direction as the other Upper Hooks.
  • Page 168 Troubleshooting Jacq3G Loom User’s Manual When the Lower Hook encounters the Upper Solenoid Bracket, gently spread the hook by pulling the free end slightly toward yourself and continue the upward path. When the hook has cleared the Middle Guide you can begin to pull the hook down, pulling it out and toward you at a slight angle to clear the Middle Guide.
  • Page 169 Jacq3G Loom User’s Manual Troubleshooting Lower the hook through its space in the Middle Guide. You can now release your hold on the plunger and continue the downward movement until the hook can be dropped into the space on the Lower Guide and the hook will rest on the Lower Slide Bar.
  • Page 170 Troubleshooting Jacq3G Loom User’s Manual While maintaining a gentle but firm hold on the Plunger/Spring/Hook, you may need to turn the Upper Hook slightly in order for it to clear the Upper Guide. Now pull down and bring the Hook free of the Upper Guide.
  • Page 171 Jacq3G Loom User’s Manual Troubleshooting Using the two small screws removed, install the new solenoid to the Mount Bracket. Tighten until secure, but do not over tighten; it is easy to strip the threads. Align the black connector over the pins, making sure the connector has not been flipped and there is no twist in the white wires.

  • Page 173: The Fine Print

    Jacq3G Loom User’s Manual The Fine Print THE FINE PRINT Equipment Fixes Page | 165...

  • Page 174: Avl Customer Service

    E-Mail: sales@avlusa.com AVL W ARRANTIES Limited Warranty: The benefits of this warranty accrue solely to the original purchaser of AVL Looms, Inc. products, as defined below. Your warranty covers: New Looms: AVL Looms, Inc., a California corporation (“AVL”) warrants to the original purchaser of any AVL loom (each, a "Product") that the Product will be free from defects in materials and workmanship...
  • Page 175 Jacq3G Loom User’s Manual The Fine Print Your warranty does not cover: 1.Labor charges for installation or set-up of the Product, as well as any labor charges required to install, disassemble, troubleshoot, or reassemble the Product. 2.Any taxes imposed on AVL for Product replacement or repair under this warranty.

  • Page 176: Notice To Users In The European Union

    Compliance is indicated by the CE marking. The manufacturer of this product is: AVL Looms, Inc., 2360 Park Avenue, Chico, CA 95928 USA. A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative. This product satisfies the Class B limits of EN 55022 and safety requirements of EN 60950.

Table of Contents
