- Page 1 Advanced Card Systems Limited ACM1252U-Z2 User Manual ACM1252U-Z2 User Manual V1.00 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...
- Page 2 Advanced Card Systems Limited Version History Date Changes Version 2016-09-19 Keith Mo ● Initial Version 1.00 ● Page 2 of 13 ACM1252U-Z2 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 3: Table Of Contents
Advanced Card Systems Limited Table of Contents 1.0. INTRODUCTION ............................ 4 2.0. FEATURES ............................. 5 3.0. ARCHITECTURE ............................. 6 4.0. ACM1252U-Z2 OPERATING PROCEDURE ....................7 4.1......................... 7 RIVER INSTALLATION ROCEDURE 4.2..........................10 PERATION XAMPLE Page 3 of 13 ACM1252U-Z2 User Manual info@acs.com.hk... -
Page 4: Introduction

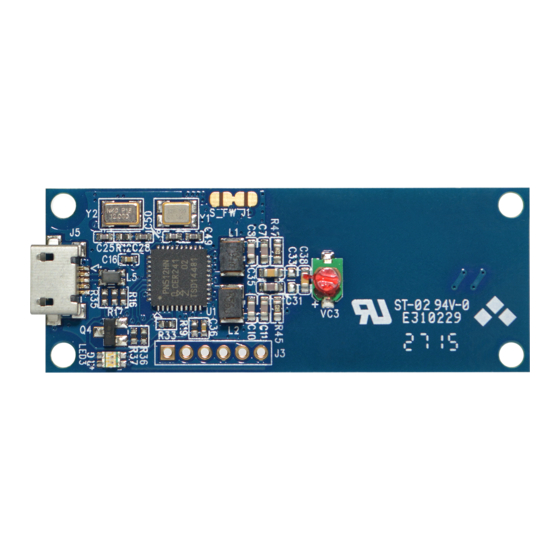

Advanced Card Systems Limited 1.0. Introduction The ACM1252U-Z2 is a reader (IFD and PCD) module that support contactless (PICC) smart cards. The ACM1252U-Z2 is an NFC reader module developed based on the 13.56 MHz contactless technology. This NFC Reader Module supports all three NFC modes namely card reader/writer, card emulation, and peer-to-peer communication. -
Page 5: Features
ISO 18092 Compliant for Contactless Smart Card Interface. An external antenna for PICC contactless access applications. The ACM1252U-Z2 supports the following Tag Types: MIFARE Classic. E.g. MIFARE 1K, 4K, MINI and Ultralight. ISO14443-4 Type A and B. -
Page 6: Architecture
PN512 act as a contactless chip to perform the communication between contactless tags and LPC11U37 For communication architecture, the protocol between ACM1252U-Z2 and PC is using CCID protocol. All the communication between PICC is PCSC Compliant Page 6 of 13 ACM1252U-Z2 User Manual info@acs.com.hk... -
Page 7: Acm1252U-Z2 Operating Procedure
Advanced Card Systems Limited 4.0. ACM1252U-Z2 Operating Procedure 4.1. Driver installation Procedure Hardware requires: ACM1252U-Z2 PC with OS window XP or above Software requires: Driver installer “ACS_Unified_PCSC_Driver_Installer_bin-4.0.6.0-20141114_all.zip” Steps: 1. Extract the file “ACS_Unified_PCSC_Driver_Installer_bin-4.0.6.0-20141114_all.zip” 2. Execute “Setup.exe” 3. Below screen will be shown Select the language, then Click “OK”... - Page 8 Advanced Card Systems Limited 4. Below screen will be shown, “Next” to continue 5. Below screen will be shown, configure the installation path, then “Next” to continue Page 8 of 13 ACM1252U-Z2 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 9 Advanced Card Systems Limited 6. Below screen will be shown, “Install” to continue 7. Waiting until below screen shown Click “Finish” 8. Driver Installation Complete Page 9 of 13 ACM1252U-Z2 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 10: Operation Example
1. Plug in the reader into the PC 2. Place the Test Card on the top of the reader about 5cm 3. Open “APDU.exe” 4. Click “1. Select reader”, Chose “ACS ACR1252 CL Reader PICC 0”, then click “OK” Page 10 of 13 ACM1252U-Z2 User Manual info@acs.com.hk... - Page 11 5. Select “T1”, “Stress”, Message = “FF CA 00 00 00”, Interval = “500” 6. Press “Connect” 7. Press “Transmit” to start the testing 8. Below screen will be shown Page 11 of 13 ACM1252U-Z2 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 12 Advanced Card Systems Limited 9. Can start the Lab Test Page 12 of 13 ACM1252U-Z2 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 13 Windows® 2000, Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2 Linux®, Mac OS®, Android™ 3.1 and above Page 13 of 13 ACM1252U-Z2 User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
- Page 14 Advanced Card Systems Limited FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
