Mircom TX3-T-KIOSK3 Assembly Manual

61 11/32"
(1558 mm)
23 1/4" (591 mm)

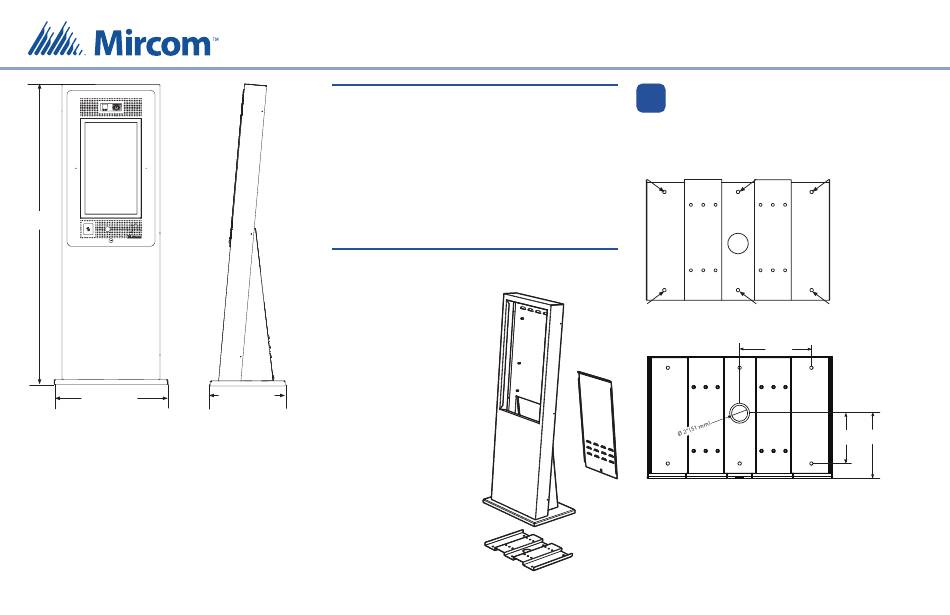

Figure 1: Stand Dimensions
Mircom
25 Interchange Way
Vaughan (Toronto), Ontario
L4K 5W3
Canada
Technical Support: 888-647-2665
General Inquiries: 1-888-660-4655
US Address:
4575 Witmer Industrial Estates
Niagara Falls
NY 14305
For more details, see LT-996 and LT-969 on the Mircom website and the USB fl ash.
Mircom technical support: 1-888-647-2665
Attention: The stand is heavy. Never attempt to lift this product by
yourself. At least two people should lift it together.
To ensure that there is enough room for installing the
stand, leave at least 4" (102 mm) clearance between the
back of the fl oor bracket and the wall.
To ensure that there is enough room for opening the
door after the stand is installed, leave at least 25" (635
mm) clearance between the back of the fl oor bracket
and the wall.
Avoid placing the Touch Screen in direct sunlight.
Install the power supply outside the enclosure.
The stand mounts to the fl oor inside the building near the entrance, close
to the building power source and telephone infrastructure. Access for
the power and communication cables is provided through a cutout in the
fl oor bracket.
The kit includes:
1 x pedestal
1 x fl oor bracket
1 x door
6 x #8-32 x 1/4 screws for attaching the
Touch Screen
12 x #1/4-20 x 5/8 screws for attaching
the stand to the fl oor bracket
15 1/4" (387 mm)
2 x keys
Weight: 74 lb (34 kg)
You need:
6 bolts to attach the fl oor bracket to
the fl oor. The bolts must fi t holes that
are 13/32" (10 mm) in diameter.
Figure 2: Components of the Kiosk stand
ASSEMBLING TX3-T-KIOSK3
1
ATTACH THE FLOOR BRACKET TO THE FLOOR
1. Ensure that the fl oor bracket is aligned with the electrical conduit.
2. Using the fl oor bracket as a template, trace an opening on the fl oor for
the cutout and mark the 6 fl oor bracket mounting hole locations as
shown in Figure 3.
Front
Back
Figure 3: Floor bracket mounting holes
Front
9"
(228 mm)
Back
Figure 4: TX3-T-KIOSK3 dimensions (from below)
3. Cut an opening in the fl oor for the electrical and communication
cables.
4. Run the wires through the fl oor bracket opening.
5. Secure the fl oor bracket to the fl oor using 6 bolts through the fl oor
bracket mounting holes shown in Figure 3. The holes are 13/32" (10
mm) in diameter.
Subject to change without prior notice
8 11/64"
6 19/64"
(207 mm)
(160 mm)
© Mircom 2016
Printed in Canada
LT-6123 rev 1
