Summary of Contents for Mircom FX-LOCR

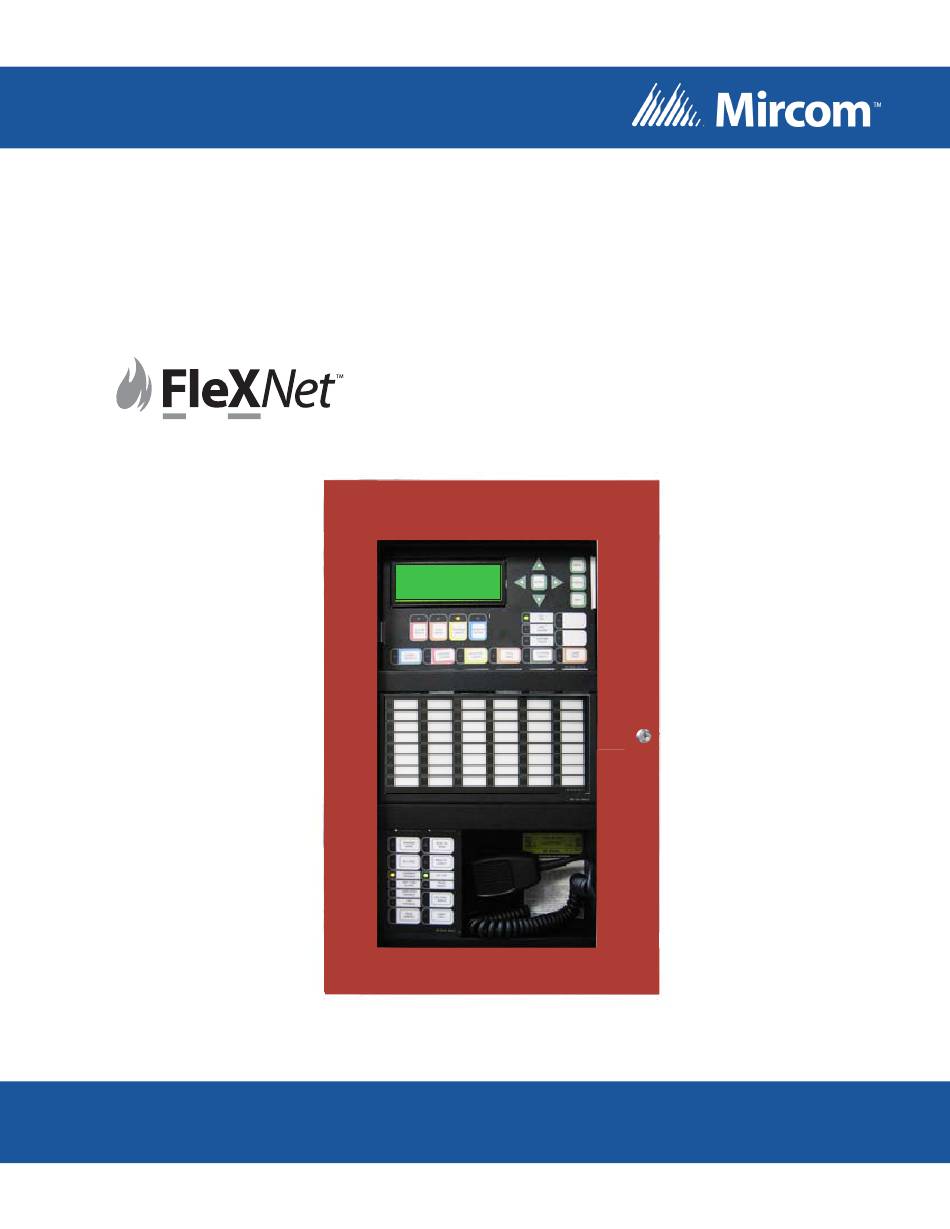

- Page 1 FX-LOC(R) Local Operating Console Network Fire Alarm Control Panel Normal Condition June 17, 2015 LT-6039 Rev 1 Install ation and O peration Manual June 2015...
-
Page 3: Table Of Contents
FX-LOC Local Operating Console Table of Contents Mass Notification System......................1 Applicable Standards: UL 2572, UL 864, NFPA 72, ULC ............ 1 FX-LOC(R) Local Operating Console ..................2 Module Placement within the FX-LOC(R) ................3 Wiring the Microphone and Selector Panel ................4 QMP-5101N Network Paging Wiring for Mass Notification .......... -
Page 5: Mass Notification System
FX-LOC Local Operating Console Mass Notification System The FX-LOC(R) Local Operating Console along with the Mircom FleX-Net Network Fire Alarm system facilitates a Mass Notification System. The FX-LOC(R) provides critical emergency (as well as fire) information to be communicated within buildings. -
Page 6: Fx-Loc(R) Local Operating Console
QMP-5101N within a small compact enclosure. The complete enclosure dimensions are approximately 15” wide by 25” long by 5.5” deep. Refer to figure below for accurate dimensions. The FX-LOC model provides a white door and the FX-LOCR model comes with a red door. Summary of Parts: 1. -
Page 7: Module Placement Within The Fx-Loc(R)
FX-LOC Local Operating Console Module Placement within the FX-LOC(R) Once the backbox has been mounted, the RAXN-LCD, the audio annunciation panel and the paging microphone are fastened to the inner door chassis as shown below. Once the modules have been mounted to the inner door, wire the modules as instructed in the following sections. -
Page 8: Wiring The Microphone And Selector Panel
Mircom Wiring the Microphone and Selector Panel Figure 4: QMP-5101N Network Master Paging Control Module Connections and Terminal Blocks TO P1 OF RAX-1048TZDS This drawing is a representation of the terminals. Follow wiring as labelled. Location of terminals may vary. -
Page 9: Qmp-5101N Network Paging Wiring For Mass Notification
FX-LOC Local Operating Console QMP-5101N Network Paging Wiring for Mass Notification Figure 5: QMP-5101N Network Master Paging Control Module Wiring to the ANC-5000 Audio Network Controller Module MNS - ACU FX- LOC(R) TWISTED QMP-5101N Network QMP-5101N Network SHIELDED Master Paging Module Master Paging Module PAIR CABLE... -
Page 10: Rax-1048Tzds Audio Indication For Mass Notification
Mircom RAX-1048TZDS Audio Indication for Mass Notification Connect the RAX-1048TZDS by connecting P1 cable into P2 on the QMP-5101N Master Microphone. RAX-1048TZDS Zone Display Module Figure 6: Zone Display Module (RAX-1048TZDS) Table 1: RAX-1048TZDS Zone Display Module Cable Function Connector Function P1 Cable connects to P2 of previous display module QMP-5101N. -
Page 11: Configuration For Mass Notification
FX-LOC Local Operating Console Configuration for Mass Notification There are two groups that can be created for the nodes; one group is the fire/central control and the second is mass notification. In order to have this distinction, all zones have to be assigned a “Zone Priority”. Priority can be high, low, normal or a percentage of + or - increments of 5. - Page 12 Mircom This screen capture shows selection of Node 2 as Mass Notification Select Node 2 as the MNS Mass Notification System. This screen capture shows input zone priority settings for the Mass Notification Node 2...
-
Page 13: Fx-Loc(R) Active
FX-LOC Local Operating Console FX-LOC(R) Active As part of the Mass Notification requirements, an RAX-1048TZDS Annunciator is part of the MNS and FX-LOC(R). Configure one LED (to indicate active paging) per each microphone in the system. Each LED is configured to illuminate when the respective microphone push to talk (PTT) button is active;... -
Page 14: Electrical Specifications
Mircom Electrical Specifications RAXN-LCD Remote LCD Annunciator • 24V DC nominal. • Provides exact functions as the MNS main display. • Standby: 139 mA Max., All LEDs ON: 164 mA Max. RAX-1048TZDS • 24V DC nominal. • Provides audio activity indication at each FX-LOC. -
Page 15: Warranty & Warning Information
FX-LOC Local Operating Console Warranty & Warning Information Warning Please Read Carefully Note to End Users: This equipment is subject to terms and conditions of sale as follows: Note to Installers This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system. - Page 16 Mircom shall not be liable for any delays, breakdowns, interruptions, loss, destruction, alteration or other problems in the use of a product arising our of, or caused by, the software.
- Page 17 NOTE: Unless specific pre-authorization in writing is obtained from Mircom management, no credits will be issued for custom fabricated products or parts or for complete fire alarm system. Mircom will at its sole option, repair or replace parts under warranty. Advance replacements for such items must be purchased.
- Page 18 Out of Warranty Repairs Mircom will at its option repair or replace out-of-warranty products which are returned to its factory according to the following conditions. Anyone returning goods to Mircom must first obtain an authorization number. Mircom will not accept any shipment whatsoever for which prior authorization has not been obtained.
- Page 20 CANADA - Main O ce U.S.A TECHNICAL SUPPORT © Mircom 2015 25 Interchange Way 4575 Witmer Industrial Estates North America Printed in Canada Vaughan, ON L4K 5W3 Niagara Falls, NY 14305 Tel: (888) Mircom5 Subject to change without prior notice...
