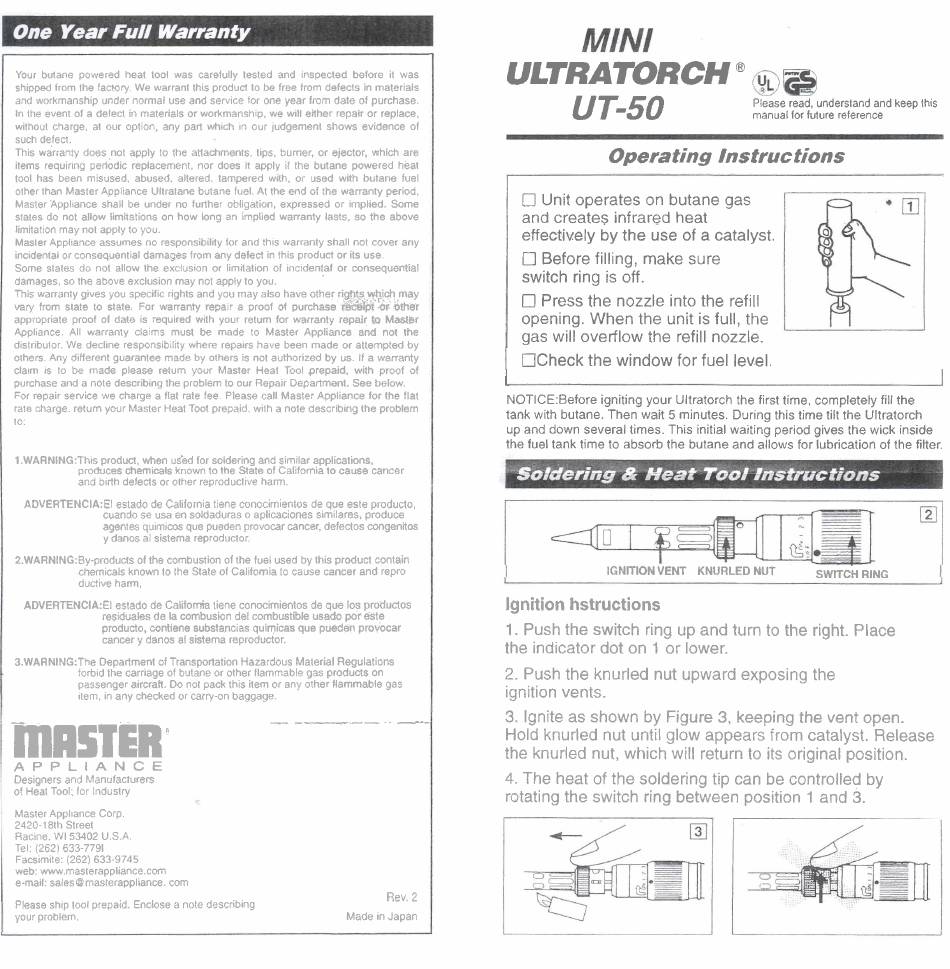

Master ULTRATORCH UT-50 Operating Instructions

Your butane powered heat tool was carefully lested and Inspected before 1 1 was
sh~pped lrom the factory We warrant thls product to be free from defects m materials
and workmansh~p under normal use and servlce for one year from date of purchase
In the event of a defect tn mater~als or workmansh~p, we will e~ther repalr or replace.
w~thout charge, at our optton, any part which In our judgement shows evidence of
such defect.
This warranty does not apply to the attachments. t~ps, burner, or ejector, vhlch are
Items requlnng penodlc replacement, nor does ~t apply ~f the butane powered heat
tool has been mlsused. abused, altered, tampered wlth, or used with butane fuel
other than Master Appl~ance Ultratane butane fuel At the end of the warranty per~od,
Master Appl~ance shall be under no further obl~gation, expressed or ~mpl~ed. Some
states do not allow l~mltat~ons on how long an ~mpl~ed warranty lasts, so the above
limltat~on may not apply to you
Masler Appl~ance assumes no responslblllty for and thls warranty shall not cover any
tncldental or consequent~al damages from any defect m this product or 11s use
Some slates do not allow the excluston or l~mflat~on of ~nctdentaf or consequential
damages, so the above exclus~on may not apply to you.
This warranty glves you specrflc nghts and you may also have other nghts which may
vary from slate to state For warranty repalr a proof of purchase f & & i t % r
dthei
appropriate proof of date 1 s required w~th your retum for warranty repair
to
Master
Appl~ance All warranty cla~ms must
be
made to Master Appliance and not the
dlstr~butor We decllne respons~b~lrty where repairs have been made or attempted by
others Any d~tferent guarantee made by others
IS
not authorized by us If a warranty
clam 1 s to
be
made please retum your Master Heat Tool prepa~d, w~th proof of
purchase and a note descr~b~ng the problem to our Repar Department. See below.
For repalr servlce we charge a flat rate fee Please call Master Appl~ance for the flat
rate charge return your Master Heat Toot prepa~d. w~th a note descrlblng the problem
to
1 .WARNING.Tha product, when uSed for
soldering
and slmllar appllcat~ons.
produces chemlcels known to the State of Calrfom~a to cause cancer
and birth defects or other
reproductive
harm
ADVERTENC1A:EI estado de Callfornla tlene conoclmlentos de que este producto,
cuando se usa en soldaduras o apllcac~ones stmtlares, produce
agentes quunlcos que pueden provocar cancer, defectos mgenitos
y danos al sistema reproductor
2.WARNING:By-products of the combust~on of the fuel used by thls product contaln
chernlcals known to the State of Cal~forn~a to cause cancer and repro
dudlve harm,
ADVERTENCIA:EI estado de Callfomia tlene conoclmlentos de que 10s produclos
re~~duales de la combus~on
del
combustible usado
por
este
producto, cont~ene substanc~as quimicas que pueden provocar
cancer y danos al sistema reproductor
3.WARNING:The Department of Transportatloo Hazardous Mater~al Regulat~om
forb~d the carnage of butane or other flammable gas products on
passenger a~rcrafl Do not pack thls Item or any other Hammable gas
Item. In any checked or carry-on baggage
-
----
- -
mUSTERR
A P P L I A N C E
Des~gners and Manufacturers
of Heat Tool. for Industry
Master Appl~ance Corp
2420-18th Street
Raclne. WI
53402 U
S
A
Tel (262) 633-7791
Facs~m~te (262) 633-9745
web www masterappl~ance.com
e-mall sales@masterappllance com
Rev 2
Please sh~p tool prepa~d Enclose a note descrlb~ng
your problem Made 10 Japan

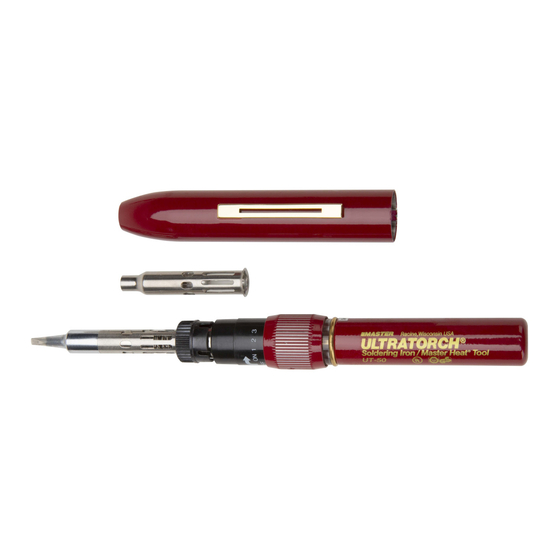

ULTRATORCH
"
UT-50
Please read, understand and keep this
manual for future reference
Operating Instructions
Unit operates on butane gas
and creates infrared heat
effectively by the use of a catalyst.
Before filling, make sure
switch ring is off.
Press the nozzle into the refill
opening. When the unit is full, the
gas will overflow the refill nozzle.
(
OCheck the window for fuel level.
I
N0TICE:Before igniting your Ultratorch the first time, completely fill the
tank with butane. Then wait 5 minutes. During this time tilt the Ultratorch
up and down several times. This initial waiting period gives the wick inside
the fuel tank time to absorb the butane and allows for lubrication of the filter.
IGNITION VENT KNURLED NUT
SWITCH
RING
Ignition hstructions
1. Push the switch ring up and turn to the right. Place
the indicator dot on 1 or lower.
2. Push the knurled nut upward exposing the
ignition vents.
3. Ignite as shown by Figure 3, keeping the vent open.
Hold knurled nut until glow appears from catalyst. Release
the knurled nut, which will return to its original position.
4. The heat of the soldering tip can be controlled by
rotating the switch ring between position 1 and 3.
