Casablanca W-500 Technical Bulletin

TYPE INFORMATION
TECHNICAL INFORMATION
COSMPOLITAN SERIES FANS
CONVERSION INFORMATION
INSTALLED IN CANOPY
(Figure #1)
New changes have made to both the channel settings and operation of the electronics of the New
W-505 receiver and transmitter. The jumper where removed from both the receiver and transmitter
and dip switches were added only to the transmitter for easy setup. Changing the channel on the fan

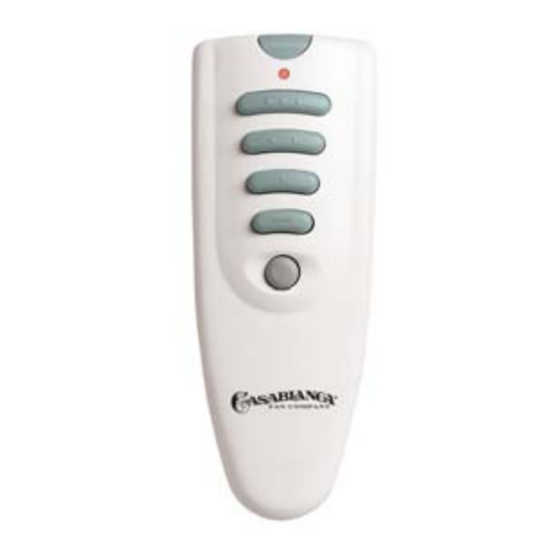

is not done by changing the dip switch, but by pressing a series of buttons on the W-505 wall control,
as covered in the Operation section of this technical bulletin.
File Name (TBW500ConvertW505.pmd) RAS 05-18-2007

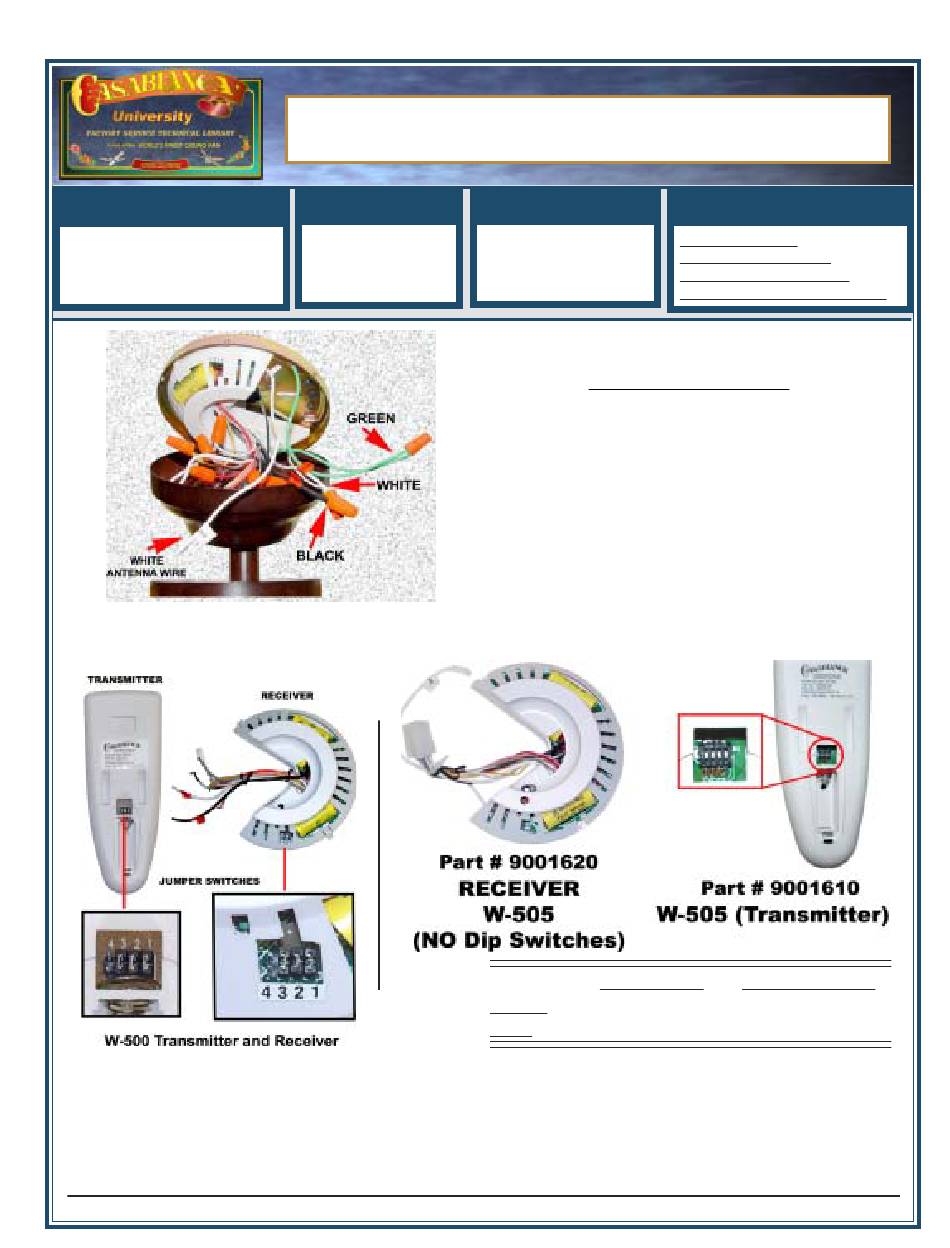

W-500 CONVERSION TO W-505 RECEIVER AND TRANSMITTER
APPLIES
FIELD SERVICE
W-500 RECEIVER
AND TRANSMITTER
AS NEEDED
Casablanca Fan Co. - Factory Service Department - Technical Library
CANOPY RECEIVER CUP - INSTALLATION
Page 1 of 13
SPECIFIC
COSMPOLITAN SERIES
CONVERSION
INFORMATION
INFORMATION ONLY
he information within this document will help
T
you when converting the W-500 Receiver in
the Canopy Receiver Cup as shown (Figure
#1) to W-505 Receiver. Covered is how to
wire and install.
wiring diagrams you might need. The removal
of the canopy trim ring and helpful hints on
how to make the job a little easier, when the
third hand or second person is required.
NOTE: Both RECEIVER and TRANSMITER
MUST be replace as a set or this repair will
NOT work.
1
RELEASE
DATE : 5-17-2007
TECHNICAL BULLETIN
RELEASE TB05172007A
W500 TO W505 CONVERSION
Also covered, are different
Convert W500 to W505 - Continued
